The Mechanics of Oil Separators

The internal combustion engine, a marvel of modern engineering, relies on a complex interplay of components to deliver power. Among these, often unseen but critically important, is the oil separator. Its primary function is to manage the crankcase ventilation system, preventing oil mist from escaping into the atmosphere or contaminating the intake air. This article will delve into the intricate workings of an oil separator, explore its significance for engine health and environmental compliance, and discuss the crucial aspect of its maintenance. Understanding this component can lead to a more efficient, cleaner, and longer-lasting engine.

What is an Oil Separator and Why is it Necessary?

An oil separator, also known as a crankcase ventilation filter or PCV (Positive Crankcase Ventilation) oil separator, is a device integrated into a vehicle's engine system. Its fundamental purpose is to separate oil particles from the blow-by gases that accumulate in the crankcase. During combustion, a small amount of exhaust gases inevitably leak past the piston rings and enter the crankcase. These "blow-by" gases contain unburnt fuel, combustion by-products, and, crucially, a fine mist of engine oil. If left unchecked, this mixture can lead to several problems:

• Environmental Pollution: Uncontrolled release of crankcase vapors into the atmosphere contributes to air pollution.
• Oil Consumption: Oil mist can be drawn back into the combustion chamber, leading to increased oil consumption and potential fouling of spark plugs and catalytic converters.
• Engine Sludge and Deposits: The accumulation of blow-by gases and oil mist can form sludge and carbon deposits within the engine, hindering performance and reducing its lifespan.
• Pressure Buildup: Without proper ventilation, pressure can build up in the crankcase, potentially forcing oil past seals and gaskets, leading to leaks.

The oil separator, as part of the PCV system, addresses these issues by routing these blow-by gases through a filtering mechanism that captures the oil mist before the cleaned gases are recirculated back into the intake manifold to be re-combusted.

How Does an Oil Separator Work? The Mechanics Explained

The design and operation of oil separators can vary between different vehicle manufacturers and engine types, but the fundamental principles remain consistent. Most modern oil separators employ a combination of physical processes to achieve oil separation. Here are the common mechanisms:

1. Cyclonic Separation (Centrifugal Force)

Many advanced oil separators utilize a cyclonic design. Blow-by gases are directed into a cylindrical chamber at high speed, causing them to spin rapidly. This spinning motion generates centrifugal force, which is significantly greater than the force of gravity. The heavier oil droplets, being denser than the gases, are thrown outwards against the walls of the chamber. These collected oil droplets then trickle down to the bottom of the separator, where they are typically drained back into the oil sump or collected in a separate reservoir for later disposal or recirculation.

2. Baffling and Impingement

Another common method involves a series of baffles or specially designed surfaces within the separator. As the blow-by gases flow through the separator, they are forced to change direction multiple times. When the gas stream encounters these baffles, the inertia of the oil droplets causes them to continue in their original path, striking the baffle surfaces. Upon impact, the oil droplets coalesce into larger droplets, which then drip down due to gravity.

3. Filtration Media

Some oil separators incorporate a fine filter medium, often made of porous materials like foam, felt, or specialized synthetic fibers. The blow-by gases are passed through this filter. The smaller oil droplets become trapped in the pores of the filter material. As more oil accumulates, the droplets merge and eventually become large enough to be released and drain away. The efficiency of this method depends heavily on the fineness of the filter pores and the flow rate of the gases.

4. Condensation

In some systems, the separator might also facilitate condensation. As the hot blow-by gases cool within the separator, any vaporised oil can condense back into liquid form, making it easier to collect and remove.

The separated oil is typically returned to the engine's oil sump via a dedicated hose or pipe, completing the cycle. The cleaned air is then directed back into the engine's intake system.

Types of Oil Separators

While the core function is the same, oil separators can be broadly categorised:

Factory-Installed (OEM) Separators

These are designed and fitted by the vehicle manufacturer as an integral part of the engine. They are often integrated into the engine's PCV system and are engineered to meet specific performance and emissions standards for that particular vehicle model. These are typically highly efficient but can be complex and expensive to replace.

Aftermarket Oil Catch Cans

These are supplementary devices that can be installed by enthusiasts or mechanics to further enhance the separation of oil from the crankcase vapors. An oil catch can acts as an additional reservoir where oil mist is collected before it can enter the intake manifold. They can be particularly beneficial in high-performance or modified engines where blow-by can be more significant. Catch cans can employ various separation methods, including baffling, filtration, and sometimes even simple mesh screens.

Integrated Separators (e.g., in Turbochargers)

In turbocharged engines, the turbocharger itself can sometimes incorporate or be closely linked to an oil separation system to manage oil mist generated under high boost pressures.

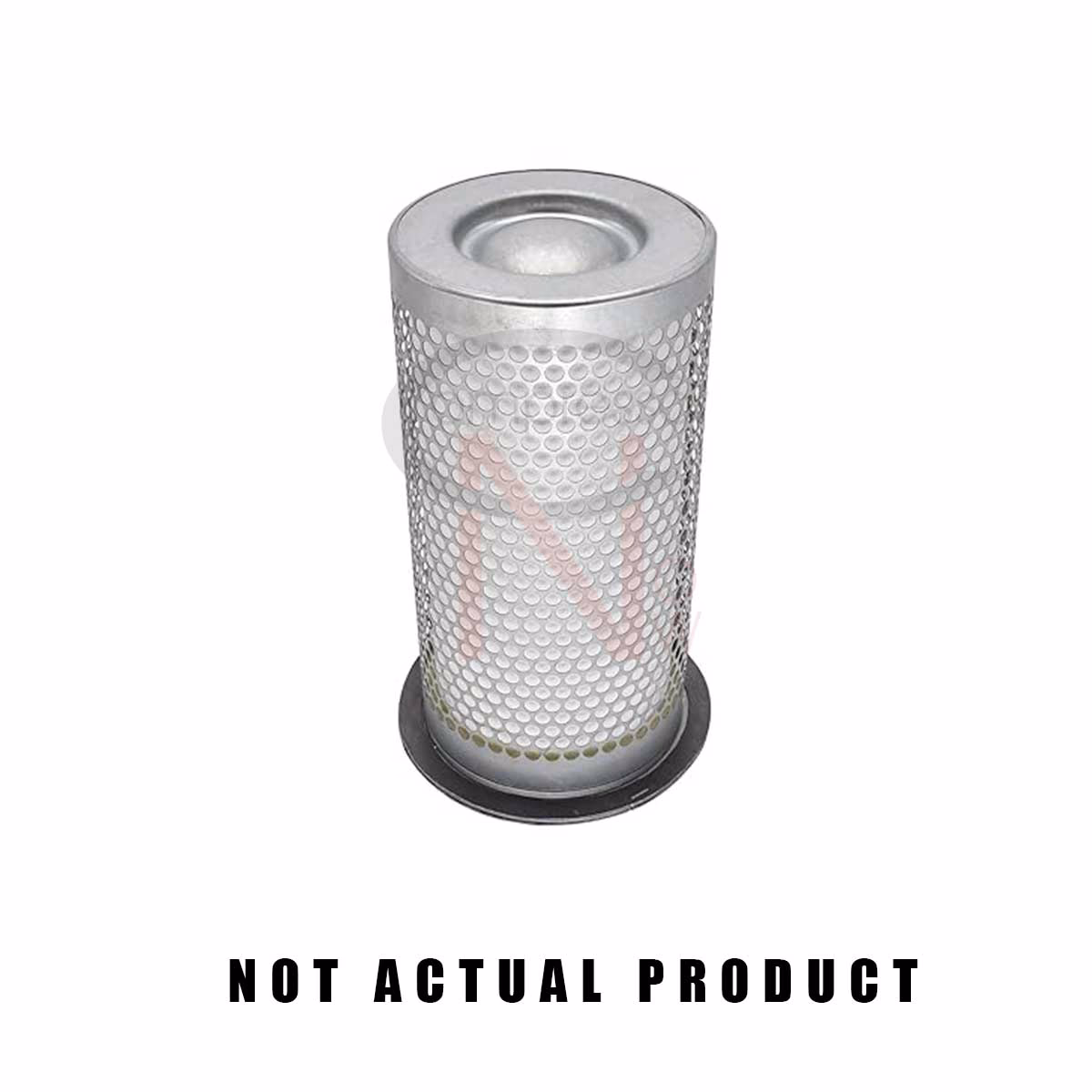

Maintenance and Replacement: How Often Should the Air/Oil Separator Be Changed?

Like any component in an engine, the oil separator requires periodic maintenance to ensure its continued effectiveness. The provided information states that an air/oil separator should be changed every 2000 hours of usage, with the associated strainer needing cleaning every 500 hours. This is a common guideline, particularly for industrial air compressors, but the principles apply to automotive applications as well, albeit with different timeframes.

Factors Influencing Replacement Intervals

• Engine Type and Age: Older engines or those with higher mileage might produce more blow-by, potentially leading to faster clogging of the separator.
• Driving Conditions: Frequent short trips, stop-and-go traffic, and aggressive driving can increase the amount of blow-by and oil mist.
• Oil Quality: Using the correct grade and quality of engine oil can influence the formation of oil mist and sludge.
• Engine Modifications: Performance modifications, especially those involving forced induction (turbocharging or supercharging), can significantly increase blow-by.
• Manufacturer Recommendations: Always consult your vehicle's owner's manual for specific service intervals recommended by the manufacturer.

Signs of a Failing Oil Separator

A clogged or malfunctioning oil separator can manifest in several ways:

• Increased Oil Consumption: If oil is being burned in the combustion chamber due to poor separation.
• White Smoke from Exhaust: Indicates oil is entering the combustion chamber and burning.
• Engine Oil Leaks: Pressure buildup in the crankcase can force oil out of seals and gaskets.
• Sluggish Engine Performance: Deposits from unseparated oil can impede engine operation.
• Check Engine Light: Modern vehicles may have sensors that detect issues with the PCV system.
• Rough Idling: Inconsistent air-fuel mixture due to improper crankcase ventilation.

Can an Oil Separator be Cleaned?

While some components of the PCV system, like the strainer, are designed for cleaning (as per the 500-hour interval mentioned for air compressors), the main oil separator unit itself is often considered a non-serviceable part in many automotive applications. It's typically a sealed unit designed for replacement. Attempting to clean it might be ineffective or could damage the delicate internal components. However, if you have an aftermarket oil catch can, these are generally designed to be drained regularly and can sometimes have their internal elements cleaned or replaced.

Replacement Procedure (General Overview)

Replacing an oil separator usually involves:

1. Locating the Separator: It's typically found connected to the PCV valve and routed from the crankcase.
2. Disconnecting Hoses: Carefully detach the hoses connected to the separator.
3. Removing the Old Unit: This might involve unclipping, unscrewing, or unbolting it.
4. Installing the New Unit: Fit the new separator and reconnect the hoses securely.
5. Checking for Leaks: Start the engine and check for any air or oil leaks around the new unit and hose connections.

Note: For specific instructions tailored to your vehicle, always refer to a reputable workshop manual or seek professional assistance.

The Importance of a Clean PCV System

The oil separator is a crucial part of a healthy Positive Crankcase Ventilation (PCV) system. A well-functioning PCV system is vital for:

• Emissions Control: It prevents harmful crankcase vapors from entering the atmosphere, contributing to cleaner air.
• Engine Longevity: By removing contaminants and preventing sludge formation, it helps maintain engine health and extend its life.
• Fuel Efficiency: A properly ventilated crankcase can contribute to optimal engine performance and fuel economy.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car if the oil separator is faulty?

While your car might still run, a faulty oil separator can lead to increased oil consumption, potential oil leaks, and the buildup of harmful sludge within your engine. It's best to have it checked and replaced as soon as possible to prevent further damage.

Q2: How do I know if my oil separator needs cleaning or replacing?

Look out for symptoms like increased oil consumption, blue or white smoke from the exhaust, oil leaks, or a rough-running engine. Checking your vehicle's service history for PCV system maintenance is also advisable.

Q3: Are oil catch cans the same as oil separators?

An oil catch can is a type of aftermarket device that can supplement or replace certain functions of a factory PCV oil separator. They are designed to capture oil mist more effectively, especially in modified engines. The term "oil separator" is broader and encompasses both factory-integrated units and aftermarket solutions.

Q4: What happens if I disconnect the oil separator?

Disconnecting the oil separator would essentially bypass the PCV system's oil capture function. This would allow oil mist and blow-by gases to be directly vented into the atmosphere or the intake, leading to increased pollution, potential oil burning, and contamination of engine components.

Q5: Can a clogged oil separator cause a turbocharger to fail?

While not a direct cause, a severely clogged PCV system, including the oil separator, can lead to excessive crankcase pressure. This pressure can, in turn, stress the seals in a turbocharger, potentially leading to oil leaks into the exhaust or intake side of the turbo, which can eventually contribute to its premature failure.

Conclusion

The oil separator, though often overlooked, plays a critical role in maintaining engine health, reducing emissions, and ensuring the longevity of your vehicle. By understanding how it works, recognizing the signs of a failing unit, and adhering to recommended maintenance schedules, you can contribute significantly to the optimal performance and environmental compliance of your car. Regular checks and timely replacement of this vital component are a small price to pay for the significant benefits it offers.
