The oil pressure warning light on your vehicle's dashboard can be a rather alarming sight. Often appearing as a red or amber oil can symbol, its illumination signifies a potential issue with your engine's lubrication system. Ignoring this warning can lead to severe engine damage, so understanding why it illuminates and how to address it is crucial for any car owner.
Many drivers experience the unsettling phenomenon of the oil light flickering on and off. This intermittent behaviour can be particularly confusing. Is it a serious problem, or a minor glitch? While the exact cause can vary, the underlying message is consistent: the engine's oil pressure is not within the optimal range. This can be due to a multitude of factors, ranging from simple oversight to component failure.
Understanding the Oil Pressure Warning Light
At its core, the oil pressure warning light is a vital safety feature. It alerts you to a critical condition where the engine's moving parts are not receiving adequate lubrication. Engine oil serves multiple purposes: it lubricates to reduce friction, cools components, cleanses the engine by carrying away debris, and forms a seal between parts. When oil pressure drops, these functions are compromised, leading to increased wear and tear, overheating, and potentially catastrophic engine failure.
The light is typically connected to an oil pressure sensor. This sensor constantly monitors the oil pressure within the engine. If the pressure falls below a pre-determined threshold, the sensor sends a signal to the car's computer, which then illuminates the warning light on the dashboard. It's important to distinguish this light from the oil level warning light, though both relate to the lubrication system.

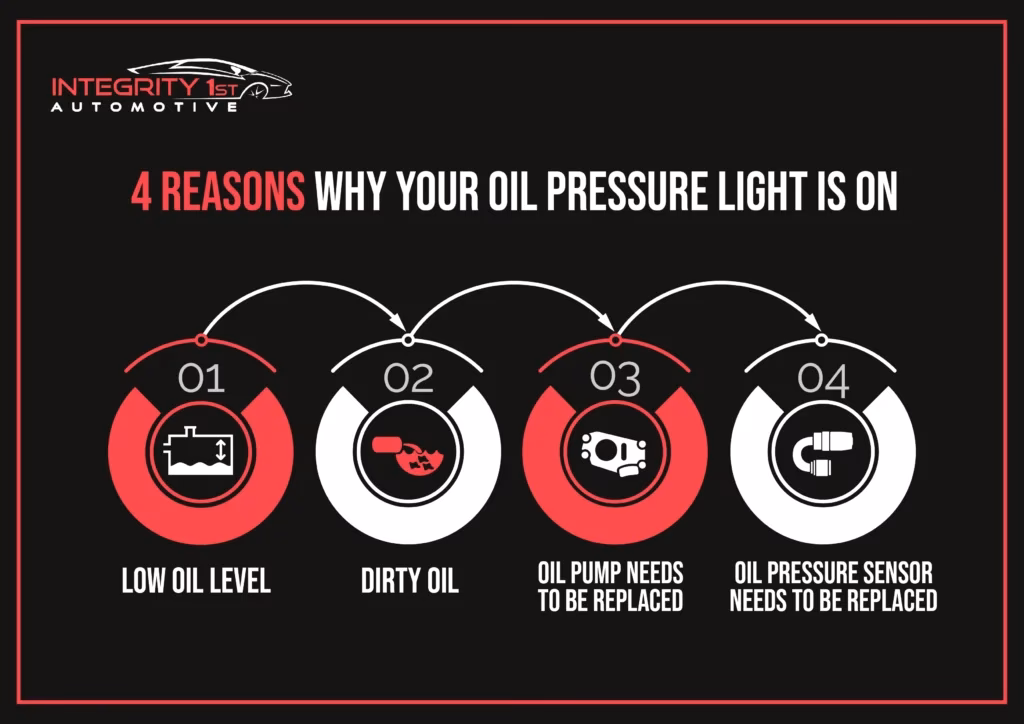

Common Causes for the Oil Light Illuminating
Several factors can contribute to the oil pressure light coming on. Identifying the root cause is the first step towards a solution.
1. Low Engine Oil Level
This is perhaps the most common and straightforward reason for the oil light to activate. If your engine is low on oil, there simply isn't enough fluid to generate the necessary pressure. This can happen due to oil consumption over time, leaks, or simply neglecting to top up the oil.
Key Takeaway: Always ensure your engine oil is within the recommended levels. Regularly checking your oil dipstick is a fundamental part of vehicle maintenance.
2. Faulty Oil Pump
The oil pump is the heart of the lubrication system, responsible for circulating oil throughout the engine under pressure. If the oil pump is worn, damaged, or experiencing a malfunction (such as a failed overpressure valve), it will be unable to maintain adequate oil pressure. This is a more serious issue that requires immediate attention.
3. Clogged Oil Pickup Tube
The oil pickup tube is a component that draws oil from the sump into the oil pump. It usually has a mesh screen to prevent large debris from entering the pump. However, over time, this screen can become clogged with sludge, dirt, or metal particles. A clogged pickup tube restricts oil flow to the pump, leading to reduced oil pressure.
4. Oil Filter Issues
The oil filter removes contaminants from the engine oil. If the oil filter becomes severely clogged, it can impede oil flow and reduce pressure. In some cases, a faulty oil filter might have a bypass valve that opens when the filter is too restrictive, allowing unfiltered oil to circulate, but this can still contribute to pressure issues.
5. Damaged Oil Pressure Sensor
While the oil pressure itself might be perfectly fine, a malfunctioning oil pressure sensor can erroneously report low pressure. The sensor might be faulty, corroded, or have damaged wiring, leading it to send incorrect signals to the car's computer. This can result in the oil light illuminating even when there's no actual problem with the oil pressure.
6. Damaged Sensor Wires
Similar to a faulty sensor, damaged or loose wiring connected to the oil pressure sensor can also cause intermittent or constant illumination of the warning light. Vibrations, corrosion, or physical damage to the wires can disrupt the signal transmission.
7. Oil Leakage
Internal or external oil leaks can lead to a gradual or rapid decrease in oil levels, consequently affecting oil pressure. External leaks are often visible as oil spots under the vehicle, while internal leaks can be more insidious, occurring within the engine itself.
8. Internal Engine Wear or Damage
In more severe cases, worn engine components such as bearings or seals can lead to excessive oil leakage internally, reducing the overall oil pressure. This is often a sign of a significant underlying engine problem.
Troubleshooting and Fixing the Oil Light
When the oil light appears, it's essential to act promptly. Here’s a step-by-step approach to diagnosing and resolving the issue:
Step 1: Check the Engine Oil Level
This is the first and most crucial step. Park your vehicle on a level surface and allow the engine to cool down for a few minutes. Locate the engine oil dipstick (refer to your owner's manual if unsure). Pull out the dipstick, wipe it clean with a lint-free cloth, reinsert it fully, and then pull it out again. Observe the oil level against the markings on the dipstick. If the level is below the minimum mark, you need to add the correct type and amount of engine oil. Once topped up, restart the engine and see if the light goes off.
Table: Oil Level Check Guide
| Action | Observation | Recommendation |
|---|---|---|
| Check dipstick after wiping and reinserting | Oil level is below the 'MIN' or 'ADD' mark | Add the correct grade of engine oil. Recheck level. |
| Check dipstick | Oil level is between 'MIN' and 'MAX' or 'ADD' and 'FULL' marks | Oil level is satisfactory. |
| Check dipstick | Oil level is above the 'MAX' or 'FULL' mark | Excess oil can cause issues; consider draining some. |
Step 2: Inspect for Oil Leaks
If the oil level is correct, the next step is to look for obvious oil leaks. Check under the vehicle for any fresh oil spots. Inspect the oil pan, oil filter housing, and engine block for signs of oil seepage or drips. If you find a leak, the source needs to be identified and repaired, which might involve replacing gaskets, seals, or the oil pan itself.
Step 3: Consider the Oil Filter and Oil Change
If it's been a while since your last oil change, or if you suspect the oil is heavily contaminated or sludgy, it might be time for a fresh oil and filter change. A clogged filter can restrict flow. Using the correct grade of oil is also paramount.
Step 4: Test or Replace the Oil Pressure Sensor
If the oil level is good and there are no apparent leaks, the oil pressure sensor is a likely culprit. You can have a mechanic test the sensor's functionality using a pressure gauge. If it's faulty, it will need to be replaced. This is usually a relatively straightforward replacement, involving unscrewing the old sensor and screwing in a new one, then reconnecting the wiring.
Step 5: Investigate the Oil Pump
If all the above checks and replacements don't resolve the issue, the oil pump itself may be failing. Diagnosing a faulty oil pump often requires more in-depth mechanical work, potentially involving dropping the oil pan to inspect the pump and pickup tube. If the pump is indeed faulty, it will need to be replaced. This is a more involved repair that is best left to experienced mechanics.
Step 6: Check Oil Passages and Pickup Tube
A thorough inspection might reveal blockages in the oil passages within the engine or the oil pickup tube. Clearing these blockages is essential for restoring proper oil flow and pressure.
Frequently Asked Questions (FAQs)
- Can I drive with the oil light on? It is strongly advised not to drive your vehicle if the oil pressure warning light is illuminated, especially if it stays on continuously. Driving with low oil pressure can cause severe and irreversible damage to your engine, potentially leading to a complete engine failure. If the light flickers intermittently, pull over as soon as it is safe to do so and investigate the cause.
- How much does it cost to fix the oil light? The cost can vary significantly depending on the cause. Topping up oil is inexpensive. Replacing an oil pressure sensor might cost anywhere from £50 to £200, depending on the vehicle and labour. Replacing an oil pump or dealing with significant leaks can be much more expensive, potentially running into hundreds or even thousands of pounds for major engine work.
- What is the difference between the oil light and the oil level light? While both relate to the lubrication system, the oil pressure light indicates a lack of pressure in the system, meaning oil isn't circulating effectively. The oil level light (often a different symbol) specifically indicates that the engine oil level is too low. However, a low oil level is a common cause of low oil pressure.
- How often should I check my engine oil? It's a good practice to check your engine oil level at least once a month and before any long journeys. Many modern cars also have an electronic oil level check system accessible through the dashboard menu.
The oil pressure warning light is a critical indicator that should never be ignored. By understanding the potential causes and following a systematic approach to diagnosis and repair, you can protect your engine and ensure your vehicle remains in good working order. Regular maintenance, including timely oil and filter changes and occasional oil level checks, is the best defence against this potentially costly warning.
