Mk3 MX-5 5-Speed Turret Oil: A Crucial Guide

For many Mazda MX-5 enthusiasts, the joy of driving comes not just from the open road and the wind in their hair, but also from the precise, engaging feel of the gear change. The MX-5, particularly the Mk3 (NC generation), is renowned for its short, crisp shifts. However, an often-overlooked component crucial to this experience, especially in the 5-speed manual transmission, is the 'turret oil'. This isn't the main gearbox oil that lubricates the gears themselves, but rather a small, yet mighty, reservoir of fluid dedicated solely to the shifter mechanism. Neglecting this often-forgotten fluid can lead to a less satisfying, notchy, or even difficult gear selection, diminishing the very essence of the MX-5 driving experience.

Understanding the role of this fluid, knowing whether your 5-speed Mk3 has it, and recognising when it needs attention are key aspects of proactive maintenance that can significantly improve your car's feel and longevity. Many owners are surprised to learn about its existence, often confusing it with the main gearbox oil. This article aims to demystify turret oil, providing a comprehensive guide for Mk3 5-speed owners to ensure their gear shifts remain as smooth and satisfying as they were designed to be.

What Exactly is Turret Oil and Why is it So Important?

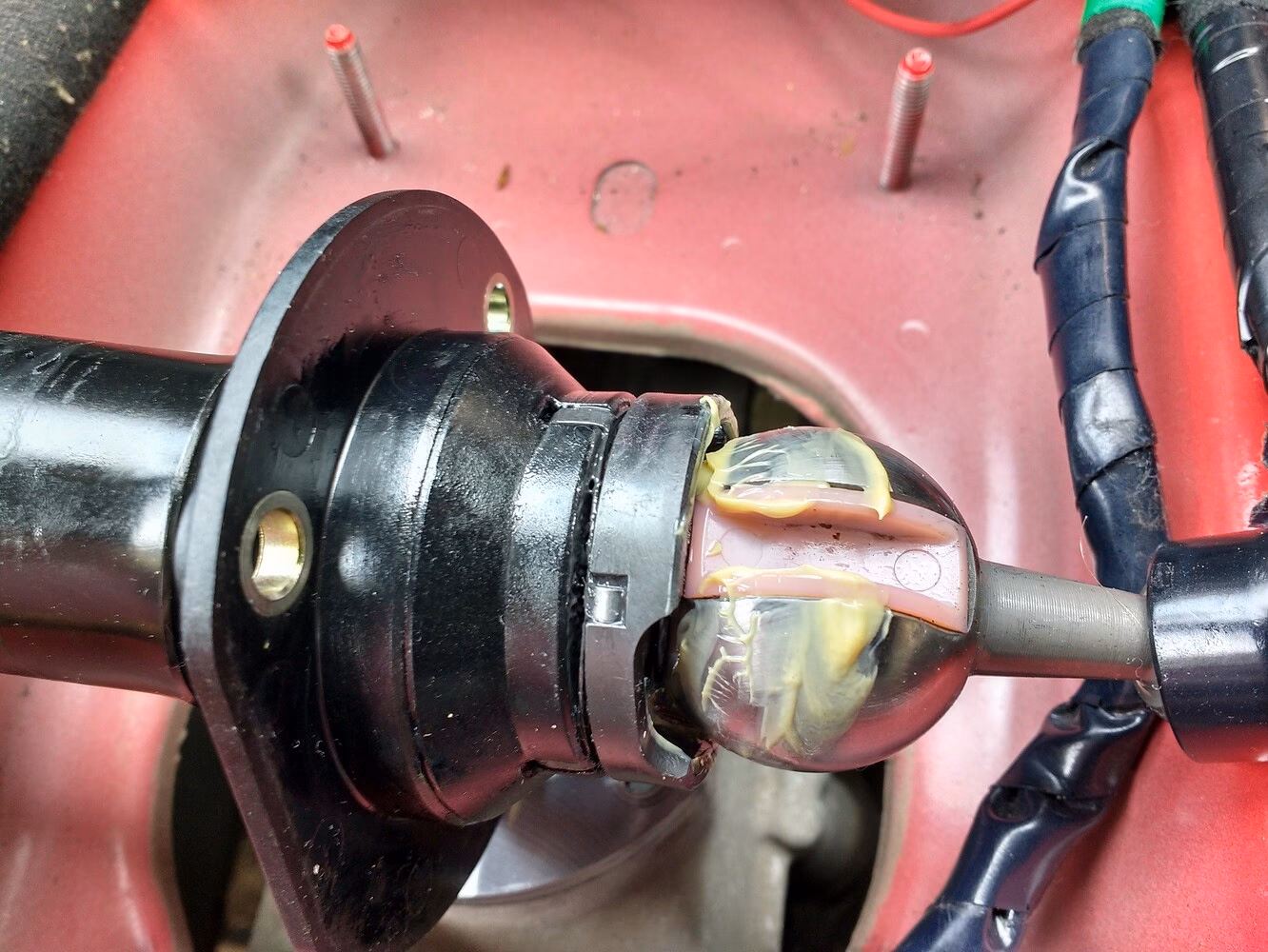

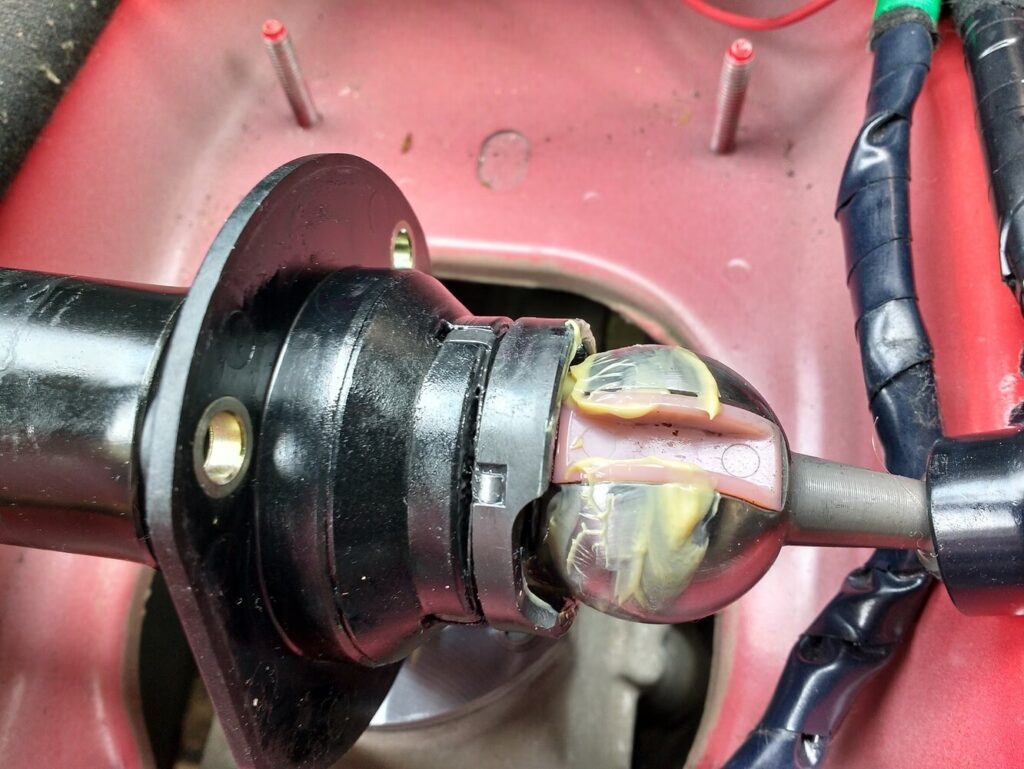

In the context of your Mazda MX-5's manual gearbox, the 'turret' refers to the housing directly beneath the gear stick, where the shifter mechanism connects to the transmission. This area contains a series of pivots, bushings, and a small cup that the bottom of the gear lever sits in. For the gear stick to move freely and precisely, these components require lubrication. That's where turret oil comes in.

Unlike the main gearbox oil which lubricates the rotating gears, shafts, and bearings within the transmission casing, turret oil specifically lubricates the shifter mechanism itself. It ensures that the gear lever moves smoothly through its gates, providing that characteristic direct and positive feel for which the MX-5 is famous. Without adequate or clean turret oil, friction increases, leading to a stiff, notchy, or even grinding sensation when changing gears. Over time, this small amount of oil can become contaminated with wear particles, moisture, or simply degrade, losing its lubricating properties. This degradation directly impacts the quality of your gear changes, making what should be a slick operation feel cumbersome and imprecise.

Does the 5-Speed Mk3 MX-5 Have Turret Oil?

Yes, absolutely. The 5-speed manual transmission in the Mk3 (NC) Mazda MX-5 does indeed have a dedicated turret oil reservoir. This is a common point of confusion, as many assume the main gearbox oil lubricates everything. However, the 5-speed unit, like its predecessors (Mk1 and Mk2), utilises a separate system for the shifter mechanism. This design choice is part of what gives the MX-5 its distinctively direct and mechanical shift feel.

It's worth noting that the 6-speed manual transmission found in some Mk3 models operates differently. The 6-speed gearbox is typically a 'sealed' unit in terms of its shifter mechanism, meaning its internal components are lubricated directly by the main gearbox oil. This distinction is crucial, as the maintenance procedures for the 5-speed and 6-speed turrets are entirely different. For 5-speed owners, understanding and maintaining this separate turret oil is paramount for optimal shifting performance.

Symptoms of Neglected Turret Oil

Ignoring the turret oil can lead to a noticeable decline in your MX-5's shift quality. Here are some common symptoms that suggest your turret oil might be low, old, or contaminated:

• Notchy or Stiff Shifting: This is perhaps the most common symptom. Instead of sliding smoothly into gear, you might feel resistance or a 'notch' as the lever moves.
• Difficulty Engaging Gears: Particularly noticeable when cold, you might struggle to get into first or reverse, or experience general difficulty engaging any gear.
• Grinding Sensation: While not as severe as gearbox synchro issues, a slight grinding or rough feel through the gear lever can indicate poor lubrication in the turret.
• Increased Gearbox Noise: Though less common for turret oil alone, excessive friction can sometimes contribute to subtle increases in mechanical noise from the shifter area.
• General Loss of 'Crispness': The hallmark of an MX-5 is its precise, mechanical shift. If your shifts feel vague, sloppy, or less direct than they once did, depleted turret oil could be the culprit.

These symptoms can often be mistaken for more serious gearbox issues, but a simple turret oil check and change can frequently resolve them, saving you from unnecessary worry or costly diagnostics.

Checking and Changing Your 5-Speed Mk3 Turret Oil: A Step-by-Step Guide

Changing the turret oil in your 5-speed Mk3 MX-5 is a relatively straightforward DIY task, often taking less than an hour. It requires minimal tools and can make a significant difference to your driving experience. Remember, safety first: ensure your car is on a level surface, the handbrake is engaged, and the engine is off and cool.

Tools and Materials You'll Need:

• New turret oil (approx. 200-250ml) – Mazda recommends specific manual transmission fluid (e.g., GL-4 75W-90, but always check your owner's manual for the exact specification).
• Syringe pump or a long, thin hose (approx. 1 metre) and a funnel.
• Flat-head screwdriver or trim removal tool.
• 10mm socket or wrench.
• Clean rags or paper towels.
• Drain pan or container for old oil (optional, as you'll be extracting, not draining).
• Gloves and eye protection.

Step-by-Step Procedure:

1. Access the Gearbox Turret:
   a. Inside the car, carefully pry up the gear knob and remove it by unscrewing (some models may just pull up).
   b. Remove the gear lever gaiter (the leather or fabric boot). This usually involves gently prying up the trim around its base.
   c. Locate and remove the screws or clips holding the centre console trim in place. This varies slightly by model year, but typically involves screws in the armrest compartment, under the gear shift surround, and near the dashboard.
   d. Carefully lift and remove the centre console trim. You may need to disconnect electrical connectors for window switches or other accessories. Set the trim aside.
   e. You will now see a rubber boot (or sometimes a plastic cover) covering the top of the gearbox turret. This boot is usually held in place by several 10mm bolts or screws. Remove these.
2. Expose the Turret:
   a. With the outer boot removed, you'll see another, smaller rubber boot directly over the shifter mechanism. Gently peel this back.
3. Check and Extract Old Oil:
   a. Look into the opening. You should see the bottom of the gear lever sitting in a small pool of oil. Observe the colour and consistency of the oil. If it's dark, sludgy, or low, it's time for a change.
   b. Using your syringe pump or the long hose method (as suggested by other enthusiasts: run a length of hose down through the engine bay, guiding it into the turret opening), extract as much of the old oil as possible. A pump is generally easier and less messy for this confined space.
4. Add New Turret Oil:
   a. Slowly pour or pump the new, clean transmission fluid into the turret. Be careful not to overfill. The correct level is typically when the oil just covers the bottom ball of the shifter, or about 200-250ml. Some sources suggest filling until it's about 1cm below the top edge of the turret cup. It's better to add a little, check, and add more if needed, rather than overfilling.
5. Reassembly:
   a. Carefully replace the inner rubber boot, ensuring it's properly seated.
   b. Reattach the outer rubber boot/plastic cover with its 10mm bolts/screws.
   c. Reinstall the centre console trim, reconnecting any electrical connectors.
   d. Reattach the gear lever gaiter and screw the gear knob back on.
6. Test Drive:
   a. Take your MX-5 for a short drive. You should immediately notice a significant improvement in shift feel – smoother, more precise, and less notchy.

Turret Oil vs. Gearbox Oil: Understanding the Difference

It's easy to confuse these two, but they serve distinct purposes. Here's a quick comparison:

While both are vital for the transmission, they are entirely separate systems requiring different attention.

Do I Need a Turret Oil Change?

Given the small volume and the critical role it plays, a turret oil change is highly recommended, especially if you've never done it or if your car has high mileage. Mazda doesn't specify a strict service interval for turret oil as it does for main gearbox oil, likely because it's a 'sealed' system under normal circumstances. However, over time, moisture can ingress, and wear particles from the shifter mechanism can contaminate the oil, reducing its effectiveness.

Many enthusiasts recommend changing the turret oil every 3-5 years or every 30,000-50,000 miles, whichever comes first. If you've just acquired a used Mk3 MX-5, it's an excellent piece of preventative maintenance that can immediately improve your driving experience. If you're experiencing any of the symptoms mentioned earlier (notchy shifts, stiffness), a turret oil change should be one of your first troubleshooting steps.

Recommended Oil Type for Turret Fluid

For the 5-speed Mk3 MX-5, the turret uses the same type of fluid as the main gearbox. Mazda generally specifies a high-quality GL-4 (or sometimes GL-5, but GL-4 is often preferred for synchro longevity) 75W-90 manual transmission fluid. Always double-check your owner's manual for the precise specification for your specific model year. Using the correct fluid is important for optimal lubrication and to avoid damage to the components.

Frequently Asked Questions (FAQs)

Q1: Can I use engine oil or automatic transmission fluid (ATF) for turret oil?

No, absolutely not. You must use a manual transmission fluid (MTF) of the correct specification (e.g., GL-4 75W-90). Engine oil or ATF lack the necessary lubricating properties and additives for the specific demands of a manual gearbox mechanism and could cause damage or accelerate wear.

Q2: How much turret oil do I need for a 5-speed Mk3?

You typically need around 200-250ml (about 0.2 to 0.25 litres) to refill the turret. A 1-litre bottle of suitable MTF will be more than enough and will also allow for top-ups or future changes.

Q3: Is it normal for the old turret oil to be very dark?

Yes, it's quite common for the extracted turret oil to be surprisingly dark, almost black, even if your main gearbox oil is still relatively clean. This is due to the small volume of oil doing a lot of work, accumulating wear particles from the shifter mechanism over many years. This dark colour is a strong indicator that a change was due.

Q4: What if I overfill the turret?

While a slight overfill might not be immediately catastrophic, it's generally best to avoid it. Overfilling can create excessive pressure or aeration within the small space, potentially leading to leaks or reduced lubrication efficiency. Aim to fill it until the oil just covers the bottom ball of the shifter, or about 1cm below the top edge of the cup.

Q5: My shifts are still notchy after changing the turret oil. What else could it be?

While turret oil often resolves notchy shifts, if the problem persists, other culprits could include:

• Low or old main gearbox oil: Check and change this if it hasn't been done.
• Worn gearbox synchromesh rings: These are internal components that help match gear speeds.
• Clutch issues: A dragging clutch (not fully disengaging) can make gear changes difficult.
• Worn shifter bushings: The plastic/rubber bushings in the shifter mechanism itself can wear out.

Start with the simplest and cheapest fix (turret oil), then move on to other possibilities.

Q6: Does the 6-speed Mk3 MX-5 also have turret oil?

No, the 6-speed manual transmission in the Mk3 MX-5 does not have a separate turret oil reservoir. Its shifter mechanism is lubricated by the main gearbox oil. This is a key difference between the 5-speed and 6-speed units.

Conclusion

The turret oil in your 5-speed Mk3 Mazda MX-5 is a small detail that makes a big difference to your driving enjoyment. It's often overlooked, yet its maintenance is simple, inexpensive, and incredibly rewarding. By regularly checking and changing this vital fluid, you'll ensure your gear shifts remain crisp, smooth, and precise, preserving that legendary MX-5 feel for years to come. Don't let a neglected detail compromise your driving pleasure; make turret oil a priority in your routine maintenance for a truly satisfying open-top motoring experience.
