Understanding MOT Type 3 Paving

When discussing road construction and maintenance, particularly within the United Kingdom, you'll frequently encounter various specifications and standards designed to ensure the longevity, safety, and performance of our infrastructure. One such specification that plays a significant role in the creation of robust road surfaces is MOT Type 3 paving. This article aims to demystify what MOT Type 3 paving entails, its purpose, its key characteristics, and where it is typically employed within the vast network of UK roads.

What is MOT Type 3 Paving?

MOT Type 3 paving refers to a specific type of aggregate or granular sub-base material used in road construction. It is defined by the Department for Transport (DfT) and is part of the broader "Materials and Specifications for Road and Bridge Works." Essentially, it's a carefully graded mixture of crushed stone and other inert materials that forms a stable foundation layer beneath the main surfacing of a road. Its primary role is to distribute the loads applied to the road surface evenly across the subgrade (the natural ground below), preventing excessive deformation and ensuring the structural integrity of the road over time. Think of it as the crucial support layer that underpins everything else.

The Purpose and Importance of MOT Type 3

The fundamental purpose of MOT Type 3 paving is to provide a strong, stable, and permeable foundation for the subsequent layers of a road construction. Its importance cannot be overstated, as it directly impacts the overall performance and lifespan of the road. Here’s why it’s so critical:

• Load Distribution: When vehicles travel over a road, they apply significant pressure. MOT Type 3 effectively spreads this pressure across a wider area of the underlying soil, reducing the stress on the subgrade. This prevents the formation of potholes and rutting, common issues in poorly constructed roads.
• Drainage: A key characteristic of MOT Type 3 is its designed permeability. This allows water that penetrates the road surface to drain away efficiently. Proper drainage is vital for preventing frost damage (where water freezes and expands, cracking the road) and for maintaining the strength of the foundation layers. A saturated foundation is a weak foundation.
• Stability: The carefully controlled grading of MOT Type 3 ensures that the material compacts well, creating a firm and stable platform. This stability is essential for the layers laid on top, including the asphalt or macadam surface.
• Frost Heave Prevention: By allowing water to drain, MOT Type 3 helps to mitigate the risk of frost heave, a phenomenon where water in the soil freezes, expands, and pushes the road surface upwards. This can cause significant damage.

Key Specifications and Composition

The exact specifications for MOT Type 3 paving are detailed in various national standards, primarily those set by the Department for Transport (now largely superseded by Highways England specifications, which build upon the original MOT standards). However, the core principles remain consistent. The material is typically composed of:

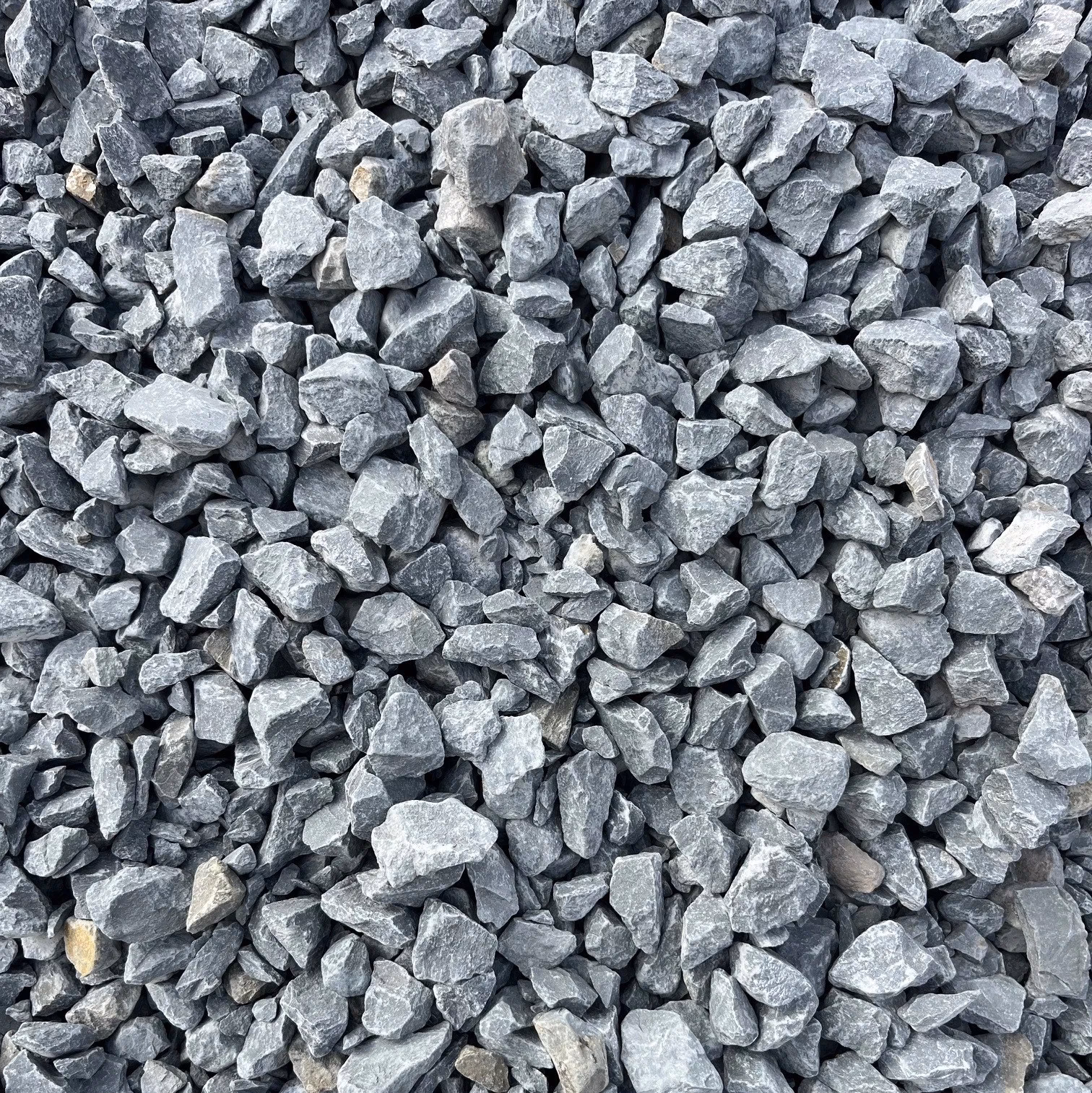

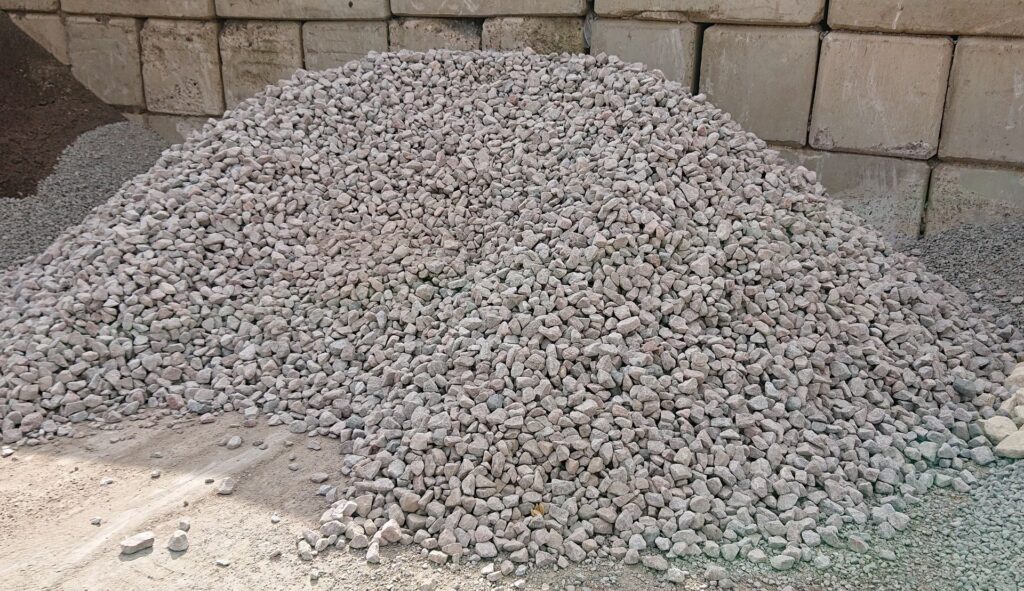

• Crushed aggregate: This is the primary component, usually derived from crushed rock such as limestone, granite, or slag. The aggregate is crushed to specific sizes.
• Grading: The key to MOT Type 3 is its precise grading. This means there is a controlled mix of different particle sizes, from larger stones down to fine dust. This specific mix ensures good compaction and interlocking of the particles. A typical grading curve would ensure a good balance between void content (for permeability) and particle contact (for strength).
• Cleanliness: The material must be free from excessive amounts of clay, silt, or organic matter, which could compromise its strength and drainage capabilities.

While the exact sieve analysis (the percentage of material passing through different mesh sizes) can vary slightly depending on the specific project requirements and regional standards, the general principle is to achieve a well-graded granular material that provides both strength and drainage. The material is laid in layers and compacted using heavy rollers to achieve the required density and stability. The thickness of these layers can vary significantly depending on the expected traffic loads and the strength of the subgrade, often ranging from 150mm to 300mm or more.

Where is MOT Type 3 Paving Used?

MOT Type 3 paving is a versatile material and is commonly found in various road construction scenarios:

• Sub-base Layer: Its most common application is as a sub-base layer beneath the road surface (e.g., asphalt or macadam). This is fundamental for most new road constructions and significant resurfacing projects.
• Carriageways: It forms the foundational support for the main driving lanes of motorways, A-roads, and B-roads.
• Footways and Cycle Paths: While often a less demanding specification might be used for these, MOT Type 3 can also be employed for the sub-base of footways and cycle paths, especially where heavier loads or specific drainage requirements exist.
• Pavements and Hardstandings: In areas requiring a stable and well-drained base, such as industrial pavements or hardstandings for vehicles, MOT Type 3 can be a suitable choice.
• Areas Requiring Permeability: Where drainage is paramount, such as in certain environmentally sensitive areas or where surface water management is a key concern, the permeable nature of MOT Type 3 is highly beneficial.

Comparison with Other Paving Materials

It's useful to understand MOT Type 3 in the context of other materials used in road construction. While MOT Type 3 is a foundational material, the surface layers are typically made of different materials:

As you can see, MOT Type 3 is specifically designed for the foundational layers, providing the necessary stability and drainage, whereas materials like asphalt and macadam form the actual driving surface, providing grip and completing the waterproofing of the road structure.

Frequently Asked Questions about MOT Type 3 Paving

Q1: Is MOT Type 3 always used in road construction?
While it is a very common and effective specification for sub-base, the exact materials and layers used can vary depending on the specific project, traffic levels, soil conditions, and budget. Other granular sub-base materials or even lean mix concrete might be specified.

Q2: What is the difference between MOT Type 1 and MOT Type 3?
MOT Type 1 is also a granular sub-base material, but it is generally more densely graded and less permeable than MOT Type 3. MOT Type 1 is often used as a sub-base where drainage is less of a critical factor, or as a capping layer to prevent water ingress into weaker subgrades. MOT Type 3 is specifically chosen for its superior drainage characteristics in addition to its load-bearing capabilities.

Q3: How is MOT Type 3 tested?
Materials used for MOT Type 3 paving are subject to rigorous testing to ensure they meet the specified grading, cleanliness, and compaction requirements. Tests include sieve analysis, Atterberg limits (to check for fines and plasticity), and potentially dynamic cone penetrometer (DCP) tests on the laid and compacted layer to assess its strength.

Q4: Can MOT Type 3 be used for driveways?
Yes, in many cases, MOT Type 3 can be an excellent choice for the sub-base of a domestic driveway, particularly if it is to be surfaced with block paving or tarmac. Its stability and drainage properties will help ensure a long-lasting and robust driveway, preventing issues like sinking or waterlogging.

Q5: What happens if MOT Type 3 is not laid correctly?
If MOT Type 3 is not laid to the correct thickness, is not adequately compacted, or if the wrong material is used, the entire road structure can be compromised. This can lead to premature failure, such as cracking, rutting, and pothole formation, resulting in costly repairs and disruption.

Conclusion

MOT Type 3 paving, while perhaps not a term commonly known outside the construction industry, is a vital component of modern road engineering in the UK. It represents a carefully engineered granular material that provides the essential foundation for our road networks. Its ability to distribute loads effectively and facilitate drainage ensures that our roads remain stable, safe, and durable, even under the constant stress of traffic and environmental conditions. Understanding its role highlights the complexity and precision involved in building the roads we rely on every day.
