Understanding MOT Type 1 Aggregates

When embarking on any significant groundwork or road construction project, understanding the materials you're using is paramount. Among the most common and essential aggregates is MOT Type 1. Often encountered when ordering supplies for driveways, patios, or sub-bases for roads, this material plays a vital role in creating a stable and durable foundation. But what exactly is MOT Type 1, and why is it so widely specified?

What is MOT Type 1?

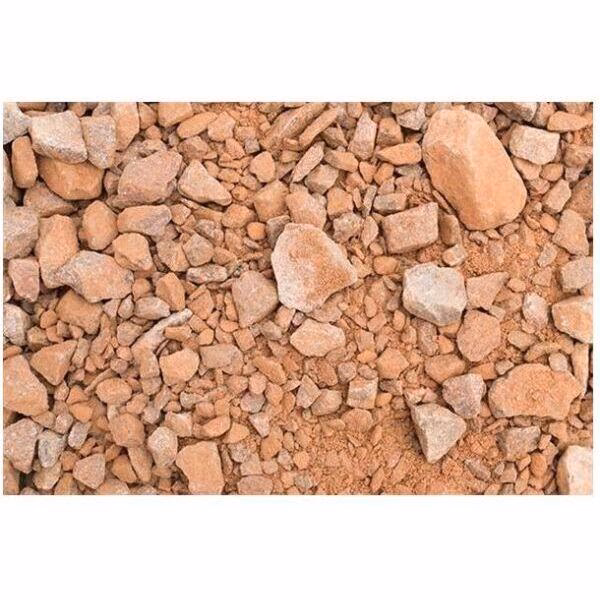

MOT Type 1, also known as Type 1 hardcore or sub-base, is a specific type of aggregate blend. The 'MOT' designation refers to the Ministry of Transport, which historically set standards for materials used in road construction in the UK. Type 1 specifically refers to a crushed aggregate that has been graded to meet certain particle size requirements. This grading ensures that the material can be compacted effectively, forming a dense and stable layer.

Composition and Characteristics

MOT Type 1 is typically made from crushed natural stone, such as limestone, granite, or slag. The key characteristic is its particle size distribution, which ranges from dust up to approximately 40mm. This mix of sizes is crucial for its performance. The smaller particles fill the voids between the larger ones, allowing for excellent compaction and creating a strong, load-bearing surface. The material should be angular rather than rounded, as angular particles interlock more effectively when compacted.

A common industry standard, as agreed between the Builders Merchant Federation (BMF) and Trading Standards Business Compliance Unit, dictates how these aggregates are supplied. They are typically sold in bulk bags, with the understanding that these bags contain a minimum of 800kg of material, allowing for a +/-5% variance. It's important to note that the actual weight of the product in a bulk bag can fluctuate due to moisture content – wet aggregate will naturally weigh more than dry aggregate. Similarly, the volume can vary depending on the aggregate's density and how well it compacts.

Key Uses of MOT Type 1

The versatility and excellent compaction properties of MOT Type 1 make it suitable for a wide array of applications:

• Sub-base for Roads and Pavements: This is perhaps its most well-known use. MOT Type 1 provides a stable and load-bearing foundation for tarmac, asphalt, concrete, or block paving surfaces. Its ability to be compacted tightly prevents movement and settlement of the final surface.
• Driveways and Patios: It's an essential layer beneath block paving, resin-bound surfaces, or even gravel drives and patios. This underlayer ensures the longevity and stability of the finished surface, preventing issues like sinking or cracking.
• Hardstanding Areas: For areas that need to withstand heavy use or occasional vehicle access, MOT Type 1 provides a robust base.
• Groundwork and Site Preparation: It's often used to fill excavations or create a level surface before further construction begins.
• Building Foundations: In some cases, it can be used as part of the foundation base for smaller structures.

Why is MOT Type 1 Specified?

The specification of MOT Type 1 is driven by its performance characteristics:

• Excellent Compaction: The graded nature of the aggregate allows it to be compacted into a dense, solid layer, providing superior stability.
• Good Drainage: While it compacts well, the mix of particle sizes still allows for a degree of permeability, aiding in drainage and reducing the risk of waterlogging.
• Load Bearing Capacity: When properly laid and compacted, it can support significant loads, making it ideal for trafficked areas.
• Cost-Effective: Compared to some other sub-base materials, MOT Type 1 offers a good balance of performance and affordability.
• Versatility: Its suitability for numerous applications makes it a go-to material for many construction professionals.

Laying and Compacting MOT Type 1

The effectiveness of MOT Type 1 heavily relies on proper installation. The process typically involves:

1. Excavation: Digging out the area to the required depth, ensuring a stable base below.
2. Laying the Aggregate: Spreading the MOT Type 1 in layers, usually no more than 100-150mm thick at a time.
3. Compaction: Using a vibrating roller or a heavy-duty plate compactor to thoroughly compact each layer. This is a crucial step to achieve the desired density and stability. Multiple passes are usually required.
4. Achieving Level: Ensuring the surface is level and to the correct gradient for drainage.

The quality of compaction is critical. Insufficient compaction will lead to a weak sub-base that can fail under load, resulting in surface deformation.

Comparison with Other Aggregates

While MOT Type 1 is highly versatile, it's useful to understand how it compares to other common aggregates:

The key differentiator for MOT Type 1 is its graded nature, designed specifically for compaction and stability as a sub-base. Other aggregates might be better suited for specific decorative or drainage roles.

Frequently Asked Questions (FAQs)

Q1: Can I use MOT Type 1 for a patio base?

A1: Yes, MOT Type 1 is an excellent choice for a patio base. It provides the necessary stability and drainage to ensure your patio remains level and doesn't sink over time.

Q2: How thick should the MOT Type 1 layer be?

A2: The required thickness depends on the application and expected load. For driveways and roads, a layer of 100-150mm compacted thickness is common. For lighter patios, 50-100mm might suffice, but always check local guidelines or professional recommendations.

Q3: What's the difference between MOT Type 1 and MOT Type 2?

A3: MOT Type 2 is a cleaner aggregate, typically single-sized (e.g., 20mm or 40mm granite). It's primarily used for drainage layers or where a cleaner finish is required, as it doesn't compact as effectively as Type 1 due to the lack of fines.

Q4: Does the weight of a bulk bag matter?

A4: While bags are sold as a unit, understanding the approximate weight (around 800kg minimum) helps in calculating quantities and ensuring you're getting a substantial amount of material. Remember that moisture content affects the actual weight.

Q5: Can I compact MOT Type 1 with a hand tamper?

A5: For small areas like a garden path, a heavy hand tamper might be adequate. However, for larger areas, especially driveways, a vibrating plate compactor or roller is essential for achieving the proper density and stability required for MOT Type 1.

Conclusion

MOT Type 1 aggregate is a cornerstone material in modern construction, particularly for anything involving ground stability and surface durability. Its carefully controlled grading, combined with the need for thorough compaction, ensures it provides a robust and reliable sub-base for a multitude of projects. Whether you're laying a new driveway, building a patio, or preparing a site for a road, understanding the role and proper installation of MOT Type 1 is key to achieving a long-lasting and successful outcome.
