MoT Bay Design: Walls, Clearances & Compliance

Setting up or upgrading an MoT testing facility in the UK involves navigating a precise set of regulations to ensure safety, efficiency, and full compliance with the Driver and Vehicle Standards Agency (DVSA) standards. From the very foundations of your building to the precise placement of every piece of equipment, every detail is scrutinised. A common, yet critical, query among garage owners revolves around the structural integrity and layout flexibility of their test bays: specifically, whether walls or partitions are permitted within the equipment package or between adjacent bays. Understanding these stringent guidelines is absolutely paramount for any garage looking to establish or maintain a fully compliant and operational MoT centre, ensuring both safety for technicians and the public, and the integrity of the testing process.

The Definitive Answer: Walls and Partitions in MoT Bays

Let's address the central question directly: can your MoT equipment package incorporate walls or partitions? The answer, unequivocally, is no. DVSA regulations are crystal clear on this point: your MoT equipment package cannot have walls or partitions in between adjacent MoT test bays. This specific prohibition is in place for several critical reasons, all aimed at ensuring the highest standards of safety, efficiency, and testing integrity within your facility.

Firstly, the absence of partitions guarantees unobstructed access for vehicles entering and exiting the test area. This is vital for manoeuvring different vehicle classes safely and efficiently. Secondly, it ensures clear visibility for technicians, allowing them to monitor the entire testing process without blind spots, especially when multiple bays are in operation. Thirdly, it facilitates the safe movement of personnel and auxiliary equipment around the test area, reducing the risk of accidents. Any structural elements that could impede the testing process, create hazardous blind spots, or hinder emergency access are strictly prohibited. This means that while your overall building must be weatherproof and structurally sound, the immediate area around and between your MoT testing equipment must remain open and clear to maintain optimal operational flow and safety.

Foundational Requirements: Premises and Access

Beyond the specifics of internal partitions, the overall premises and access points of your MoT testing station must meet a series of fundamental requirements to be deemed suitable. These regulations ensure that vehicles can safely and easily access the test bay and that the environment is conducive to accurate and effective testing.

• Weatherproof Building: The MoT test bay and observation area must be housed in a weatherproof building. This protects the sensitive testing equipment from the elements and provides a comfortable and safe working environment for technicians and a suitable waiting area for customers. (Note: This is not mandatory for roller brake sets, which can be outdoors if appropriate provisions are made for their use and protection).
• Effective Equipment Arrangement: All MoT testing equipment must be arranged in such a way that MoT tests can be carried out effectively and without hindrance. This speaks to the overall flow and functionality of the bay.
• Unimpeded Access: There must be unimpeded access via a metalled road from the site entrance to the building entrance. This ensures that vehicles can enter and exit the premises in a forward direction, enhancing safety and ease of access for all types of vehicles.
• Dedicated Parking Bays: Provisions must be made for a minimum of two off-road parking bays, or more if necessary, which are clearly marked as being for MoT test vehicles only. These bays should be on hard-standing ground, each not less than 7.0 metres in length by 3.0 metres in width, and clearly marked by lines on the ground. This ensures dedicated space for vehicles awaiting or having completed their test, preventing congestion and maintaining organised vehicle flow.
• Clear Internal Access: There must be clear, unobstructed access from the entrance of the building to the MoT testing equipment itself. This prevents bottlenecks and allows for smooth vehicle manoeuvring within the building.
• "Diesels Tested" Sign: Displaying a "Diesels Tested" sign is also a requirement, informing customers of the services offered.

Critical Dimensions for MoT Test Bays

The precise dimensions of your MoT test bay are non-negotiable and form the minimum requirements measured from the inside of walls and doors. Adhering to these measurements is essential for legal compliance and safe operation.

Vehicle Entrances and Exits

The gateway to your MoT bay must accommodate a wide range of vehicles safely. Vehicle entrances and exits must be at least 3.2 metres in height and 3.5 metres in width. Furthermore, where the entrance to the MoT testing area is located within 7.0 metres of a Plate Brake Tester, the door width needs to be a minimum of 3.6 metres. These dimensions ensure adequate space for vehicles to pass through without risk of damage or obstruction, particularly for larger vehicles or those with roof racks.

Minimum Bay Width and Headroom

The overall space within the bay is crucial for manoeuvring vehicles and performing tests safely.

• Minimum Width: A minimum width of at least 4.2 metres is required. Minor intrusions, such as wall piers, may encroach on this dimension, provided vehicle testing and equipment operation are not impeded. This width ensures ample space for technicians to work around the vehicle and for equipment to be positioned correctly.
• Minimum Headroom: A general minimum headroom of 3.5 metres is required throughout the bay, except directly over an MoT lift, where specific, higher requirements apply. This ensures sufficient vertical space for various testing procedures, including checking vehicle heights and operating equipment.

Specific Lift Headroom Requirements

Headroom directly above the lifting platform is particularly critical, varying by vehicle class to accommodate different vehicle sizes when raised. These measurements are taken from the lift platform when in the fully lowered position.

This critical headroom dimension must extend rearwards 6.0 metres, starting from 0.5 metres beyond the non-drive-on end of the lift. Vertically, this required headroom must extend at least 1.5 metres on each side of the lift's longitudinal centre line. The width dimension may be gradually reduced to 1.2 metres on each side of the lift's longitudinal centre line at a height of 4.8 metres. These precise spatial requirements are designed to ensure safe and unrestricted operation of the lift and sufficient working space for technicians around a raised vehicle.

Furthermore, MoT bays should always be adequately illuminated. Good lighting is essential for accurate inspections, identifying defects, and ensuring the safety of technicians during the testing process.

Essential MoT Equipment Layout and Clearances

Beyond the structural dimensions of the bay, the precise layout and clearances around your MoT testing equipment are equally vital for operational efficiency and safety. These regulations ensure that there is sufficient space for technicians to operate equipment, move around vehicles, and perform tests effectively without obstruction or risk of injury.

• Lift/Pit End Clearances: Your MoT bay should have a clearance of at least 1.0 metre at the front end of the lift and 1.5 metres at the rear of a lift or pit to any entrance/exit door or wall. These clearances allow for safe vehicle entry and exit from the lift or pit, preventing vehicles from hitting walls or doors, and providing adequate space for technicians to guide vehicles onto the testing apparatus.
• Around MoT Lift Clearance: MoT testing equipment should have a minimum clearance of 0.5 metres around all parts of the MoT lift. This space is crucial for access during maintenance, calibration, and for technicians to safely move around the lift while a vehicle is on it. It also prevents any part of the lift from being obstructed by walls or other fixed structures, which could compromise its operation or safety.
• Adjacent Bay Clearance: As previously established, your MoT equipment package cannot have walls or partitions between adjacent MoT test bays. In addition to this, adjacent MoT bays must have a minimum clearance of 4.2 metres from the centre lines of the MoT testing equipment. This generous spacing ensures that even with multiple bays operating simultaneously, there is ample room for vehicle manoeuvring, technician access, and the safe operation of all equipment, preventing cross-contamination of operations or hazards between bays.

WARNING: Adequate passageway clearance must be provided around testing facilities in all test bays. Applicants are strongly advised to ensure that this clearance is achieved, especially in smaller test bays with some types of standard specification test equipment (e.g., lifts with motors on a column). Overlooking these critical clearances can lead to operational inefficiencies, safety hazards, and ultimately, non-compliance with DVSA standards.

Optimising Your MoT Bay for Efficiency and Compliance

With demand for MoT services growing annually, there’s never been a better time to review your MoT bay’s setup. Does it have all the equipment it needs? Is the layout optimised to get the most out of each day? Can your technicians work efficiently without compromising on safety?

Meeting the DVSA's stringent requirements is not just about avoiding penalties; it's about building a robust, efficient, and profitable MoT business. A well-designed MoT bay, fully compliant with all regulations, ensures smooth workflow, maximises technician efficiency, and reduces potential downtime. This includes everything from the flow of vehicles through the premises to the precise positioning of lifting platforms, brake testers, and headlamp testers.

Whether you're planning a new test bay from scratch or considering modifications to an existing one, a custom approach is always logical. This applies whether it’s for a standard MoT bay or a more advanced Automated Test Lane (ATL), which can significantly boost throughput. Ensuring compliance with DVSA standards and GEA (Garage Equipment Association) approval is paramount. Experienced providers can create detailed design layouts, supply quality equipment known for its reliability and ease of use, and manage the installation process, handling everything from detailed planning to tackling compliance with current legislation and meeting deadlines.

Frequently Asked Questions About MoT Bay Layout

What are the minimum parking requirements for an MoT station?

You must provide a minimum of two off-road parking bays, or more if required, specifically marked for MoT test vehicles. These bays need to be on hard standing ground, each measuring at least 7.0m in length by 3.0m in width, and clearly delineated with ground markings. This ensures dedicated space for vehicles awaiting or having completed their test, preventing congestion and maintaining organised vehicle flow.

Are there specific height requirements for vehicle entrances to an MoT bay?

Yes, vehicle entrances and exits must have a minimum height of 3.2 metres and a minimum width of 3.5 metres. If the entrance to the MoT testing area is located within 7.0 metres of a Plate Brake Tester, the door width needs to be a minimum of 3.6 metres. These dimensions are crucial for accommodating a wide range of vehicles, including larger vans and commercial vehicles.

Can I choose between a standard MoT bay and an Automated Test Lane (ATL)?

Yes, both standard MoT bays and Automated Test Lanes (ATL) are compliant, provided they meet all DVSA regulations. The choice often depends on your business objectives, expected volume, and desired level of automation. ATLs are designed to improve efficiency by allowing a single technician to conduct the test, potentially increasing throughput and profitability.

Why is adequate clearance around MoT equipment so important?

Adequate clearance around all MoT equipment, especially lifts, is critical for safety, effective testing, and ease of maintenance. It ensures technicians have sufficient space to work safely, move around the vehicle, operate equipment without obstruction, and perform necessary checks and repairs. It also prevents any part of the equipment from being compromised by proximity to walls or other structures, which could affect accuracy or lead to breakdowns.

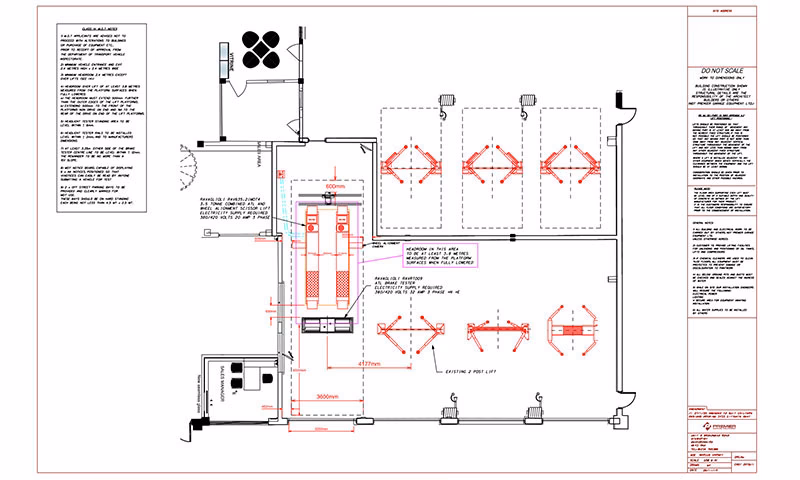

Where can I find detailed layout diagrams for specific MoT bays?

Many reputable garage equipment suppliers offer downloadable PDF documents or consultancies detailing the layout and dimensions for various MoT bay configurations, such as Class 4 and Class 7 ATL bays, including recessed 4-post lifts and scissor lifts with side-positioned brake testers. These resources can provide a clear idea of equipment positioning and help assess the suitability of your premises.

Conclusion

Adhering to the stringent DVSA requirements for MoT test bay layout and equipment is not just about avoiding penalties; it's about establishing a safe, efficient, and highly functional testing facility. The clear directive regarding the absence of walls or partitions between adjacent MoT equipment packages underscores the emphasis on unobstructed operation, technician safety, and seamless workflow. By meticulously planning your bay, understanding every dimension, and ensuring adequate clearances around all equipment, you can create an MoT centre that not only meets every regulatory standard but also maximises your operational capacity and profitability. Investing time in careful design and working with experienced suppliers ensures your MoT business is truly in the driving seat, ready to meet the demands of a growing market.
