Headlamp Beam Image Incorrect? Fix Your MOT Fail!

Few things are as frustrating as an MOT failure, especially when it's for something seemingly straightforward like your headlamps. The dreaded 'Headlamp aim projected beam image is obviously incorrect' notation can leave many drivers scratching their heads. This isn't just about passing a test; a correctly functioning headlamp beam is paramount for road safety, ensuring you can see the road ahead clearly and, crucially, that you don't inadvertently blind oncoming traffic. Let's delve into why your headlamp's projected beam might be off and what you can do to put it right.

First, it's vital to understand what a 'projected beam image' actually is. Yes, headlamps absolutely have a beam image! Far from being a simple floodlight, a modern headlamp is engineered to produce a very specific pattern of light on the road. This pattern typically features a sharp horizontal 'cut-off' on the left (in the UK, for right-hand drive vehicles) to prevent dazzling drivers in opposing lanes, and a slight upward kick to the right to illuminate road signs and pedestrians without causing glare. There's also a 'hot spot' or brightest part of the beam, strategically placed to maximise forward visibility. When an MOT inspector says the image is 'incorrect' or 'no beam image seen', it means this carefully designed pattern is either distorted, too dim, completely absent, or simply not projected where it should be.

Common Causes for an Incorrect Headlamp Beam Image

Several factors can lead to an improper headlamp beam image, ranging from simple fixes to more complex issues within the headlamp unit itself. Understanding these can help you diagnose the problem effectively.

1. Incorrectly Seated Bulb

This is surprisingly common and often overlooked. Even a brand-new, perfectly good bulb, if not seated precisely in its housing, can throw the beam pattern completely off. The filament or LED chip within the bulb must be at the exact focal point of the reflector or projector lens to create the correct beam. If it's slightly rotated, tilted, or not pushed fully home, the light will scatter haphazardly, resulting in a distorted or absent beam image. The process of changing bulbs might seem simple, but ensuring it clicks firmly into place and is correctly oriented (some bulbs have specific notches) is crucial. If you've recently changed a bulb, this should be your first port of call.

2. Wrong Bulb Type or Poor Quality Aftermarket Bulbs

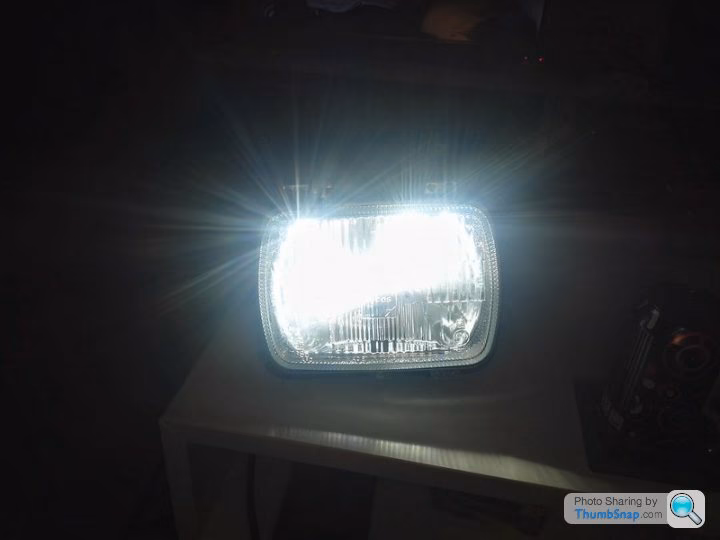

Using the incorrect type of bulb for your specific headlamp unit can be catastrophic for the beam pattern. For example, fitting an H4 bulb where an H7 is required, or vice versa, will inevitably lead to a chaotic light output. Furthermore, the proliferation of cheap, unbranded LED conversion kits or HID kits that aren't designed for your vehicle's specific reflector or projector housing can cause significant issues. While these might appear brighter, they often lack the precise light source positioning of a halogen bulb, leading to glare for others and a poor beam pattern for you. Always use bulbs that match the manufacturer's specification and consider reputable brands.

3. Degraded or Damaged Headlamp Unit Components

The headlamp unit itself is a complex piece of engineering, and its internal components can degrade over time.

• Cloudy or Yellowed Lenses: While you mentioned cleaning your lenses externally, internal hazing or clouding can also occur, scattering light before it even leaves the unit. This is often due to moisture ingress or internal material breakdown.
• Damaged Reflectors: The silvered reflective surface inside the headlamp can degrade, tarnish, or even flake off due to heat and age. A compromised reflector cannot efficiently gather and project the light from the bulb, leading to a dim, patchy, or non-existent beam. This is a common issue on older vehicles.
• Broken Adjuster Mechanisms: Inside the headlamp unit, there are often plastic adjusters that allow the beam to be aimed up, down, left, or right. These plastic components can become brittle and break, especially on older cars. If they're broken, the headlamp assembly might sag or be unable to hold its aim, resulting in a beam that points incorrectly or bounces around.
• Internal Debris or Moisture: Water condensation or foreign debris inside the headlamp unit can refract and block light, distorting the beam.

4. Electrical Issues and Flickering

Your observation about faint flickering at low speeds is a significant clue. Flickering can indicate an unstable power supply to the headlamp, which can certainly affect the consistency and clarity of the projected beam. Potential electrical culprits include:

• Loose or Corroded Connections: Wiring harnesses and connectors can corrode over time, especially in damp environments, leading to poor electrical contact and voltage drops.
• Failing Ballast or Driver (for HID/LED systems): If your vehicle uses HID (Xenon) or LED headlamps, they require a ballast or driver unit to regulate power. A faulty ballast can cause intermittent operation, dimming, or complete failure, leading to flickering and an incorrect beam.
• Voltage Fluctuations: Issues with the vehicle's charging system, a failing alternator, or a weak battery can lead to inconsistent voltage reaching the headlamps, causing flickering. While less likely to completely eliminate a beam image, it can certainly contribute to an 'incorrect' or unstable one.

5. Incorrect Aim/Adjustment

While the MOT report specifically mentions the 'projected beam image' being incorrect, rather than just the aim, the two are intrinsically linked. If the beam pattern *itself* is fine but simply pointing in the wrong direction (too high, too low, too far left/right), it will still fail. However, an incorrect beam image suggests a fundamental problem with how the light is being formed, not just where it's directed. Nevertheless, if all other issues are ruled out, a professional headlamp alignment check is always a good step.

Troubleshooting Steps to Restore Your Headlamp Beam

Given the potential causes, here’s a systematic approach to diagnosing and fixing the problem:

1. Visual Inspection (External & Internal):
   • Bulb Seating: With the headlamp off, carefully remove and re-seat each bulb. Ensure it's pushed in fully and locked correctly. Check for any specific orientation requirements.
   • Lens Clarity: Confirm the external lens is truly clear. If you've cleaned it, ensure there's no remaining haze. Look for condensation or signs of moisture inside the unit.
   • Reflector Condition: Peer into the headlamp unit (with the bulb removed if necessary) and inspect the reflective surface. Look for flaking, discolouration, or dull spots. This often requires removing the headlamp unit from the car for a better view.
2. Check Bulb Type and Quality:
   • Confirm the bulbs installed match the exact specification in your car's manual (e.g., H7, H4, HB3).
   • If you're using aftermarket LED or HID bulbs, consider temporarily re-installing standard halogen bulbs (if your car originally came with them) to see if the beam pattern improves. This can rule out compatibility issues.
3. Inspect Wiring and Connections:
   • For flickering issues, carefully inspect the wiring harness leading to the headlamp and the connectors themselves. Look for signs of corrosion, fraying, or loose connections.
   • If you have a multimeter, check the voltage at the headlamp connector with the lights on. It should be close to your car's battery voltage (around 12.6-14.4V when the engine is running). Significant drops could indicate a wiring issue.
4. Test Headlamp Aim:
   • Even if the beam image is incorrect, a rough aim test can sometimes reveal severe misalignment. Park your car on level ground about 10-25 feet from a wall in a dark area. Turn on your headlamps. A correct beam should have a distinct horizontal cut-off line. If it's just a diffuse glow, then the beam image itself is the problem.
5. Consider Professional Diagnosis:
   • If, after these checks, you're still seeing no beam image or a highly distorted one, the issue is likely internal to the headlamp unit (e.g., broken adjusters, degraded reflector) or a more complex electrical fault. These often require specialist tools or knowledge to repair.

When to Seek Professional Help

While some issues like a poorly seated bulb are straightforward DIY fixes, others demand professional attention. If you've checked the bulb seating, confirmed the correct bulb type, and inspected visible wiring without success, it's highly probable the problem lies within the headlamp unit itself. Replacing an entire headlamp unit can be costly, but sometimes it's the only way to restore the correct beam pattern, especially if the reflector is damaged or internal adjusters are broken. An auto electrician or a reputable garage with the right diagnostic equipment can pinpoint electrical faults or internal headlamp issues that are difficult for the average DIY enthusiast to identify.

Comparative Table: Headlamp Beam Issues at a Glance

Frequently Asked Questions (FAQs)

Do headlamps have a beam image?

Yes, absolutely. All modern headlamps are designed to produce a very specific and carefully controlled light pattern, known as the beam image. This image typically includes a sharp cut-off line and a brighter 'hot spot' to ensure optimal visibility for the driver without blinding oncoming traffic. The MOT test specifically checks for the correct formation and projection of this image.

Can a flickering headlamp cause an incorrect beam image?

Yes, it certainly can. Flickering indicates an unstable power supply to the bulb or an issue with the bulb itself (e.g., a failing filament or internal components in an LED/HID bulb). An unstable power supply can lead to inconsistent light output, which can manifest as a fluctuating or distorted beam image, making it appear 'incorrect' and potentially causing an MOT failure. It's a strong indicator that something is amiss electrically or with the bulb's integrity.

Is a cloudy external lens always the problem if my beam is off?

While a cloudy or yellowed external lens can certainly diminish light output and slightly diffuse the beam, it's often not the sole reason for a severely 'incorrect' projected beam image, especially if no pattern is visible at all. Often, the issue is deeper, involving internal degradation of the reflector, a misaligned bulb, or even broken internal adjuster mechanisms. Cleaning the external lens is a good first step, but don't stop there if the problem persists.

How often should I check my headlamps for correct beam image?

It's advisable to perform a quick visual check of your headlamps regularly, ideally once a month or before any long journey. Look for obvious signs of dimness, discolouration, or irregular light patterns. A more formal check of the beam pattern against a wall can be done every few months or certainly before your annual MOT. Addressing minor issues early can prevent major problems and MOT failures down the line.

Can I fix an incorrect headlamp beam image myself, or do I need a garage?

It depends on the root cause. Simple issues like a poorly seated bulb or a corroded connection are often straightforward DIY fixes. However, if the problem stems from a damaged internal reflector, broken adjuster mechanisms within the headlamp unit, or complex electrical faults, professional intervention is usually necessary. These issues often require specialist tools, diagnostic equipment, or the replacement of the entire headlamp unit, which can be a more involved process. Don't hesitate to seek professional help if you're unsure or uncomfortable with the repair.

Addressing an incorrect headlamp beam image is more than just an MOT hurdle; it's a critical safety concern. A properly functioning headlamp system ensures your visibility and the safety of other road users. By systematically troubleshooting the common causes, you can often identify and rectify the problem, getting your trusty vehicle back on the road safely and legally.
