Mercedes Airmatic Malfunction: Your Complete Guide

The Mercedes-Benz Airmatic system is a marvel of automotive engineering, designed to deliver an unparalleled smooth and adaptable ride. By continuously adjusting the vehicle's height and damping characteristics based on driving conditions, it ensures both supreme comfort and dynamic handling. However, the appearance of an "AIRMATIC Malfunction" or "Air Suspension Failure" warning on your dashboard can be a source of significant concern for any Mercedes owner. This ominous message indicates that the sophisticated air suspension system is struggling to maintain its vital functions, potentially compromising your vehicle's ride quality, handling, and ultimately, your safety. Understanding the intricacies of this system and the common culprits behind its malfunctions is paramount for timely diagnosis and effective repair.

Understanding Airmatic Malfunctions

When your Mercedes displays an "AIRMATIC Malfunction" or "Air Suspension Failure" warning, it means the air suspension system cannot reliably maintain the vehicle's ride height. This can manifest in various ways, from a noticeable sag in one corner to a complete inability for the car to lift itself. These issues not only diminish the luxurious ride quality you expect from a Mercedes but can also pose significant safety risks, affecting braking stability and steering precision.

Common Causes & Symptoms of Airmatic Malfunctions

Several components within the complex AIRMATIC system can fail, leading to a malfunction. Identifying the symptoms associated with each potential cause is crucial for accurate diagnosis.

1. Faulty Air Compressor

The air compressor is the heart of the Airmatic system, responsible for pumping air into the air springs to achieve and maintain the correct ride height. Over time, these compressors can wear out due to constant use, especially if there's an underlying leak forcing it to work harder.

• Symptoms: The most common symptom is the car failing to raise, or taking an unusually long time to do so. You might also hear the compressor running constantly, or conversely, not at all. A loud, rattling, or grinding noise from the compressor area can also indicate it's failing.
• Impact: Without sufficient air pressure, the vehicle will sag, often appearing to sit too low, especially after being parked for some time.

2. Leaking Air Springs or Reservoirs

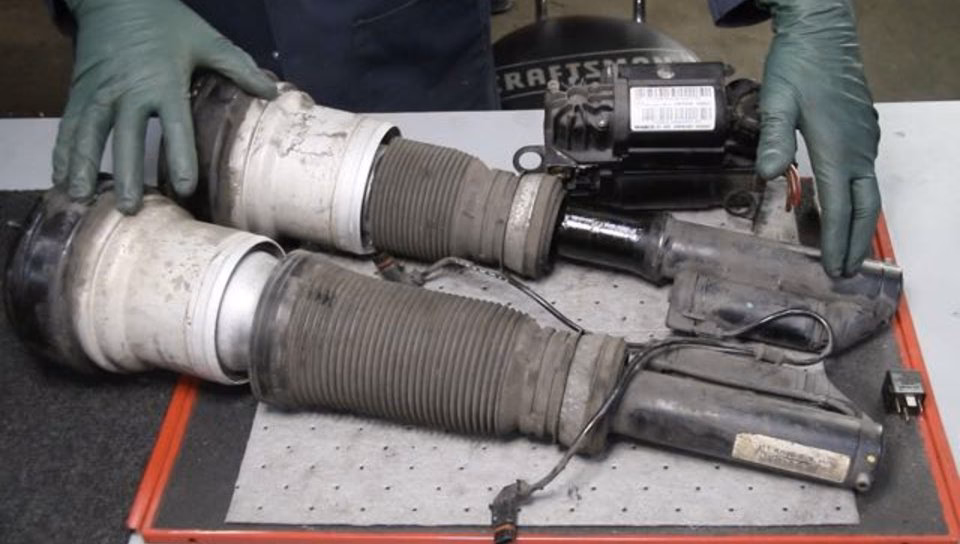

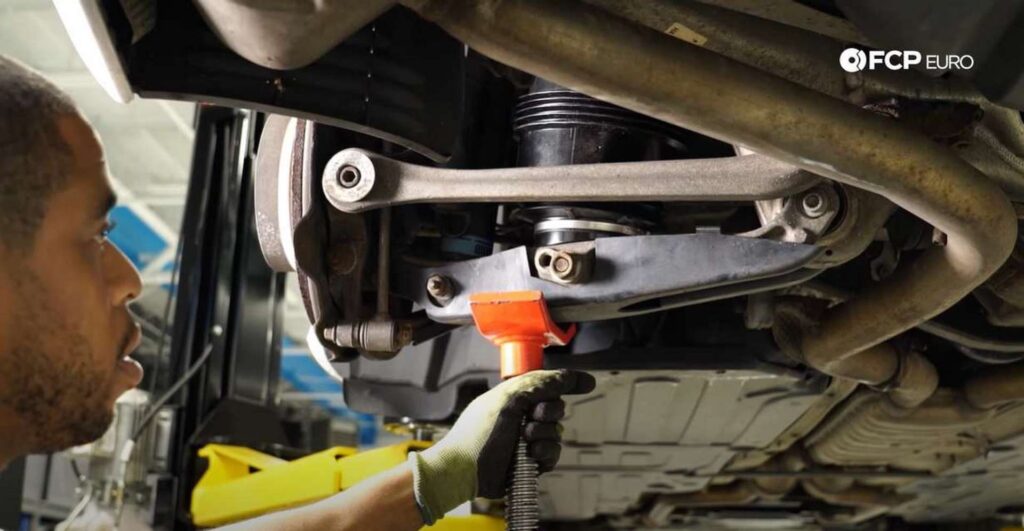

Air springs (also known as air struts) replace traditional coil springs in an Airmatic system, and like any rubber component, they can develop leaks over time. These leaks can be tiny pinholes or larger cracks, allowing air to escape. The air reservoir, which stores compressed air, can also develop leaks.

• Symptoms: The most noticeable symptom is uneven ride height, where one corner or side of the vehicle sags lower than the others, particularly overnight or after prolonged parking. You might also hear a distinct hissing noise near the wheel arches, indicating air escaping.
• Impact: Consistent air loss puts immense strain on the compressor, leading to its premature failure. It also severely compromises ride comfort and vehicle stability.

3. Failed Level-Link Sensors or Valve Block Issues

The Airmatic system relies on height sensors at each wheel to monitor the vehicle's ride height and provide data to the control module. If these sensors fail or provide inaccurate readings, the system can misinterpret the vehicle's position, leading to incorrect air distribution. The valve block, a critical component, controls the flow of air to and from each air spring.

• Symptoms: The vehicle may exhibit incorrect ride height at one or more corners despite the compressor working. The system might miscalibrate the ride level, leading to an uncomfortable or unstable drive. Fault codes related to height sensors or valve block operation are common.
• Impact: Improper air distribution can lead to a lopsided vehicle, affecting handling and tyre wear.

4. Control Module or Fuse Issues

The Airmatic control module (often called the AIR BODY CONTROL UNIT) is the brain of the system, processing data from sensors and commanding the compressor and valve block. Like any electronic component, it can suffer from software glitches, internal failures, or power supply issues. Blown fuses or faulty relays can also cut power to the system.

• Symptoms: The system may be completely unresponsive, even if other hardware components appear fine. A warning light may appear despite no obvious physical symptoms like sagging.
• Impact: A malfunctioning control module can render the entire Airmatic system inoperable, preventing any height adjustments.

5. Electrical Wiring Issues

Damaged, corroded, or loose electrical wiring can disrupt communication between various Airmatic components (sensors, compressor, valve block, control module). This can lead to intermittent faults or a complete system failure.

• Symptoms: Intermittent Airmatic warnings, inconsistent performance, or specific component failures that cannot be attributed to the component itself.
• Impact: Unreliable operation and difficulty in diagnosing the root cause due to erratic behaviour.

Diagnostic & Repair Workflow for Airmatic Malfunctions

Addressing an Airmatic malfunction requires a systematic approach. While some basic checks can be done at home, a professional diagnostic tool like XENTRY is often indispensable for pinpointing the exact issue.

1. Scan AIRMATIC Module: The first step is always to connect a diagnostic tool (such as XENTRY or a high-end OBD scanner) to the vehicle's OBD-II port. This allows you to retrieve stored fault codes from the Airmatic control module, which often provide specific clues about the failing component or circuit.
2. Test Compressor Activation: With the ignition on, listen for the compressor. Does it activate? Does it sound healthy? Does it build pressure in the air tank? A professional mechanic can test its voltage and pressure output to confirm its health.
3. Check Ride Height: Visually inspect the ride height at all four corners of the vehicle. Look for any noticeable sag or tilt, which can indicate a specific air spring leak or sensor issue on that side. Measure the height from the wheel arch to the centre of the wheel hub for accurate comparison.
4. Conduct Soap-Water Test: For suspected air leaks, spray a solution of soapy water onto the air struts, air lines, and reservoir tank connections. Bubbles forming indicate an air leak. This is a simple yet effective method for identifying compromised components.
5. Inspect Fuses and Relays: Check all relevant fuses and relays, particularly those for the compressor and suspension control circuits. A blown fuse can often be a quick and easy fix, though it's less common for intermittent Airmatic malfunctions.
6. Component Repair or Replacement: Based on the diagnostic findings, the faulty components – whether it's the compressor, air springs, level sensors, valve block, or wiring – will need to be repaired or replaced.
7. Reset Warnings and Test Drive: After repairs, clear all fault codes using the diagnostic tool. Then, perform a thorough test drive under various conditions to confirm the resolution of the issue and ensure the Airmatic system functions correctly.

Airmatic Malfunction in Mercedes-Benz E Class W213: A Diagnostic Case Study

To illustrate the diagnostic process, let's consider a real-world example involving a Mercedes-Benz E Class W213 brought into a workshop with an Airmatic malfunction.

Customer Complaint

A customer presented their Mercedes-Benz E Class W213 with a concerning "Airmatic malfunction" message prominently displayed on the dashboard. The customer was worried about the implications, as the W213's Airmatic suspension is integral to its renowned performance and comfort.

Diagnosis Process

The diagnostic process commenced by verifying the customer's complaint. Once the "Airmatic malfunction" message was confirmed, the workshop technicians connected the XENTRY diagnostic tool to the vehicle's OBD-II port. This allowed them to meticulously retrieve any fault codes stored within the N51/3 AIR BODY CONTROL UNIT, which is the dedicated control module for the Airmatic system.

The XENTRY scan revealed the following critical fault codes:

• Mercedes-Benz C153213: The right front damping valve has a malfunction; there is an open circuit.
• Mercedes-Benz C153313: The right front damping valve 2 has a malfunction; there is an open circuit.
• Mercedes-Benz U041686: Implausible data were received from the control unit 'traction system'; there is an incorrect signal.

Analysis of Fault Codes

The fault codes provided immediate and specific direction. The C153213 and C153313 codes pointed directly to an issue with both damping valves on the right front side of the vehicle, specifically indicating an "open circuit." Damping valves are crucial components that regulate the flow of air within the air spring, controlling its stiffness and damping characteristics. An open circuit typically suggests a break in the electrical connection, either in the wiring, the connector itself, or internally within the valve.
The U041686 code, indicating implausible data from the traction system control unit, was likely a consequential fault. Given that the damping valves directly influence the vehicle's stance and handling, any malfunction in them could easily send erroneous data to other integrated systems like the traction control.

Step-by-Step Diagnostic Procedure

With the fault codes providing a strong lead, the technicians proceeded with a targeted diagnostic procedure:

1. Voltage and Wiring Check: The initial step involved meticulously checking the voltage at the electrical connectors leading to both right front damping valves. Ensuring a stable and correct voltage supply is fundamental to rule out any power supply issues to the valves. The wiring harness was also inspected for any visible signs of damage, fraying, or corrosion that could lead to an open circuit.
2. Airmatic Control Unit Inspection: Although the fault codes pointed to the valves, a physical inspection of the Airmatic control unit itself was performed. This involved checking for any signs of water ingress, physical damage, or loose electrical connections that might indirectly contribute to the issue.
3. Damping Valve Resistance Check: The most critical step was measuring the electrical resistance of the damping valves themselves. Using a multimeter, the resistance across the terminals of both right front damping valves was measured. While damping valve 1 showed readings within normal parameters, a significantly high resistance reading was found in damping valve 2. This high resistance definitively confirmed an internal fault within damping valve 2, consistent with an "open circuit" condition.

Resolution of Airmatic Malfunction

With the high resistance in damping valve 2 unequivocally identified as the root cause of the Airmatic malfunction, the decision was made to replace the faulty valve. After the new damping valve was installed:

• The fault codes were immediately cleared from the Airmatic control unit using the XENTRY diagnostic tool.
• The Airmatic system was re-tested through multiple activation cycles, and crucially, no further "Airmatic malfunction" messages reappeared on the dashboard.
• A comprehensive test drive was conducted, subjecting the vehicle to various driving conditions. This confirmed that the Airmatic suspension was now functioning perfectly, with the damping valves operating within their normal parameters, restoring the vehicle's optimal ride comfort and handling characteristics.

This case study of the Airmatic malfunction in the Mercedes-Benz E Class W213 underscores the vital importance of a thorough and systematic diagnostic process. By meticulously following the clues provided by fault codes, performing detailed electrical checks, and precisely measuring component resistance, the underlying issue was accurately identified and effectively resolved. The replacement of the faulty damping valve successfully restored the vehicle's suspension system, ensuring a smooth and comfortable ride for the customer.

DIY vs. Professional Tasks for Airmatic Issues

While some basic troubleshooting can be performed by a diligent DIY enthusiast, many Airmatic repairs require specialised tools and expertise. Here's a breakdown of tasks suitable for each:

Preventative Maintenance for Your Airmatic System

While Airmatic components have a finite lifespan, certain practices can help extend their life and prevent premature failure:

• Regular Inspections: Periodically check the air suspension components for visible signs of wear, such as cracks in air springs, fraying air lines, or unusual noises from the compressor. Look for any noticeable sagging when the vehicle is parked.
• Software Updates: Ensure that your Mercedes's software, particularly for the Airmatic control module, is kept up to date during your regular service intervals. Software glitches can sometimes mimic hardware failures.
• Timely Repairs: Do not ignore early warning signs or intermittent Airmatic malfunction messages. Addressing minor issues promptly can prevent them from escalating into more costly and complex problems, such as a failing compressor due to a small air leak.
• Avoid Overloading: While the Airmatic system can adjust for varying loads, consistently overloading your vehicle or towing excessively heavy trailers can put undue stress on the air springs and compressor.
• Mind the Potholes: While difficult to avoid entirely, extreme impacts from large potholes or speed bumps can damage air springs or level sensors. Drive carefully over rough terrain.

Impact of an Airmatic Malfunction on Your Mercedes

An Airmatic malfunction is not merely an inconvenience; it can significantly impact your vehicle's performance and safety:

• Compromised Ride Comfort: The most immediate effect is a harsh, bumpy, or inconsistent ride, vastly diminishing the luxury experience synonymous with Mercedes-Benz.
• Reduced Handling and Safety: Uneven ride height can severely affect your vehicle's stability, especially during braking and cornering. This can lead to increased stopping distances and unpredictable handling, posing a significant safety risk.
• Increased Wear on Other Components: If the Airmatic system isn't functioning correctly, other suspension and steering components might be subjected to abnormal stresses, leading to accelerated wear and additional repair costs.
• Potential for Further Damage: A failing compressor trying to compensate for a leak can overheat and burn out. Similarly, driving on a collapsed air spring can cause damage to other parts of the suspension or even the vehicle's undercarriage.

Frequently Asked Questions About Mercedes Airmatic Malfunctions

Q: Can I still drive with an AIRMATIC malfunction?
A: While you might be able to drive short distances, it's strongly advised to avoid prolonged or high-speed driving with an Airmatic malfunction. The vehicle's handling, braking, and stability are compromised, making it unsafe. Drive carefully and get it inspected by a qualified technician as soon as possible.

Q: Why does one side of my Mercedes sag and not the other?
A: When only one side or corner sags, it typically indicates a problem specific to that part of the system. This could be a leaking air spring or strut on that particular side, or a faulty level sensor that is misreading the height and causing the system to incorrectly deflate that corner.

Q: Will the Airmatic warning reset after a restart?
A: Sometimes, an intermittent fault might clear briefly after restarting the engine, especially if it's a transient electrical glitch. However, if there's an underlying hardware issue like a leak or a failing component, the warning will almost certainly return, often quite quickly, as the system struggles to maintain proper function.

Q: Is a fuse likely the cause of an Airmatic malfunction?
A: While always worth checking, a blown fuse is rarely the sole cause of an intermittent Airmatic malfunction. Fuses typically cause a complete loss of power to a circuit, leading to a total system failure rather than a partial or intermittent fault. Most Airmatic issues stem from mechanical wear, air leaks, or component failures.

Q: What is the average cost of Airmatic repair?
A: The cost of Airmatic repair varies significantly depending on the specific component that needs replacing and the labour rates of your chosen workshop. Replacing a single air spring or strut can range from a few hundred to over a thousand pounds, while a new compressor can be similarly priced. Control module replacements can be considerably more expensive. Always get a detailed quote after a proper diagnosis.

Q: How long do Airmatic components typically last?
A: The lifespan of Airmatic components can vary greatly depending on driving conditions, climate, and vehicle maintenance. Generally, air springs and compressors are designed to last between 7 to 10 years or around 60,000 to 100,000 miles. However, exposure to harsh road conditions, extreme temperatures, and consistent overloading can shorten this lifespan.

Conclusion

An Airmatic malfunction in your Mercedes-Benz is a serious issue that directly impacts your vehicle's ride quality, comfort, and, most importantly, its safety. Understanding the common causes, recognising the symptoms, and knowing the diagnostic process are crucial steps for any Mercedes owner. While some basic checks can be performed at home, the complexity of the Airmatic system often necessitates professional diagnosis and repair. If you experience an Airmatic malfunction warning, it is essential to have it inspected and repaired by a qualified technician promptly to ensure the longevity, performance, and safety of your cherished Mercedes.
