Understanding Mercedes-Benz ABC Suspension

When discussing the pinnacle of automotive engineering, Mercedes-Benz vehicles often come to mind, particularly for their innovative features designed to enhance driving dynamics and passenger comfort. One such groundbreaking system is Active Body Control (ABC), a sophisticated hydraulic suspension system developed by Mercedes-Benz. Designed to offer unparalleled levels of comfort and handling, ABC truly sets these vehicles apart, providing what many describe as a 'magic carpet' ride.

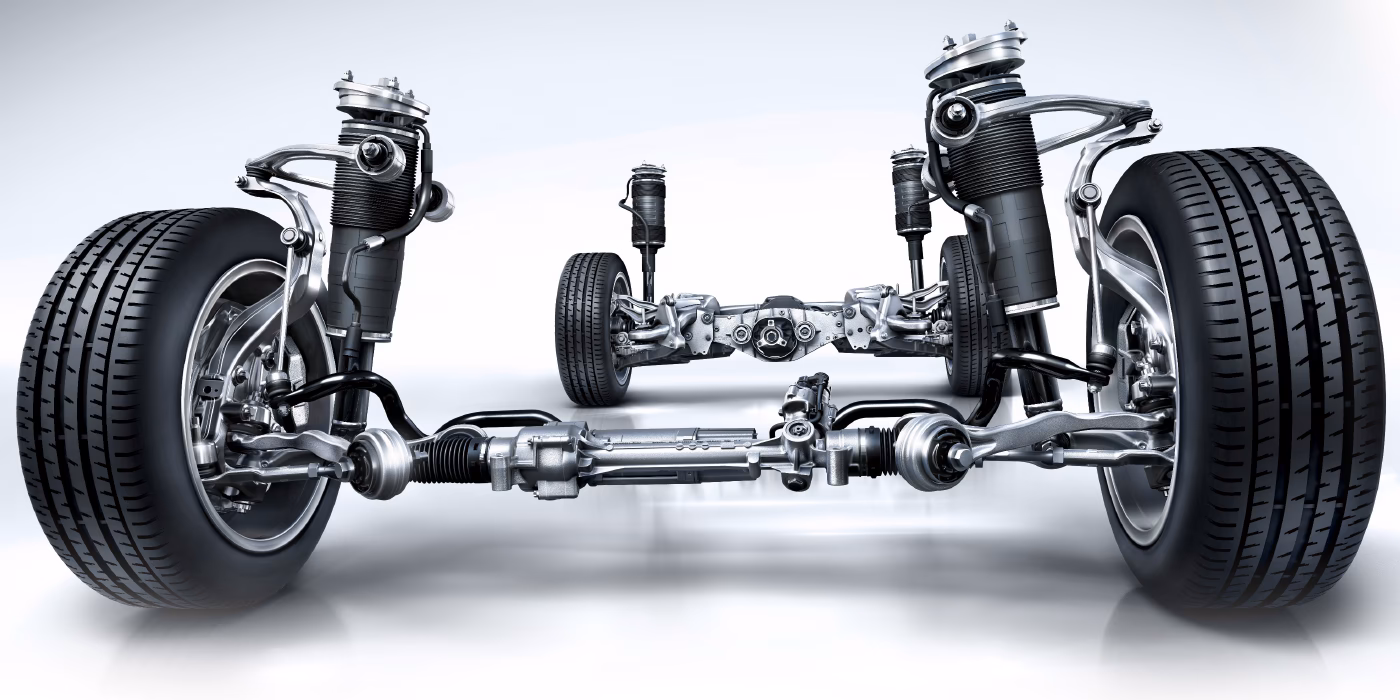

What is Active Body Control (ABC)?

ABC, or Active Body Control, is a highly advanced, fully active hydraulic suspension system. Unlike traditional passive suspension setups that simply react to road conditions, ABC actively controls the vehicle's body movements. It uses a network of sensors, a high-pressure hydraulic pump, valve blocks, and hydraulic struts at each wheel to continuously adjust the suspension in real-time. This allows the system to virtually eliminate body roll during cornering, reduce squat during acceleration, and minimise dive during braking, all while maintaining a remarkably smooth and composed ride over varied terrains. The core principle is to provide constant damping and level control, adapting to every nuance of the road.

The Unparalleled Comfort and Handling of ABC

The primary appeal of the ABC system lies in its ability to deliver an extraordinary driving experience. Drivers often report an almost surreal sense of gliding over imperfections, with the car remaining remarkably stable and flat even through aggressive manoeuvres. This level of comfort is achieved by the system's ability to respond to road inputs within milliseconds, allowing for precise control over the vehicle's attitude. For a luxury vehicle, this translates into a serene cabin environment, insulating occupants from the harsh realities of the road surface. Furthermore, the enhanced handling characteristics mean that despite its size, an ABC-equipped Mercedes can feel surprisingly agile and responsive, providing a confident and engaging drive.

Common Faults and Their Symptoms within the ABC System

While the ABC system offers incredible benefits, its complexity means that, like any advanced mechanical system, it can develop issues over time. Due to its high-pressure nature and the intricate interplay of components, certain faults are more common than others. Understanding these can help owners identify problems early and seek appropriate remedies.

• Pump Failure: The ABC pump is the heart of the system, responsible for generating the high hydraulic pressure (often exceeding 200 bar) required for operation. Symptoms of pump failure can include a whining noise from the engine bay, loss of suspension height (the car may sit low or unevenly), a 'red ABC warning' message on the dashboard, or a complete loss of suspension function. A failing pump can also contaminate the entire system with metallic particles, leading to further damage.
• Valve Blocks: There are typically two valve blocks (front and rear) in the ABC system, which control the flow of hydraulic fluid to each strut. Over time, internal seals can degrade, leading to external leaks or internal bypasses. This can manifest as the vehicle sinking overnight or after being parked for a while, uneven ride height, or a 'white ABC warning' indicating a lower pressure issue. Sticking valves can also cause harshness or erratic suspension behaviour.
• Strut Assemblies: Each wheel has an ABC strut, which combines a shock absorber, spring, and hydraulic cylinder into one unit. Common issues include fluid leaks from the strut seals, which can lead to a visible wet patch around the strut and a gradual loss of ride height at that corner. On some models, the suspension ball joints are incorporated directly into the ABC struts. This design means that a worn ball joint, a relatively inexpensive component in many other cars, can necessitate the replacement of a complete, very expensive strut assembly to remedy the issue.
• High-Pressure Lines: The ABC system operates under immense pressure, and the various hydraulic lines connecting components are susceptible to wear, corrosion, and eventual rupture, especially given their age in older vehicles. A burst line can lead to a sudden and catastrophic loss of hydraulic fluid, leaving the car undrivable and potentially stranded. This is a particularly serious concern for many owners.
• Accumulators: Also known as pulsation dampers, accumulators are spherical units filled with nitrogen gas and separated by a diaphragm. They absorb pressure pulsations and provide a smoother ride. Over time, the gas can escape, or the diaphragm can rupture, leading to a loss of damping. This results in a noticeably harsher, bouncier ride, particularly over bumps, and can put additional strain on other ABC components.

Diagnosis and Repair: The Importance of Expertise

Given the complexity and critical nature of the ABC system, accurate diagnosis and expert repair are paramount. Generic garages may struggle with the intricate diagnostics required, often leading to misdiagnosis or partial fixes. Specialist Mercedes-Benz technicians, with their deep understanding of the ABC system, possess the necessary diagnostic tools and experience to pinpoint faults accurately and perform comprehensive repairs. Whether it's replacing a pump, rebuilding a valve block, or fitting new struts, using genuine or high-quality OEM parts and following precise Mercedes-Benz procedures is crucial for long-term reliability.

The Dilemma: Repairing ABC vs. Coilover Conversion

For many Mercedes-Benz owners, particularly those with older models, the recurring maintenance costs associated with the ABC system can become a significant consideration. This often leads to a crucial decision: to continue maintaining the ABC system or to opt for a coilover conversion.

Arguments for Maintaining and Repairing the ABC System:

• Originality and Ride Quality: The most compelling reason to keep ABC is to retain the car's original design and the 'magic carpet' ride that only ABC can truly deliver. For purists and those who prioritise ultimate comfort, repairing the system is the only way to preserve the car's intended driving characteristics.
• Investment in Quality: When properly maintained, a fully functional ABC system is a testament to Mercedes-Benz engineering. Investing in quality repairs can ensure many more years of sophisticated ride quality.

Arguments for Coilover Conversion:

An increasing number of owners are turning to coilover conversion kits as a long-term solution to ABC system woes. This involves replacing the hydraulic ABC struts and associated components with conventional spring and shock absorber coilover units, often accompanied by traditional anti-roll bars.

• Eliminating Future ABC Failures: This is perhaps the strongest argument. By removing the high-pressure pump, valve blocks, accumulators, and hydraulic lines, owners eliminate the most common and costly failure points. This provides immense peace of mind, knowing they won't be stranded by a sudden hydraulic line rupture or pump failure.
• Long-Term Cost-Effectiveness: While the initial outlay for a quality coilover kit can be substantial, it often pales in comparison to the cumulative costs of multiple ABC repairs over several years. As one owner noted, "life is too short to be constantly maintaining the thing."
• Improved Reliability: Conventional coilover systems are inherently simpler and generally more robust than complex hydraulic setups. This translates to fewer potential points of failure and a more predictable maintenance schedule.
• Enhanced Handling (with the right kit): Contrary to common misconceptions, a well-designed coilover kit, especially one that includes front and rear sway bars (anti-roll bars), can significantly improve the car's handling. While the 'magic carpet' floatiness might be slightly reduced, the car can feel more planted, with less body roll and improved feedback. Reports suggest the ride quality can be "nearly as good" as ABC, particularly with new accumulators or after a fresh ABC fluid flush.
• Potential for Value Addition: While a cheap, low-quality coilover conversion might devalue a luxury car, a high-quality kit from a reputable manufacturer can actually add value. For prospective buyers of older Mercedes models, a car with a properly converted, trouble-free coilover system can be far more appealing than one with a potentially problematic ABC system.
• Simplified Maintenance: Once converted, the R230 (and similar ABC-equipped models) can become significantly more robust and trouble-free. Beyond regular consumables like tyres, brakes, and fluids, the list of specific trouble spots shrinks dramatically, making the car much easier and less expensive to own in the long run.
• Recouping Costs: Owners who convert their vehicles may be able to sell off good, working ABC components (like a recently replaced pump or valve blocks) on the used parts market, helping to offset the cost of the conversion kit.

Comparison Table: ABC System Maintenance vs. Coilover Conversion

Frequently Asked Questions About Mercedes-Benz ABC

• What does ABC stand for on a Mercedes-Benz?
  ABC stands for Active Body Control. It's Mercedes-Benz's proprietary hydraulic suspension system.
• Is the ABC system reliable?
  While incredibly sophisticated, the ABC system can develop reliability issues with age, mainly due to the high pressures involved and the wear of components like pumps, seals, and hydraulic lines. Regular fluid flushes can extend its life, but eventual repairs are common.
• How often should ABC fluid be changed?
  Mercedes-Benz recommends specific service intervals for ABC fluid and filter changes, typically every 30,000 to 40,000 miles or every few years. This is crucial for the longevity of the system.
• Can I convert my ABC suspension to coilovers?
  Yes, several aftermarket companies offer coilover conversion kits designed to replace the ABC system entirely. This is a popular option for owners seeking to eliminate the potential for costly ABC repairs.
• What are the common signs of ABC failure?
  Common signs include warning messages on the dashboard (red or white ABC warnings), the car sitting too low or unevenly (especially after being parked), a harsh or bouncy ride, fluid leaks visible around the wheels or under the car, and a whining noise from the power steering pump area (which often shares a common drive with the ABC pump).
• How much does ABC repair typically cost?
  The cost of ABC repair varies significantly depending on the specific component that has failed. Replacing a pump, valve block, or a single strut can be very expensive, often running into thousands of pounds per component. This is why many owners consider coilover conversions as a more predictable long-term solution.

Conclusion

The Mercedes-Benz Active Body Control system is a marvel of engineering, delivering a ride quality and handling prowess that few other vehicles can match. However, its complexity and high-pressure nature mean that it can be a source of significant maintenance costs as vehicles age. Owners are faced with the choice of investing in ongoing ABC system repairs to preserve the original driving experience or opting for a high-quality coilover conversion for enhanced long-term peace of mind and reduced maintenance overheads. Whichever path you choose, ensuring that work is carried out by experienced and knowledgeable specialists is paramount to keeping your Mercedes-Benz performing at its best.
