A functioning car antenna is more than just an aesthetic feature; it's crucial for clear radio reception, GPS signals, and sometimes even remote keyless entry systems. Over time, antennas can suffer from wear and tear, succumb to accidental damage from car washes or low-hanging obstacles, or simply stop working effectively. While a professional repair shop can certainly handle the job, replacing a car antenna is often a straightforward task that many car owners can tackle themselves, saving both time and money. This comprehensive guide will walk you through the process, covering various antenna types and offering a clever solution for a common, frustrating issue: a snapped antenna base shear bolt.
Understanding Car Antenna Types
Before you begin any replacement, it's essential to identify the type of antenna your vehicle uses. Different designs require different approaches and replacement parts. Knowing your antenna type will ensure you purchase the correct replacement and follow the most appropriate installation steps.
Mast Antennas
These are the most traditional and common type, often seen on the car's roof or front wing (fender). They consist of a flexible or rigid mast that screws into a base. Some are fixed, while others can be manually retracted or have a powered mechanism.
Power Antennas
Often found on older luxury vehicles, power antennas retract into the car body when the radio is turned off and extend when it's on. They are operated by a small electric motor and can be more complex to replace due to their electrical connections and internal mechanisms.
A more modern and aerodynamic design, shark fin antennas are typically found on the roof. They often house multiple antennas for radio, GPS, and mobile connectivity. Replacing these usually involves unbolting them from inside the headliner.
Whip Antennas
Similar to mast antennas but often thinner and more flexible, whip antennas are common on older vehicles and some commercial vehicles. They are generally straightforward to replace.
Internal Antennas
Some vehicles, particularly newer models, have antennas integrated into the windscreen (windshield) or rear window, or even hidden within the body panels. These are not typically user-replaceable and usually require professional attention if they fail.
General Tools and Materials You Might Need
While specific tools may vary based on your antenna type, here's a general list of what you might require for a typical mast or whip antenna replacement:
- New Replacement Antenna (ensure it's compatible with your vehicle's make and model)
- Adjustable Spanner or a Set of Spanners/Sockets
- Screwdrivers (Phillips and Flathead)
- Pliers
- Trim Removal Tools (plastic wedges to avoid scratching interior panels)
- Clean Cloth
- Gloves
- Safety Glasses (especially for drilling or cutting)
- Optional: Dielectric Grease (for weather sealing connections)
For the specific shear bolt repair, you'll need additional items:
- Drill and Appropriate Drill Bits
- Tap and Die Set (specifically a tap matching your chosen bolt size)
- Long Bolt (matching the tap size)
- Several Nuts (matching the bolt size)
- Solder and Soldering Iron/Torch
- Vice
- Metal File or Grinder (optional, for shaping bolt)
Step-by-Step General Antenna Replacement (Mast/Whip)
This section covers the typical procedure for replacing a standard screw-in mast or whip antenna. For power or shark fin antennas, the process will involve more complex electrical disconnections or interior panel removal.
Assess the Damage and Antenna Type
First, confirm if the entire antenna needs replacing or just the mast. Many mast antennas simply screw into a base. If only the mast is broken, you might only need a replacement mast. If the base is damaged, or if it's a power/shark fin antenna, the job becomes more involved.
Gather Your Tools and New Antenna
Ensure you have all the necessary tools and the correct replacement antenna for your vehicle. Consult your car's owner's manual or an online parts catalogue if unsure about the exact part number.
Access the Antenna Base (If Necessary)
For most mast antennas, the base is external. However, some antennas, especially those mounted on the rear wing or certain roof positions, may require access from the inside of the boot (trunk) or headliner to unbolt the base and disconnect the coaxial cable.
- For external bases: Simply unscrew the old mast (if present). If the base itself needs replacing, you'll typically find a large nut holding it in place, often hidden under a rubber grommet.
- For internal access: Gently pry away any interior trim panels or lower the headliner carefully using trim removal tools. Locate the antenna base and the coaxial cable connected to it.
Disconnect and Remove the Old Antenna
Carefully disconnect the coaxial cable from the antenna base. This usually involves unscrewing a threaded connector. Then, unbolt or unscrew the old antenna base from the vehicle body. Be mindful of any rubber seals or gaskets, as these prevent water ingress.
Install the New Antenna
Thread the new coaxial cable through the mounting hole and connect it securely to the new antenna base. Position the new antenna base, ensuring any seals or gaskets are correctly seated. Bolt or screw the new antenna base into place, tightening it securely but without overtightening.
Reconnect and Test
If you removed any interior panels, reattach them carefully, ensuring all clips and fasteners are secure. Turn on your car's radio and test the reception. Check all bands (AM/FM) to ensure clear sound. If it's a power antenna, verify it extends and retracts correctly.

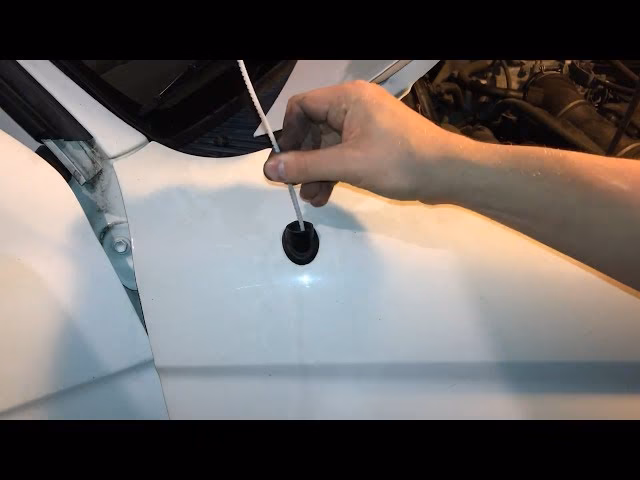

Special Case: Repairing a Snapped Antenna Base Shear Bolt
Some manufacturers, like the Saturn mentioned, use a shear bolt in the antenna base designed to snap off if the antenna hits something, protecting the bodywork. While a good idea in theory, it leaves a broken bolt embedded in the base, making replacement difficult without buying an expensive new base. This ingenious repair method allows you to fix the existing base.
The total cost for this specific repair is typically less than £2.00, far less than a new factory antenna base, which can cost upwards of £50.00.
Prepare the Antenna Base
Your goal here is to drill out the remains of the snapped shear bolt and prepare a new threaded hole. Wear your safety glasses! Metal shavings are no joke.
- Carefully drill a pilot hole into the centre of the broken shear bolt remnant in the antenna base.
- Gradually increase the drill bit size until you can tap the hole for a new, slightly larger bolt. Select a drill bit appropriate for the tap size you intend to use. Drill slowly and steadily.
- Once the hole is drilled to the correct size, use your tap to create new threads within the hole. This will allow your new bolt to screw in securely.
Prepare the Bolt for the Antenna
This is the clever part. You need to create a custom bolt that will securely bond with the antenna mast and screw into your newly tapped base.
- Take a long bolt that matches the thread you just tapped in the antenna base.
- Thread two nuts onto the bolt. Tighten the first nut hand-tight against the antenna base (if it were assembled). Then, tighten the second nut against the first, locking them in place. This forms a temporary 'stop'.
- Remove the bolt from the base. Now, thread two more nuts onto the bolt. Repeat the tightening process, locking them against each other, but do not tighten them more than hand-tight against the first set of nuts. This second set will act as a guide for cutting.
- Measure the depth of the bolt socket within the antenna mast itself (the part that screws into the base). Use a piece of wire or another bolt to get an accurate measurement.
- Mark the bolt, adding the depth of the antenna mast's socket to the length you've already marked with the two nuts. This mark indicates where you need to cut the bolt.
- Cut the bolt at your marked point. A hacksaw or angle grinder will work. File down any rough edges.
Solder the Bolt Into the Antenna Mast
This step creates a permanent, strong bond between your custom bolt and the antenna mast.
- Securely place the antenna mast upside down and level in a vice.
- Wrap a generous amount of solder around the threaded end of your prepared bolt.
- Insert the bolt (solder end first) into the antenna mast's socket.
- Using a soldering iron or a small torch, apply heat to the bottom of the antenna mast itself, not directly to the solder. The heat will transfer, causing the solder to melt and flow into the bolt socket, creating a strong bond.
- A good technique is to feed a long piece of solder into the hot socket as it melts, ensuring the socket is completely filled. Then, while the antenna is still hot, push the bolt firmly into the molten solder. This ensures maximum contact and a solid connection.
- Allow the antenna and bolt assembly to cool completely. This can take quite a while, so patience is key. Once cool, remove the nuts you used to mark the cutting point from the bolt.
Final Assembly and Test
You now have an antenna mast with a custom-fitted bolt that will screw perfectly into your repaired antenna base. Screw the newly repaired antenna mast into the base. Ensure it's snug. Test your radio reception. Remember to remove your antenna before going through automatic car washes to prevent future damage!
Troubleshooting Common Antenna Issues
Even after replacement, you might encounter issues. Here's a quick troubleshooting guide:
Poor Reception
- Loose Connection: Check that the coaxial cable is securely connected to the antenna base and to the back of your car's head unit (radio).
- Damaged Cable: Inspect the entire length of the coaxial cable for kinks, cuts, or corrosion. A damaged cable can significantly degrade signal quality.
- Wrong Antenna Type: Ensure the replacement antenna is specifically designed for your vehicle and its radio system.
- Environmental Factors: Sometimes, poor reception is due to external factors like tall buildings, tunnels, or remote locations, not the antenna itself.
Antenna Not Extending/Retracting (Power Antennas)
- Blown Fuse: Check the fuse box for a blown fuse related to the power antenna.
- Motor Failure: The internal motor might have failed. This often requires replacing the entire power antenna assembly.
- Bent Mast: A bent or jammed mast can prevent proper extension/retraction.
- Wiring Issues: Inspect the electrical connections to the power antenna for corrosion or disconnections.
It's always a good idea to consult your vehicle's service manual for specific wiring diagrams or troubleshooting steps related to your model.
When to Consider Professional Help
While DIY antenna replacement is achievable for many, there are situations where professional help is advisable:
- Complex Antenna Systems: If your vehicle has an integrated, multi-function shark fin antenna or a highly complex power antenna system that requires extensive interior dismantling or specialised tools.
- Electrical Issues: If you suspect the problem lies with the car's wiring, head unit, or a complex electrical fault rather than just the antenna itself.
- No Tools or Experience: If you lack the necessary tools, confidence, or experience with automotive repairs.
- Warranty Concerns: If your vehicle is still under warranty, performing DIY repairs might void certain coverages. Always check your warranty terms.
Frequently Asked Questions (FAQs)
Q: Can I use a universal antenna for my car?
A: While some universal antennas exist, it's always best to use an antenna specifically designed for your car's make, model, and year. Universal antennas may not fit correctly, provide optimal reception, or match the aesthetics of your vehicle. Compatibility with the existing wiring and mounting points is crucial.
Q: How do I know if my antenna is broken or if it's a radio problem?
A: A simple test is to try tuning into a strong local radio station. If you get no signal or very poor, static-filled reception on all stations, and your antenna is visibly damaged (bent, snapped, missing), it's likely the antenna. If other audio sources (CD, AUX, Bluetooth) work fine, but radio is poor, the antenna is a prime suspect. If all audio sources are problematic, the issue might be with the head unit or amplifier.
Q: Are there different types of antenna connectors?
A: Yes, there are several types, but the most common for car radios are Motorola (DIN) connectors. However, some manufacturers use proprietary connectors. This is another reason why buying a vehicle-specific antenna is recommended, as it should come with the correct connector.
Q: How long does it typically take to replace a car antenna?
A: For a simple screw-in mast antenna, it might take only 5-10 minutes. For an antenna requiring internal access or the shear bolt repair described above, it could take anywhere from 30 minutes to a couple of hours, depending on your experience and how easily you can access the mounting points.
Q: Can I drive without an antenna?
A: Yes, you can drive your car without an antenna. However, your radio reception will be significantly impaired or non-existent. It won't affect the car's performance or safety, but it will certainly impact your driving enjoyment if you rely on radio.
Q: How can I prevent my antenna from breaking again?
A: The most common causes of antenna damage are automatic car washes and low-hanging obstacles. Always remember to remove or retract your antenna before entering a car wash. Be mindful of low garages, tree branches, and other potential hazards. Consider a shorter, more flexible antenna if you frequently encounter such issues.
Replacing a car antenna, even one with a tricky shear bolt issue, is a rewarding DIY project that can save you a significant amount compared to professional services. With the right tools, a bit of patience, and this guide, you can restore your car's radio reception and enjoy your drives with crystal-clear audio once again.
