Matchless OHV vs Magdyno: A Mechanical Deep Dive

When delving into the intricate world of classic motorcycle mechanics, understanding the specific components and their functions is paramount. Two terms that often surface in discussions about older British motorcycles, particularly those from marques like Matchless, are 'OHV' and 'Magdyno'. While both are crucial to a motorcycle's operation, they refer to entirely different systems. This article aims to demystify these terms, explaining what each one is, how they work, and what their significance is in the context of classic motorcycle maintenance and restoration.

What is OHV?

OHV stands for Overhead Valve. This is a configuration of the internal combustion engine's valve train. In an OHV engine, the valves (both intake and exhaust) are located directly above the combustion chamber in the cylinder head, while the camshaft is positioned lower down in the engine block. This contrasts with other valve configurations like Overhead Cam (OHC), where the camshaft is also in the cylinder head, and Side-valve engines, where the valves are in the cylinder block.

How OHV Works:

In a typical OHV engine, the camshaft, driven by the crankshaft via a gear or chain, operates pushrods. These pushrods, in turn, push on rocker arms. The rocker arms then pivot to open the intake and exhaust valves at the precise moments required for the engine's four-stroke cycle (intake, compression, power, exhaust). The valves are typically closed by springs.

Advantages of OHV:

• Compact Design: OHV engines can often be more compact than OHC engines because the cylinder head doesn't need to accommodate the camshaft and its associated drive mechanism. This can be advantageous in motorcycle design where space is often at a premium.
• Simpler Valve Train: While it involves more parts than a basic side-valve design, the OHV configuration is generally considered simpler and more robust than a complex OHC system with multiple camshafts and intricate timing chains.
• Good Torque: OHV engines are often known for producing good low-end torque, making them well-suited for cruising and general riding.

Disadvantages of OHV:

• Limited High-RPM Performance: The pushrod system can introduce valve float at very high engine speeds, limiting the engine's ability to rev freely and produce peak power at high RPMs.
• More Moving Parts: Compared to OHC, the OHV system has more moving parts (camshaft, tappets, pushrods, rocker arms), which can lead to slightly more friction and potential for wear.

What is a Magdyno?

A Magdyno is a combined unit that integrates two essential functions for a motorcycle: a magneto (often referred to as a 'mag') and a dynamo (or generator). In older motorcycles, particularly those from the pre-WWII era and into the 1950s, electrical systems were simpler, and this integrated unit was a common and effective solution.

How a Magdyno Works:

The Magdyno typically consists of two main parts, often housed in a single casing or closely coupled:

1. Magneto Ignition: The magneto is a self-contained ignition system. It uses rotating magnets (driven by the engine) to generate electrical current. This current is then directed to the spark plug at the correct time to ignite the fuel-air mixture. A key advantage of a magneto is that it does not rely on an external battery to produce a spark. It generates its own high-voltage pulse, making it highly reliable for ignition, even if the battery is dead or absent. The timing of the spark is usually determined by the mechanical interruption of a coil's primary winding, driven by the rotating magnets.
2. Dynamo (Generator): The dynamo's role is to generate electrical power to charge the battery and supply electricity to the motorcycle's lights and any other electrical accessories. It is typically driven by the engine at a different speed than the magneto portion, often through a system of gears or a belt. The dynamo produces direct current (DC), which then goes through a voltage regulator (either internal or external) to control the charging rate to the battery.

Advantages of a Magdyno:

• Self-Sufficiency: The magneto component ensures reliable ignition even without a battery, a significant advantage for starting and running in challenging conditions.
• Simplicity and Reliability: In its era, the Magdyno was a robust and relatively simple electrical solution, with fewer components to fail compared to more complex modern systems.
• Space Saving: Combining two functions into one unit saved valuable space on the motorcycle, which was a crucial consideration in design.

Disadvantages of a Magdyno:

• Limited Power Output: Compared to modern alternators, the dynamo output of a Magdyno is generally quite low, which can be insufficient for running many modern accessories or powerful lighting.
• Maintenance: While reliable, Magdynos do require maintenance, including cleaning, checking contact points (in the breaker mechanism), and ensuring proper lubrication. The dynamo also needs brushes that can wear out.
• Complexity of Repair: Rebuilding or timing a Magdyno can be a complex task requiring specific knowledge and tools.

Key Differences Summarised

It's clear that OHV and Magdyno are fundamentally different. Here's a table to highlight their distinct roles:

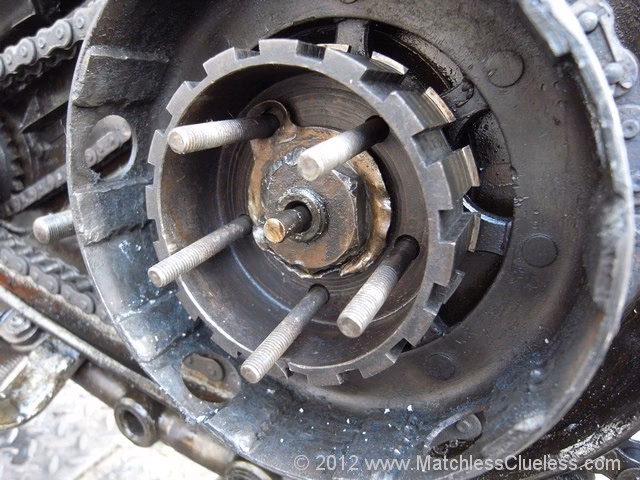

Relevance to Classic Matchless Motorcycles

Matchless motorcycles, particularly those from the mid-20th century, frequently featured OHV engine designs. Models like the G3L, G80, and various twins would have had OHV engines. Many of these older Matchless models also originally came equipped with Magdynos for their electrical needs. Therefore, when restoring or maintaining a classic Matchless, you might be working on both an OHV engine and a Magdyno unit.

Understanding the OHV system is crucial for engine tuning, valve adjustments, and ensuring proper lubrication of the valve train. Knowing how to maintain and troubleshoot a Magdyno is vital for getting the bike to start and run reliably, and for keeping the lights on. Often, owners of classic bikes choose to upgrade the electrical system from a Magdyno to a more modern alternator and electronic ignition for improved reliability and output, but this is a significant modification that changes the character of the original machine.

Frequently Asked Questions

Q1: Can an OHV engine have an OHC system?
No, OHV and OHC are distinct valve train configurations. An engine is either OHV or OHC (or side-valve, etc.), not both simultaneously.

Q2: Does a Magdyno require a battery to work?
The magneto part of a Magdyno does not require a battery for ignition. However, the dynamo part needs a battery to store the electrical energy it generates and to provide a stable voltage for the system.

Q3: Are OHV engines still used today?
Yes, OHV engines are still widely used, particularly in American V-twin engines (like Harley-Davidson) and in many smaller engines for lawnmowers, generators, and industrial equipment, due to their simplicity and torque characteristics.

Q4: What replaced the Magdyno system on motorcycles?
Modern motorcycles typically use separate alternators (AC generators) coupled with electronic ignition systems (like CDIs or transistorised ignition), and often a larger capacity battery.

Q5: If my Matchless has a Magdyno, does it have an OHV engine?
Not necessarily. While many older Matchless OHV models used Magdynos, the engine configuration (OHV) and the electrical system (Magdyno) are independent features. Some OHV engines might have used separate magnetos and dynamos, or later models might have had different electrical systems.

Conclusion

In essence, OHV describes how the engine's valves are operated, directly impacting its internal breathing and performance characteristics. Conversely, a Magdyno is a combined unit responsible for providing the spark to ignite the fuel and generating electricity for the motorcycle's needs. Both are critical pieces of engineering found in many classic British motorcycles, and understanding their distinct roles is fundamental for anyone passionate about maintaining and preserving these iconic machines.
