KTM Fuel Pump Reliability: What Owners Need to Know
The performance and reliability of any motorcycle are paramount, and for KTM owners, the fuel delivery system, particularly the fuel pump, is a critical component. While KTMs are renowned for their racing pedigree and cutting-edge technology, like any complex machine, they can occasionally encounter issues. One question that sometimes surfaces among riders is the reliability of KTM fuel pumps. This article aims to shed light on this topic, addressing common concerns, discussing potential causes of failure, and offering advice on maintenance and preventative measures.
Understanding the KTM Fuel Pump System
KTM, like many modern motorcycle manufacturers, has transitioned to fuel injection systems on many of its models, especially the SX-F and EXC lines. The fuel pump's job is to deliver fuel from the tank to the engine under consistent pressure. This is crucial for optimal performance, fuel efficiency, and emissions control. In earlier models, carburetors were the norm, but the advent of fuel injection brought about new components, including electric fuel pumps, fuel filters, and injectors.
The information provided highlights a significant technological shift with KTM's introduction of the 250 XC-W TPI (Transfer Port Injection). This model features a sophisticated fuel injection system for its two-stroke engine, a groundbreaking innovation at the time. The TPI system utilises two injectors into the transfer ports of the cylinder, promising smoother power delivery, reduced fuel consumption, and eliminating the need for premixing fuel and oil, as well as the hassle of jetting. This advanced system relies heavily on the precise functioning of its fuel pump and associated components.
Common Fuel Pump Issues and Owner Experiences
A common concern raised by KTM owners relates to the lifespan and reliability of fuel pumps, particularly on their four-stroke motocross and enduro models. One owner reported a fuel pump failure on a 2016 KTM 450 SX-F FE at just 40 hours of use, incurring a significant repair cost. Another instance was noted on a 2017 KTM 450 SX-F, also reportedly experiencing issues around the 40-hour mark. These anecdotal reports suggest that fuel pump failures, while not necessarily a widespread epidemic, can occur relatively early in a bike's life.
Several factors can contribute to premature fuel pump failure:
- Fuel Quality: Using contaminated or poor-quality fuel can lead to blockages in the fuel filter or damage to the pump's internal components. Ethanol in fuel can also degrade certain materials over time.
- Clogged Fuel Filters: The fuel pump often incorporates a filter. If this filter becomes excessively clogged with debris, it can strain the pump, leading to overheating and eventual failure.
- Debris in the Fuel Tank: Manufacturing residue, dirt, or sediment in the fuel tank can be drawn into the fuel pump, causing wear or blockages.
- Electrical Issues: While less common, problems with the wiring harness, connectors, or voltage supply to the fuel pump can cause intermittent operation or complete failure.
- Overheating: In some cases, fuel pumps can overheat due to prolonged operation under high load or if the fuel level in the tank is very low, as the fuel itself helps to cool the pump.
- Manufacturing Defects: Although manufacturers strive for quality, occasional component defects can occur, leading to premature failure.
KTM TPI Technology: A Different Approach

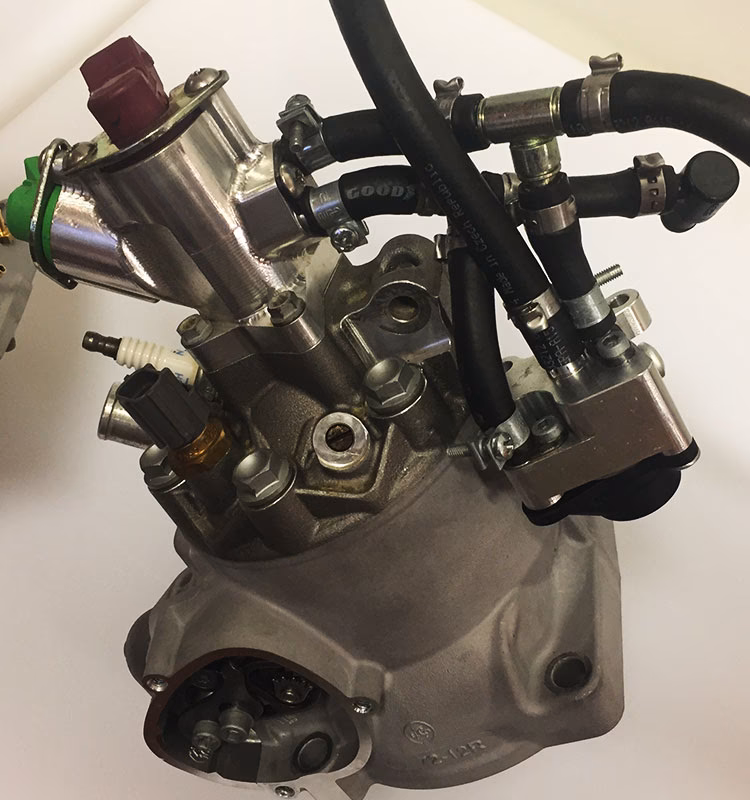

It's important to distinguish between the fuel pump systems in traditional four-stroke fuel-injected bikes and the TPI (Transfer Port Injection) system found on specific KTM two-stroke models like the 250 XC-W TPI. The TPI system, as detailed in the provided specifications, is a highly advanced setup designed for two-stroke engines. It utilises a dual-injector system located in the transfer ports, controlled by a sophisticated Engine Management System (EMS) with multiple sensors. While this system offers significant advantages, its complexity means that any issues within the fuel delivery chain, including the pump, can have a notable impact on performance.
The specifications for the 2018 KTM 250 XC-W TPI highlight the components involved:
| Component | Description |
|---|---|
| Fuel System | TPI, Dell’Orto 39mm Throttle Body |
| Injectors | Two injectors into the rear transfer ports |
| EMS | New ECU controlling ignition timing and fuel based on 5 sensors |
The reliability of the fuel pump within this TPI system is crucial for its seamless operation. While TPI aims to eliminate traditional carburettor issues like jetting and premixing, it introduces a reliance on the precise functioning of its electronic fuel delivery components.
Maintenance and Preventative Measures
To maximise the lifespan and reliability of your KTM's fuel pump, adhering to a strict maintenance schedule is essential. Here are some key practices:
- Use High-Quality Fuel: Always use fresh, clean fuel from reputable sources. Avoid letting fuel sit in the tank for extended periods, especially during off-season storage. Consider using a fuel stabiliser.
- Regular Fuel Filter Checks/Replacements: Consult your owner's manual for the recommended service interval for the fuel filter. Many KTM models have an inline fuel filter or a filter integrated into the fuel pump assembly. Replacing or cleaning these filters as per the schedule can prevent strain on the pump.
- Keep the Fuel Tank Clean: Regularly inspect the inside of your fuel tank for any debris or sediment. If you notice any, clean the tank thoroughly before it can enter the fuel system.
- Monitor Fuel Levels: Avoid running the fuel tank consistently on the verge of empty. The fuel in the tank helps to cool the fuel pump, and running it dry can lead to overheating.
- Listen for Changes in Sound: Some riders report that a failing fuel pump might start making a different or louder noise. Paying attention to unusual sounds from the fuel tank area can be an early indicator.
- Professional Inspection: If you suspect an issue with your fuel pump, have it inspected by a qualified KTM technician. They have the tools and expertise to diagnose problems accurately.
Troubleshooting Common Symptoms
If you suspect your KTM's fuel pump might be failing, you might experience one or more of the following symptoms:
- Difficulty Starting: The engine may crank but not start, or start with great difficulty.
- Hesitation or Stumbling: The engine may hesitate, stumble, or misfire under acceleration or at certain throttle positions.
- Loss of Power: You might notice a significant decrease in engine power, especially at higher RPMs or under load.
- Engine Cutting Out: The engine could suddenly cut out, particularly when the bike is leaned over or subjected to bumps.
- Surging: An inconsistent fuel supply can lead to the engine surging or running erratically.
It's important to note that these symptoms can also be caused by other issues, such as a clogged air filter, faulty spark plug, or ignition system problems. Therefore, a proper diagnosis is crucial.
Comparison of Fuel Systems (Four-Stroke vs. TPI)
When discussing fuel pump reliability, it's helpful to consider the different fuel systems KTM employs:
| Feature | Four-Stroke EFI | Two-Stroke TPI |
|---|---|---|
| Fuel Delivery | Single fuel pump, injector(s) in throttle body/manifold | Dual injectors in transfer ports, potentially different pump design |
| Complexity | High | Very High (for a two-stroke) |
| Maintenance Focus | Fuel filter, pump cleanliness, electrical connections | Fuel filter, pump cleanliness, injector cleanliness, sensor function |
| Common Issues (Reported) | Pump failure, filter clogging | Potential for injector clogging, sensor issues (though pump reliability is generally good) |
While the initial report mentioned a fuel pump issue on a 450 SX-F (a four-stroke), the TPI models represent a different technological approach. The TPI's reliance on precise fuel delivery for its two-stroke operation means that any fuel pump or injector issues would need careful attention. However, the information provided on the 2018 TPI models doesn't explicitly highlight widespread fuel pump failures as a characteristic issue.
Frequently Asked Questions (FAQ)
Q1: Is it common for KTM fuel pumps to fail early?
A1: While individual experiences vary, some owners have reported premature fuel pump failures, particularly on certain four-stroke models. However, it's not universally reported across all KTM models or years. Proper maintenance is key to mitigating this risk.
Q2: What are the signs of a failing KTM fuel pump?
A2: Symptoms can include difficulty starting, engine hesitation or misfires, loss of power, and the engine cutting out unexpectedly.
Q3: How can I prevent my KTM fuel pump from failing?
A3: Use high-quality fuel, regularly check or replace the fuel filter, keep the fuel tank clean, and avoid running the fuel level too low.
Q4: Are KTM TPI models prone to fuel pump problems?
A4: The TPI system is advanced, and while it relies on precise fuel delivery, there isn't a common consensus that TPI models are inherently more prone to fuel pump failures than other fuel-injected bikes. The system's complexity means any fuel delivery issue needs prompt attention.
Q5: Where is the fuel pump located on my KTM?
A5: On most modern KTMs with fuel injection, the fuel pump assembly is typically located inside the fuel tank, often integrated with the fuel level sensor. Consult your specific model's service manual for precise location and removal instructions.
Conclusion
While the experience of a fuel pump failure at a low hour count is undoubtedly frustrating, it doesn't necessarily indicate a systemic flaw across all KTM motorcycles. By understanding the potential causes, adhering to recommended maintenance practices, and being aware of the early warning signs, KTM owners can significantly contribute to the longevity and reliability of their fuel pump systems. Whether you ride a powerful four-stroke or a cutting-edge TPI two-stroke, proactive maintenance is your best ally in ensuring your KTM performs at its peak.
