When it comes to cycling safety, few components are as critical as your brakes. For many riders, V-brakes offer a reliable and effective stopping solution, particularly on mountain bikes, hybrid bikes, and older road bikes. If you're pondering which V-brake pads are suitable for your Tektro system, or perhaps an XLC UVM setup that likely utilises standard V-brake pads, you've come to the right place. Choosing the correct pads isn't just about compatibility; it's about optimising your stopping power, ensuring consistent performance in varying conditions, and ultimately, enhancing your riding safety and enjoyment.
While the specific 'Tektro XLC UVM' model might not be a widely recognised standard, it's highly probable that your brake calipers are a standard V-brake design, and thus, compatible with a broad range of aftermarket V-brake pads. Tektro is a prolific manufacturer of bicycle brakes, and their V-brake systems typically use the common 'direct-mount' or 'post-mount' type of pad, which attaches to the brake arm with a bolt and washer system. Understanding the different types of pads and their characteristics is key to making an informed decision.
Understanding V-Brake Pad Types and Compatibility
V-brakes, also known as linear-pull brakes, are characterised by their long arms and direct cable pull, offering excellent modulation and power. The pads themselves are typically elongated, with a curved profile to match the wheel rim. They usually feature a threaded bolt extending from one end, which passes through the brake arm and is secured with a washer and nut.
The Crucial Role of Pad Compound
The material, or 'compound', of your V-brake pads is perhaps the most significant factor influencing their performance. Different compounds are designed for specific riding conditions and offer varying levels of stopping power, durability, and noise.
- Standard Rubber Compounds: These are the most common and often come as original equipment. They offer decent all-round performance in dry conditions but can lose effectiveness and squeal in the wet. They are generally the most affordable option.
- All-Condition Compounds: Formulated to perform well in both dry and wet weather, these compounds often contain abrasive particles or a blend of rubbers. They provide more consistent braking and reduce noise in damp conditions, making them an excellent choice for everyday riding.
- Wet Weather Specific Compounds: Often softer and designed to shed water and mud more effectively, these pads excel in adverse conditions. They typically offer superior grip in the rain but may wear faster and feel 'grabby' in the dry. Look for compounds with distinct colours like salmon or green.
- Ceramic-Specific Compounds: If your bike features ceramic-coated rims, you'll need special pads designed for this surface. These pads are formulated to work with the ceramic coating, providing powerful braking without damaging the rim. Using standard pads on ceramic rims can lead to premature wear of both the pad and the rim.
Pad Length and Shape
While most V-brake pads share a similar mounting mechanism, their length and overall shape can vary slightly. Most Tektro V-brakes will accept standard-length pads (typically around 70-72mm). Some pads also feature drainage channels or angled leading edges to help clear water and debris, further improving wet-weather performance and reducing rim wear.
Top Brands and Their Offerings for Tektro V-Brakes
Since Tektro V-brakes utilise a widely adopted standard, you're not limited to Tektro's own brand pads. Many reputable manufacturers produce high-quality V-brake pads that are fully compatible and often offer superior performance. Here are some of the most popular and reliable choices:
- Tektro: Naturally, Tektro produces its own range of replacement V-brake pads. These are designed to be a direct fit and offer reliable performance for their brake systems. They are a safe and economical choice for general use.
- Shimano: As a giant in the cycling industry, Shimano offers a comprehensive range of V-brake pads, many of which are cross-compatible with Tektro systems. Their M70T4 and M65T pads are particularly well-regarded for their all-weather performance and durability.

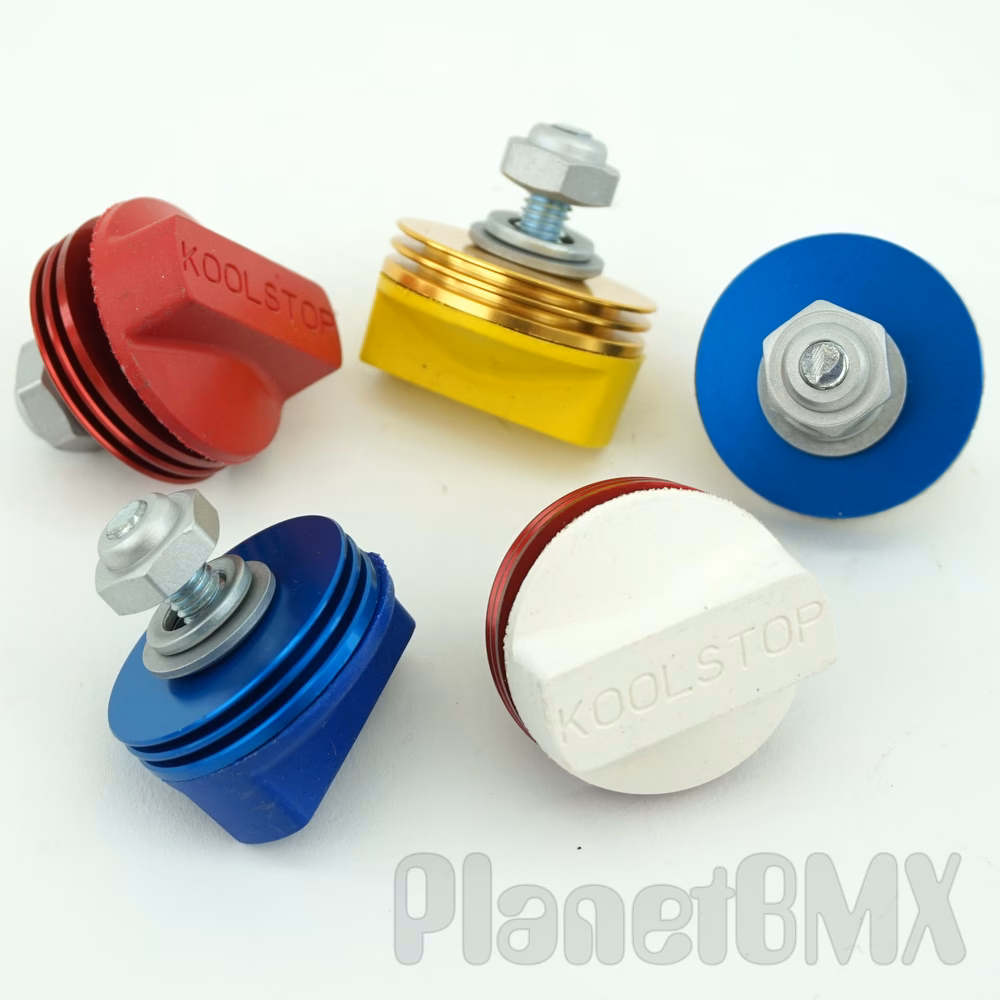

- Kool-Stop: Widely considered among the best aftermarket brake pad manufacturers, Kool-Stop offers a fantastic range of V-brake pads for various conditions. Their 'Salmon' compound is legendary for its wet-weather performance, while their 'Black' compound is excellent in the dry. They also offer dual-compound pads for balanced performance. Kool-Stop pads are often recommended for their superior stopping power and longevity.
- Jagwire: Known for their high-quality cables and housing, Jagwire also produces excellent brake pads. Their V-brake pads often feature different compounds for varied conditions and are designed for smooth, consistent braking.
- Fibrax: A British brand with a long history, Fibrax offers a range of reliable and affordable V-brake pads, including specific compounds for different conditions. They are a solid choice for everyday riding.
Choosing the Right Pad for Your Riding Style
Consider your typical riding conditions:
- Commuting/Leisure Riding: An all-condition pad from Tektro, Shimano, or Fibrax will likely suffice, offering a good balance of performance and durability.
- Wet Weather/All-Season Riding: Invest in a dedicated wet-weather compound like Kool-Stop's Salmon or an all-condition pad from Shimano (e.g., M70T4) or Jagwire. These will drastically improve your braking confidence in the rain.
- Aggressive Riding/Touring: For more demanding use where consistent, powerful braking is crucial, consider higher-performance pads from Kool-Stop or premium Shimano options.
Comparative Table: V-Brake Pad Compound Characteristics
| Compound Type | Key Characteristics | Best For | Pros | Cons |
|---|---|---|---|---|
| Standard Rubber (Black) | Basic rubber compound, often OEM. | Dry, casual riding, budget-conscious. | Affordable, readily available. | Poor wet performance, can squeal, moderate wear. |
| All-Condition (Grey/Mixed) | Blend of compounds for varied weather. | Everyday riding, mixed conditions. | Good balance of dry/wet performance, less squeal. | Not exceptional in extreme wet, mid-range wear. |
| Wet Weather (Salmon/Red) | Softer, more aggressive compound for water shedding. | Consistently wet or muddy conditions. | Excellent wet grip, reduced squeal in rain. | Faster wear, can feel 'grabby' in dry, higher price. |
| Dual Compound | Combines two compounds (e.g., black and salmon). | All-season riding, seeking optimal balance. | Good compromise between dry power and wet performance. | Can be more expensive than single compounds. |
| Ceramic Specific | Formulated for ceramic-coated rims. | Bikes with ceramic rims. | Preserves rim, powerful braking on ceramic. | Only for ceramic rims, costly, not for standard rims. |
Installation and Maintenance Tips
Once you've selected your new V-brake pads, proper installation is key to achieving optimal performance. It's a relatively straightforward process, but attention to detail makes all the difference.
Step-by-Step Installation Guide (Brief)
- Remove Old Pads: Use an Allen key or spanner to loosen the nut securing the old pad to the brake arm. Note the order of the washers (often a concave and convex pair) – these are crucial for toe-in adjustment.
- Clean Brake Arms: Give the brake arms a quick wipe to remove any grime.
- Install New Pads: Thread the new pad through the brake arm, ensuring the washers are correctly positioned. The washers allow you to 'toe-in' the pads.
- Adjust Toe-In: This is arguably the most critical step. Toe-in means the front edge of the pad touches the rim slightly before the rear edge. This prevents squealing. A common method is to place a thin piece of card (like a business card) under the rear of the pad while tightening the front.
- Align Pad Height: Ensure the entire surface of the pad contacts the rim without touching the tyre or going below the rim's braking surface.
- Tighten Securely: Once aligned and toe-in is set, tighten the nut firmly.
- Test Brakes: Spin the wheel and apply the brakes. Check for even contact, smooth stopping, and no squealing. Make fine adjustments if necessary.
Ongoing Maintenance for Longevity
- Clean Regularly: Brake pads accumulate grit and grime from the road. Regularly wipe them clean with a damp cloth. You can also lightly sand the surface with fine-grit sandpaper to remove glazed areas and embedded debris.
- Check for Wear: Most pads have wear lines or indicators. Replace pads before they wear down to these lines. Worn pads not only perform poorly but can also damage your rims if the pad holder starts rubbing.
- Inspect Rims: Periodically check your wheel rims for excessive wear, especially on the braking surface. Worn rims can also contribute to poor braking performance and even rim failure.
- Adjust Cables: As pads wear, your brake levers may feel 'spongy'. This indicates cable stretch or pad wear. Adjust the cable tension at the barrel adjuster on the lever or caliper to bring the levers back to their optimal position.
Frequently Asked Questions About V-Brake Pads
Q1: Can I use any V-brake pad with my Tektro brakes?
A1: Generally, yes. Most V-brake pads use a standard bolt-on fitting that is compatible with Tektro V-brake calipers. The main differences lie in the compound, length, and specific features (like drainage channels). Always double-check the product description for compatibility, but you'll find a wide range of options from various brands.
Q2: How often should I replace my V-brake pads?
A2: The lifespan of V-brake pads varies greatly depending on your riding frequency, conditions (wet vs. dry), and pad compound. As a rule of thumb, replace them when they show clear wear indicators (grooves disappearing), when braking performance significantly degrades, or if they become excessively hard or glazed. Regular inspection is key.
Q3: Why do my new V-brake pads squeal?
A3: Squealing is most commonly caused by improper 'toe-in' adjustment. If the entire pad surface hits the rim simultaneously, it can vibrate and squeal. Ensure the front edge of the pad makes contact with the rim slightly before the rear edge (a gap of 0.5-1mm at the rear). Contamination (oil, grease) on the pads or rim can also cause squealing. Clean both thoroughly if toe-in doesn't resolve it.
Q4: What's the difference between cartridge pads and standard pads?

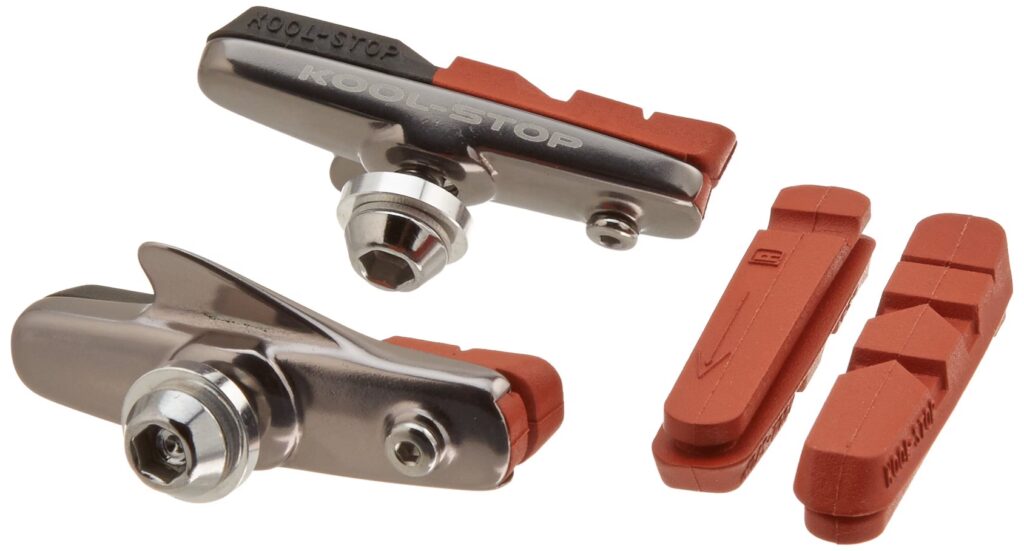

A4: Standard pads are a single, solid piece of rubber/compound attached to a metal bolt. Cartridge pads consist of a reusable metal holder into which replaceable rubber inserts (the 'cartridge') slide. Cartridge systems are often more expensive initially but allow for quick, tool-free pad replacement when they wear out, as you only replace the rubber insert, not the whole holder.
Q5: Are more expensive pads really worth it?
A5: For critical components like brakes, investing in quality often pays off. More expensive pads, particularly from brands like Kool-Stop or higher-end Shimano, typically offer superior compounds for better stopping power, longer life, and more consistent performance in varied conditions, especially wet weather. They can significantly enhance your riding experience and safety, making them a worthwhile investment for many riders.
Q6: Can I use disc brake pads on my V-brakes?
A6: Absolutely not. Disc brake pads are completely different in design and function. They are small, typically metallic or resin, and designed to clamp onto a rotor, not a rim. V-brake pads are elongated, rubber-based, and designed to rub against the side of your wheel rim. They are not interchangeable in any way.
Ultimately, selecting the right V-brake pads for your Tektro system, or any V-brake setup, boils down to understanding your needs and the characteristics of different compounds. By prioritising good quality pads and ensuring correct installation and regular maintenance, you'll guarantee reliable stopping power, enhance your safety, and enjoy a more confident ride, no matter the weather. Don't underestimate the impact of fresh, well-adjusted brake pads – they are a small component with a colossal role in your cycling experience.
