The Demise of D-Jetronic

The D-Jetronic fuel injection system, a pioneering technology in automotive engineering, marked a significant leap forward from traditional carburettor systems. Introduced by Bosch, it offered improved fuel efficiency, smoother engine performance, and reduced emissions. However, despite its initial success and the advantages it brought, the D-Jetronic system eventually faded from the automotive landscape, with its last appearances in new vehicles by 1976. This article delves into the reasons behind its discontinuation, exploring its inherent limitations and the emergence of its successor, the K-Jetronic system.

The Dawn of Electronic Fuel Injection

The D-Jetronic system, an early form of electronic fuel injection (EFI), represented a paradigm shift in how internal combustion engines were fuelled. Unlike carburettors, which relied on mechanical vacuum principles to mix fuel and air, D-Jetronic used an electronic control unit (ECU) to precisely regulate fuel delivery. This precision allowed for a more optimal air-fuel ratio under various engine operating conditions, leading to:

• Enhanced Fuel Economy: By injecting only the necessary amount of fuel, D-Jetronic minimised waste, resulting in better mileage.
• Improved Engine Response: More accurate fuel delivery translated to a more immediate and consistent throttle response.
• Lower Emissions: A better-controlled combustion process reduced the output of harmful pollutants.
• Smoother Idling: The system could maintain a stable air-fuel mixture even at low engine speeds.

The “D” in D-Jetronic stood for “Druck” or “pressure” in German, referring to the system’s reliance on manifold absolute pressure (MAP) sensors to determine engine load. This was a significant advancement, allowing for more dynamic adjustments to fuel delivery compared to earlier, less sophisticated injection systems.

The Limitations of D-Jetronic

Despite its innovative nature, the D-Jetronic system had several key limitations that ultimately contributed to its obsolescence. The most significant of these were:

Lack of Oxygen Sensor Feedback

A crucial missing component in the D-Jetronic system was the oxygen sensor, also known as the lambda sensor. Oxygen sensors are vital for modern EFI systems because they provide real-time feedback to the ECU on the amount of unburnt oxygen in the exhaust gases. This information allows the ECU to fine-tune the air-fuel mixture, ensuring it stays as close as possible to the stoichiometric ratio (the ideal ratio for complete combustion).

Without this closed-loop feedback mechanism, the D-Jetronic system operated in an “open-loop” mode. This meant that the fuel injection timing was based solely on pre-programmed maps and sensor inputs, without the ability to dynamically correct for variations caused by factors such as fuel quality, atmospheric pressure changes, or engine wear. While it was a significant improvement over carburettors, its inability to adapt in real-time meant it could not achieve the same level of fuel efficiency and emissions control as later, closed-loop systems.

Analog and Mechanical Nature

Although D-Jetronic was an electronic system, its control unit was based on analog electronics. This technology, while advanced for its time, was less precise and more susceptible to environmental factors and component drift than the digital electronics that would soon become prevalent. The system also relied heavily on mechanical components for fuel delivery and pressure regulation, which could be prone to wear and require more frequent calibration.

Complexity and Cost

Early electronic fuel injection systems were inherently complex and expensive to manufacture. The sophisticated sensors, ECU, and fuel delivery components required significant investment in research, development, and production. For manufacturers, this meant higher vehicle costs, which could be a barrier to widespread adoption, especially in more budget-conscious market segments.

The Rise of K-Jetronic

Recognising the limitations of D-Jetronic and the evolving demands for stricter emissions regulations and improved fuel economy, Bosch developed a new system. In 1973, Bosch introduced the K-Jetronic system. The “K” in K-Jetronic stands for “Kontinuierlich,” which is German for “continuous.” This name reflects the fundamental difference in how the K-Jetronic system delivered fuel.

Continuous vs. Electronic Fuel Injection

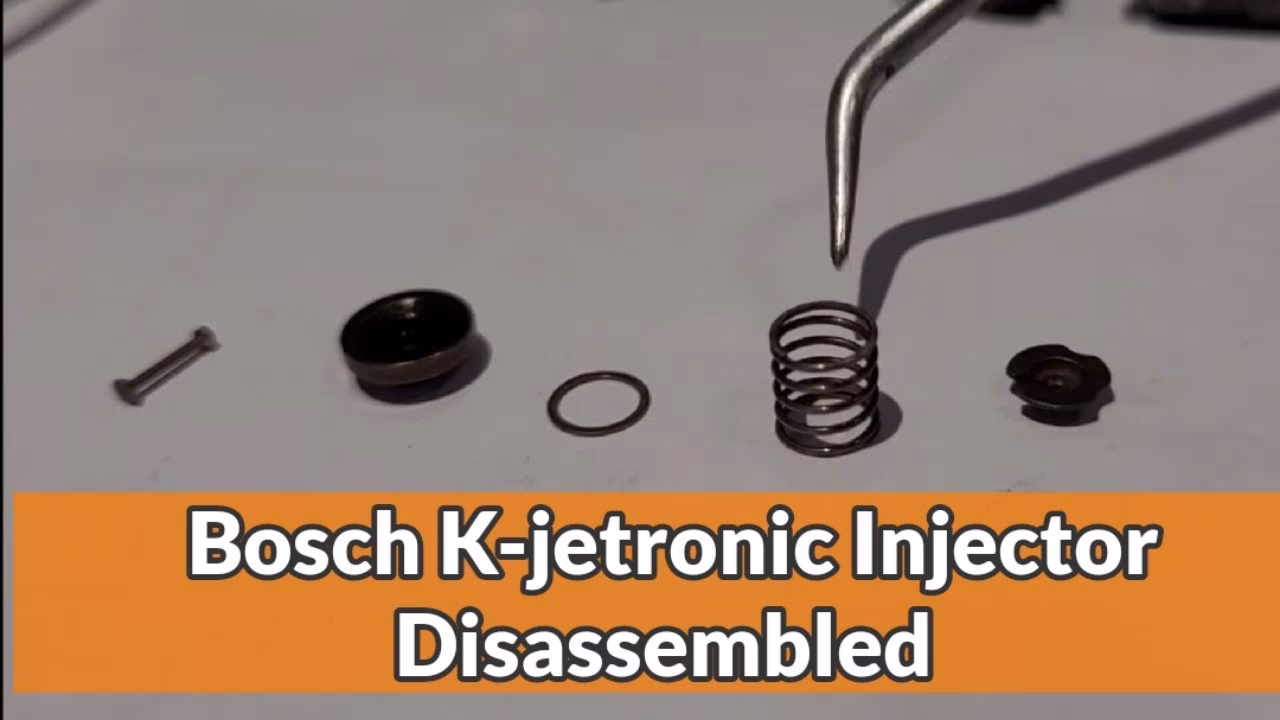

Unlike the pulsed injection of D-Jetronic, which delivered fuel in discrete bursts timed by the ECU, K-Jetronic was a continuous injection system. In K-Jetronic, fuel was metered and injected continuously into the intake ports of each cylinder. The amount of fuel delivered was controlled by a mechanical fuel distributor, which adjusted the fuel flow based on the position of a control plunger. This plunger was moved by a differential pressure transducer, which in turn was regulated by the airflow entering the engine, measured by a sophisticated air flow sensor plate.

The K-Jetronic system was still largely mechanical and analog in its operation, but it offered several advantages over D-Jetronic:

• Simpler Mechanical Design: The reliance on a mechanical fuel distributor, while complex in its own right, eliminated the need for a precisely timed electronic injector pulse.
• Robustness: The mechanical nature of K-Jetronic made it quite robust and less susceptible to electrical interference.
• Fuel Economy Improvements: It still offered better fuel economy and performance compared to carburettors.

K-Jetronic’s Own Limitations

However, K-Jetronic also had its own set of limitations. Like D-Jetronic, it was an open-loop system and lacked the crucial oxygen sensor feedback. This meant it could not achieve the same level of precise air-fuel ratio control as later closed-loop electronic systems. Furthermore, its mechanical nature made it sensitive to wear and tear, and repairs or adjustments could be intricate.

The Transition and Legacy

The introduction of K-Jetronic effectively marked the end of the D-Jetronic era. By 1976, D-Jetronic was no longer being fitted to new vehicles. K-Jetronic, with its continuous fuel delivery, became the dominant Bosch fuel injection system for many years, powering a wide range of performance cars from manufacturers like Porsche, Mercedes-Benz, and BMW, as well as many other mainstream vehicles.

Evolution to L-Jetronic and Beyond

The automotive industry's relentless pursuit of efficiency and emissions reduction soon led to the development of even more advanced systems. Bosch continued to innovate, introducing the L-Jetronic system, which was a fully electronic, pulsed injection system that incorporated oxygen sensors for closed-loop operation. This was a monumental step, offering vastly superior control over the air-fuel mixture, leading to significant improvements in fuel economy and a dramatic reduction in emissions.

The progression continued with Motronic systems, which integrated fuel injection and ignition control into a single digital ECU, offering even greater precision and diagnostic capabilities. These digital, closed-loop systems became the standard for modern vehicles.

Comparing D-Jetronic and K-Jetronic

Here’s a brief comparison of the two systems:

Frequently Asked Questions

What was the main reason D-Jetronic was replaced?

The primary reason D-Jetronic was replaced was its inability to incorporate an oxygen sensor for closed-loop operation, which limited its ability to optimise the air-fuel ratio for fuel efficiency and emissions control compared to newer systems.

Was K-Jetronic better than D-Jetronic?

K-Jetronic was a significant development and offered improvements in certain areas, particularly in its mechanical robustness and continuous fuel delivery. However, both were open-loop systems. The true advancements came with subsequent electronic, closed-loop systems like L-Jetronic.

What cars used D-Jetronic?

D-Jetronic was used in a variety of vehicles in the mid-to-late 1960s and early 1970s, including models from Volkswagen (e.g., VW 411), Porsche (e.g., 914), Mercedes-Benz, and Volvo.

Is K-Jetronic a good system?

K-Jetronic is considered a robust and capable mechanical fuel injection system for its era. It provided good performance and reasonable fuel economy. However, it requires proper maintenance and can be complex to diagnose and repair due to its mechanical nature.

Conclusion

The D-Jetronic system was a crucial stepping stone in the evolution of automotive fuel delivery. It demonstrated the clear advantages of electronically controlled fuel injection over traditional carburettors. However, its limitations, particularly the lack of closed-loop feedback via an oxygen sensor, meant it was quickly superseded by more advanced technologies. The subsequent introduction of K-Jetronic, and later L-Jetronic and digital Motronic systems, continued Bosch’s legacy of innovation, pushing the boundaries of engine performance, fuel efficiency, and environmental responsibility. While D-Jetronic may no longer be found in new vehicles, its contribution to the development of modern automotive technology remains undeniable.
