Oil Extraction: A Dipstick Revolution

The humble oil change, a cornerstone of vehicle maintenance, has traditionally involved a rather messy and often strenuous process: getting underneath the car, locating the sump plug, and draining the old, dirty oil. However, a modern and increasingly popular alternative is emerging, one that promises to make this essential task significantly simpler and cleaner. This method, known as dipstick oil extraction, revolutionises how we manage our vehicle's lubrication system. Instead of draining from below, it leverages the very same port used for checking your oil level to remove it entirely. This article will delve into the mechanics of dipstick oil extraction, explore its advantages, discuss the equipment involved, and address some common questions you might have.

Understanding the Mechanics of Dipstick Extraction

At its core, dipstick oil extraction works on a simple principle: creating a vacuum to pull the old oil out of the engine through the dipstick tube. The dipstick tube, a direct pathway into the oil sump, is an ideal conduit for fluid removal when a powerful vacuum is applied. This process typically involves a specialised vacuum pump and a set of flexible, narrow tubing extensions. These extensions are designed to be thin enough to slide down the dipstick tube, reaching all the way to the bottom of the oil sump. Once the tubing is in place, the vacuum pump is engaged, creating a negative pressure that draws the engine oil upwards and out of the engine, into a collection container.

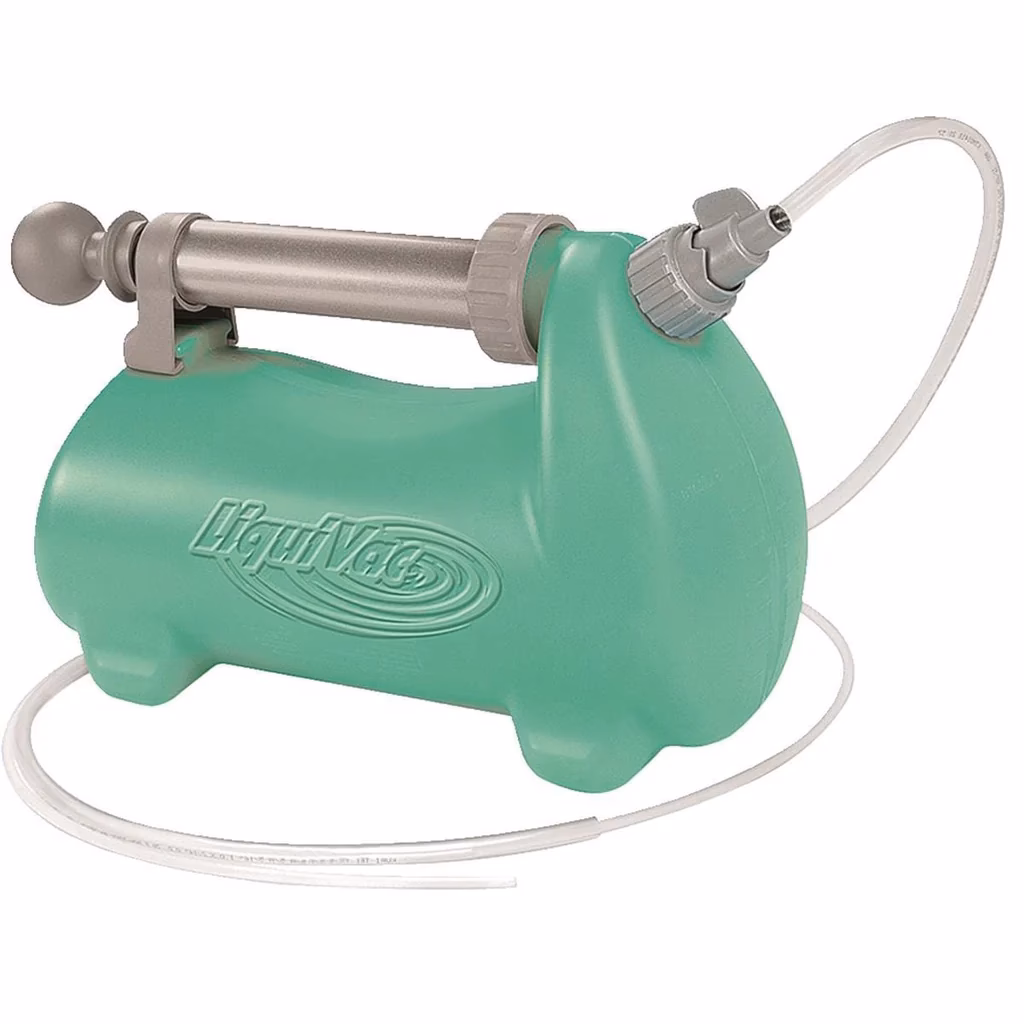

Key Components of the System

To effectively perform an oil change via dipstick extraction, you'll need a few key pieces of equipment:

• Vacuum Pump: These can be either manual (hand-operated) or powered (electric or air-powered). Air-powered pumps are often preferred for their speed and efficiency.
• Collection Container: A robust container designed to safely hold used engine oil. This is usually integrated into the vacuum pump unit itself or is a separate, sealable reservoir.
• Extraction Tubing: A set of flexible, durable, and, crucially, narrow tubes. The diameter of these tubes is critical to ensure they can easily pass down the dipstick tube without getting stuck. Different lengths and diameters are often provided to suit various vehicle makes and models.
• Dipstick Tube Adapter (Optional): Some kits may include adapters to ensure a snug fit between the extraction tubing and the dipstick tube, preventing any loss of vacuum.

The Advantages of Dipstick Oil Extraction

The appeal of dipstick oil extraction lies in its numerous benefits over the traditional sump plug method:

• Convenience and Speed: This is perhaps the most significant advantage. Eliminating the need to get under the vehicle, locate the sump plug, and deal with potentially overtightened or stubborn plugs saves a considerable amount of time and effort.
• Cleanliness: Traditional oil changes can be messy, with oil often spilling onto the driveway or garage floor. Dipstick extraction is a much cleaner process, as the oil is drawn directly into a sealed system, minimising the risk of spills.
• Accessibility: For many modern vehicles, the sump plug can be difficult to access due to undertrays, exhaust systems, or low ride heights. Dipstick extraction bypasses these obstacles entirely, making it ideal for a wide range of cars, particularly those with limited ground clearance.
• Reduced Risk of Damage: Overtightening or cross-threading a sump plug can lead to costly repairs to the engine block. Dipstick extraction completely removes this risk.
• Ideal for Seasonal Vehicles: For those with classic cars or vehicles stored for extended periods, dipstick extraction offers a simple way to remove old, potentially degraded oil without needing to fully service the vehicle.

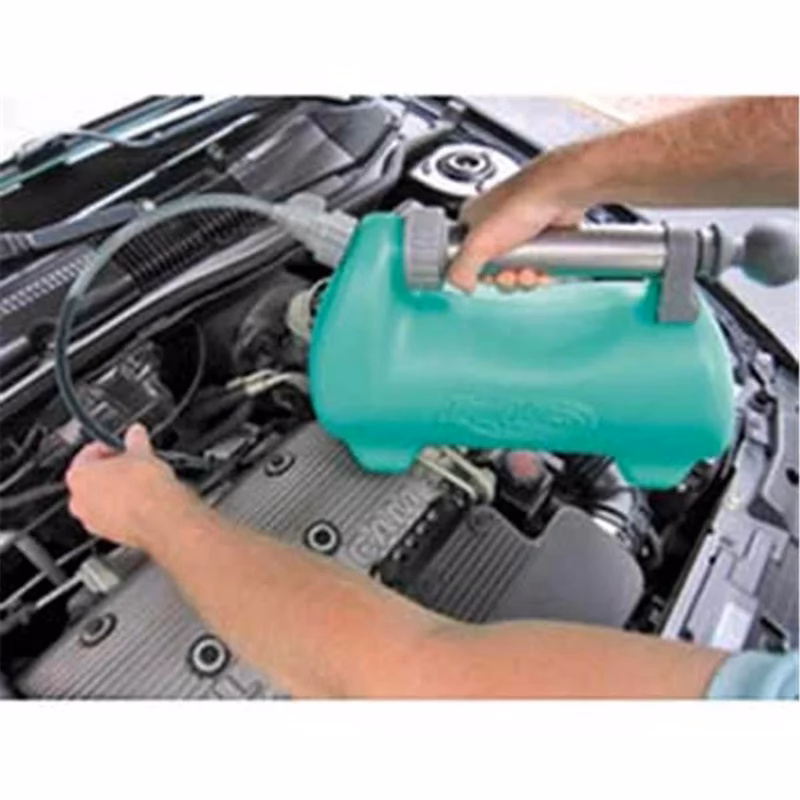

Step-by-Step Guide to Dipstick Oil Extraction

Performing an oil change using the dipstick extraction method is straightforward. Here’s a general guide:

1. Warm the Engine: Start the engine and let it run for a few minutes to warm the oil. Warm oil flows more easily, making extraction more efficient. Do not let the engine get excessively hot, as this can make handling the equipment dangerous.
2. Prepare the Equipment: Ensure your vacuum pump is in good working order and that the collection container has sufficient capacity for the old oil. Select the appropriate size of extraction tubing for your vehicle's dipstick tube.
3. Insert the Tubing: Remove the engine oil dipstick. Carefully insert the chosen extraction tubing down the dipstick tube. Gently push it until it reaches the bottom of the oil sump. You may feel a slight resistance as it reaches the oil pan.
4. Connect to the Pump: Connect the other end of the extraction tubing to your vacuum pump. Ensure a secure connection to maintain the vacuum seal.
5. Start Extraction: Activate the vacuum pump. You should see the old engine oil begin to be drawn up the tubing and into the collection container. Continue pumping until no more oil is extracted. For air-powered pumps, this is usually automatic once connected.
6. Remove Tubing and Dipstick: Once the extraction is complete, disconnect the tubing from the pump and carefully withdraw it from the dipstick tube. Replace the dipstick.
7. Dispose of Used Oil: Properly dispose of the collected used engine oil at an authorised recycling centre. Never pour used oil down drains or onto the ground.
8. Add New Oil: Consult your vehicle's manual for the correct type and quantity of new engine oil. Add the new oil through the oil filler cap.
9. Check the Level: After adding the new oil, wait a few minutes for it to settle, then check the oil level using the dipstick. Top up if necessary.

When is Dipstick Extraction Most Suitable?

While dipstick oil extraction is a versatile method, it's particularly well-suited for certain situations:

• Low Ride Height Vehicles: Sports cars, lowered vehicles, or anything with minimal ground clearance benefits immensely from not needing to be lifted.
• Vehicles with Difficult Access Sump Plugs: Some modern engines have sump plugs obscured by exhaust components, catalytic converters, or undertrays, making them a chore to reach.
• DIY Enthusiasts Seeking Simplicity: For those who prefer to do their own maintenance but want to avoid the mess and potential hassle of traditional methods.
• Emergency Oil Top-Ups: While not a full oil change, a small vacuum pump can be useful for quickly removing a small amount of overfilled oil.

Potential Limitations and Considerations

It's important to be aware of the limitations:

• Complete Removal: While highly effective, some argue that a small residue of old oil may remain in the sump compared to a gravity drain, though in practice, this is usually negligible.
• Filter Changes: Dipstick extraction does not replace the need to change the oil filter. The filter will still need to be accessed and replaced, which may require getting under the vehicle.
• Tubing Fit: The success of the operation hinges on the extraction tubing fitting snugly down the dipstick tube. If the tube is too wide or the dipstick tube is unusually shaped, it might not work.
• Viscosity: Very thick, cold oil can be harder to extract efficiently. Warming the engine is crucial.

Comparison: Dipstick Extraction vs. Sump Plug Draining

Here's a quick comparison:

Frequently Asked Questions

Can I use a household vacuum cleaner?

No, a standard household vacuum cleaner is not suitable. It does not generate the correct type of vacuum, nor is it designed to handle oily fluids safely. You need a specialised vacuum pump designed for fluid extraction.

Will this remove all the old oil?

It will remove the vast majority of the oil. While a small amount might remain at the very bottom of the sump, it is generally considered negligible and will be flushed out when the new oil is added and circulated.

Is it safe for my engine?

Yes, provided you use the correct equipment and follow the instructions, it is a safe method for your engine. The key is to ensure the extraction tubing is the correct size and is inserted gently to avoid damaging the dipstick tube or sump.

Do I still need to change the oil filter?

Absolutely. The oil filter is a critical component that traps contaminants. You should always change the oil filter during an oil change, regardless of the extraction method used.

What if the extraction tube gets stuck?

This is rare if the correct size tubing is used. If it does get stuck, do not force it. Try gently wiggling it or, if possible, slightly reversing the vacuum to see if it dislodges. If it remains stuck, you may need to carefully try to retrieve it with pliers or seek professional assistance, but this is a very uncommon occurrence.

Conclusion

Dipstick oil extraction represents a significant advancement in vehicle maintenance, offering a cleaner, quicker, and more accessible way to perform a vital task. While it doesn't eliminate the need for oil filter changes, it certainly simplifies the process of removing old engine oil. For many car owners, particularly those with challenging vehicle access or a desire for a less messy DIY experience, this method is a game-changer. By understanding the principles and following the correct procedure, you can confidently maintain your vehicle's lubrication system with greater ease than ever before.
