JVC Car Radio 'Protecting' Error Explained

Encountering the 'Protecting - Send Service' error on your JVC car radio can be a frustrating experience, leaving you without your favourite tunes during your commute. This message typically indicates that the unit has detected an internal issue and has activated its protection mode to prevent further damage. While it might sound alarming, understanding the potential causes and knowing how to approach troubleshooting can often resolve the problem or at least help you pinpoint the issue before seeking professional assistance. JVC car radios are generally well-regarded for their blend of affordability and robust features, making them a popular choice for many drivers. However, like any electronic device, they can occasionally fall victim to faults.

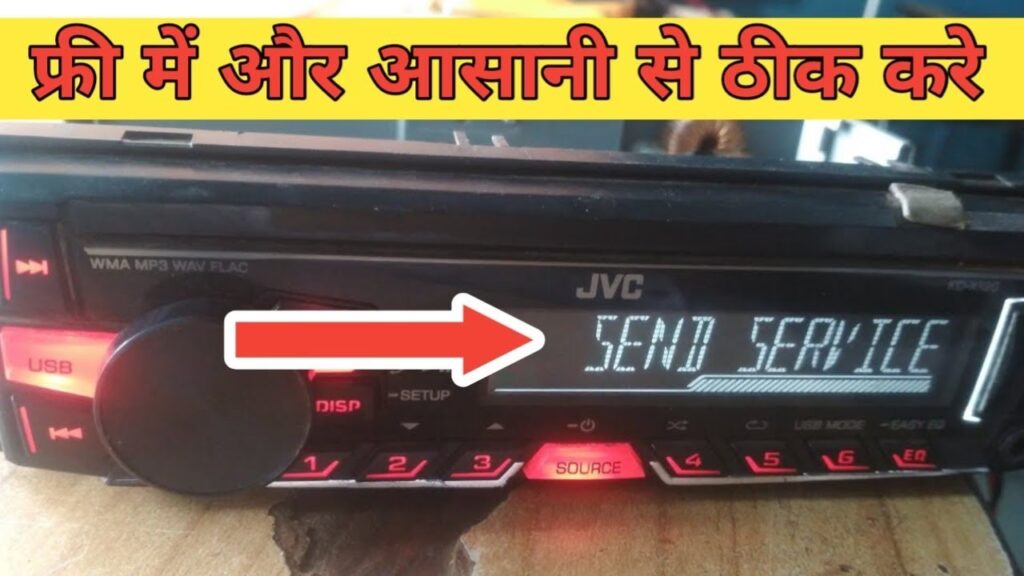

Understanding the 'Protecting - Send Service' Message

The 'Protecting' message is a built-in safety feature designed to safeguard your car radio from internal damage. When the unit detects a problem, such as a short circuit, overheating, or a faulty component, it enters this protection mode. The addition of '- Send Service' often suggests that the detected issue is beyond simple user-fixable parameters and may require diagnosis or repair by a qualified technician. It's essentially the radio's way of saying, "Something's not right, and I'm shutting down to avoid making it worse."

Common Causes of the JVC 'Protecting' Error

Several factors can trigger this protective shutdown. Identifying the root cause is the first step towards resolution. Here are some of the most frequent culprits:

1. Speaker Wiring Issues

This is by far the most common reason for the 'Protecting' error. Car audio systems rely on proper wiring between the head unit (your JVC radio) and the speakers. Any short circuit in the speaker wiring can cause the radio to go into protection mode. This can happen due to:

• Loose Connections: Wires that have come loose from the speaker terminals or the back of the head unit can touch each other or the car's metal chassis, creating a short.
• Damaged Insulation: The insulation on speaker wires can become frayed or damaged over time, especially if they are routed through tight spaces or near sharp metal edges in the car. This exposed wire can then make contact with other wires or metal parts.
• Incorrect Wiring: If the radio was recently installed or if any speaker work was done, there's a chance the wires were connected incorrectly, leading to a short. For example, connecting a positive speaker wire to a negative terminal, or vice-versa, can cause issues.
• Faulty Speakers: In rare cases, a speaker itself might have an internal short circuit, which can then affect the amplifier in the head unit.

2. Amplifier Overheating

The internal amplifier within your JVC radio generates heat when it's in operation. If the unit is not adequately ventilated, or if it's pushed to its limits for extended periods (e.g., playing music at maximum volume for hours), it can overheat. To prevent permanent damage, the radio's thermal protection circuit will activate, triggering the 'Protecting' message and shutting down the unit.

• Poor Ventilation: Ensure that the vents on the back or sides of the head unit are not obstructed by cables, mounting brackets, or dashboard materials.
• High Ambient Temperatures: If the car has been sitting in direct sunlight on a very hot day, the internal temperature of the head unit can rise significantly.

3. Internal Component Failure

Like any electronic device, car radios have various internal components, such as capacitors, resistors, and integrated circuits. Any of these components can fail over time due to age, power surges, or manufacturing defects. When a critical component fails, it can trigger the protection circuit.

4. Voltage Fluctuations or Power Surges

An unstable power supply from your car's electrical system can also cause issues. Sudden voltage drops or spikes can stress the radio's internal components. While car radios are designed to handle typical automotive voltage ranges, severe fluctuations can sometimes lead to errors.

5. Firmware or Software Glitches

Although less common, it's possible for a temporary software glitch to cause the protection mode to activate erroneously. This is more likely in units with more advanced features or digital processing.

Troubleshooting Steps for Your JVC Radio

Before you consider sending your radio for service, there are several steps you can take to try and resolve the 'Protecting - Send Service' error yourself. Always ensure the car's ignition is OFF and the keys are removed before attempting any wiring checks.

Step 1: The Simple Reboot (Power Cycle)

Sometimes, a simple reset can clear temporary glitches. Disconnect the car battery's negative terminal for about 10-15 minutes. This will reset the radio to its factory default settings and may clear the error if it was a minor software hiccup. Remember to have your radio's security code ready if your JVC model requires it after a power loss.

Step 2: Inspect Speaker Wiring

This is the most crucial step. You'll need to carefully examine the wiring connected to your speakers and the back of the JVC head unit.

• Access the Wiring: You may need to remove trim panels around the dashboard to gain access to the back of the radio. You might also need to remove door panels or rear trim to inspect speaker connections.
• Check Connections: Ensure all speaker wires are securely connected to their respective terminals on the speakers and the radio harness. Look for any signs of loose strands or wires that might have slipped out.
• Inspect Wire Insulation: Carefully check the entire length of the speaker wires for any nicks, cuts, or signs of abrasion. Pay close attention to areas where wires pass through metal frames or are secured with clips. If you find damaged insulation, you can temporarily repair it with good quality electrical tape or, ideally, replace the affected section of wire.
• Test for Shorts: Using a multimeter set to continuity mode (often indicated by a sound wave or buzzer symbol), you can test for shorts. With the radio disconnected from power:
• Disconnect a speaker wire from the back of the radio.
• Touch one probe of the multimeter to the positive wire and the other probe to the negative wire of that speaker circuit. You should get no continuity (no beep).
• Then, touch one probe to the positive wire and the other probe to the car's metal chassis. You should get no continuity. Repeat this for the negative wire.
• If you get continuity (a beep) between the positive and negative speaker wires, or between a speaker wire and the chassis, you have a short. Trace the wire to find the cause.

Step 3: Check for Overheating

Ensure that the vents on the back of the JVC unit are clear and not blocked. If the radio feels excessively hot to the touch after it has been running for a while, this could indicate an overheating issue. Playing music at moderate volumes and allowing the unit to cool down might help, but persistent overheating points to a deeper problem, possibly related to ventilation or internal component stress.

Step 4: Disconnect Aftermarket Accessories

If you have any aftermarket accessories connected to your JVC radio (e.g., amplifiers, Bluetooth adapters, parking sensors), try disconnecting them one by one to see if the error clears. A faulty accessory or its wiring could be causing interference or a short circuit.

Step 5: Re-inspect the Installation

If the error appeared shortly after installing the radio or having other car audio work done, carefully review the installation process. Ensure all connections are correct and secure, and that no wires are pinched or damaged during reassembly of dashboard components.

When to Seek Professional Help

If you've gone through the troubleshooting steps above and the 'Protecting - Send Service' error persists, it's likely that there is an internal fault within the JVC head unit itself. In such cases, it's best to consult a professional car audio installer or an electronics repair specialist. They have the diagnostic tools and expertise to identify and repair internal component failures.

Key considerations when seeking professional help:

• Warranty: If your JVC radio is still under warranty, contact JVC customer support or the retailer you purchased it from. Attempting DIY repairs on a unit under warranty could void it.
• Cost-Effectiveness: For older or less expensive JVC models, the cost of professional repair might approach or exceed the price of a new unit. Weigh the repair cost against the price of a replacement. JVC car radios are known for offering good value for money, so replacing an out-of-warranty unit with a newer JVC model might be a more economical choice.
• Qualified Technicians: Ensure you take your car radio to a reputable repair shop that has experience with car audio systems.

JVC Car Radios: Value for Money

As mentioned, JVC car radios are widely praised for their affordability and high-spec functionality, offering exceptional value for money. For instance, models like the JVC XR-MP3 NAVIGATOR MP3 Player Radio allow you to take your favourite music with you wherever you go, often incorporating features like USB connectivity, Bluetooth, and advanced sound processing at competitive price points. This makes them an attractive option for upgrading your car's audio system without breaking the bank. However, even reliable units can experience issues, and the 'Protecting - Send Service' error is a common indicator that something needs attention.

Frequently Asked Questions (FAQs)

Q1: Can I ignore the 'Protecting - Send Service' message?
No, you should not ignore this message. It indicates a problem that could potentially lead to further damage to the head unit if left unaddressed.

Q2: How long should I disconnect the car battery?
Disconnecting the negative terminal for 10-15 minutes is usually sufficient for a reset. Some recommend longer periods, but this is generally enough to clear temporary memory glitches.

Q3: What is a multimeter and how do I use it for checking shorts?
A multimeter is a diagnostic tool that measures voltage, current, and resistance. For checking shorts, you'll use the continuity setting. When the two probes touch each other, it should beep. If it beeps when touching two wires that shouldn't be connected, there's a short circuit.

Q4: Is it safe to repair speaker wires myself?
Yes, if you are comfortable with basic wiring and have the right tools (wire strippers, crimpers, electrical tape, or heat shrink tubing), repairing damaged speaker wire insulation is a manageable DIY task. However, ensure the car battery is disconnected first.

Q5: What if the error message changes or disappears temporarily?
If the error message changes or only disappears intermittently, it often suggests an intermittent short circuit or a failing component that only acts up under certain conditions (e.g., vibration, temperature changes). These issues can be trickier to diagnose and often require professional attention.

Conclusion

The 'Protecting - Send Service' error on your JVC car radio is a signal that the unit has detected a potential problem, most commonly related to speaker wiring. By systematically working through the troubleshooting steps, focusing on the integrity of your speaker connections, you can often identify and resolve the issue. If the problem persists, don't hesitate to seek professional help to ensure your JVC audio system is restored to its full functionality. Remember, a little preventative maintenance and careful inspection can save you from more significant headaches down the line.
