Jaguar XK Engine: Power and Evolution

The Jaguar XK engine, a true icon of automotive engineering, powered a generation of quintessential British sports cars and saloons. Its distinctive dual overhead camshaft (DOHC) inline 6-cylinder configuration, introduced in 1949, set new standards for performance and refinement. Throughout its production life, spanning from 1949 to 1992, the XK engine underwent significant evolution, with various displacements and technical enhancements contributing to its legendary status. This article delves into the power output, technical details, and historical context of the Jaguar XK engine, answering the burning question: How much BHP does a Jaguar XK have?

The Genesis of the XK Engine

The story of the XK engine is rooted in the post-war era, a time of innovation and ambition for Jaguar Cars. Prior to World War II, Jaguar relied on engines from the Standard Motor Company. However, Sir William Lyons, along with his talented engineering team, envisioned a new generation of engines that would be more powerful, sophisticated, and aesthetically pleasing. Discussions during wartime bombing raids led to the development of prototype engines, with extensive research and testing conducted from as early as 1943. The primary goal was to create an engine that would offer superior performance and remain competitive for many years without major revisions. This ambition led to the exploration of various configurations, with a focus on hemispherical combustion chambers and vee-opposed valves for optimal gas flow and high brake mean effective pressure (bmep).

From Prototype to Production: The XK's Journey

The development path was rigorous, with several four-cylinder prototypes, including the 'XG' (pushrod) and 'XF' (DOHC), being tested. The DOHC configuration of the 'XF' ultimately proved superior due to its better gas flow and quieter operation. This paved the way for the development of the iconic XK inline-six. By September 1947, a 3.2-litre six-cylinder version, dubbed the "XJ 6-cylinder", was created. Further refinement through 'stroking' resulted in the 3,442 cc "XK 6-cylinder", which became the powerplant for the legendary Jaguar XK120 sports car and the Mark VII saloon. The engine's design was continuously improved, with different bearing configurations and bore/stroke ratios explored to optimise performance for various applications. The shorter block version, derived from the 6-cylinder XK, was developed for the more compact Jaguar 2.4-litre models, demonstrating the versatility of the XK design.

Key Technical Innovations

The XK engine was distinguished by several key technical features that contributed to its success:

• Dual Overhead Camshafts (DOHC): This was a hallmark of the XK engine, allowing for precise valve timing and efficient operation of the large valves within the hemispherical combustion chambers.
• Hemispherical Combustion Chambers: These chambers, along with the vee-opposed valves, facilitated excellent gas flow and contributed to the engine's high power output and torque.
• Aluminium Cylinder Head: The use of RR50 aluminium alloy for the cylinder head offered superior heat conduction and reduced weight compared to cast iron, improving overall performance.
• Advanced Valve Train: The cam lobes acted directly on bucket-type tappets, with adjustments made via shims. The use of two duplex chains for camshaft drive ensured reliable and precise timing. Early issues with the sprung slipper design of the lower cam chain tensioner were addressed with an improved hydraulic system.
• Vibration Damper: A Metalastik vibration damper fitted to the crankshaft nose was an innovation that helped eliminate damaging crankshaft resonances, enhancing durability and smoothness.

Cylinder Head Evolution and Colour Coding

The cylinder heads of the XK engine underwent several revisions, often identified by their colour coding, which can be a useful, albeit sometimes confusing, way to distinguish different versions. These colour codes generally indicated specific configurations, carburettor setups, and performance levels:

It's important to note that these colour codes were not always consistently applied, and some variations exist. For instance, early 3.8-litre E-Types with triple carburettors had orange heads, later changing to gold with straight-port heads. Cars fitted with the straight-port head and only two carburettors typically had unpainted heads.

Power Ratings: A Tale of Two Systems

Determining the exact BHP of a Jaguar XK engine requires understanding the different measurement systems used during its production. In the 1950s and 1960s, Jaguar, like many manufacturers, used the SAE gross horsepower system. This method was more generous as it allowed for non-standard exhaust systems and often discounted the power losses from belt-driven ancillaries.

This was later superseded by the more realistic SAE net horsepower system around 1972, which measured power with all standard ancillaries fitted. In some cases, power ratings might also be expressed using the similar DIN net rating system.

This difference in measurement makes direct comparisons between older and newer XK engines somewhat problematic. However, we can look at specific examples:

• The 1961 E-Type XK engine was claimed to produce 265 hp SAE gross.

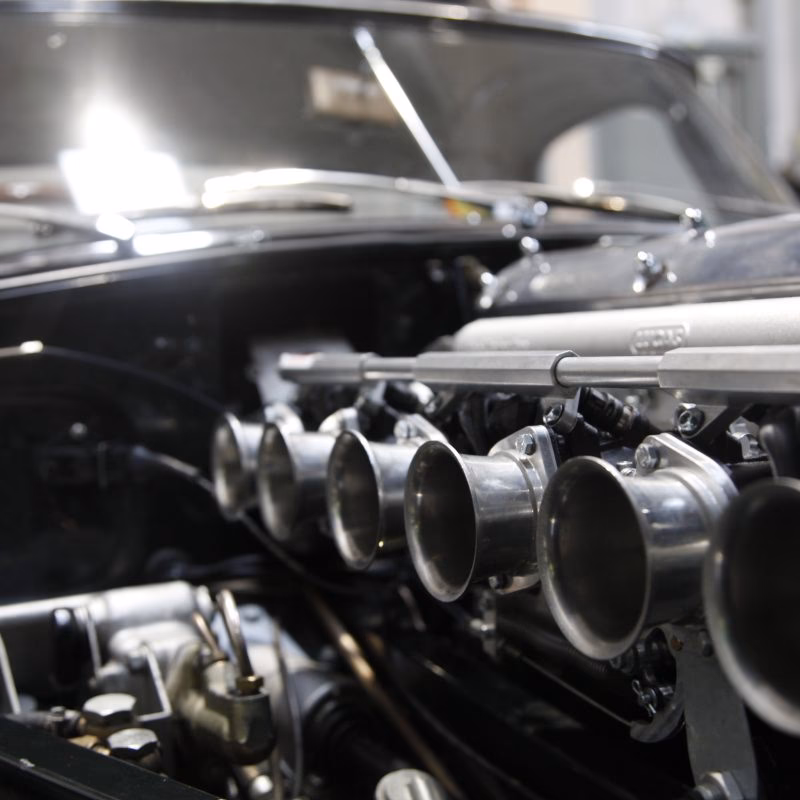

• The final, fuel-injected XK engine, a significantly more powerful unit, had a measured output of 205 hp DIN net.

Displacement Variations and Their BHP

The XK engine was produced in several displacements, each offering different power outputs:

3.4-litre

The initial production version of the 3,442 cc (3.4-litre) XK engine was rated at 160 bhp SAE gross with a standard "A type" cylinder head and twin SU H6 carburettors. With the "C type" cylinder head, the output rose to 210 bhp SAE gross. When fitted with the "straight port" head and a higher compression ratio, the 3.4-litre engine could produce up to 250 bhp SAE gross, as seen in the XK150SE.

2.4-litre

The shorter-block 2,483 cc (2.4-litre) version, introduced in 1955, was rated at 112 bhp (nett) by the factory, utilising twin Solex downdraft carburettors. By 1959, in the Mark 2, it produced 120 hp SAE gross. The uprated 240 model, with the straight-port head and twin SU carburettors, delivered 133 bhp SAE gross.

3.8-litre

The 3,781 cc (3.8-litre) version, introduced in 1958, offered a significant power increase. The standard 3.8-litre engine produced 220 hp SAE gross. In performance-oriented models like the XK150SE equipped with the "straight port" head and triple carburettors, it could reach up to 265 hp SAE gross.

4.2-litre

While not detailed in the provided text with specific BHP figures, the 4.2-litre version, introduced in 1964, represented a further evolution of the XK design. It offered improved torque and refinement, with power outputs generally comparable to or exceeding the 3.8-litre variants, depending on the specific application and tuning.

Performance Benchmarks: The 3.8L E-Type

The 3.8-litre XK engine found its most celebrated home in the Series 1 E-Type. This iconic sports car delivered blistering performance for its era:

• Max Speed: Approximately 150 mph (241.5 km/h)
• 0-60 mph: Around 7.0 seconds (though the text provides 0-50 mph in 5.6 seconds)
• Power-to-Weight Ratio: Approximately 9.5 lb/hp (4.3 kg/hp)
• Fuel Consumption: Roughly 19.0 miles per imperial gallon

Conclusion

The Jaguar XK engine is a testament to brilliant engineering, offering a remarkable blend of power, refinement, and longevity. From its inception, it was designed to be a class-leading unit, and its evolution through various displacements and technical enhancements cemented its place in automotive history. While the exact BHP varied significantly depending on the specific displacement, cylinder head configuration, carburetion, and measurement system used, the XK engine consistently delivered exhilarating performance, making Jaguar cars of the era highly desirable and sought after by enthusiasts worldwide.

Frequently Asked Questions

What is the BHP of a Jaguar XK120?

The Jaguar XK120, fitted with the 3.4-litre XK engine and a "Standard (or "A type")" cylinder head with 2 x SU H6 carburettors, was initially rated at 160 bhp SAE gross. Optional "C type" heads increased this to around 210 bhp SAE gross.

How much BHP did the 3.8-litre E-Type have?

The 3.8-litre E-Type Series 1, equipped with the "Straight port" cylinder head and triple SU HD8 carburettors, typically produced around 265 hp SAE gross.

What is the difference between the 3.4 and 3.8-litre XK engines?

The 3.8-litre engine is essentially a bored-out version of the 3.4-litre, increasing displacement from 3,442 cc to 3,781 cc. This, along with other detail differences in valve gear and carburetion, resulted in higher power outputs for the 3.8-litre variant.

Were all XK engines 6-cylinder?

The primary and most famous XK engine was the inline 6-cylinder. However, Jaguar did develop and test four-cylinder prototypes during the engine's early development phase, though these never reached production.

What does DOHC stand for?

DOHC stands for Dual Overhead Camshafts. This means the engine has two camshafts located in the cylinder head, operating the valves directly, which allows for more precise valve timing and better performance compared to older pushrod designs.

What was the most powerful XK engine?

While precise figures can vary, the 3.8-litre and later 4.2-litre versions, particularly those fitted with "straight port" cylinder heads and triple carburettors or fuel injection, represented the pinnacle of the XK engine's performance, often exceeding 250 bhp.
