Mastering Your Electronic Park Brake: A UK Guide

There’s little more unsettling for a driver than encountering an unexpected warning light or a critical system behaving erratically. Among these, issues with your vehicle’s Electronic Park Brake (EPB) can be particularly concerning, often leading to messages like "NOT CALIBRATED" or even causing your car to stall. If you’ve recently had work done on your brakes, disconnected your battery, or are simply experiencing mysterious EPB malfunctions, recalibrating the system is often the crucial first step to restoring proper function and peace of mind. This comprehensive guide, tailored for UK drivers and particularly relevant for Jaguar XF owners, will walk you through the precise steps to reset and calibrate your EPB, ensuring your vehicle's safety and reliability.

Understanding Your Electronic Park Brake (EPB) System

Modern vehicles, including many popular models across the UK, have largely transitioned from traditional handbrakes to sophisticated Electronic Park Brake systems. These systems utilise electric motors and actuators to apply and release the rear brakes, offering convenience and often integrating with other vehicle safety features. However, their electronic nature means they are susceptible to calibration issues. A power interruption, such as disconnecting the battery or replacing a fuse, can cause the EPB module to 'lose' its understanding of the brake caliper's full travel range. Similarly, after replacing brake pads, discs, or even the calipers themselves, the system needs to be taught its new operational limits. Failure to recalibrate can result in the brake not engaging or disengaging correctly, leading to the aforementioned warning messages, unusual noises, or, as some drivers have reported, even the engine stalling because the system thinks the brake is still partially applied or incorrectly calibrated, interfering with drive-away protocols.

When is EPB Recalibration Necessary?

Recalibration isn't just a random maintenance task; it's a specific procedure required under several circumstances to ensure your EPB functions flawlessly. Knowing when to perform this reset can save you from unnecessary trips to the garage and potential safety hazards. Here are the primary scenarios:

• After Battery Disconnection: If your car's battery has been disconnected for any reason, the EPB module often loses its stored calibration data.
• Following Brake System Work: Any service involving the rear brake calipers, pads, or discs, including replacements, necessitates recalibration. The system needs to learn the new "resting" and "applied" positions.
• EPB Fuse Replacement: Similar to battery disconnection, replacing the EPB fuse can interrupt power to the module, requiring a reset.
• Persistent Warning Messages: If your instrument cluster displays "NOT CALIBRATED" or "APPLY FOOT AND PARKING BRAKE" messages, it's a clear indication that the system needs attention.
• Unusual EPB Behaviour: If the park brake isn't engaging firmly, is making excessive noise, or is slow to release, recalibration might resolve the issue.
• Engine Stalling: As reported by some drivers, an uncalibrated EPB can interfere with the car's drive-away systems, potentially causing the engine to stall when attempting to move, particularly on models like the Jaguar XF 2.7d.

In essence, if your car's brain responsible for the park brake has had its memory wiped or its physical components changed, it needs to be retaught how to operate correctly.

Step-by-Step Guide to EPB Recalibration (Jaguar XF Example)

This detailed procedure is particularly effective for Jaguar XF models but the underlying principles apply to many other vehicles with similar EPB systems. Always consult your vehicle's specific manual if in doubt.

1. Initiate a 30-Second Power Reset:

   Before beginning, you need to clear the EPB module's current state. Switch the ignition off completely. Then, either remove the specific EPB fuse (refer to your car's wiring diagram or owner's manual for its exact location, often in the boot fuse box or under the bonnet) OR disconnect the battery ground cable. Leave it disconnected for a full 30 seconds. This ensures a complete power cycle for the EPB module, effectively resetting its volatile memory.

2. Restore Power and Start Engine:

   After the 30-second wait, replace the EPB fuse (if removed) or reconnect the battery ground cable. Start the engine. Do not engage any gears or attempt to drive yet.

3. Confirm Calibration Mode Indication:

   Look at your instrument cluster message centre. You should see a message indicating that the parking brake is in calibration mode. Common messages include "NOT CALIBRATED" or "APPLY FOOT AND PARKING BRAKE". This confirms the system is ready for the next steps.

4. Firmly Apply and Release the Foot Brake Five Times:

   With the engine running and the calibration message displayed, firmly press and fully release your foot on the brake pedal five separate times. This action helps the EPB module learn the full travel range of the brake pedal, which is crucial for its operation.

5. Lightly Hold Your Foot on the Brake Pedal:

   Now, lightly and consistently hold your foot on the brake pedal. You don't need to press it hard, just enough to activate the brake light switch and indicate to the system that the pedal is depressed.



6. Apply the Parking Brake via the EPB Switch:

   While still lightly holding the foot brake, pull up and hold the Electronic Park Brake (EPB) switch (the button or lever usually located in your centre console) to apply the parking brake. You should hear the motors engage the rear brakes.

7. Release the Parking Brake via the Switch:

   Immediately after applying the parking brake, release it by pushing down or otherwise activating the EPB switch to disengage it. Again, you should hear the motors.

8. Release the Foot Brake:

   Once the parking brake has been applied and released using the switch, you can now release your foot from the brake pedal.

9. Confirm Successful Calibration:

   Check your instrument pack. The brake warning lamp should no longer be illuminated, and the "NOT CALIBRATED" or "APPLY FOOT AND PARKING BRAKE" messages should have disappeared from the message centre. This indicates that the calibration has been successfully completed.
10. Final EPB Functionality Check:

    To ensure robust operation and confirm no residual errors, apply and release the parking brake five additional times using the EPB switch. Listen for consistent engagement and disengagement. This final step helps confirm the system has fully learned and is operating as intended.

Important Considerations and Warnings

While the above steps are generally effective, there are crucial nuances, especially if you're undertaking more involved brake maintenance. Ignoring these can lead to serious issues, including an inoperative park brake or damage to components.

The Role of Diagnostic Equipment for Caliper Work

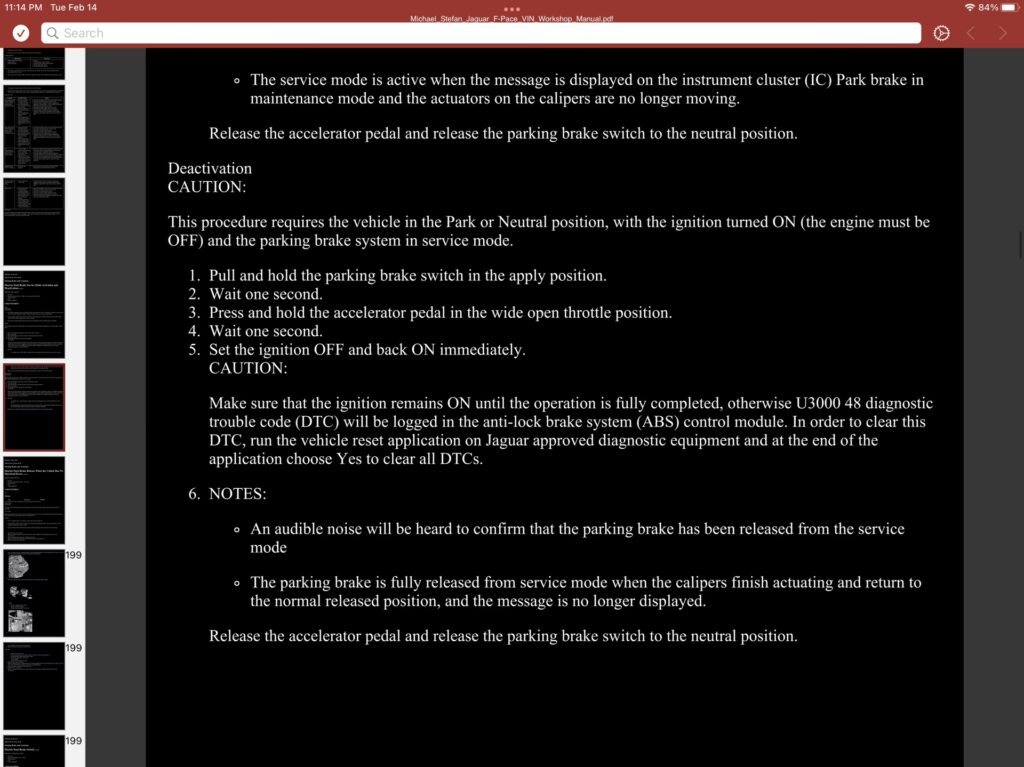

Some official service procedures, particularly for models like the Jaguar XF 3.0d V6 S, strongly recommend or even mandate the use of Jaguar approved diagnostic equipment to "release the electric parking brake cable tension" before removing calipers or pads. This is not an arbitrary step; it retracts the EPB pistons fully and safely, preventing damage and ensuring correct reassembly.

WARNING: Failure to release the tension and calibrate the electric parking brake during rear parking brake related service procedures could cause the parking brake to function incorrectly or become inoperative. This could also lead to physical damage to the EPB motors or caliper mechanisms if force is applied without the system being correctly put into service mode. While the 10-step reset procedure described above is for recalibration after work, the pre-work tension release is a separate, critical step often requiring professional tools.

If you are simply doing a battery reset or fuse replacement, the 10-step recalibration is usually sufficient. However, if you're physically working on the rear brakes, especially the calipers, it's highly advisable to either use the correct diagnostic tool or have a qualified mechanic perform this aspect of the job to prevent costly mistakes and ensure safety.

Troubleshooting Common EPB Issues

Even after following the recalibration steps, you might encounter lingering problems. Here’s a quick guide to common issues and potential solutions:

Frequently Asked Questions (FAQs)

Q: Why is my car stalling if I don't reset the brakes?

A: Your car, especially models like the Jaguar XF, might be stalling because the Electronic Park Brake system is uncalibrated and incorrectly communicating its status to the engine management system. If the EPB thinks it's still partially engaged or in an unknown state, the vehicle's computer might prevent full power delivery or even cut the engine to prevent damage or unsafe driving conditions, particularly when attempting to drive away from a standstill. Recalibrating ensures the system accurately reports its disengaged status, allowing the engine to function normally.

Q: Why is my parking brake not working after I replaced my rear pads?

A: When you replace rear brake pads or discs, the physical position of the caliper pistons changes. The EPB system, which uses electric motors to push these pistons, relies on knowing the full range of movement. If the system isn't recalibrated after new pads are installed, it won't know the new "home" or "applied" positions, leading to incorrect operation or a complete malfunction. The calibration process teaches the system these new parameters.

Q: Can I recalibrate my EPB without special tools?

A: For a basic recalibration after a battery disconnect or fuse replacement, the 10-step procedure outlined in this guide typically does not require special diagnostic tools and can be performed by most competent DIY mechanics. However, if you are performing more extensive work like replacing the calipers or physically retracting the EPB pistons, some manufacturers (like Jaguar for certain models) explicitly state that approved diagnostic equipment is needed to release the tension safely before component removal. Always refer to your vehicle's specific service manual for these more advanced procedures.

Q: How often should I recalibrate my EPB?

A: EPB recalibration is not a routine maintenance item like an oil change. It should only be performed when specific circumstances arise, such as those listed under "When is EPB Recalibration Necessary?" – primarily after power interruptions or work on the rear brake system. If your EPB is functioning correctly and no warning messages are present, there's no need for a reset.

Q: What if the recalibration doesn't solve the problem?

A: If you've meticulously followed the recalibration steps and the issue persists (e.g., warning messages remain, the brake still doesn't work, or the car continues to stall), it indicates a deeper problem. This could range from a faulty EPB motor, a wiring issue, a problem with the EPB control module itself, or a mechanical fault within the brake caliper. At this point, it's highly recommended to seek professional diagnosis from a qualified mechanic who has access to advanced diagnostic scanning tools to read specific fault codes and identify the root cause.

A properly functioning Electronic Park Brake is fundamental to your vehicle's safety and driving experience. While the idea of recalibrating a complex electronic system might seem daunting, many common issues can be resolved with a methodical approach, as detailed in this guide. By understanding when and how to perform an EPB reset, you can often save time and money, and most importantly, ensure your car remains safe and reliable on the UK roads. Remember, for any uncertainty or persistent issues, consulting a professional mechanic is always the wisest course of action.
