The Honda CRF150R has long been a standout machine in the competitive world of junior motocross and off-road riding, carving out a formidable reputation for its blend of manageable power and agile handling. While its lightweight chassis and refined suspension certainly play a crucial role in its success, the true beating heart of this remarkable bike lies, unequivocally, within its engine. Understanding the specific nature of this powerplant is key to appreciating the CRF150R's unique position in the market and its appeal to riders aiming for the next level. It's not just another engine; it's a meticulously engineered unit designed to deliver a specific kind of performance.
The Core: Unpacking the CRF150R Engine Type

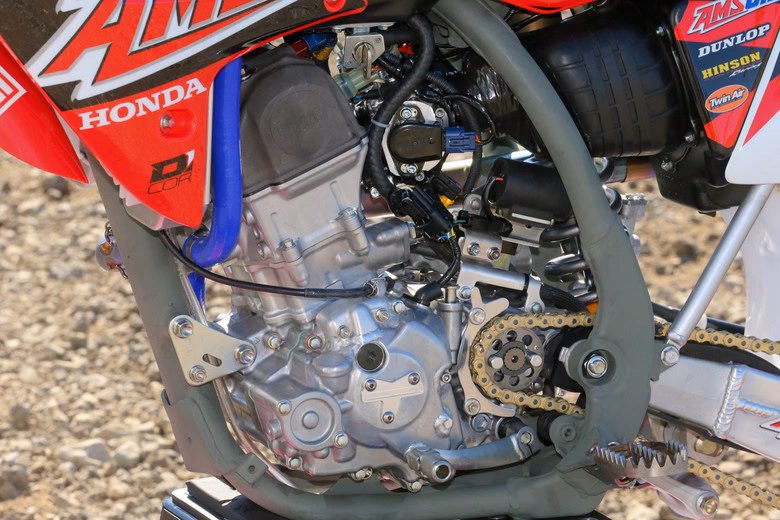

At the very heart of the Honda CRF150R is a high-performance, liquid-cooled, single-cylinder, four-stroke engine. This fundamental configuration is a cornerstone of modern motocross bikes, offering a distinct advantage in terms of power delivery and rideability compared to their two-stroke counterparts in certain applications. The single-cylinder design contributes to a compact and lightweight engine package, crucial for a bike designed for quick manoeuvres and aggressive riding.
What truly sets this engine apart, however, is its innovative Unicam valvetrain. While many four-stroke engines feature either a single overhead camshaft (SOHC) or a dual overhead camshaft (DOHC) design, Honda's Unicam system ingeniously combines elements of both. In the CRF150R's engine, a single camshaft directly actuates the intake valves, providing a lighter and more compact cylinder head compared to a DOHC setup. For the exhaust valves, the Unicam system employs lightweight rocker arms. This hybrid approach allows for the use of larger intake valves and steeper valve angles, optimising airflow and combustion efficiency, all while maintaining the compact dimensions and lighter weight associated with an SOHC engine. It's a clever solution that contributes significantly to the engine's performance characteristics.
Complementing the Unicam design, the engine features a four-valve cylinder head. This configuration, with two intake valves and two exhaust valves, further enhances the engine's ability to breathe efficiently at high RPMs. More valves mean greater total valve area, allowing for a quicker intake of the fuel-air mixture and a more complete expulsion of exhaust gases. This improved volumetric efficiency translates directly into more power and sharper throttle response, vital attributes for a competitive dirt bike where every millisecond counts.
Technical Specifications: Power in Detail
Displacement and Bore/Stroke
The Honda CRF150R's engine boasts a displacement of 149cc. This is achieved through a bore and stroke configuration typically around 66.0mm x 43.6mm. The relatively short stroke design is characteristic of high-revving performance engines. A larger bore allows for larger valves, aiding in airflow and power at higher engine speeds, while a shorter stroke contributes to a higher redline and quicker revving characteristics. This precise engineering ensures the engine can spin up rapidly and deliver its power effectively across a broad range.
Fuel System and Ignition
For many years and across various models, the CRF150R has relied on a Keihin FCR carburettor for its fuel delivery. This type of carburettor is highly regarded in the performance motorcycle world for its precise fuel metering, excellent throttle response, and relatively straightforward tuning capabilities. While modern bikes increasingly adopt fuel injection, the FCR carburettor provides a robust and reliable system that many riders and mechanics are familiar with. Ignition is typically handled by a CD (Capacitor Discharge) ignition system, ensuring a strong, consistent spark for efficient combustion at all engine speeds.
Cooling and Lubrication
Given the high-performance nature of the engine and the demanding conditions of motocross, liquid cooling is an absolute necessity. The CRF150R's engine features a comprehensive liquid-cooling system with radiators designed to efficiently dissipate heat, maintaining optimal engine operating temperatures. This prevents overheating during intense, sustained periods of high RPM operation, preserving engine longevity and consistent power output. Lubrication is provided by a wet sump system, where engine oil is stored in a reservoir within the engine case, circulated by a pump to lubricate critical components like the crankshaft, camshaft, and valvetrain. Proper lubrication is paramount for the engine's reliability and long-term durability.
Transmission and Clutch
Power from the engine is transferred to the rear wheel via a smooth-shifting 5-speed close-ratio transmission. A close-ratio gearbox means that the steps between gears are relatively small, allowing the rider to keep the engine within its optimal powerband through various sections of a track or trail. This is particularly beneficial for racing, where maintaining momentum and staying in the sweet spot of the engine's power is crucial. The transmission is paired with a multi-plate wet clutch, which provides precise engagement and disengagement, allowing the rider excellent control over power delivery, especially when exiting corners or navigating challenging terrain.
Why This Engine? Performance and Rider Experience
The choice of a 149cc liquid-cooled, four-stroke Unicam engine for the CRF150R is a strategic one, aiming to offer a distinct riding experience compared to two-stroke alternatives. Four-stroke engines in this class are known for their broader, more tractable powerbands. Unlike a two-stroke that often has a very narrow powerband requiring constant clutch work and precise throttle control, the CRF150R's engine delivers its power in a more linear and predictable fashion. This makes it less fatiguing for riders over longer motos and generally easier to manage for those transitioning from smaller bikes or for riders who prefer a smoother power delivery.
The Unicam design, as discussed, is a significant contributor to this tractable power. By allowing for a compact cylinder head and efficient valve operation, it helps the engine produce strong torque from the bottom end through the mid-range. This low-to-mid range grunt is incredibly useful in motocross, enabling riders to pull out of corners with authority and clear obstacles with ease, often without needing to constantly wring out the throttle. While it might not have the explosive, peaky hit of a comparable two-stroke, its consistent and usable power makes it highly effective on the track.
Furthermore, the four-stroke engine inherently offers better engine braking than a two-stroke, which can be an advantage when slowing down for corners or descending hills. This feature allows riders to use the engine to help control their speed, reducing reliance on the brakes and potentially saving energy. The overall feel of the CRF150R's engine is one of refined power and excellent throttle response, allowing riders to precisely meter their input and maintain control in dynamic riding situations.
Maintenance and Longevity: Keeping Your CRF150R Roaring
Like any high-performance engine, the CRF150R's powerplant requires diligent maintenance to ensure its longevity and consistent performance. However, as a four-stroke, its maintenance schedule differs from a two-stroke. Key maintenance items include regular oil changes, which are crucial given the engine's high operating temperatures and RPMs. It's often recommended to change the oil every few hours of riding, especially for competitive use. Air filter cleaning and replacement are also vital to prevent dirt ingestion, which can severely damage internal components.
Valve clearance checks and adjustments are another critical aspect of four-stroke engine maintenance. While the Unicam system simplifies this process somewhat compared to a full DOHC setup, it still requires precision and specific tools. Maintaining correct valve clearances ensures optimal engine performance, prevents premature wear, and contributes to the engine's overall reliability. Other routine checks include spark plug inspection, coolant level monitoring, and chain lubrication. With consistent and proper maintenance, the Honda CRF150R's engine is known for its robust construction and ability to provide many hours of high-performance riding.
CRF150R vs. The Competition: A Niche Performer
The Honda CRF150R occupies a unique space in the dirt bike market, often seen as a stepping stone from 85cc two-strokes to larger 250cc four-strokes. Its 149cc four-stroke engine sets it apart from the common 125cc two-stroke machines in the junior and amateur racing categories. Here's a brief comparison to highlight its distinct characteristics:
| Feature | Honda CRF150R (4-stroke) | Typical 125cc 2-Stroke |
|---|---|---|
| Engine Type | Liquid-cooled, Single-Cylinder, 4-Stroke, Unicam | Liquid-cooled, Single-Cylinder, 2-Stroke |
| Power Delivery | Broad, tractable, strong low-to-mid range | Narrow, peaky, requires higher RPMs |
| Maintenance | More frequent oil changes, valve adjustments | Premix fuel, top-end rebuilds often simpler/cheaper |
| Engine Braking | Significant | Minimal to none |
| Rider Skill | Easier to manage, less fatiguing | Demands more precise throttle/clutch control |
| Fuel Type | Unleaded petrol | Premix (petrol + 2-stroke oil) |
As the table illustrates, the CRF150R's four-stroke engine offers a different riding experience. Its emphasis on a broader powerband and predictable output makes it an excellent choice for riders who value consistency and ease of use, particularly in situations where smooth power application is key. This has made it a popular choice in junior motocross classes where riders are developing their skills and need a bike that is forgiving yet competitive.
Frequently Asked Questions About the CRF150R Engine
Is the CRF150R engine good for racing?
Absolutely. The CRF150R engine is specifically designed for competitive racing in its class. Its strong, manageable powerband, combined with a lightweight chassis, makes it a formidable machine on the track, particularly for junior riders transitioning to larger bikes or those who prefer the characteristics of a four-stroke engine.
How often should I change the oil?
For competitive use or aggressive riding, it's generally recommended to change the engine oil every 5-10 hours of riding, or even after every race day. For more casual trail riding, this interval might be extended slightly, but frequent oil changes are crucial for the longevity of any high-performance four-stroke engine.
Is it fuel-injected?
Most Honda CRF150R models, particularly the popular generations, utilise a Keihin FCR carburettor for fuel delivery. While some larger, more modern dirt bikes have transitioned to fuel injection, the CRF150R has largely retained its carburettor system, which offers robust performance and relative simplicity for tuning and maintenance.
What does 'Unicam' mean?
Unicam is Honda's proprietary valvetrain design. It stands for 'Unique Camshaft' system. In essence, it's a single overhead camshaft (SOHC) system where the single camshaft directly actuates the intake valves, but uses short, lightweight rocker arms to operate the exhaust valves. This ingenious design allows for the performance benefits often associated with a DOHC system (like larger valves and efficient valve angles) while maintaining the compact size and lighter weight of an SOHC engine, which is ideal for a high-performance dirt bike.
Is the engine difficult to maintain?
While a four-stroke engine generally requires more specific maintenance procedures than a two-stroke (e.g., valve adjustments), the CRF150R's engine is considered relatively straightforward for a modern performance powerplant. Many maintenance tasks can be performed by a competent home mechanic, though valve adjustments may require specialised tools and a good understanding of engine mechanics. Regular, diligent maintenance is key to its reliability and performance.
In conclusion, the Honda CRF150R's engine is far more than just a power source; it's a meticulously engineered component that defines the bike's character and capabilities. Its liquid-cooled, 149cc, four-stroke Unicam design offers a compelling blend of strong, tractable power, excellent throttle response, and robust reliability, making it a perennial favourite for riders navigating the demanding world of off-road and motocross competition. Understanding its intricacies allows riders to maximise its potential and ensure years of thrilling performance on the track or trail.
