DIY Drum Brake Shoe Replacement Guide

Replacing drum brake shoes might seem like a daunting task, but rest assured, it's a completely manageable DIY project for the home mechanic. You don't need a garage full of specialist tools, and the savings on labour costs alone can be substantial. This guide will walk you through the process, applicable to most vehicles equipped with drum brakes, transforming a potentially expensive repair into a rewarding and cost-effective bit of car maintenance.

Drum brakes are a vital part of your vehicle's braking system, particularly common on the rear wheels of many cars, trucks, and SUVs. They rely on shoes that press outwards against the inside of a spinning drum to create friction and slow the vehicle. Over time, these shoes wear down, reducing braking efficiency and potentially leading to unsafe driving conditions. Knowing when and how to replace them is crucial for your safety on the road.

Understanding Your Drum Brakes

Before diving into the replacement process, it's helpful to understand the basic components and how they function. A typical drum brake assembly consists of:

• Brake Drum: A cast iron or steel cylinder that spins with the wheel.
• Brake Shoes: Two crescent-shaped components lined with friction material that press against the inside of the drum.
• Wheel Cylinder: A hydraulic cylinder that pushes the brake shoes outward when you press the brake pedal.
• Return Springs: Springs that pull the brake shoes back to their original position when the brake pedal is released.
• Adjuster: A mechanism (often a star wheel) that automatically adjusts the shoes as they wear, maintaining proper shoe-to-drum clearance.
• Hold-down Springs/Pins: Components that keep the shoes positioned against the backing plate.
• Parking Brake Lever/Cable: Connects to one of the shoes to provide mechanical braking for parking.
• Backing Plate: A sturdy metal plate mounted to the axle housing, to which all the drum brake components are attached.

When you press the brake pedal, hydraulic fluid pressure from the master cylinder forces the wheel cylinder pistons outwards. These pistons then push the brake shoes against the rotating drum, creating friction that slows or stops the wheel. The heat generated by this friction is considerable, which is why proper maintenance and quality parts are essential.

When to Replace Your Drum Brake Shoes?

Recognising the signs of worn drum brake shoes is key to preventing further damage and maintaining your vehicle's safety. While they generally last longer than disc brake pads, they do eventually need replacement. Here are common indicators:

• Reduced Braking Performance: You might notice that your car takes longer to stop, or the brake pedal feels spongy and requires more effort to achieve the same stopping power.
• Grinding or Squealing Noises: A metallic grinding sound often indicates that the friction material on the shoes has worn away, and the metal backing is rubbing against the drum. Squealing can also be an early sign of wear or contamination.
• Vibration or Pulsation: While more common with worn disc brakes, warped or severely worn drums can cause a pulsation through the brake pedal.
• Excessive Parking Brake Travel: If your handbrake needs to be pulled up much higher than usual to engage, it could be a sign of worn rear brake shoes that aren't adjusting properly.
• Visual Inspection: If you can safely remove the wheel and drum, you can visually inspect the thickness of the friction material. If it's less than 1.5-2mm, it's time for replacement. You might also see brake dust coating the inside of your wheels, though this isn't always a definitive sign of wear.

Mileage-wise, drum brake shoes can last anywhere from 80,000 to 160,000 kilometres, depending on driving habits and vehicle type. However, it's always best to consult your vehicle's service manual for specific recommendations and to perform regular inspections.

Gathering Your Tools and Materials

Before you begin, ensure you have all the necessary tools and replacement parts. Being prepared will make the job smoother and more efficient. Here’s a checklist:

Regarding replacement parts, always buy a complete set of shoes for both sides of the axle (e.g., both rear wheels). It's crucial for balanced braking. A new hardware kit is also highly recommended, as springs lose tension and clips become brittle over time. If your drums are scored, worn beyond specification, or out-of-round, they will need to be replaced or resurfaced by a machine shop. If opting for resurfacing, ensure they are cleaned thoroughly before installation.

Safety First: Essential Precautions

Working on your car's braking system requires strict adherence to safety protocols. Never compromise on these steps:

• Park your vehicle on a flat, level, and solid surface.
• Engage the parking brake (if working on the rear wheels, and it's not the system you're disassembling).
• Place wheel chocks on the wheels that will remain on the ground (e.g., front wheels if working on the rear).
• Loosen the wheel nuts slightly before jacking up the vehicle.
• Use a sturdy jack to lift the vehicle, and then immediately place robust jack stands under appropriate jacking points. Never rely solely on the jack.
• Ensure the vehicle is stable on the jack stands before you begin any work. Give it a gentle shake to confirm.
• Wear safety glasses to protect your eyes from brake dust, debris, and cleaning chemicals.
• Use gloves to protect your hands and avoid getting brake dust on your skin. Brake dust can contain asbestos in older vehicles, so avoid breathing it in. Do not use compressed air to blow off brake dust; use brake cleaner and a rag.
• Allow the brakes to cool down completely before starting work, especially if the vehicle has just been driven.

Step-by-Step Guide to Drum Brake Shoe Replacement

1. Preparation: Lifting and Securing Your Vehicle

With safety precautions in mind, loosen the wheel nuts on the wheel you'll be working on. Jack up that corner of the vehicle and place a jack stand securely underneath. Once the vehicle is stable, remove the wheel nuts completely and take off the wheel.

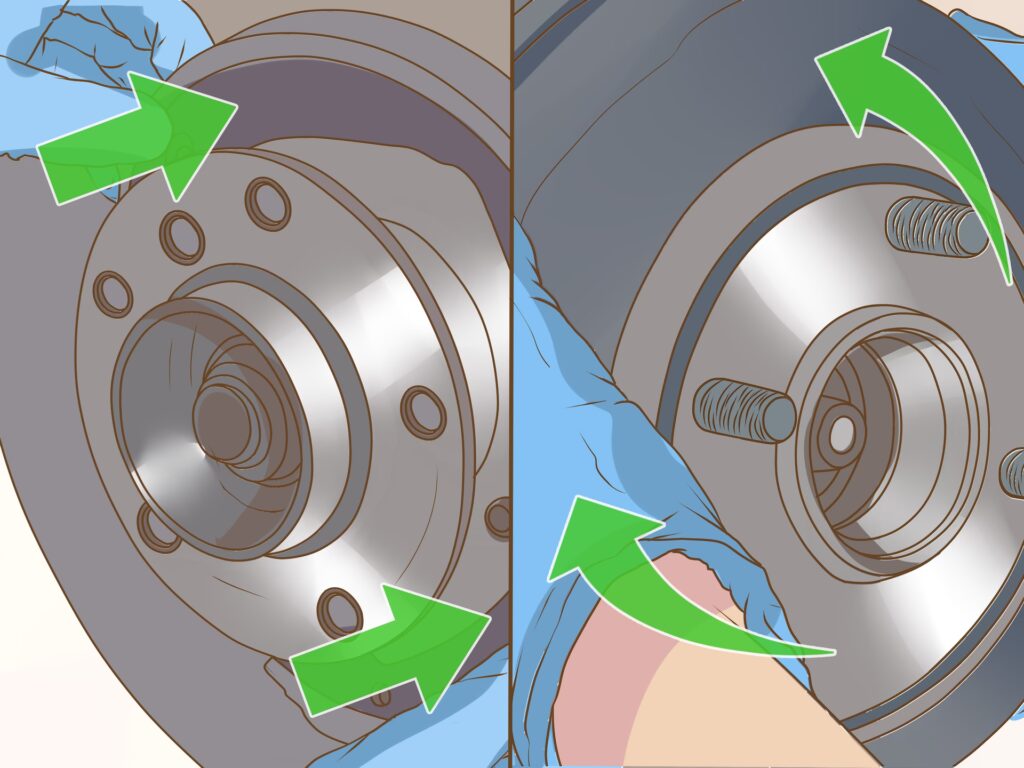

2. Removing the Brake Drum

The brake drum might be held on by a couple of small retaining screws (Phillips head or Torx) that need to be removed. Sometimes, it's simply held in place by the wheel nuts and the slight rust build-up on the hub. If the drum is stuck, it's usually due to a lip that has worn into the inside edge, or the shoes being adjusted too tightly. You might need to gently tap the drum with a hammer around its circumference to free it, or use the threaded holes provided on some drums for puller bolts to push it off the hub. If the drum won't come off due to the lip, you might need to retract the brake shoes slightly. This is often done through an inspection hole in the backing plate or by accessing the adjuster through a wheel stud hole. Use a flat-head screwdriver to push the adjuster lever off the star wheel and then turn the star wheel to retract the shoes.

3. Inspecting the Old Components

Once the drum is off, take a moment to assess the situation. Note how the springs and components are assembled. This is where your digital camera comes in handy – take several clear photos from different angles before you start disassembling anything. Look for signs of brake fluid leaks from the wheel cylinder, excessive wear on the shoes, or damage to the springs and hardware. If there's a leak, the wheel cylinder will need to be replaced.

4. Disassembling the Drum Brake Assembly

This is the trickiest part, due to the springs. Work carefully and methodically. It's often easiest to remove the lower return spring first, followed by the upper return spring. Then, remove the hold-down springs and pins that secure the shoes to the backing plate. Once these are off, you can usually remove the shoes, often as a connected assembly with the parking brake lever and adjuster mechanism still attached. Pay close attention to how the self-adjusting mechanism is configured and how the parking brake cable connects.

5. Cleaning the Backing Plate

With all the old components removed, take the opportunity to clean the backing plate thoroughly. Use a wire brush to remove rust and old brake dust. Then, spray it down with brake cleaner. Ensure all pivot points and contact areas where the shoes slide are clean. Apply a thin layer of high-temperature brake grease or anti-seize compound to these contact points on the backing plate. This will allow the new shoes to slide smoothly and prevent binding.

6. Assembling the New Brake Shoes

If you purchased a hardware kit, discard the old springs and clips. Transfer the parking brake lever from the old shoe to the new trailing shoe (the rear-most shoe). Assemble the new shoes on a clean workbench before installing them on the vehicle. This involves attaching the lower and upper return springs, and the adjuster mechanism. Refer to your photos frequently to ensure correct orientation. Ensure the self-adjusting lever is correctly positioned on the adjuster star wheel.

7. Installing the New Brake Shoes and Drum

Carefully position the assembled new brake shoes onto the cleaned backing plate. Secure them with the new hold-down springs and pins. Reconnect the parking brake cable to its lever. Ensure all springs are properly seated and that the shoes move freely. Install the adjuster mechanism correctly between the shoes, ensuring the star wheel faces the appropriate direction for adjustment (usually accessible through the backing plate inspection hole).

Before installing the drum, clean the brake surface of your new or resurfaced brake drum with brake cleaner. This removes any protective coatings or contaminants. Carefully slide the drum over the new brake shoes and onto the hub. It should slide on with minimal effort. If it's too tight, the shoes might be adjusted out too far, or the parking brake is engaged.

8. Adjusting the Brake Shoes

This step is critical for proper brake function. The goal is to adjust the shoes outwards until you feel slight resistance against the drum as you rotate it by hand. This ensures proper contact and activation. On many vehicles, this is done through an inspection plug or slot on the backing plate. Use a flat-head screwdriver or a brake spoon to turn the star wheel adjuster. Turn it in small increments, rotating the drum after each adjustment, until you feel a slight drag. Be careful not to overtighten, as this will cause premature wear and overheating. Once adjusted, replace the inspection plug.

9. Final Checks and Test Drive

Double-check all components to ensure they are properly installed and secure. Reinstall the wheel, tightening the wheel nuts by hand, then lower the vehicle. Once on the ground, torque the wheel nuts to the manufacturer's specified setting using a torque wrench. Repeat the entire process for the other side of the vehicle.

Before driving, pump the brake pedal several times to seat the new shoes and ensure the self-adjusting mechanism has taken up any slack. The pedal should feel firm. Now, take the vehicle for a cautious test drive in a safe area. Drive slowly and apply the brakes gently several times to allow the shoes to 'bed in' with the drum. Avoid hard braking initially. Listen for any unusual noises and feel for any vibrations. The brake pedal should feel consistent and firm.

Resurfaced vs. New Brake Drums: What You Need to Know

The prompt specifically mentions replacing a resurfaced brake drum, which highlights an important choice. When replacing drum brake shoes, you have three options for the drums:

• Re-use Existing Drums: Only an option if they are within specification, not warped, and have no deep scores. This is rare when replacing shoes due to wear.
• Resurface Existing Drums: A machine shop can 'turn' or 'machine' the drums, removing a thin layer of metal to create a smooth, true surface. This is more economical than new drums but can only be done if the drum's thickness remains above the minimum discard specification (stamped on the drum). Resurfaced drums must be thoroughly cleaned of machining oils before installation.
• Install New Drums: Often the easiest and safest option, especially if your old drums are severely worn, warped, or corroded. New drums come ready to install after a quick wipe down with brake cleaner.

Here’s a comparison:

For optimal performance and safety, installing new drums along with new shoes is often the preferred choice, especially if the old drums show significant wear or damage. If you opt for resurfaced drums, remember to wipe down the brake surface with brake cleaner before installation, as mentioned in the initial information provided, to remove any manufacturing or machining residues.

Troubleshooting Common Issues

• Drum won't come off: As mentioned, a lip on the drum or shoes adjusted too far out are common culprits. Try retracting the shoes or gentle tapping.
• Springs are difficult to install: Brake spring pliers can make this much easier. Otherwise, use strong needle-nose pliers or a flat-head screwdriver with caution.
• Brakes feel spongy after replacement: While typically not required for just shoe replacement, if you've opened any hydraulic lines (e.g., replaced a wheel cylinder), you will need to bleed the brake system to remove air. Otherwise, pump the pedal repeatedly to allow the self-adjuster to work.
• Grinding noise after replacement: Ensure all springs are correctly seated and not rubbing. Check for foreign debris. Ensure shoes are properly adjusted and not dragging excessively.
• Parking brake doesn't hold: Ensure the parking brake cable is properly connected to the lever on the shoe and that the shoes are correctly adjusted.

Frequently Asked Questions (FAQs)

Q1: How long do drum brake shoes typically last?

A1: Drum brake shoes can last anywhere from 80,000 to 160,000 kilometres (50,000 to 100,000 miles), or even longer, depending on driving habits, vehicle type, and the quality of the shoes. They generally outlast disc brake pads.

Q2: Do I need to replace the brake drum every time I replace the shoes?

A2: Not necessarily. If your brake drums are within their minimum thickness specification, are not warped, and have no deep grooves or scores, they can sometimes be reused. However, it's often recommended to replace them or have them resurfaced for optimal performance and to prevent premature wear on the new shoes.

Q3: What happens if I don't replace worn drum brake shoes?

A3: Ignoring worn drum brake shoes can lead to significantly reduced braking performance, increased stopping distances, grinding noises, and potentially damage to the brake drums, wheel cylinders, and other components. Ultimately, it compromises vehicle safety.

Q4: Is replacing drum brake shoes a difficult DIY job?

A4: It's generally considered more complex than replacing disc brake pads due to the intricate spring and lever assembly. However, with the right tools, patience, and this detailed guide, it's a completely achievable DIY task that can save you a lot of money. Taking photos before disassembly is incredibly helpful.

Q5: Do I need to bleed the brakes after replacing drum brake shoes?

A5: No, replacing only the brake shoes and drum does not typically require bleeding the brake system, as you are not opening any hydraulic lines. You only need to bleed the brakes if you replace the wheel cylinder or any other hydraulic component that allows air into the system.

Q6: What is the 'bedding-in' process for new drum brakes?

A6: Bedding-in (or break-in) is a process where the new brake shoes conform to the surface of the brake drum. It involves several moderate stops from around 50-60 km/h (30-40 mph) without coming to a complete stop, allowing the brakes to cool down between applications. This helps to achieve optimal braking performance and extends the lifespan of the components.

By following this comprehensive guide, you'll be well-equipped to tackle drum brake shoe replacement with confidence. Remember, patience and attention to detail are your best allies in this process. Enjoy the satisfaction and savings of a job well done!
