How to Remove a Car Heat Shield

The heat shield is a vital, yet often overlooked, component within your vehicle's engine bay. Its primary function is to act as a barrier, protecting sensitive engine parts from the intense heat generated by the exhaust system. Over time, however, these shields can suffer damage from road debris, corrosion, or simply the relentless cycle of heating and cooling. When this happens, understanding how to remove a heat shield is a crucial skill for any car owner looking to perform essential maintenance or repairs. While it might seem like a daunting task, with the right preparation and guidance, you can tackle this job yourself.

Why Would You Need to Remove a Heat Shield?

Heat shields are engineered to be robust, but they aren't indestructible. There are several common reasons why you might find yourself needing to remove one:

• Damage: Cracks, holes, or severe dents can compromise the shield's effectiveness, allowing heat to reach components it's meant to protect.
• Corrosion: Exposure to moisture and road salt can lead to rust and corrosion, weakening the shield and potentially leading to its disintegration.
• Wear and Tear: Like any car part, heat shields can degrade over time due to continuous exposure to high temperatures and vibrations.
• Repair Access: Sometimes, a heat shield simply obstructs access to other components that need servicing or replacement, such as exhaust pipes, catalytic converters, or sensors.
• Loose or Rattling: A loose heat shield can create annoying rattling noises, indicating that its mounting points may have failed.

Preparation and Safety First

Before you even think about reaching for a wrench, prioritising safety is paramount. Working on a car, especially around the exhaust system, involves potential hazards. Here’s what you need to do:

Essential Safety Gear:

• Safety Glasses: Protect your eyes from falling debris, rust particles, or stray tools.
• Gloves: Heavy-duty work gloves will protect your hands from sharp edges and prevent grease and grime from getting on your skin.
• Face Mask: Especially important if dealing with old, corroded shields, a mask can prevent inhalation of rust particles or insulation material.

Vehicle Preparation:

Ensuring the car is stable and secure is non-negotiable.

1. Cool Down: Allow the exhaust system and engine bay to cool completely. The exhaust system can retain extreme heat for a considerable time after the engine has been switched off.
2. Disconnect the Battery: For electrical safety, it's good practice to disconnect the negative (black) battery terminal. This prevents any accidental electrical shorts or the engine starting unexpectedly.
3. Lift and Support: Use a reliable hydraulic jack or scissor jack to lift the vehicle. Crucially, securely support the car with sturdy jack stands placed on strong chassis points. Never work under a car supported only by a jack. Wheel chocks should also be used to prevent the vehicle from rolling.

Tools You'll Likely Need:

The exact tools may vary depending on your vehicle, but a general toolkit for heat shield removal typically includes:

• Socket Set (Metric and Imperial sizes)
• Ratchet Wrench
• Extension Bars (for reaching awkward bolts)
• Breaker Bar (for stubborn bolts)
• Penetrating Oil (like WD-40 or PB Blaster)
• Wire Brush
• Pliers or Vice Grips
• Torque Wrench (for reinstallation)
• Flathead Screwdriver

The Step-by-Step Removal Process

While the exact location and mounting methods can differ between car manufacturers and models, the fundamental process for removing a heat shield is generally consistent. Here’s a breakdown:

Step 1: Locate the Heat Shield

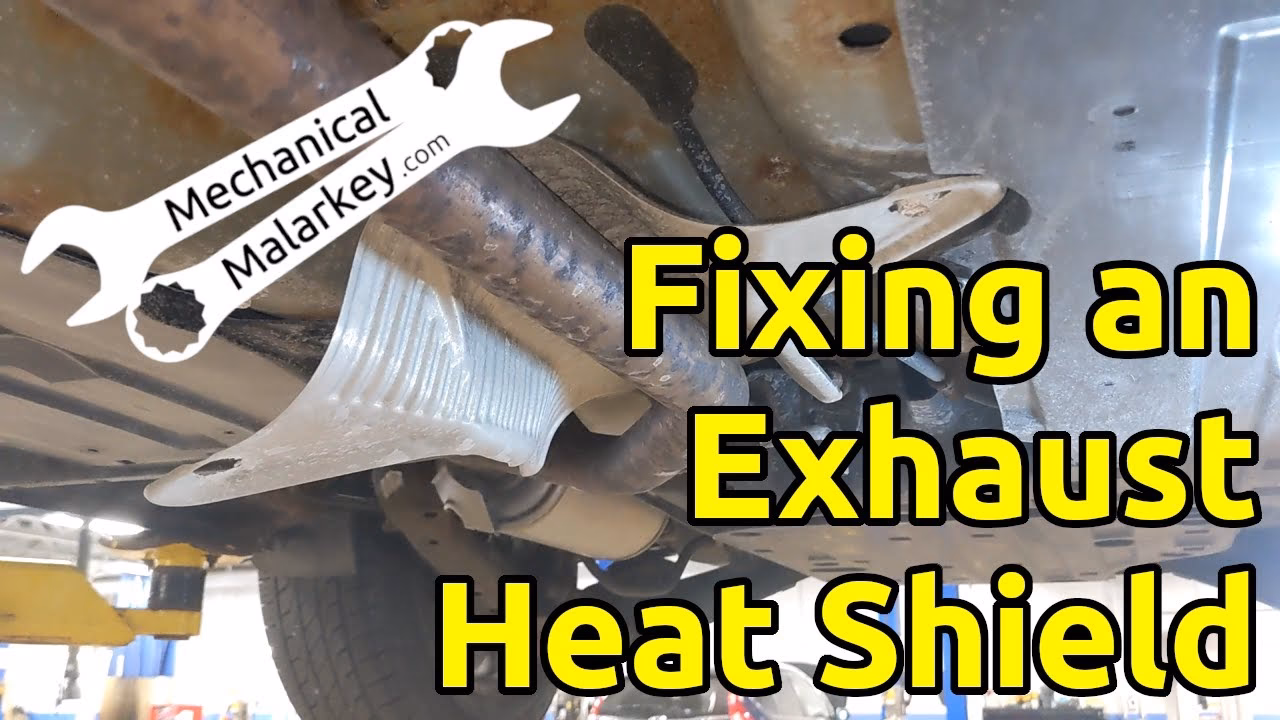

Heat shields are most commonly found around the exhaust manifold, the catalytic converter, and sections of the exhaust pipe. They are typically made of thin sheet metal and are often multi-layered. Take a moment to observe its position, how it's attached, and identify all the bolts, nuts, or clips securing it.

Step 2: Apply Penetrating Oil

Exhaust components are exposed to harsh conditions, meaning bolts and nuts can be seized due to rust and heat. Generously spray penetrating oil onto all the fasteners holding the heat shield. Allow it to soak for at least 15-30 minutes, or even longer if possible. Reapplying the oil can sometimes help break the bond.

Step 3: Loosen and Remove Fasteners

Using the appropriate socket and ratchet, begin to loosen the bolts and nuts. If a bolt is particularly stubborn, a breaker bar can provide extra leverage. It's often helpful to work in a star pattern when loosening multiple fasteners, similar to how you'd tighten lug nuts on a wheel. This helps to distribute pressure evenly and reduces the risk of warping the shield or damaging the threads.

Important Note: Some heat shields might use spring clips or special fasteners instead of traditional bolts. In such cases, you might need a flathead screwdriver or pliers to release them. Be gentle, as these can be brittle.

Step 4: Carefully Remove the Heat Shield

Once all fasteners are removed, the heat shield should be loose. Carefully manoeuvre it away from the exhaust components. Be mindful of any sharp edges. If the shield is proving difficult to remove, double-check that you haven't missed any fasteners or clips. Gently wiggle the shield to help break any remaining rust bonds.

Step 5: Disconnect Associated Components (If Necessary)

In some instances, a heat shield might have sensors or wiring harness clips attached to it. If this is the case, carefully disconnect any electrical connectors or unclip any wires before fully removing the shield. Note their original positions for easier reinstallation.

Step 6: Clean the Mounting Area

With the heat shield removed, take the opportunity to clean the mounting points. Use a wire brush to remove any rust, dirt, or old gasket material from the bolts, nuts, and the surfaces where the heat shield sits. This ensures a clean surface for reinstallation.

Reinstalling a Heat Shield (or a New One)

The process for installing a new or the cleaned old heat shield is essentially the reverse of removal.

Step 1: Position the Heat Shield

Carefully place the heat shield back into its original position, aligning the mounting holes with the corresponding studs or threaded holes on the exhaust component.

Step 2: Reinstall Fasteners

Start all the bolts and nuts by hand to avoid cross-threading. Once they are all in place, begin tightening them using your socket set. Again, it’s advisable to tighten them in a star pattern for even pressure distribution.

Step 3: Tighten to Specification

Use a torque wrench to tighten the fasteners to the manufacturer's specified torque values. Overtightening can damage the shield or the exhaust component, while undertightening can lead to rattling or the shield coming loose.

Step 4: Reconnect Electrical Components

If you disconnected any sensors or wiring, reconnect them securely to their original locations.

Step 5: Final Checks

Ensure all tools are removed from the engine bay. Lower the vehicle safely off the jack stands. Reconnect the negative battery terminal. Start the engine and listen for any unusual noises, such as rattles or exhaust leaks.

Common Issues and Troubleshooting

Even with careful preparation, you might encounter a few snags:

• Stripped Bolts: If a bolt head strips, you may need to use a bolt extractor or carefully cut off the bolt head with a cutting tool.
• Broken Studs: If a stud breaks off, you might need to replace the entire exhaust component or have a new stud welded in place.
• Damaged Threads: If the threads in the exhaust component are damaged, you may need to repair them with a tap or use a slightly larger bolt with a nut.

Frequently Asked Questions (FAQs)

Q: What are the common signs of a damaged heat shield?
A: Look for visible cracks, holes, severe rust or corrosion, or if the shield is hanging loose or rattling. Any of these can indicate it needs replacement.

Q: Can I drive my car without a heat shield?
A: It is not recommended. While the car may run, a missing or damaged heat shield can lead to overheating of nearby components, potential fire hazards, and reduced performance. It also increases the risk of burns if someone touches the hot exhaust parts.

Q: How often should a heat shield be replaced?
A: Heat shields don't have a fixed replacement interval like oil or filters. They should be inspected during regular maintenance and replaced only when damaged, corroded, or failing to perform their function.

Q: Can I use generic heat shield material if the original is unavailable?
A: It’s best to use OEM (Original Equipment Manufacturer) or high-quality aftermarket replacements specifically designed for your vehicle. Generic materials may not fit correctly or offer the same level of protection.

Q: What are the consequences of not replacing a damaged heat shield?
A: Beyond the risk of burns, prolonged exposure of engine components to excessive heat can lead to premature failure of seals, wires, hoses, and other plastic or rubber parts. It can also affect the efficiency and longevity of the exhaust system itself.

Conclusion

Removing and reinstalling a car's heat shield is a manageable task for the home mechanic with the right preparation and tools. By following these steps, prioritising safety, and being patient with stubborn fasteners, you can successfully maintain this important protective component of your vehicle. If at any point you feel unsure or uncomfortable, seeking assistance from a qualified mechanic is always the wisest course of action.
