Chainsaw Clutch: Signs of Wear & Replacement

A chainsaw clutch is a vital component that connects the engine's power to the cutting chain. It allows the engine to idle without the chain moving, and then engages the chain when you press the throttle. Over time, like any mechanical part, the clutch can wear out. Understanding the symptoms of a failing clutch and knowing how to address it is crucial for maintaining your chainsaw's performance and ensuring your safety. This article will delve into what happens when a chainsaw clutch wears out, the common signs to look for, and the process of replacing it, focusing on the clutch and sprocket assembly.

The Function of a Chainsaw Clutch

Before we discuss what happens when it wears out, it's important to understand its role. The clutch mechanism typically consists of a clutch drum, clutch shoes, and springs. When the engine is at idle, centrifugal force is low, and the clutch shoes remain retracted, not engaging the clutch drum. As you increase the engine speed, centrifugal force increases, pushing the clutch shoes outwards. These shoes then make contact with the inside of the clutch drum, causing it to rotate and, in turn, drive the sprocket and the cutting chain.

What Happens When a Chainsaw Clutch Wears Out?

When a chainsaw clutch wears out, its ability to effectively engage and disengage the cutting chain is compromised. This can manifest in several ways, leading to reduced performance, potential safety hazards, and even damage to other parts of the chainsaw.

Symptoms of a Worn Chainsaw Clutch

Recognising the signs of a worn clutch is key to preventing further issues. Here are some common indicators:

• Chain Doesn't Engage or Disengages Slowly: This is perhaps the most obvious sign. You might rev the engine, but the chain either doesn't spin at all, or it takes a significant delay before it starts moving. Conversely, the chain might continue to spin for a while after you release the throttle.
• Chain Slips or Binds: Even when engaged, a worn clutch might not provide a firm grip on the clutch drum. This can result in the chain slipping under load, reducing cutting efficiency and producing a burning smell. You might also experience the chain binding or stuttering during operation.
• Burning Smell: The friction generated by slipping clutch shoes against the clutch drum can cause overheating, leading to a distinct burning smell, often described as a “hot metal” or “rubber” smell. This is a serious indicator that needs immediate attention.
• Excessive Vibration: A worn or damaged clutch component can cause imbalance, leading to increased vibration during operation. This not only makes the chainsaw uncomfortable to use but can also contribute to further wear on other components.
• Reduced Engine Power: While other issues can cause power loss, a slipping clutch means the engine's power isn't being efficiently transferred to the chain. You'll notice a significant drop in cutting performance.
• Visible Wear on Clutch Components: If you can access the clutch (with the engine off and spark plug disconnected for safety), you might be able to visually inspect the clutch shoes and drum. Worn clutch shoes will appear shorter or have less friction material. The clutch drum might show scoring or discolouration from overheating.

Consequences of Ignoring a Worn Clutch

Ignoring these symptoms can lead to a cascade of problems:

• Damage to the Clutch Drum and Sprocket: Continued slippage and overheating can severely damage the clutch drum and the sprocket, requiring their replacement.
• Overheating the Engine: The increased friction and inefficient operation can lead to the engine overheating, potentially causing more significant internal damage.
• Increased Wear on Other Components: The vibrations and erratic operation can put undue stress on the crankshaft, bearings, and other engine parts.
• Safety Hazards: An unreliable clutch can lead to unexpected chain movement or a sudden stop, posing a significant risk to the operator.

Replacing the Clutch and Sprocket

When your chainsaw's clutch shows signs of wear, it's often a good time to replace not just the clutch shoes but also the clutch drum and the sprocket. These components work together, and if one is worn, the others are likely to be nearing the end of their lifespan as well. This comprehensive replacement ensures optimal performance and longevity.

Tools and Parts You'll Need

• New clutch assembly (clutch shoes, springs, clutch drum)
• New sprocket (if separate)
• Chainsaw specific manual
• Socket set or wrenches
• Screwdrivers
• Clutch removal tool (may be necessary)
• Pliers
• Wire brush
• Gloves and safety glasses

Step-by-Step Replacement Guide

1. Safety First!

Before you begin any work on your chainsaw, ensure the engine is completely cool. Disconnect the spark plug wire to prevent accidental starting. Wear sturdy gloves and safety glasses.

2. Access the Clutch Assembly

You'll typically need to remove the chain brake cover and the guide bar and chain. Once these are off, you'll have access to the clutch housing, which often contains the sprocket. The clutch itself (shoes and springs) is usually located behind the clutch drum.

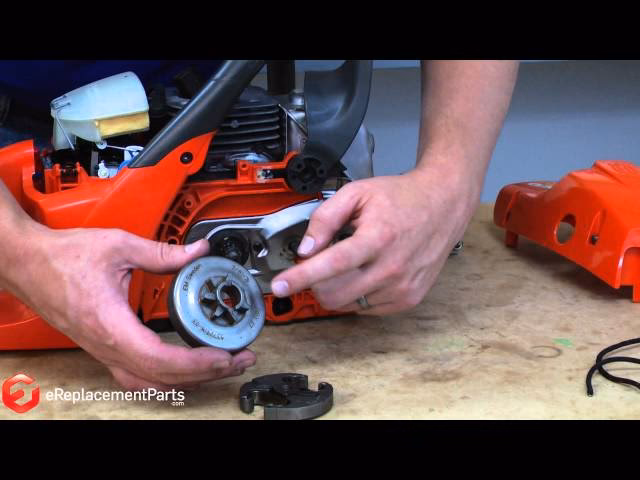

3. Remove the Clutch Drum and Sprocket

The clutch drum is usually secured by a retaining clip or a nut. Consult your chainsaw's manual for the specific method. A clutch removal tool might be necessary to hold the clutch drum stationary while you loosen the retaining nut or clip. Once the retaining mechanism is removed, you can slide off the clutch drum and the sprocket.

4. Inspect and Replace Components

With the clutch drum and sprocket removed, you can now access the clutch shoes and springs. These are typically held in place by the drum. Examine the clutch shoes for wear. They should have a good amount of friction material remaining and should not be cracked or grooved. The springs should not be stretched or broken. If the clutch shoes are worn, replace them along with the springs. It is highly recommended to replace the clutch drum and the sprocket at the same time, even if they don't appear severely worn. This is because their wear is often synchronous with the clutch shoes. If the sprocket shows signs of wear (e.g., hooked or pointed teeth), it definitely needs replacing. Clean the area around the clutch assembly with a wire brush to remove any sawdust or debris.

5. Install New Components

Fit the new clutch shoes and springs onto the clutch carrier. Ensure they are seated correctly. Slide the new sprocket onto the output shaft, followed by the new clutch drum. Secure the clutch drum with its retaining clip or nut. Make sure the sprocket is correctly aligned with the clutch drum.

6. Reassemble the Chainsaw

Reinstall the guide bar and chain, ensuring proper tension. Reattach the chain brake cover. Double-check that all fasteners are tightened appropriately.

7. Test the Chainsaw

Before undertaking any demanding work, start the chainsaw and let it idle. The chain should not move. Gently squeeze the throttle. The chain should engage smoothly and spin at the appropriate speed. Release the throttle, and the chain should stop promptly.

Clutch and Sprocket Replacement: A Comparative Look

When it comes to replacing clutch components, consider the following:

Frequently Asked Questions (FAQs)

Q1: Can I just replace the clutch shoes and not the drum or sprocket?
While you can technically do this, it's generally not recommended. If the drum or sprocket are worn, they will quickly wear out your new clutch shoes, leading to premature failure and potentially costing you more in the long run.

Q2: How often should I check my chainsaw clutch?
It's a good practice to inspect your clutch components periodically, especially if you notice any of the symptoms mentioned. A thorough inspection should be done at least once a year or after heavy use.

Q3: Is it difficult to replace a chainsaw clutch?
With the right tools and a good understanding of your chainsaw's manual, replacing the clutch and sprocket is a manageable DIY task for most users. If you're uncomfortable with mechanical work, it's best to seek professional help.

Q4: What are the signs of a worn sprocket?
Worn sprockets typically have teeth that are hooked, pointed, or unevenly worn. This will prevent the chain from seating correctly, leading to poor cutting performance and potential chain derailment.

Q5: Should I replace the clutch with an aftermarket part?
It's generally best to use genuine or high-quality aftermarket parts specifically designed for your chainsaw model to ensure proper fit and performance.

Conclusion

A worn chainsaw clutch can significantly impact your chainsaw's performance and, more importantly, your safety. By understanding the symptoms of a failing clutch and knowing the correct procedure for replacing the clutch, drum, and sprocket, you can keep your chainsaw in optimal working condition. Regular maintenance and prompt attention to any signs of wear will ensure your chainsaw serves you reliably for years to come. Remember, when in doubt, always consult your chainsaw's manual or a qualified service technician.
