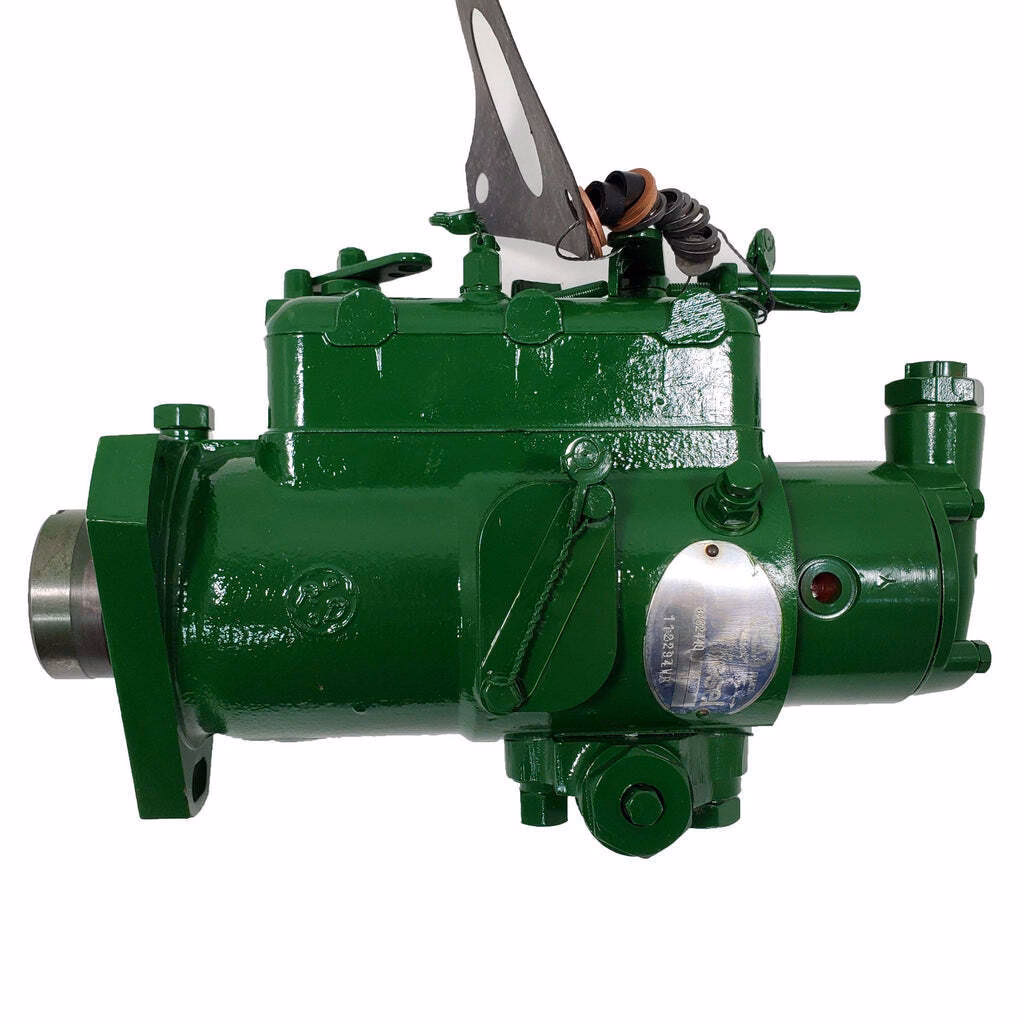

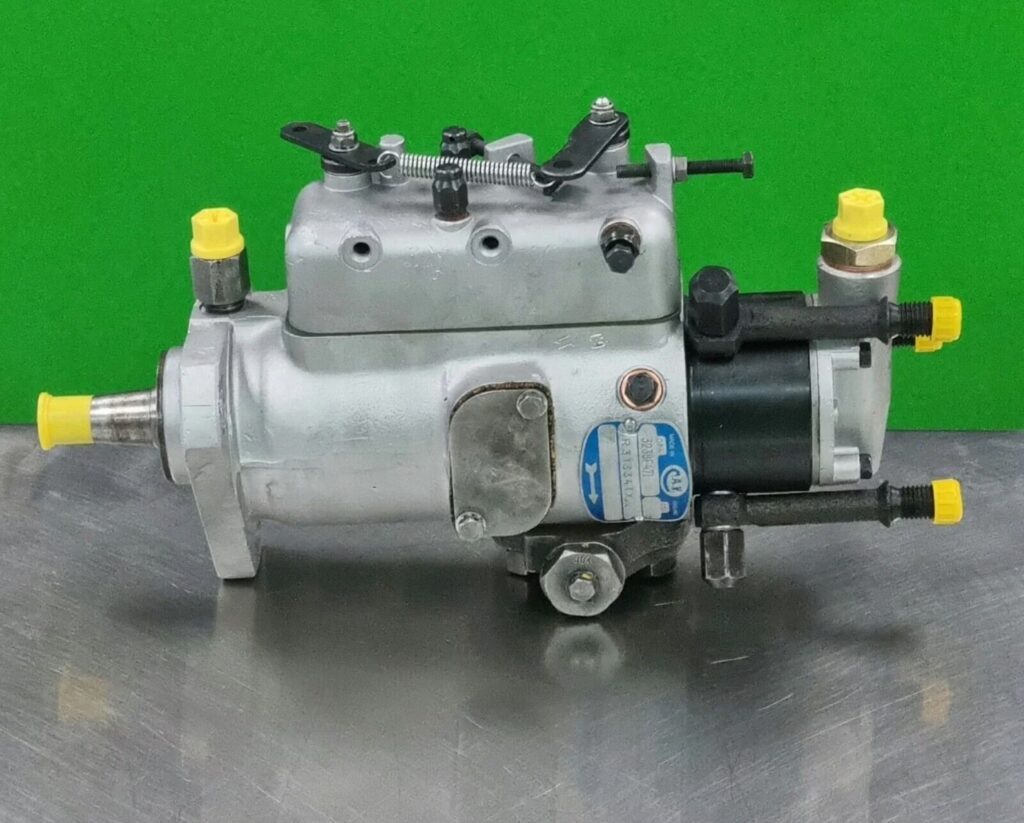

Understanding the CAV DPA Distributor Injection Pump

In the intricate world of diesel engines, the fuel injection system stands as the heart, meticulously delivering fuel to ignite the combustion process. Among the myriad of designs, the distributor-type fuel injection pump has carved out a significant niche, particularly the DPA type, renowned for its widespread adoption and inherent reliability, especially in applications like Navy small craft. This article delves into the fascinating engineering behind the DPA distributor injection pump, explaining its design, operation, and the specific characteristics that have made it such a enduring and effective component in diesel propulsion.

What is a DPA Distributor Type Injection Pump?

The DPA (Distributor Pump, Type A) injection pump represents a highly efficient and compact solution for diesel fuel delivery. Unlike in-line pumps with multiple pumping elements, the DPA pump ingeniously utilises a single pumping element to serve all engine cylinders, distributing the fuel sequentially. This design philosophy contributes significantly to its compact footprint and simplified mechanical structure. A key characteristic of the DPA pump is its self-lubricating nature; it is lubricated throughout by the fuel it pumps, eliminating the need for a separate lubrication system. This feature not only reduces complexity but also minimises potential points of failure associated with external oil lines or sumps. Furthermore, its construction is remarkably robust, deliberately avoiding components such as ball or roller bearings, gears, or highly stressed springs. This absence of complex and wear-prone parts enhances its durability and reduces the frequency of maintenance, making it a highly dependable choice for demanding environments. Integral to its function is a sophisticated governor system, which can be either mechanically or hydraulically operated from within the pump itself. This governor is crucial for maintaining sensitive speed control, ensuring the engine operates smoothly and efficiently across varying loads and RPMs, providing consistent power output regardless of operating conditions.

Ingenious Design and Core Components

The elegance of the DPA distributor type injection pump lies in its streamlined design, where a single pumping element is responsible for pressurising the fuel, and a rotary distributor handles its precise delivery to each cylinder. This integrated approach ensures both consistency and accuracy. At the heart of the pump is a central rotating steel member, aptly named the pumping and distributing rotor. This rotor is manufactured to incredibly fine tolerances, maintaining a very close fit within a stationary steel cylindrical body referred to as the hydraulic head. The precision of this fit is paramount for maintaining the high pressures required for injection and preventing fuel leakage internally.

Within the pumping section of the rotor, a transverse bore houses two opposed pump plungers. These plungers are unique in their operation: they have no return springs but are instead moved outward hydraulically by the incoming fuel pressure. As the rotor turns, these plungers interact with a cam ring, which is strategically located within the pump housing. The cam ring features internal lobes, with the number of lobes precisely matching the number of cylinders in the engine. Rollers and shoes, integrated with the plungers, slide within the rotor, allowing the plungers to be forced together as they encounter the cam lobes. This ingenious cam-driven mechanism is what generates the high fuel pressure necessary for injection.

The drive shaft, typically splined, provides the rotational power to the pumping and distributing rotor, linking the pump's operation directly to the engine's speed. At its outer end, the rotor also incorporates a vane-type fuel transfer pump. This transfer pump plays a critical role in drawing fuel from the vehicle's tank and raising its pressure to an intermediate level, known as the transfer pressure. This pre-pressurisation ensures a consistent supply of fuel to the main pumping element. Working in conjunction with the transfer pump is a piston-type regulating valve, which is housed within the pump's end plate. This valve is responsible for accurately controlling and maintaining the transfer pressure, ensuring the overall stability and efficiency of the fuel delivery system.

The Operational Cycle: Fuel Delivery in Motion

The operation of the DPA pump is a marvel of synchronised mechanical action, driven at half engine speed to align with the four-stroke cycle of the diesel engine. As the pumping and distributing rotor continuously turns, a precise sequence of events unfolds, ensuring accurate and timely fuel delivery to each cylinder:

1. Fuel Charging and Plunger Separation:

   As the rotor rotates, a charging port machined into the rotor aligns momentarily with a metering port located in the stationary hydraulic head. At this precise moment, fuel, which has been pre-pressurised by the transfer pump to the intermediate 'transfer pressure', flows from the metering port into the central passage of the rotor. This incoming fuel exerts hydraulic pressure on the opposed plungers, forcing them apart and drawing fuel into the pumping chamber. The volume of fuel drawn in, and thus the amount of plunger displacement, is precisely determined by the duration for which these ports remain aligned. This duration is meticulously controlled to meter the exact quantity of fuel required for each injection event, ensuring optimal combustion and engine performance.

2. Fuel Isolation:

   As the rotor continues its rotation, the charging port moves out of alignment with the metering port. At this point, the measured quantity of fuel becomes isolated within the rotor's pumping chamber. This isolation is critical, as it prepares the fuel for the subsequent high-pressure generation phase, preventing any backflow or pressure loss before injection.

3. High-Pressure Generation and Distribution:

   With the fuel now isolated, the rotor continues to turn until a single distribution port in the rotor aligns perfectly with one of the outlet ports in the hydraulic head. These outlet ports are connected via high-pressure lines to the individual fuel injectors for each engine cylinder. Simultaneously, as the rotor reaches this alignment, the opposed plungers are forced rapidly together. This forceful compression is achieved by the action of the internal lobes of the cam ring, which push the rollers and shoes, thereby driving the plungers inwards. This rapid inward movement of the plungers generates extremely high pressure within the fuel, making it ready for atomisation and injection.

4. Fuel Injection:

   The highly pressurised fuel is then immediately discharged via the aligned distribution port and outlet port, travelling through a high-pressure line directly to the corresponding fuel injector. The injector, designed to atomise the fuel into a fine spray, then delivers it into the engine's combustion chamber, where it ignites due to the high temperature and pressure of the compressed air. This entire cycle of charging, isolating, pressurising, and injecting fuel is repeated precisely once for each engine cylinder during every single revolution of the DPA pump, ensuring a continuous and perfectly timed fuel supply to the engine.

The CAV DPA Type and Essential Workshop Manuals

The CAV DPA type injection pump, a product of C.A.V. Ltd (later Lucas CAV, now part of Delphi Technologies), became exceptionally prominent due to its reliability and adaptability. Its widespread use, particularly in agricultural, industrial, and marine applications, underscores its robust design and effective performance. For anyone involved in the maintenance, repair, or overhaul of these critical components, access to specific and authoritative documentation is not just beneficial, but absolutely essential. A prime example of such a resource is the workshop manual specifically for the CAV DPA type injection pumps, identified by CAV Publication No. 2124.

These comprehensive workshop manuals are meticulously compiled to provide detailed instructions covering every aspect of the pump's servicing. They typically include intricate diagrams, precise specifications, and step-by-step procedures for tasks such as complete overhaul, component inspection, reassembly, and, critically, adjustment. The accuracy of these adjustments is paramount for ensuring the pump delivers the correct amount of fuel at the right time and pressure, which directly impacts engine performance, fuel efficiency, and emissions. Without such a manual, attempting complex repairs or adjustments would be akin to navigating a labyrinth blindfolded, potentially leading to incorrect settings, engine damage, or diminished operational efficiency.

The availability of these manuals in various formats, such as hard copy reprints (often supplied as A4 printed and spiral-bound documents for practical workshop use) or digital download versions, caters to different user preferences. While digital versions offer convenience, they often come with watermarks and restrictions on printing, designed to protect intellectual property. Regardless of the format, the content remains invaluable, providing the necessary guidance to ensure that a CAV DPA pump, even after years of service, can be restored to its optimal operating condition, extending the life and reliability of the diesel engine it serves.

Key Advantages and Why the DPA Pump Remains Relevant

The DPA pump's design boasts several inherent advantages that cemented its status in the diesel world. Firstly, the single pumping element combined with the rotary distributor inherently ensures an exquisite equality of delivery to each nozzle. This consistency in fuel volume per cylinder is crucial for smooth engine running, balanced power output, and reduced vibration. Secondly, since the timing interval between injection strokes is determined by the accurate, fixed spacing of the distribution ports and the operating cams do not require adjustment, accurate timing of delivery is also an inherent feature of the pump. This eliminates the need for complex timing adjustments during installation or maintenance, simplifying the setup process and guaranteeing consistent engine performance.

Its compact unit design means it requires less space in crowded engine compartments, a significant advantage for small craft and compact machinery. The fact that it is lubricated entirely by fuel simplifies the engine's overall lubrication system and reduces maintenance points. Moreover, the deliberate exclusion of ball or roller bearings, gears, and highly stressed springs contributes to its exceptional robustness and longevity, making it less susceptible to wear and fatigue in demanding operational environments. These design choices collectively result in a highly reliable, durable, and relatively low-maintenance fuel injection pump that continues to be a workhorse in various diesel applications worldwide.

Frequently Asked Questions About DPA Injection Pumps

How is a DPA pump lubricated, and what are the implications?

The DPA pump is uniquely lubricated throughout by the fuel it pumps. This means there is no separate oil system required for its internal components. The primary implication is that the quality and cleanliness of the diesel fuel are paramount, as the fuel itself acts as the lubricant. Contaminated or poor-quality fuel can lead to accelerated wear of internal components, jeopardising the pump's longevity and performance. Regular fuel filter changes are therefore crucial.

What is the role of the transfer pump within the DPA unit?

The vane-type fuel transfer pump, located at the outer end of the pumping and distributing rotor, is responsible for drawing fuel from the main fuel tank and raising its pressure to an intermediate level, known as the 'transfer pressure'. This pre-pressurisation ensures a consistent and adequate supply of fuel to the main high-pressure pumping element, optimising the overall efficiency and reliability of the fuel injection process.

How does the DPA pump ensure accurate fuel timing and distribution?

The DPA pump achieves accurate timing and distribution through its ingenious rotary distributor, which is integral to the pump. The precise spacing of the distribution ports within the hydraulic head, combined with the fixed lobes on the cam ring, dictates the exact timing intervals between injection strokes. This inherent design means that the timing does not require complex adjustments, ensuring consistent and accurate fuel delivery to each cylinder.

What makes the DPA pump design so robust and reliable?

The DPA pump's robustness stems from its minimalist design, which intentionally avoids components prone to wear and fatigue, such as ball or roller bearings, gears, and highly stressed springs. Its compact nature and the fact that it's lubricated by fuel also contribute to its simplicity and fewer potential points of failure, making it exceptionally durable in demanding operational environments.

Why are specific workshop manuals important for DPA pumps?

Specific workshop manuals, such as the CAV Publication No. 2124, are indispensable for DPA pumps because they provide detailed, step-by-step instructions for overhaul, adjustment, and troubleshooting. Given the precision required for internal components and the critical nature of fuel delivery, these manuals ensure that any maintenance or repair work is performed correctly, preserving the pump's accuracy, efficiency, and longevity, and ultimately, the engine's performance.

Conclusion

The DPA distributor type injection pump, particularly the ubiquitous CAV DPA variant, stands as a testament to effective and durable engineering in the realm of diesel technology. Its innovative design, featuring a single pumping element and a rotary distributor, ensures both compact size and highly accurate, consistent fuel delivery. The inherent reliability, achieved through its self-lubricating mechanism and the absence of complex wear-prone components, has made it a preferred choice for a vast array of diesel engines, from small marine craft to agricultural machinery. Understanding its intricate design and precise operational cycle is key to appreciating its enduring legacy and its continued relevance in modern diesel engine applications. For those responsible for its upkeep, the availability of comprehensive workshop manuals remains critical, empowering technicians to maintain these vital components to the highest standards, ensuring the continued efficiency and longevity of the engines they serve.
