Prius Mk3 Handbrake Adjustment Made Easy

A properly functioning handbrake, often referred to as a parking brake, is an essential safety feature in any vehicle. It provides an additional layer of security when parking, especially on inclines, and acts as a crucial backup system should your main foot brakes ever fail. For owners of the Toyota Prius Mk3, understanding how to maintain and adjust this vital component is key to ensuring both your vehicle's longevity and your personal safety. While the Prius is renowned for its advanced hybrid technology, its handbrake system relies on a surprisingly traditional yet effective design, specifically a dedicated drum brake at the rear wheels.

Many drivers might notice their handbrake lever pulling up too high before engaging, or perhaps the car nudges forward slightly even when engaged on a gentle slope. These are tell-tale signs that an adjustment is due. Fortunately, adjusting the handbrake on a Prius Mk3 is a task that can be tackled with some basic tools and a clear understanding of the process. This guide will walk you through the specifics of the Prius Mk3's handbrake system and provide a detailed, step-by-step approach to getting it just right.

Understanding the Prius Mk3 Handbrake System

Unlike many modern vehicles where the parking brake might be integrated into the main disc brake caliper, the Toyota Prius Mk3 employs a separate, small drum brake system exclusively for the handbrake function on the rear wheels. This design is both robust and reliable. When you engage the handbrake lever inside the cabin, it pulls a cable that, in turn, expands the brake shoes within these small drums, pressing them against the inside surface of the drum to create friction and hold the vehicle stationary.

The primary point of adjustment for this system lies within these rear drum brakes themselves. Over time, the brake shoes can wear down, or the cable might stretch marginally, leading to increased travel in the handbrake lever. The good news is that the adjustment mechanism is quite straightforward, designed to compensate for this wear and restore the brake's effectiveness. It involves a 'star wheel' adjuster located inside the drum, which allows you to fine-tune the gap between the brake shoes and the drum.

When to Adjust Your Handbrake

Knowing when your handbrake needs attention is the first step towards maintaining its effectiveness. Here are some common indicators:

• Excessive Lever Travel: If you have to pull the handbrake lever up significantly higher than usual (e.g., more than 5-7 clicks) before it feels secure, it's likely out of adjustment.
• Vehicle Roll: Your car rolls slightly when the handbrake is engaged on a modest incline.
• Lack of Holding Power: The handbrake simply doesn't feel like it's holding the car securely, even on flat ground.
• Spongy Feel: While less common for a pure handbrake system, a general lack of firmness can indicate issues.
• Routine Maintenance: It's good practice to check the handbrake adjustment during regular service intervals, especially when rotating tyres or inspecting the rear brakes.

Tools You'll Need

Before you begin, gather the following essential tools:

• Hydraulic jack
• Axle stands (crucial for safety)
• Wheel brace (for removing wheel nuts)
• Flat-head screwdriver (long and thin is best for the adjuster)
• Torque wrench (for re-tightening wheel nuts to specification)
• Wheel chocks (to secure the front wheels)
• Safety gloves and eye protection

Step-by-Step Guide: Adjusting the Prius Mk3 Handbrake

The primary adjustment for the Prius Mk3 handbrake focuses on the drum brake mechanism at the rear wheels. The cable adjustment, while possible, is rarely needed unless there's significant cable stretch or a component replacement.

Phase 1: Accessing the Rear Drum Brakes

1. Safety First: Park your Prius Mk3 on a flat, level, and firm surface. Engage the front wheels with wheel chocks to prevent any movement. Place the gear selector in 'Park' (P).
2. Loosen Wheel Nuts: Use your wheel brace to slightly loosen the wheel nuts on both rear wheels while the car is still on the ground. Do not remove them completely yet.
3. Jack Up the Vehicle: Carefully position your hydraulic jack under the designated jacking points at the rear of the car. Raise the vehicle until the rear wheels are clear of the ground.
4. Secure with Axle Stands: Crucially, place sturdy axle stands under the vehicle's frame at the appropriate support points. Slowly lower the car onto the axle stands. Never work under a vehicle supported only by a jack.
5. Remove Rear Wheels: Now that the car is safely supported, fully remove the wheel nuts and take off both rear wheels. Set them aside safely.

Phase 2: Adjusting the Drum Brake

1. Locate the Adjustment Hole: On the brake drum (the large metal cup that the wheel bolts onto), you will find a small, usually rubber-plugged, inspection or adjustment hole. This hole provides access to the star wheel adjuster inside. If there's no obvious plug, you might need to rotate the drum slightly to find it.
2. Position the Drum: Rotate the brake drum until the adjustment hole aligns with the star wheel adjuster. You might need a torch to peer inside and locate it.
3. Adjust the Star Wheel: Insert your flat-head screwdriver into the adjustment hole. You will feel the teeth of the star wheel. The goal is to turn this wheel to expand the brake shoes.
4. The 'Click' Method: For the Prius Mk3, you'll be 'clicking' the star wheel up. Push the screwdriver up or down (depending on which side of the star wheel you're engaging) to make it rotate. You should hear distinct clicks as you turn it.
5. Find the Drag Point: Slowly turn the star wheel, one click at a time, while intermittently trying to rotate the brake drum by hand. Continue adjusting until you feel a slight, consistent drag on the drum as you rotate it. This indicates the shoes are just making contact with the drum.
6. Back Off Slightly: Once you feel a slight drag, back off the adjuster by 1-2 clicks. This ensures the shoes aren't constantly rubbing, which would cause premature wear and unnecessary heat. The drum should now rotate freely with minimal or no drag.
7. Repeat for the Other Side: Perform the exact same adjustment procedure for the handbrake drum on the other rear wheel. It's vital to adjust both sides equally to ensure balanced braking force.

Phase 3: Testing and Reassembly

1. Initial Handbrake Check: With both rear wheels still off the car, go into the cabin and engage the handbrake. Pull the lever up and count the clicks. A well-adjusted handbrake typically engages securely within 3 to 7 clicks. If it's too loose or too tight, go back and fine-tune the drum adjustments.
2. Reinstall Wheels: Once satisfied with the adjustment, replace both rear wheels. Hand-tighten the wheel nuts.
3. Lower the Vehicle: Carefully raise the car with the jack, remove the axle stands, and then lower the vehicle completely to the ground.
4. Torque Wheel Nuts: Using your torque wrench, tighten the wheel nuts to the manufacturer's specified torque setting. This is crucial for safety. Consult your Prius owner's manual for the correct torque value.
5. Final Test Drive: Take your Prius for a short test drive on a flat, safe road. Engage the handbrake at a very low speed (e.g., 5 mph) to ensure it applies smoothly and evenly. Listen for any grinding noises or uneven braking. Also, check that the handbrake releases completely and doesn't cause any drag while driving.

Cable Tension Adjustment: A Secondary Consideration

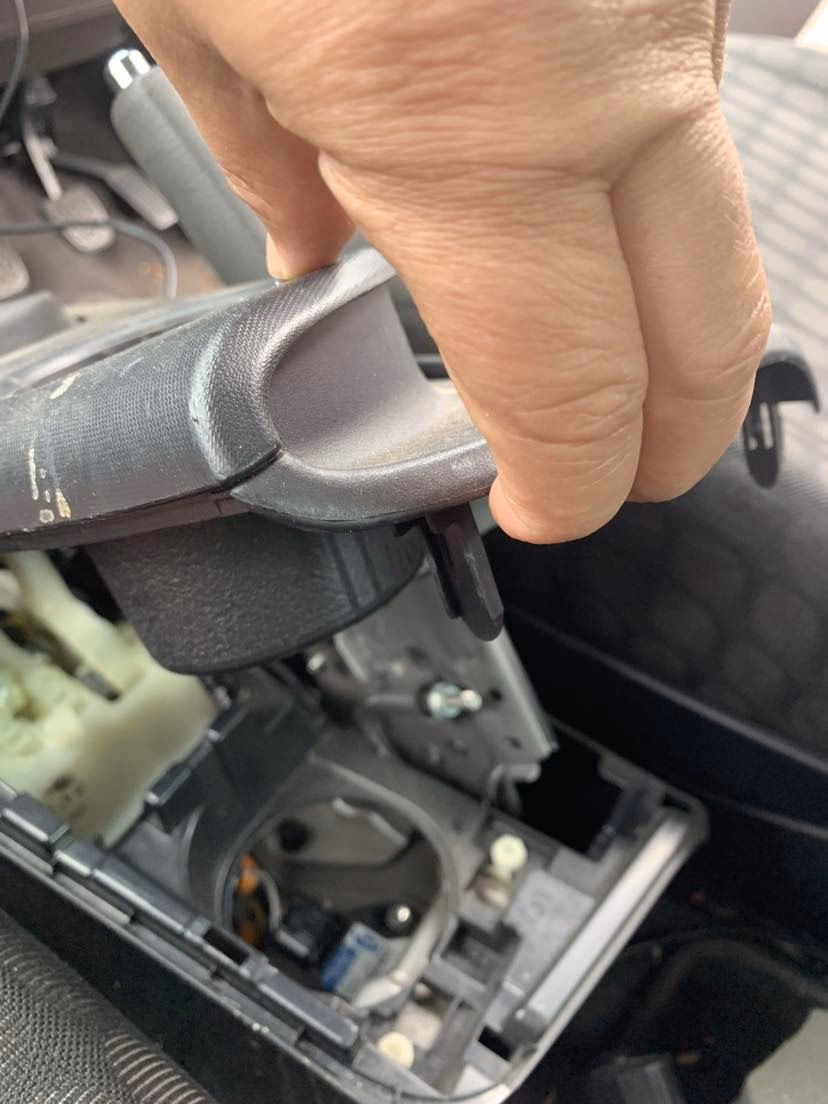

While the primary adjustment for the Prius Mk3 handbrake is done at the rear drum brakes, there is also a cable tension adjustment, typically located either under the car or near the handbrake lever mechanism inside the cabin. This adjustment is generally only necessary if:

• The handbrake cable has significantly stretched over a long period.
• New handbrake cables have been installed.
• The drum brake adjustment alone isn't sufficient to achieve the correct lever travel.

The process for cable tension adjustment usually involves a lock nut and an adjusting nut. You would typically release the handbrake, loosen the lock nut, turn the adjusting nut to take up slack in the cable (or release tension), then re-tighten the lock nut. After adjustment, you would count the handbrake lever clicks again. However, for a standard handbrake adjustment on a Prius Mk3, focus on the drum brake first, as it's the most common and effective method for correcting slack.

Important Considerations and Troubleshooting

• Do Not Over-Adjust: Over-tightening the handbrake can cause the brake shoes to drag constantly, leading to premature wear, reduced fuel economy, and potential overheating of the rear brakes. This also puts unnecessary strain on the handbrake cable and mechanism.
• Balanced Adjustment: Always ensure both rear handbrake drums are adjusted equally. An unbalanced handbrake can cause the car to pull to one side when engaged, or reduce its overall holding power.
• Worn Components: If, after adjustment, your handbrake still feels weak or doesn't hold, it might indicate more significant issues such as severely worn brake shoes, a stretched or seized handbrake cable, or even a faulty handbrake lever mechanism. In such cases, professional inspection and replacement of components would be necessary.
• Professional Help: If you are uncomfortable performing this procedure yourself, or if you encounter any difficulties, do not hesitate to consult a qualified mechanic. Brake systems are critical for safety.

Comparative Overview of Adjustment Points

Frequently Asked Questions (FAQs)

How often should I adjust my handbrake?

There's no strict schedule for handbrake adjustment. It should be checked as part of your regular vehicle service and adjusted whenever you notice excessive lever travel or a reduction in its holding power. For many, this might be every 2-3 years, or every 20,000-30,000 miles, depending on usage.

Can I over-adjust the handbrake?

Yes, you can. Over-adjusting the handbrake means the brake shoes are constantly in contact with the drum, even when the handbrake is disengaged. This leads to premature wear of the brake shoes, reduced fuel efficiency due to constant drag, and potential overheating of the rear brakes. Always ensure the drum rotates freely after adjustment with no noticeable drag.

What if my handbrake doesn't hold at all, even after adjustment?

If adjustment doesn't solve the problem, it indicates a more serious underlying issue. This could be severely worn brake shoes that need replacement, a stretched or broken handbrake cable, or a problem with the handbrake lever assembly itself. In such cases, it's crucial to have a qualified mechanic diagnose and repair the fault immediately.

Is it safe to drive with a loose handbrake?

While you can technically drive with a loose handbrake, it is not recommended and compromises your safety. A loose handbrake poses a significant risk, especially when parking on an incline, as the vehicle could roll away. It also means you lack a reliable emergency braking system should your main foot brakes fail. Address a loose handbrake as soon as possible.

Do I need special tools for a Prius Mk3 handbrake adjustment?

No special diagnostic tools are required. Standard garage tools like a jack, axle stands, wheel brace, and a flat-head screwdriver are generally sufficient. A torque wrench is highly recommended for re-tightening wheel nuts to the correct specification.

Maintaining your Prius Mk3's handbrake is a relatively simple yet crucial task that contributes significantly to your vehicle's overall safety and reliability. By following these steps and understanding the unique drum brake system, you can ensure your handbrake provides the secure hold you expect, giving you greater peace of mind on every journey.
