The Essential Fuel Pressure Regulator: A Deep Dive

When it comes to the intricate dance of components within an internal combustion engine, many parts receive well-deserved attention. However, one unsung hero often operates quietly in the background, yet its precise function is absolutely critical for smooth running and efficient power delivery: the fuel pressure regulator. This vital component ensures your engine receives the exact amount of fuel it needs, at the correct pressure, under all operating conditions. Without it, your vehicle's performance would suffer dramatically, ranging from rough idling to complete engine failure.

The question of whether an internal combustion engine possesses a fuel pressure regulator is almost universally answered with a resounding 'yes'. Nearly every internal combustion engine, from the humble daily driver to the most high-performance machine, incorporates some form of fuel pressure regulation. The reason for its necessity stems from the fuel pump's inherent design: it's engineered to deliver more fuel to the engine than is typically required. This oversupply ensures that even under peak demand, the engine never starves for fuel. Consequently, a regulator is indispensable for controlling this excess flow and maintaining a consistent pressure within the fuel system.

Understanding the Types of Fuel Pressure Systems

Over the years, automotive engineering has evolved, leading to different approaches to fuel pressure regulation. Broadly, these can be categorised into two main types:

Continuous Return Fuel Systems

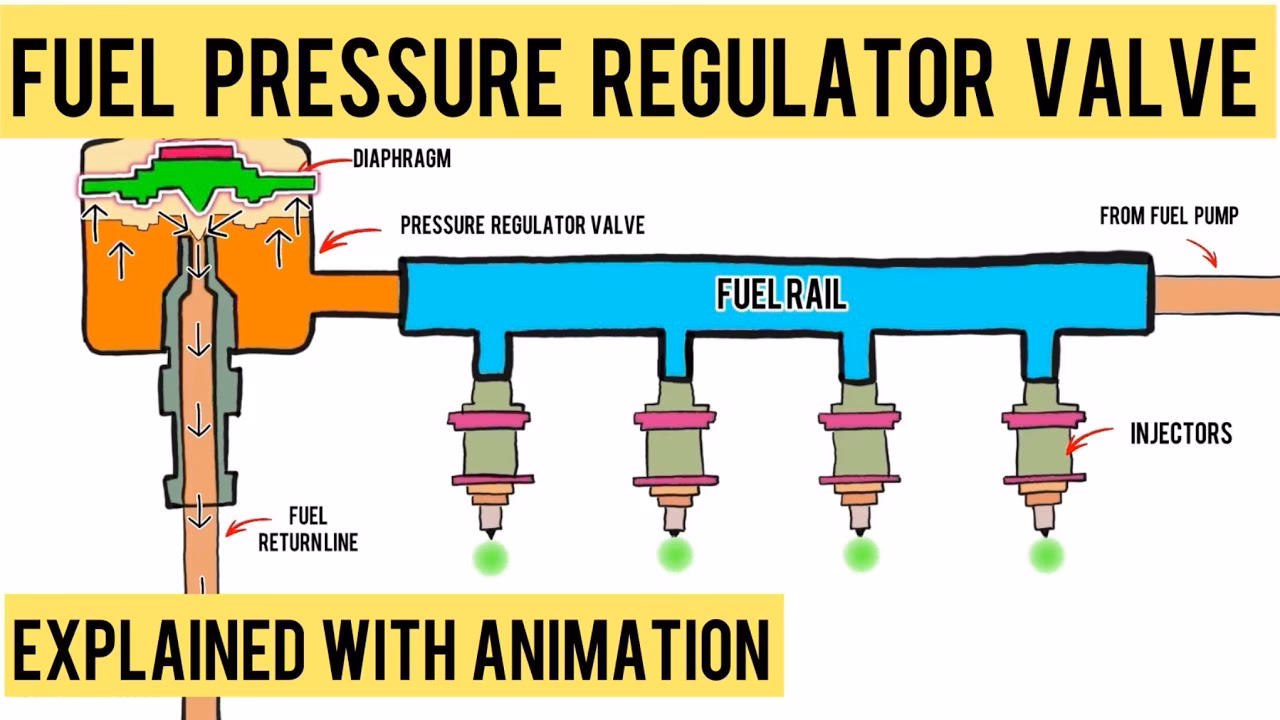

Predominantly found in older vehicles, the continuous return fuel system operates by constantly circulating fuel from the tank, through the fuel rail, and back to the tank. The fuel pressure regulator in these systems is typically located on the fuel rail, near the engine. It monitors the pressure within the rail and, once the desired pressure is achieved, opens a valve to allow excess fuel to return to the fuel tank. This constant circulation helps to keep the fuel in the rail cooler and ensures a steady supply is always available for the injectors. The regulator in these systems is often vacuum-referenced, meaning its set pressure adjusts slightly based on engine vacuum (or manifold pressure), compensating for varying engine loads and ensuring a consistent differential pressure across the injectors.

Returnless Fuel Systems

In contrast, most modern vehicles utilise a returnless fuel system. This design aims to reduce emissions and improve fuel efficiency by eliminating the return line and, consequently, the constant circulation of fuel. In a returnless system, the fuel pressure regulator is often integrated into the fuel pump assembly itself, located within the fuel tank. Instead of mechanically bleeding off excess pressure, these systems typically control fuel pressure by varying the speed of the fuel pump. This is usually achieved via a Pulse Width Modulated (PWM) signal from the Engine Control Unit (ECU). By adjusting pump speed, the system delivers only the required amount of fuel, minimising heat build-up in the tank and reducing the amount of fuel vapour generated, which contributes to lower evaporative emissions. Some returnless systems might still use a mechanical regulator at the tank, but the primary control often rests with the pump speed.

Why a Fuel Pressure Regulator is Essential for EFI

For any Electronic Fuel Injection (EFI) system, a fuel pressure regulator is not merely an optional extra; it is an absolute necessity. Without it, the fuel rail would simply not be able to build up sufficient pressure to support the injectors with the correct amount of fuel. The fuel would instead flow straight through the system, failing to reach the injectors at the atomising pressure required for efficient combustion. Imagine trying to spray water through a hose without any nozzle pressure – it would just trickle out. Fuel injectors operate on the same principle, requiring a specific, consistent pressure to properly atomise fuel into a fine mist for optimal mixing with air.

Conversely, completely blocking the pass-through to the fuel tank (in a return system) or allowing the pump to run uncontrolled (in a returnless system) would cause the fuel pump to force far too much fuel into the injectors. This excessive pressure would inevitably lead to their failure, potentially bursting internal seals or causing them to stick open, resulting in an overly rich mixture that could damage the engine, catalytic converter, or even lead to a fire hazard.

To accommodate for a successful and efficient fuel and air mixture, a proper and consistent fuel pressure is required in all situations. This applies both at low engine revolutions (revs) and high revs, regardless of the power output demanded. This is precisely where the fuel pressure regulator performs its critical job: to adapt the fuel supply to the fuel demand. It acts as a gatekeeper, ensuring that the injectors always see the correct differential pressure, which is the difference between the fuel pressure in the rail and the manifold pressure. This differential is key because it's what determines how much fuel actually flows through the injector for a given opening time.

Should You Upgrade Your Fuel Pressure Regulator?

This is a common question, particularly among enthusiasts looking to extract more performance from their vehicles. While the factory-fitted fuel pressure regulator is perfectly adequate for a stock engine, there are several scenarios where an upgrade becomes highly beneficial, if not essential. We often receive enquiries about our high-performance fuel pressure regulators, how they work, their role in a fuel system, and what makes them suitable for applications exceeding 1000 horsepower.

Many online guides describing fuel pressure regulators are often outdated, focusing on older designs that don't apply to modern injection systems or high-horsepower setups. A modern, high-performance fuel pressure regulator is engineered to offer superior control, higher flow capacity, and often adjustability. Here's why you might consider an upgrade:

• Increased Horsepower: As engine power output increases, especially through modifications like forced induction (turbochargers or superchargers), larger injectors, or engine stroking, the fuel system needs to deliver significantly more fuel. A stock FPR might not have the flow capacity or precision to maintain the required pressure under these extreme demands.
• Forced Induction Applications: When a turbocharger or supercharger is added, the manifold pressure increases. A standard, non-referenced FPR would maintain a fixed fuel pressure, meaning the differential pressure across the injectors would decrease as boost rises, leading to a lean condition. Performance FPRs are typically 1:1 vacuum/boost referenced, meaning for every pound of boost pressure, the fuel pressure increases by one pound. This maintains a constant differential pressure across the injector, ensuring consistent fuel delivery regardless of manifold pressure.
• Larger Injectors: If you upgrade to larger fuel injectors, you need a regulator that can precisely control the fuel pressure to ensure these injectors operate efficiently and accurately, especially at idle and part-throttle.
• E85/Alternative Fuels: Running fuels like E85 often requires a significantly higher volume of fuel to achieve the same power output. A performance FPR designed for high flow and compatibility with aggressive fuels is crucial.
• Fine-Tuning: Adjustable fuel pressure regulators allow tuners to precisely set the base fuel pressure, which can be critical for optimising the air-fuel ratio and achieving maximum power or efficiency.

A high-quality aftermarket FPR for performance applications is designed with larger orifices, more robust diaphragms, and stronger springs to handle higher flow rates and pressures consistently. They are built to withstand the demands of aggressive fuels and extreme operating conditions, providing the stability and precision needed for engines producing massive power.

How a Modern Fuel Pressure Regulator Works

At its core, a fuel pressure regulator is a mechanical device, even in modern systems where its operation might be electronically influenced. The principle involves a diaphragm, a spring, and a valve. Fuel enters the regulator, pushing against the diaphragm. On the other side of the diaphragm is a spring, which applies a counteracting force. The tension of this spring determines the base fuel pressure. When the fuel pressure exceeds the spring's setting, the diaphragm moves, opening a valve that allows excess fuel to return to the tank (in return systems) or signals the pump to reduce speed (in returnless systems). In vacuum-referenced regulators, a vacuum line from the intake manifold connects to the spring side of the diaphragm. As manifold vacuum increases (e.g., at idle), it pulls on the diaphragm, effectively reducing the spring's resistance and thus lowering the fuel pressure. Conversely, under boost, positive pressure pushes on the diaphragm, increasing the effective spring resistance and raising the fuel pressure. This dynamic adjustment ensures the differential pressure across the injectors remains constant, ensuring accurate fuel metering.

Symptoms of a Faulty Fuel Pressure Regulator

Given its critical role, a failing fuel pressure regulator can cause a variety of noticeable issues. Recognising these symptoms early can save you from more significant engine damage and costly repairs:

• Difficulty Starting: Both hot and cold starting issues can point to an FPR problem. If pressure is too low, the engine might crank excessively before firing. If it's too high, it could flood the engine.
• Rough Idling: An inconsistent fuel pressure leads to an unstable air-fuel mixture, causing the engine to idle roughly, stumble, or even stall.
• Poor Fuel Economy: An FPR stuck open or regulating too high can lead to an excessively rich mixture, burning more fuel than necessary.
• Black Smoke from Exhaust: A clear sign of a rich mixture, often caused by too much fuel being delivered due to high pressure.
• Check Engine Light: The ECU monitors fuel system parameters, and an out-of-spec fuel pressure will often trigger a diagnostic trouble code (DTC).
• Fuel Smell: A strong smell of fuel, particularly near the engine bay, could indicate a leaking regulator or a system running excessively rich.
• Engine Misfires or Hesitation: Inconsistent fuel pressure can lead to some cylinders running lean or rich, causing misfires, hesitation during acceleration, or a general lack of power.

Testing Your Fuel Pressure Regulator

Diagnosing an FPR issue typically involves checking the fuel pressure. This usually requires a fuel pressure gauge connected to a test port on the fuel rail. The procedure varies slightly between vehicles, but generally involves:

1. Connecting the gauge to the fuel rail.
2. Cycling the ignition key to prime the pump and build pressure.
3. Reading the static pressure.
4. Starting the engine and observing pressure at idle, noting if it changes with vacuum (for vacuum-referenced systems).
5. Revving the engine to see how pressure responds.
6. Checking if the pressure holds after the engine is shut off (to rule out a leaky injector or check valve).

Refer to your vehicle's specific service manual for the correct pressure specifications and testing procedures.

Comparative Table: Return vs. Returnless Fuel Systems

Frequently Asked Questions About Fuel Pressure Regulators

What happens if my fuel pressure regulator fails?

If your FPR fails, your engine will likely experience significant performance issues. It could run too rich (too much fuel) or too lean (not enough fuel). Symptoms include hard starting, rough idle, poor fuel economy, black smoke from the exhaust, misfires, hesitation, and potentially a check engine light. Prolonged operation with a faulty FPR can damage your catalytic converter, spark plugs, and even internal engine components.

Can I drive with a bad fuel pressure regulator?

While you might be able to limp home, it is strongly advised against driving with a faulty fuel pressure regulator. It can lead to unreliable engine operation, cause further damage to expensive components like the catalytic converter, and in severe cases, pose a fire risk due to excessive fuel delivery. Get it checked and replaced as soon as possible.

How often should a fuel pressure regulator be replaced?

Fuel pressure regulators are generally robust components and don't have a strict replacement interval like oil filters. They are typically replaced when they fail or when upgrading a fuel system for performance. However, like any mechanical part, they can wear out over time, especially due to exposure to contaminants in the fuel or extreme temperatures. If you notice any of the symptoms of failure, it's time for an inspection.

Is an adjustable fuel pressure regulator better?

For most stock vehicles, a non-adjustable factory-spec FPR is perfectly adequate. However, for modified or high-performance engines, an adjustable FPR is often superior. It allows for precise tuning of the base fuel pressure, which is crucial when changing injectors, adding forced induction, or running alternative fuels. This adjustability provides greater control over the air-fuel mixture, optimising performance and ensuring engine safety.

What is 'vacuum referencing' in an FPR?

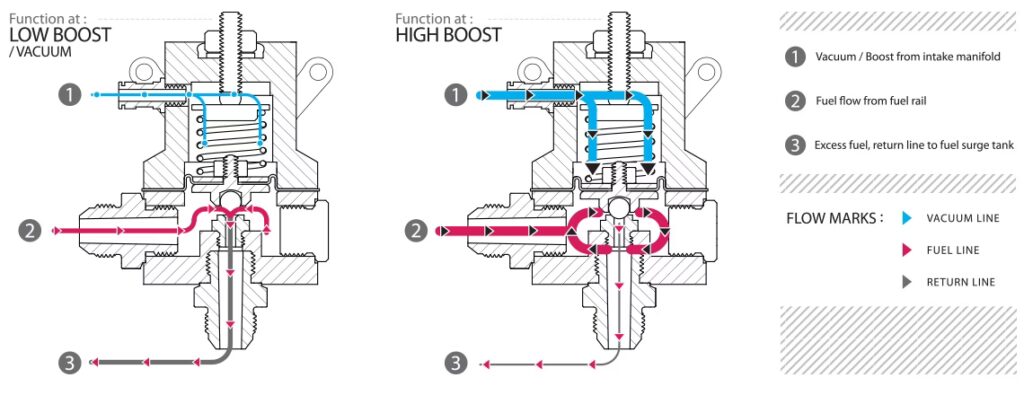

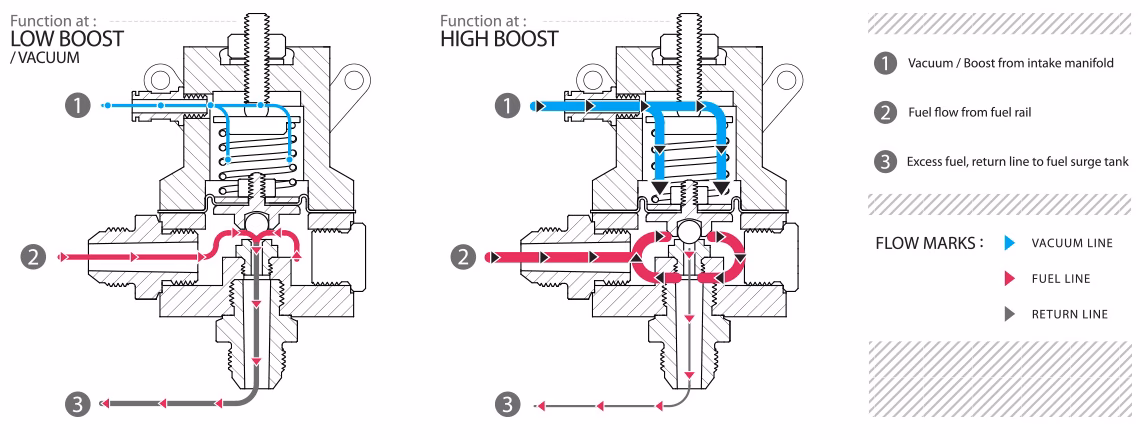

Vacuum referencing refers to a design where the fuel pressure regulator's set point is influenced by the engine's manifold pressure (vacuum or boost). A vacuum line connects the intake manifold to the FPR. When the engine is under vacuum (e.g., idling or cruising), the vacuum pulls on the diaphragm in the FPR, effectively reducing the fuel pressure. When the engine is under boost (in forced induction systems), the positive pressure pushes on the diaphragm, increasing fuel pressure. This ensures a consistent differential pressure across the fuel injectors, regardless of the manifold pressure, which is vital for accurate fuel delivery.

How does a fuel pressure regulator handle forced induction?

In forced induction applications (turbocharged or supercharged engines), a 1:1 vacuum/boost referenced fuel pressure regulator is essential. For every pound of boost pressure, the FPR increases the fuel pressure by one pound. This maintains a constant pressure differential between the fuel rail and the intake manifold. Without this, as boost increases, the fuel pressure would effectively drop relative to the manifold pressure, causing the engine to run dangerously lean. A properly referenced FPR ensures the injectors always 'see' the correct pressure difference to deliver the intended amount of fuel.

Conclusion

The fuel pressure regulator, whether part of a continuous return or a modern returnless system, is an absolutely vital component in any internal combustion engine. It ensures that the fuel injectors receive fuel at the precise pressure required for optimal atomisation and efficient combustion across all engine speeds and loads. Understanding its function, recognising the signs of failure, and knowing when an upgrade is beneficial are all crucial aspects of maintaining a healthy and powerful vehicle. Don't underestimate the profound impact this seemingly small component has on your engine's overall performance and longevity.
