Mastering Your Fuel Injector Calculator

In the exhilarating world of automotive performance, selecting the correct fuel injectors is paramount to achieving optimal engine efficiency, power, and reliability. Whether you're upgrading for more horsepower or simply maintaining your vehicle, understanding how fuel injector calculators work is a crucial step. Gone are the days of guesswork; modern tools offer far greater precision, but knowing their underlying principles and limitations is essential for making informed decisions. This guide will demystify the process, explaining the methodologies behind these calculators and helping you choose the best fuel injectors for your specific application.

Understanding the Turbo-Centric Injector Calculation

It's vital to recognise that not all injector calculators are created equal. Many advanced tools, particularly those designed for high-performance applications, are explicitly built on a turbocharged basis. This means they operate on the assumption that your project involves a turbo engine utilising manifold injection and running on standard pump petrol from the station. The parameters and fuel requirements for a naturally aspirated engine differ significantly, hence the need for this specific focus.

When using such a calculator, it's accounting for the forced induction, which dramatically alters the air mass entering the engine compared to a naturally aspirated setup. Manifold injection, as opposed to direct injection, also has its own set of characteristics that influence fuel delivery. Furthermore, the calculator assumes a common fuel type – regular pump petrol – which has a known stoichimetric air-fuel ratio, simplifying the initial calculations. Deviations from these assumptions, such as using race fuel or ethanol blends, would require different considerations and adjustments.

It's important to approach these calculators with a clear understanding of their inherent limitations. While they provide a valuable starting point, they are not infallible. We, and indeed any reputable supplier, cannot guarantee a perfectly correct result from any calculator. Several variables can influence real-world performance that a calculator, no matter how sophisticated, cannot fully account for. Therefore, the information generated should always be treated as a guide. If you have any doubts, or if your project is particularly complex, it's always best to consult with your engine tuner or contact a specialist for tailored advice. They possess the experience and equipment to fine-tune your setup for optimal results.

The Pitfalls of Traditional BSFC-Based Calculators

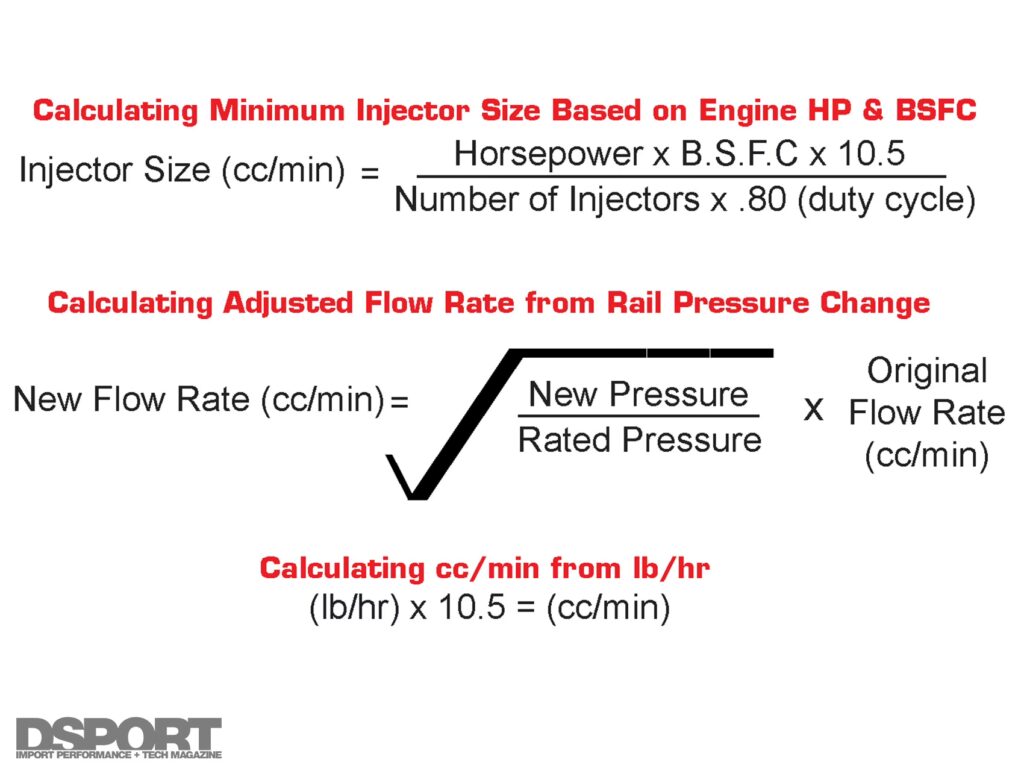

Many traditional online fuel flow calculators rely heavily on a parameter known as Brake Specific Fuel Consumption (BSFC). While BSFC is a measure of an engine's fuel efficiency relative to its power output, it introduces several significant sources of error when used for injector sizing. Understanding these errors is key to appreciating why more advanced methods have emerged.

1. BSFC is Rarely Measured or Known

Firstly, BSFC is a parameter that is seldom directly measured by the average enthusiast or even many professional workshops. It requires specialised dynamometer testing and precise fuel consumption monitoring to determine accurately. Consequently, most users relying on BSFC-based calculators are forced to estimate this value. These estimations are often based on generic figures for similar engine types, which may not precisely reflect the specific characteristics of your engine. An inaccurate estimated BSFC value will inevitably lead to an inaccurate fuel flow calculation, making the entire exercise less reliable.

2. BSFC is Highly Dependent on Engine Efficiency

Secondly, and perhaps more critically, BSFC is a direct measure of efficiency. This means it is highly susceptible to any factor that affects the overall efficiency of the engine. Consider, for example, a high-boost engine running on standard pump petrol. To prevent detonation, it might require 10-15 degrees less ignition advance compared to the same engine running on high-octane race fuel. This reduction in timing directly leads to a reduction in power output. Crucially, it also has a direct and proportional effect on fuel efficiency, or BSFC. Changes in air temperature, exhaust back pressure, camshaft timing, compression ratio, and even minor differences in engine build can all subtly alter an engine's efficiency and, by extension, its BSFC.

Because BSFC is so sensitive to these variables, and because many of these variables are difficult to quantify precisely for a calculator, fuel flow calculations based on an estimated BSFC value can become so error-prone that they are often rendered effectively meaningless. The margin for error can be substantial, leading to incorrect injector sizing – either too small, risking lean conditions and engine damage, or too large, leading to poor idle, fuel wastage, and difficulty in tuning.

The Advanced Approach: Airflow and Lambda Calculation

Recognising the inherent limitations of BSFC-based methods, advanced fuel flow calculators, such as those from Injector Dynamics, have adopted a fundamentally different and far more accurate approach. This methodology moves away from efficiency measurements and instead focuses on directly estimating airflow and then calculating fuel flow based on exhaust lambda.

This innovative method works by estimating the amount of air entering the engine based on a few known and readily available parameters. Once the airflow is accurately estimated, the calculator then determines the required fuel flow directly from the target exhaust lambda. Lambda (λ) is a dimensionless value that represents the air-fuel equivalence ratio, where λ=1.0 signifies a stoichimetric mixture (the ideal ratio for complete combustion). By inputting your desired lambda values for different engine conditions (e.g., Wide Open Throttle and idle), the calculator can precisely determine the fuel mass required to achieve that specific air-fuel ratio given the estimated airflow.

The result of this approach is a significantly more accurate estimation of the required fuel injector size. By bypassing the variable and often unknown BSFC, and instead focusing on quantifiable airflow and desired lambda, these calculators provide a much more reliable prediction. This enhanced accuracy means you are far more likely to select the correct injector for your application the first time, saving you time, money, and potential engine issues down the line.

Key Parameters for Optimal Injector Selection

To leverage the power of an advanced fuel injector calculator, you'll need to provide several crucial parameters about your engine and its intended setup. Each of these inputs plays a vital role in the calculator's ability to accurately estimate airflow and, consequently, the required fuel flow. Here’s a breakdown of the typical parameters you'll encounter:

1. Engine Displacement (Litres): This is the total volume swept by the pistons in all cylinders of your engine. It's a fundamental factor in determining the maximum amount of air your engine can potentially ingest.
2. Number of Cylinders: The quantity of cylinders in your engine directly influences the total number of injectors required and the fuel flow per injector needed to support the engine's power output.
3. Valves Per Cylinder: The number of intake and exhaust valves per cylinder (e.g., 2, 3, 4, or 5) affects the engine's volumetric efficiency – how effectively it can fill and empty its cylinders with air. More valves generally allow for better airflow.
4. Boost (psi): For turbocharged applications, this is a critical input. It represents the peak boost pressure in pounds per square inch (psi) that your turbocharger will generate. Higher boost means more air is forced into the engine, necessitating a greater fuel supply.
5. Lambda at WOT (Wide Open Throttle): This is your target air-fuel ratio for peak power and safety when the engine is under full load. A typical target for turbocharged petrol engines might be around 0.82-0.85 lambda to ensure adequate cooling and prevent detonation.
6. Lambda at Idle: This is your target air-fuel ratio for stable and efficient operation when the engine is idling. Typically, this would be closer to stoichimetric (1.0 lambda) for emissions and fuel economy.
7. Ethanol Percentage (%): If you plan to run fuel containing ethanol (e.g., E10, E85), you must input the percentage. Ethanol has a lower energy density than pure petrol and requires significantly more fuel by volume to achieve the same air-fuel ratio. This is a crucial factor often overlooked.
8. Fuel Pressure (psi): This refers to the static fuel pressure in pounds per square inch (psi) delivered to the injectors. Injector flow rate is directly proportional to the square root of the fuel pressure, so accurate input here is vital.
9. Cam Aggressiveness (1-10): This subjective rating attempts to quantify the profile of your camshaft(s). A more aggressive cam (higher number) typically implies greater valve overlap and lift, which can improve high-RPM volumetric efficiency but might affect low-RPM performance. This helps the calculator estimate airflow characteristics.
10. Fuel System Type: This parameter defines how your fuel pressure regulator operates. It's typically one of two types:
    • Constant Pressure: The fuel pressure remains constant relative to atmospheric pressure, regardless of manifold pressure.
    • Boost Referenced (1:1): The fuel pressure increases proportionally with boost pressure (e.g., 1 psi of fuel pressure for every 1 psi of boost) to maintain a constant pressure differential across the injector, which is crucial for consistent flow in turbocharged engines.

Beyond Injectors: The Complete Fuel System

While selecting the correct fuel injectors is undoubtedly critical, it's imperative to remember that they are just one component of a larger, interconnected fuel delivery system. The best injectors in the world will underperform or fail to deliver adequate fuel if the rest of your system isn't up to the task. This includes ensuring you have appropriately sized fuel pumps capable of supplying the necessary volume and pressure, efficient fuel filters to protect your injectors from contaminants, and a correctly functioning fuel pressure regulator to maintain consistent pressure across the injectors. Neglecting these other components can lead to fuel starvation, inconsistent performance, or even catastrophic engine damage. Always consider the fuel system integrity as a whole.

Seeking Professional Guidance and Disclaimers

As mentioned earlier, even the most sophisticated calculators are tools to assist in decision-making, not to replace expert judgment. We cannot guarantee a perfectly correct result from any calculator, as real-world variables and specific engine characteristics can always introduce minor discrepancies. The information and calculations provided are intended as a guide to help you make an informed choice.

If you find yourself uncertain about any of the parameters, or if the calculator's results seem questionable for your specific setup, it is always prudent to seek professional advice. Your engine tuner, who will be responsible for mapping your engine, is the ultimate authority on your fuel system requirements. They can provide invaluable insights and fine-tune your setup based on their experience and real-time data. Contacting a reputable parts supplier or engine builder can also provide additional support and ensure you select components that are perfectly matched to your project's goals.

Comparative Overview: BSFC vs. Airflow & Lambda

To summarise the key differences, here's a brief comparison of the two primary calculation methodologies:

Frequently Asked Questions (FAQs)

Q: Why is a turbo-basis calculation different from a naturally aspirated one?

A: A turbo-basis calculation accounts for forced induction, meaning air is actively pushed into the engine under pressure. This significantly increases the air mass entering the cylinders compared to a naturally aspirated engine, which relies solely on atmospheric pressure. More air requires more fuel to maintain the correct air-fuel ratio, thus necessitating different calculations for injector sizing.

Q: Can I use standard pump petrol with these calculators?

A: Yes, many advanced calculators are designed with the assumption that you are using 'normal' pump petrol. However, if you plan to use fuels with different properties, such as high-octane race fuel or petrol with a significant ethanol percentage (e.g., E85), you must input the correct ethanol percentage or adjust for the fuel's specific gravity and stoichimetric ratio, if the calculator allows.

Q: What if I'm unsure about my engine's specific parameters, like cam aggressiveness?

A: If you're unsure about certain parameters, it's best to consult your engine builder, cam manufacturer, or a professional tuner. For subjective inputs like 'cam aggressiveness,' a conservative (lower) estimate might be safer initially. However, for critical parameters like boost and fuel pressure, accurate figures are essential. When in doubt, always seek expert advice.

Q: Is the calculator result guaranteed to be correct for my engine?

A: No, the calculator provides a highly accurate estimation, but it cannot guarantee a perfectly correct result for every unique engine. Real-world variables, subtle engine modifications, and tuning preferences can influence the final requirements. It should always be used as a robust guide, and final verification should come from a professional tuner during the engine mapping process.

Q: Why is the entire fuel system important, not just the injectors?

A: The fuel system is a chain, and its strength is determined by its weakest link. Even perfectly sized injectors cannot perform optimally if the fuel pump cannot supply enough volume or pressure, if the fuel filter is clogged, or if the fuel pressure regulator is faulty. For consistent, reliable fuel delivery and engine protection, all components of the fuel supply system – from the tank to the injectors – must be appropriately matched and in good working order.

Conclusion

Choosing the right fuel injectors is a critical step in any engine build or upgrade, especially for performance applications. By understanding the evolution from error-prone BSFC-based calculators to the more precise airflow and lambda-driven methodologies, you can make a far more informed decision. While these advanced tools provide an exceptional starting point, always remember that they are aids, not absolute solutions. Providing accurate input parameters and ensuring your entire fuel system is robust are equally important. For the ultimate peace of mind and optimal engine performance, always combine your calculator results with the wisdom of a professional tuner. Getting it right the first time will save you headaches and unlock your engine's true potential.
