Unlock Your Car's Secrets: Mac OS X Diagnostics

In the modern automotive world, understanding your vehicle's health has become more accessible than ever, even for those relying on Apple's sophisticated Mac OS X ecosystem. Gone are the days when a mysterious 'check engine' light meant an immediate, often costly, trip to the garage. With the right tools and software, your Mac can transform into a powerful diagnostic hub, allowing you to peek under the digital bonnet of your car, identify issues, and potentially save a significant amount of money and time. This guide will walk you through the essentials of diagnosing your car using Mac OS X, highlighting key software solutions and what you need to get started.

Understanding On-Board Diagnostics (OBD-II)

At the heart of modern car diagnostics lies the On-Board Diagnostics, Second Generation, or OBD-II system. Mandated for all cars and light trucks manufactured since 1996 in the US (and similar regulations existing in Europe as EOBD), this standardised system monitors your vehicle's major components, including the engine, transmission, and emissions systems. When a problem is detected, the system stores a Diagnostic Trouble Code (DTC) and often illuminates the Malfunction Indicator Light (MIL), commonly known as the 'check engine' light, on your dashboard.

To access this invaluable data, you need two primary components: an OBD-II compatible vehicle (which most modern cars are) and an ELM327 adapter. This small device plugs into your car's OBD-II port, usually located under the dashboard near the steering wheel. The adapter then communicates wirelessly (via Bluetooth or Wi-Fi) or via USB with your Mac, acting as a bridge between your car's computer (ECU) and the diagnostic software running on your macOS device.

Why Diagnose Your Car with a Mac?

Using your Mac for car diagnostics offers a myriad of benefits that empower you as a car owner:

• Cost Savings: Identifying problems yourself can prevent unnecessary trips to the garage for simple issues, or at least provide you with crucial information before you even speak to a mechanic, potentially avoiding inflated repair bills.
• Proactive Maintenance: Catching minor issues before they escalate into major, expensive problems. Monitoring real-time data allows you to observe trends and identify potential failures early.
• Enhanced Understanding: Gain a deeper insight into your vehicle's performance and inner workings. Understanding what specific DTCs mean and how various sensors behave can be incredibly educational.
• Emissions Readiness: Many software options can tell you if your car is ready for its emissions test, helping you avoid re-tests and fines.
• DIY Empowerment: For the mechanically inclined, diagnosing issues yourself can lead to self-repairs, enhancing your skills and saving even more money.
• Fuel Economy Optimisation: Some tools offer features to monitor fuel consumption in real-time, helping you adjust your driving habits for better efficiency.

Top Car Diagnostic Software for Mac OS X

While Windows-based software dominates much of the market, there are excellent and capable diagnostic software programmes specifically designed for Mac OS X users. Here are some of the most notable:

OBD Auto Doctor

OBD Auto Doctor stands out as an advanced and user-friendly OBD-II diagnostic tool for Mac. It transforms your Mac into a highly capable automotive scanner, making it a must-have for anyone keen to understand their car better. Whether you're looking to monitor real-time data or simply reset that annoying 'check engine' light, OBD Auto Doctor offers comprehensive functionality.

Key Features:

• Diagnostic Trouble Code (DTC) Identification: Easily read and understand why your 'check engine' or Malfunction Indicator Light (MIL) is on. It also allows you to clear these codes, turning off the light.
• Real-time Sensor Data: View engine sensor data in both numeric and graphical forms, providing a clear picture of your engine's performance and functionality. This includes parameters like engine RPM, coolant temperature, vehicle speed, and more.
• Emissions Readiness Check: Determine if your car is ready for its emissions tests, ensuring compliance and avoiding potential re-tests.
• Fuel Economy Monitoring: Track your fuel consumption in real-time, helping you drive more economically and save on fuel costs.
• Extensive DTC Database: Comes with a built-in database of over 14,000 diagnostic trouble codes, complete with descriptions, making it easier to pinpoint issues.
• Data Logging & Export: Record and store monitored data for later analysis, and often allows export in various formats.
• Vehicle Information Retrieval: Read essential vehicle information such as VIN (Vehicle Identification Number), Calibration Identifications, and Calibration Verification Numbers (CVNs) from the ECU.
• Unit Conversion: Seamlessly switch between imperial and metric units for data display.

Verdict:

OBD Auto Doctor is a robust and versatile choice for Mac users. Its ability to quickly diagnose fault codes and present data in multiple formats makes it highly effective. While the free version offers basic functions, the full version unlocks its complete diagnostic potential, providing a holistic view of your vehicle's health.

EOBD Facile

EOBD Facile is another strong contender for Mac OS X users, enabling you to diagnose your vehicle and decipher engine indicators without needing a manufacturer-specific scanner. Its straightforward connection process ensures you can quickly get to the heart of any issues, viewing results in real-time.

Key Features:

• Fault Code Reading & Clearing: View engine fault codes and understand their meaning, then clear the 'check engine' light once the issue is resolved.
• Manufacturer-Specific Codes: Monitor special manufacturer error codes, offering deeper insights beyond generic OBD-II codes.
• Trip Recording: Record your trips and save data via your iPhone/iPad (which can then be recovered and viewed using the EOBD Facile application on your Mac), allowing for post-drive analysis.
• GPS Data Records: Create and view records of GPS data associated with your diagnostic sessions.
• Real-Time Data Display: Provides live data streams from various sensors, helping you observe engine behaviour as it happens.

Verdict:

EOBD Facile offers a user-friendly experience for Mac users, particularly useful for those who also utilise iOS devices for data collection. Its focus on core diagnostic functions, including manufacturer-specific codes, makes it a valuable tool for understanding your car's specific quirks.

Movi & Movi Pro

While often associated with iOS, Movi and its advanced counterpart, Movi Pro, are frequently cited as options for Mac users, suggesting a desktop application or seamless integration. These tools focus on extracting and interpreting the Diagnostic Trouble Codes (DTCs) stored in your vehicle's Engine Control Module (ECM), which are crucial for identifying and fixing car problems.

Key Features:

• DTC Reading & Clearing: Easily read trouble codes, extract freeze-frame information (a snapshot of sensor data when a fault occurred), and clear codes to switch off the 'check engine' light.
• Real-time Monitoring: Monitor engine performance and fuel economy in real-time, providing immediate feedback on your driving and vehicle health.
• Audible Alerts: Unique to some, it offers audible alerts for engine issues, allowing you to stay focused on the road while receiving critical information.

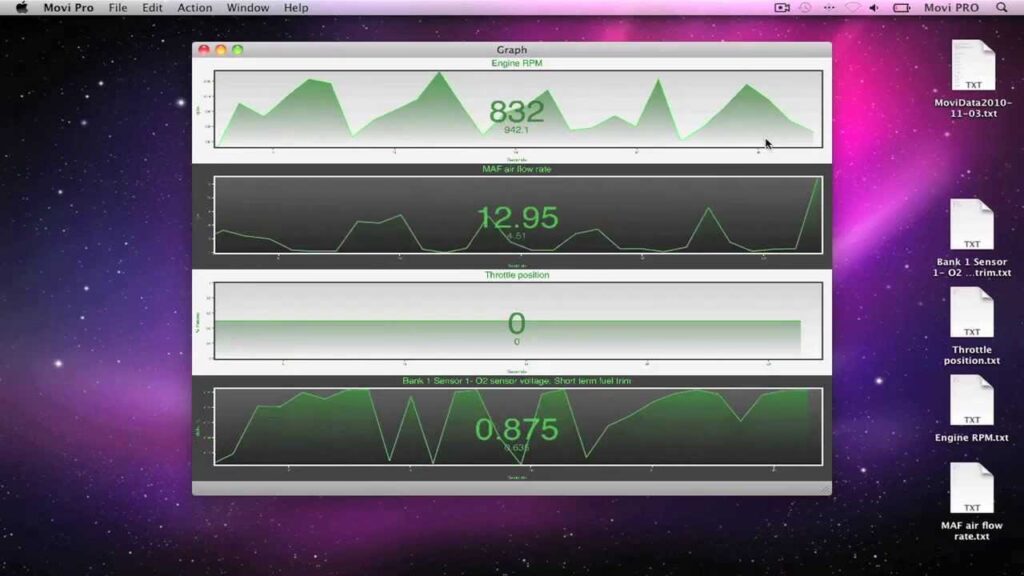

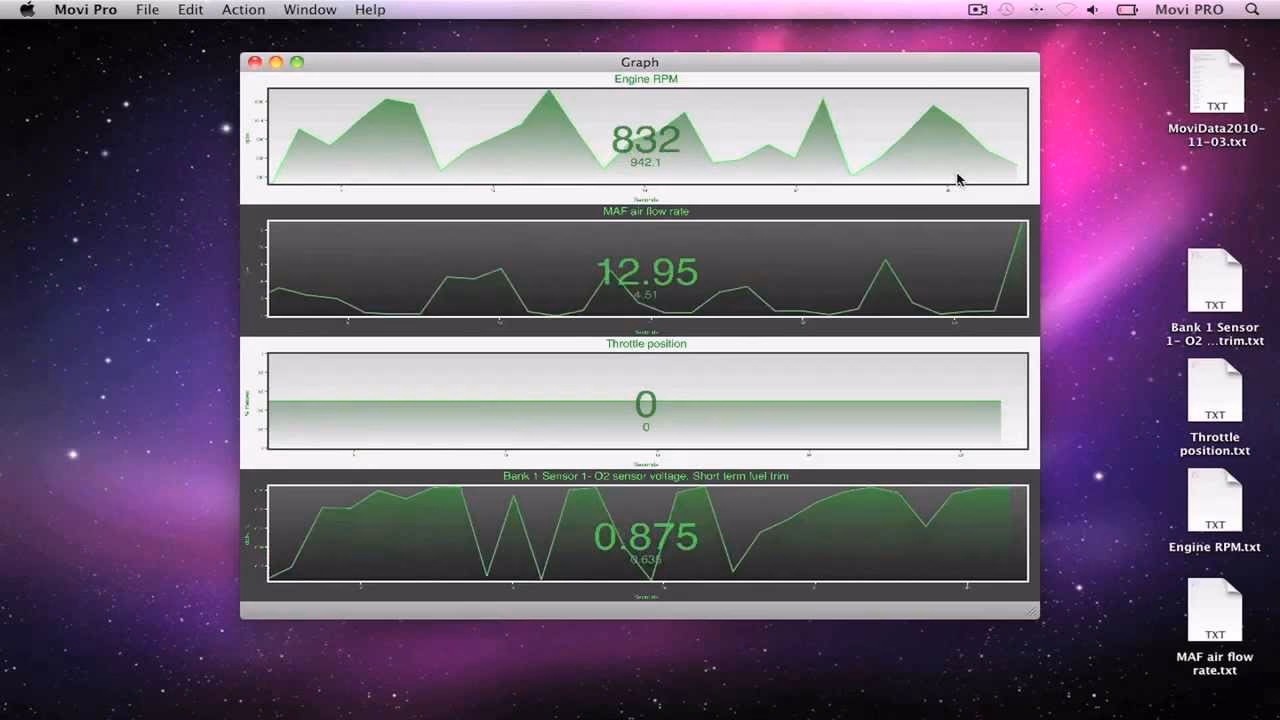

• Advanced Data Graphing: Movi Pro boasts a sophisticated interface that allows you to graph and compare up to four data values simultaneously, aiding in deeper analysis.
• Virtual Horsepower & Torque: Provides estimated horsepower and torque readings, a feature often neglected by other OBD-II readers.
• Driving Data Recording: Excellent for diagnosing intermittent issues, as it allows you to record driving data over time.

Verdict:

Movi Pro is particularly strong for those seeking detailed performance metrics alongside standard diagnostics. Its iOS-centric design implies a focus on mobile use, but its inclusion in 'Mac users' recommendations suggests compatibility or integration that makes it a viable choice for desktop users who appreciate its advanced graphing and data recording capabilities. It supports both American OBD2 and European EOBD vehicles.

Car Scanner ELM OBD2

Car Scanner ELM OBD2 is a highly versatile application available across multiple platforms, including Mac, Windows, Android, and iOS. Its broad compatibility with most OBD2/EOBD vehicles makes it a popular choice for many users looking for an affordable yet powerful diagnostic solution.

Key Features:

• Wide Device & Vehicle Compatibility: Works seamlessly across various operating systems and is compatible with the vast majority of OBD2/EOBD compliant vehicles, and even some JOBD (Japanese OBD) vehicles.
• Streamlined & User-Friendly Interface: Offers a clean and intuitive interface that is easy to navigate, even for beginners.
• Highly Configurable: Allows users to customise dashboards and display options to suit their specific needs and preferences.
• Live Sensor Data Display: Shows real-time data from various sensors, providing immediate insights into your car's operational parameters.
• Frequent Free Updates: The developer regularly releases updates, adding more sensors and features, ensuring the app remains current and useful.
• Affordable Access: Most of its functions are available in the free version, with a paid 'Pro' version offering additional features and the ability to install on multiple devices.

Verdict:

Car Scanner ELM OBD2 is an excellent choice for Mac users seeking a cost-effective and highly adaptable diagnostic tool. Its broad compatibility and frequent updates make it a reliable option for general OBD2 diagnostics, though specific sensor support can vary by vehicle.

Comparative Overview of Mac-Compatible OBD-II Software

To help you decide, here's a quick comparison of the key features offered by the Mac-compatible diagnostic software discussed:

Steps to Diagnose Your Car with a Mac

Once you have your ELM327 adapter and chosen software, diagnosing your car is a straightforward process:

1. Locate Your OBD-II Port: This is usually found under the dashboard on the driver's side, often near the steering column.
2. Plug in the ELM327 Adapter: Firmly insert the adapter into the OBD-II port. Ensure your car's ignition is in the 'ON' position (engine off, or running if you want live data).
3. Connect to Your Mac: If your adapter is Bluetooth, pair it with your Mac via System Settings. If it's Wi-Fi, connect to its network from your Mac's Wi-Fi menu. For USB adapters, simply plug it in.
4. Launch the Diagnostic Software: Open your chosen car diagnostic application on your Mac.
5. Establish Connection: Within the software, select your adapter type and initiate the connection to your vehicle. The software should indicate a successful connection.
6. Read Trouble Codes: Navigate to the 'Read Codes' or 'DTCs' section. The software will scan your vehicle's ECU for any stored trouble codes.
7. Interpret the Codes: The software will display any found codes (e.g., P0420) along with a brief description. Use the software's built-in database or an online resource to understand the full meaning and potential causes.
8. View Live Data (Optional): If you want to monitor sensors in real-time, go to the 'Live Data' section. This can be invaluable for diagnosing intermittent issues or observing how changes affect engine parameters.
9. Clear Codes (After Repair): Once you've addressed the underlying issue, you can use the software to clear the diagnostic trouble codes. This will turn off the 'check engine' light.

Remember, clearing codes without fixing the problem will only cause the light to reappear, as the underlying fault still exists. Always diagnose and repair before clearing.

Beyond Basic Code Reading

Modern car diagnostic software, even on Mac OS X, offers capabilities far beyond simply reading and clearing codes. These tools allow you to:

• Monitor Freeze Frame Data: When a DTC is set, the OBD-II system records a "freeze frame" of data – a snapshot of various sensor readings at the exact moment the fault occurred. This information is crucial for understanding the conditions under which the problem arose.
• Perform Sensor Tests: Access results from various on-board monitoring tests, such as oxygen sensor tests, which are critical for emissions control and fuel efficiency.
• View I/M Readiness Status: "Inspection/Maintenance Readiness" monitors indicate whether your vehicle's emissions control systems have completed their self-tests. This is vital for passing emissions inspections.
• Customise Dashboards: Many applications allow you to create custom dashboards to display the specific sensor data you're interested in, making monitoring more intuitive and efficient.
• Log and Analyse Data: Record long stretches of driving data to identify intermittent issues or analyse performance trends over time. This data can often be exported for further analysis in spreadsheet programmes.

While some advanced functions like ECU programming or bi-directional controls (activating components from the software) are typically found in more professional, often Windows-only, and expensive tools, the Mac-compatible software mentioned provides a robust set of features for the average car owner and enthusiast.

Frequently Asked Questions (FAQs)

Q: Do I need a special adapter for my Mac?

A: Yes, you'll need an ELM327-compatible OBD-II adapter. These are widely available and come in Bluetooth, Wi-Fi, or USB versions. Ensure the version you buy is compatible with your Mac (e.g., a Bluetooth adapter for Mac might need specific drivers or be Bluetooth LE compatible, while Wi-Fi adapters connect like a network, and USB are plug-and-play).

Q: Can I diagnose any car with my Mac?

A: Most cars manufactured after 1996 (OBD-II compliant) can be diagnosed. European cars (EOBD) and some Japanese cars (JOBD) are also compatible. However, some advanced, manufacturer-specific diagnostics might require specialised tools not available on generic software.

Q: Is free diagnostic software good enough?

A: Free versions, like the basic version of OBD Auto Doctor or Car Scanner ELM OBD2, are excellent for evaluating the product and performing basic functions like reading and clearing generic trouble codes. They often mask or hide values of paid features but will list all items your car offers. For more in-depth analysis, real-time data graphing, and advanced features, purchasing the full version is usually recommended.

Q: Can diagnostic software damage my car?

A: Simply reading data or clearing codes using diagnostic software is highly unlikely to damage your car. The software is designed to interface with the vehicle's computer system safely. However, attempting to modify ECU settings or perform unsupported actions without proper knowledge could potentially lead to issues, though most consumer-grade software does not allow such deep modifications.

Q: What is "Freeze Frame Data"?

A: Freeze Frame Data is a snapshot of various sensor readings (like engine RPM, coolant temperature, fuel system status, etc.) taken at the exact moment a Diagnostic Trouble Code (DTC) was set. It provides crucial context for understanding the conditions under which a fault occurred.

Q: Can I turn off the 'check engine' light permanently with this software?

A: You can turn off the 'check engine' light by clearing the DTCs using the software. However, if the underlying problem that caused the code to appear is not fixed, the light will inevitably come back on after a certain number of driving cycles or when the fault reoccurs. The software clears the code, not the problem.

Conclusion

Empowering yourself with car diagnostic capabilities on your Mac OS X is a smart move for any vehicle owner. From deciphering mysterious dashboard lights to proactively monitoring your car's health, the available software solutions offer a fantastic blend of functionality and user-friendliness. By investing in an affordable ELM327 adapter and choosing the right Mac-compatible software, you can gain invaluable insight into your vehicle, potentially saving time, money, and avoiding significant headaches down the road. Embrace the power of technology to keep your British vehicle running smoothly and efficiently.
