Your Motorcycle MOT: Pitting & Pass Rates

For any motorcyclist in the UK, the annual MOT test is a familiar, and sometimes daunting, hurdle. It's a crucial check designed to ensure your bike meets essential road safety and environmental standards. Passing your MOT is not just a legal requirement; it's a testament to your bike's health and your commitment to safety on the roads. But what exactly does a motorcycle MOT involve, how does it work, and why do so many bikes, particularly older models, encounter issues, especially when it comes to something as seemingly minor as fork pitting?

Understanding the Motorcycle MOT

The Ministry of Transport (MOT) test for motorcycles is an annual inspection that becomes mandatory once your bike is three years old. Unlike a service, the MOT is not about the mechanical condition of every component or the overall performance; it's a safety and roadworthiness check. It assesses various critical aspects to ensure your motorcycle is safe for you and other road users.

During the MOT, a qualified tester will meticulously examine several key areas of your motorcycle. This includes the lights, horn, steering, suspension, brakes, wheels, tyres, frame, exhaust system, and general structural integrity. They're looking for defects that could compromise safety, such as excessive wear, damage, or improper functioning. The test doesn't involve dismantling any part of the bike, nor does it check the engine, clutch, or gearbox's mechanical state, unless a fault in these areas directly impacts a safety item, like a gearbox leaking oil onto a tyre or brake.

If your bike passes, you receive an MOT certificate, valid for 12 months. If it fails, you'll get a 'Refusal of an MOT Test Certificate' document detailing the reasons. You then have a window to get the necessary repairs done and have it re-tested. It's important to remember that driving a motorcycle without a valid MOT is illegal and can lead to fines and points on your licence, not to mention invalidating your insurance.

Common Reasons for MOT Failure

While an MOT covers numerous points, some common issues frequently lead to a bike failing its test. These often relate to relatively simple components that can be easily overlooked during regular maintenance. Typical culprits include:

• Lighting issues: Blown bulbs, incorrect beam patterns, or faulty wiring.
• Tyre condition: Insufficient tread depth, cuts, bulges, or incorrect tyre pressures.
• Brakes: Worn pads, discs, faulty master cylinders, or spongy levers indicating air in the system.
• Suspension: Leaking fork seals, excessive play in bearings, or, as we'll delve into, damaged fork stanchions.
• Exhaust system: Excessive noise, insecure mounting, or leaks.
• Steering: Worn steering head bearings causing excessive play or stiffness.
• Registration plates: Incorrect font, size, or obscured plates.

Among these, suspension problems, particularly those involving the front forks, are a frequent cause for concern. One specific issue that often catches owners off guard is fork pitting.

The Peril of Fork Pitting and Salt Damage

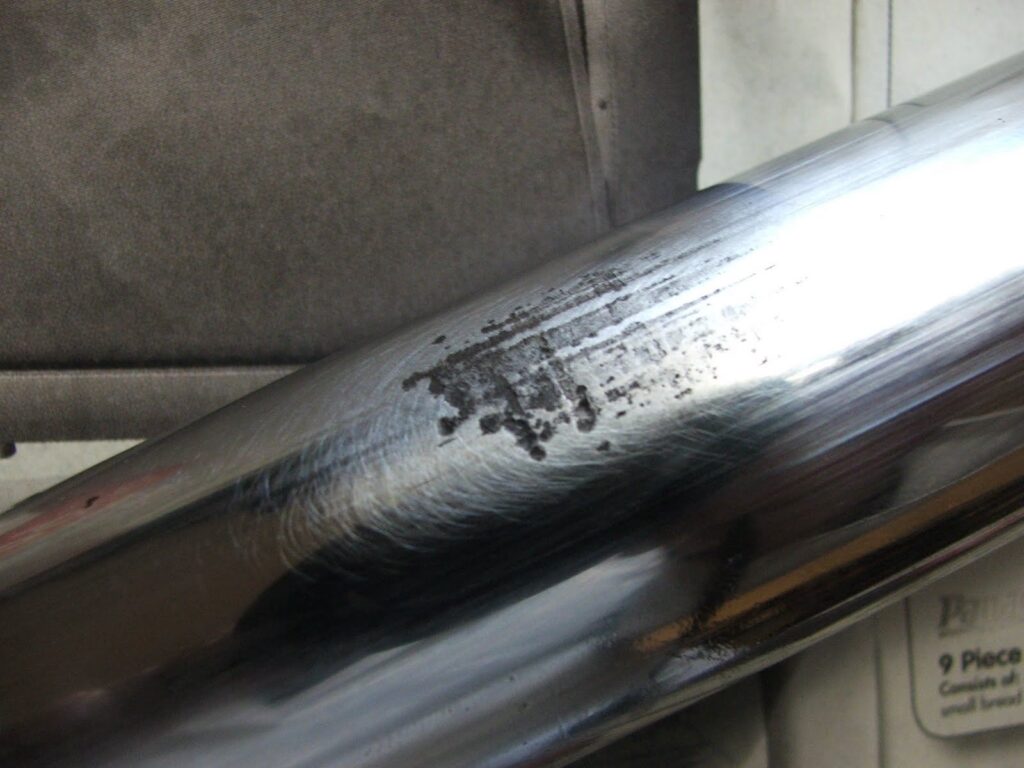

Fork pitting refers to small, localised areas of corrosion or damage on the chrome surface of the fork stanchions (the shiny, upper tubes of the front forks). This damage often appears as tiny craters or rust spots. It's particularly prevalent on bikes ridden in adverse weather conditions, especially during winter months when roads are treated with salt.

Salt, grit, and other road debris are highly corrosive and abrasive. When they come into contact with the chrome plating on your fork stanchions, they can cause microscopic damage that, over time, develops into visible pits. Once the chrome is compromised, the underlying metal can start to rust, exacerbating the problem. This is why it's often referred to as 'salt damage'.

The severity of fork pitting is largely determined by its location. If the pitting occurs high up on the stanchion, away from the 'swept area' where the fork seals operate, it might be primarily a cosmetic issue. However, if the pitting is within the swept area – the section of the stanchion that slides in and out of the lower fork leg and passes through the fork seals – it becomes a significant problem. The sharp edges of these pits act like tiny blades, tearing at the delicate rubber of the fork seals with every compression of the suspension. This leads to premature seal failure, allowing precious fork oil to leak out.

Leaking fork seals are a serious safety hazard. Not only do they compromise the damping ability of your front suspension, leading to a bouncy, uncontrolled ride, but the escaping oil can also spray onto your front tyre or brake discs. Oil on your tyre significantly reduces grip, making the bike prone to skidding, especially when cornering or braking. Oil on your brake discs drastically reduces braking efficiency, potentially leading to catastrophic failure. Both scenarios are extremely dangerous and are immediate reasons for an MOT failure.

Rectifying Pitted Forks: Options and Costs

Addressing pitted forks can range from minor surface treatment to full component replacement, depending on the severity and location of the damage. Here are the common approaches:

1. Superficial Cleaning and Polishing

For very minor surface rust or extremely shallow pitting, a thorough cleaning and polishing might suffice. Products like Solvol Autosol or fine abrasive compounds can sometimes clean up surface rust. However, this is largely effective only if the damage hasn't penetrated the chrome deeply and there are no raised areas that could cut the seals. This is a preventative measure or a very temporary fix, not a permanent repair for significant pitting.

2. Temporary 'Bodges'

Some riders attempt temporary fixes using epoxy resins like Araldite and fine sandpaper to fill pits and smooth the surface. While this might stop minor leaks for a short period, it's generally not recommended for long-term reliability or peace of mind. The repair might not hold up to the constant compression and extension cycles, and it's unlikely to provide the perfectly smooth surface required for optimal seal longevity.

3. Professional Re-chroming

Re-chroming involves stripping the old chrome, repairing any damage to the underlying metal, and then applying a new layer of chrome. This is a specialist job, usually costing around £150-£200 per stanchion. The price reflects the labour, time, and specialised equipment required. While it restores the stanchion to a 'like new' condition, it's often a costly process, and sometimes, new replacement parts can be more economical.

4. Replacing Fork Stanchions

This is generally considered the most reliable long-term solution. Replacing the damaged stanchions with new ones ensures a perfectly smooth surface for the seals. The cost varies significantly depending on the motorcycle model:

• Budget/Commuter Bikes (e.g., Honda CG125, Yamaha YBR125): Pattern parts can be found for as little as £30-£40 per leg, with good quality aftermarket or genuine parts typically around £70-£120.
• Mid-Range/Sports Bikes (e.g., Suzuki SV650): New stanchions might cost around £90-£100 per leg from reputable aftermarket suppliers like Wemoto.
• High-Performance/Specialist Bikes: Genuine parts can be significantly more expensive, sometimes making re-chroming a more viable option if new parts are hard to source or excessively priced.

When considering replacement, factor in the cost of new fork seals, dust seals, and fresh fork oil, as these should always be replaced during a fork rebuild. A complete DIY rebuild with new stanchions, seals, and oil might cost around £200-£250 for a typical mid-range bike.

5. Full Fork Renovation

For severely damaged or bent forks, some specialist companies offer complete renovation services. This can involve straightening, re-chroming, and rebuilding the entire fork assembly. Costs for such comprehensive work can range from £250 to £500, depending on the extent of the damage and the complexity of the fork design. This option is often considered for more valuable bikes where the cost is justified, or when new parts are unavailable.

It's vital to weigh the repair cost against the bike's overall value. A £500 fork renovation on a £1000 bike might not be financially sensible, whereas on a £5000 bike, it's a more proportionate expense.

Fork Pitting and the MOT Test

The MOT test guidelines are quite clear on suspension defects. A motorcycle will fail its MOT if there is a 'visible defect' to the suspension, which includes leaking fork seals or significant damage to the fork stanchions in the swept area. The presence of pitting that causes oil leaks is an automatic failure.

However, there can be some subjectivity depending on the tester. If the pitting is minor and located high up, purely cosmetic, or not causing any leaks, some testers might issue an advisory rather than an outright fail. The key differentiator is whether the pitting is causing a leak or has the potential to imminently cause one due to its location and severity.

An interesting point to note is regarding fork gaiters or covers. If your forks are fitted with gaiters (rubber boots) or neoprene covers, the MOT tester is generally not permitted to lift these to inspect the stanchions underneath. This can, in some cases, provide a temporary 'get-out' for a bike with minor pitting that isn't actively leaking. However, this is not a solution to the underlying problem and should not be relied upon as a long-term strategy for safety. It merely delays the inevitable repair.

Ultimately, while the chrome finish primarily provides a smooth surface for the seals, its integrity is crucial for preventing leaks. The internal damping and structural integrity of the fork are controlled by the piston and bushes, but a compromised chrome surface will quickly lead to seal failure, regardless of the internal mechanics.

Preventative Measures & Ongoing Care

To minimise the risk of fork pitting and extend the life of your seals, consider these tips:

• Regular Cleaning: After riding, especially in wet or salty conditions, thoroughly clean your fork stanchions. Use a mild soap and water, then dry completely.
• Polish and Protect: Apply a good quality chrome polish or a moisture-repellent spray (like WD-40) to the stanchions regularly. This creates a barrier against corrosion.
• Consider Gaiters/Covers: Fitting fork gaiters or neoprene covers can provide a physical barrier against road debris and salt, protecting the stanchions.
• Rotate Stanchions (if applicable): During a fork oil change or other front-end maintenance, if possible, slightly loosen the stanchions in the yokes (one at a time to maintain alignment) and rotate them a few degrees. This can help distribute wear on the seals.

Comparative Costs for Fork Repair Options (Approximate)

Frequently Asked Questions About Motorcycle MOTs and Forks

Q: Can I drive my motorcycle after it fails its MOT?

A: You can only drive your motorcycle on public roads after an MOT failure if you are taking it to a pre-arranged appointment for repairs, or to another MOT test centre. In all other circumstances, it is illegal to ride it, and you risk fines and points on your licence.

Q: How can I tell if my fork seals are leaking?

A: Look for visible oil residue or streaks on the fork stanchions, especially below the dust seals. You might also notice a thin film of oil on your front brake caliper or disc, or even on the side of your front tyre. Your front suspension might also feel overly soft or 'bouncy'.

Q: Is it difficult to replace fork seals myself?

A: Replacing fork seals requires specific tools and a good understanding of motorcycle mechanics. You'll need to safely lift the front of the bike, remove the front wheel, calipers, and fork legs, then disassemble the forks to replace the seals. It also requires precise measurements for fork oil levels. If you're not confident, it's best left to a professional.

Q: Will minor stone chips on the forks cause an MOT failure?

A: Minor stone chips that are not causing oil leaks and are not significantly affecting the smooth surface for the seal are unlikely to cause an MOT failure. The key is whether the damage is creating a 'visible defect' that compromises safety or functionality, particularly in the swept area.

Q: How often should I service my motorcycle forks?

A: Fork oil and seals should typically be replaced every 15,000-20,000 miles or every 2-3 years, whichever comes first. This helps maintain optimal suspension performance and prevents premature seal wear.

Q: Can I put covers on my forks to hide pitting for the MOT?

A: While fork gaiters or covers can obscure pitting from an MOT tester's view (as they are not allowed to remove them), this is not a legitimate fix. It only hides the problem. If the pitting is severe and causing issues, it will eventually lead to a leak or safety hazard. It's always best to address the underlying issue for your safety.

In conclusion, understanding the intricacies of your motorcycle's MOT, especially concerning common failure points like fork pitting, is crucial for any rider. While pitting can seem like a minor cosmetic flaw, its potential to compromise safety through leaking fork seals makes it a significant issue. Regular cleaning and preventative measures can help mitigate the risk, but for existing damage, a proper repair is always the safest and most reliable course of action. Don't let a small pit become a big problem; ensure your bike is always in top condition for the road ahead.
