F-Series Transmission Fluid: Your Definitive Guide

Your Ford F-150 or F-250 pickup truck is a workhorse, renowned for its reliability and robust performance. However, even the toughest vehicles require diligent maintenance to ensure they continue to perform at their best. One of the most critical, yet often overlooked, aspects of truck upkeep is the health of its transmission fluid. This vital fluid is the lifeblood of your gearbox, responsible for lubricating components, cooling the system, and enabling smooth gear changes.

If you've noticed your F-Series exhibiting symptoms like erratic shifting, transmission slippage, or harsh gear engagement, a simple check and potential top-up or exchange of your transmission fluid could be the immediate solution. But how can you be certain your fluid needs attention, and what's involved in keeping it in optimal condition? This comprehensive guide will walk you through everything you need to know about your F-150 or F-250's transmission fluid, helping it live as long and reliably as the rest of your cherished Ford truck.

Understanding Your Ford F-Series Transmission

The Ford F-150, a perennial favourite in the pickup truck market, owes much of its reputation to its dependable engine and, crucially, its robust transmission. Over the past three decades, Ford has continuously refined and upgraded its transmission offerings, influencing how and when fluid maintenance is performed. While the F-250 often features heavier-duty transmissions like the TorqShift, the fundamental principles of fluid maintenance and checking procedures often share similarities with the F-150, or at least highlight the critical need to consult your specific owner's manual.

Why Transmission Fluid is Crucial

Transmission fluid serves multiple critical roles within your vehicle's gearbox:

• Lubrication: It lubricates all moving parts, reducing friction and wear between gears, bearings, and clutches.
• Cooling: It dissipates heat generated by friction and the normal operation of the transmission, preventing overheating which can cause significant damage.
• Power Transfer: In automatic transmissions, the fluid is essential for transmitting power from the engine to the wheels via the torque converter.
• Cleaning: It helps to clean and suspend contaminants, preventing sludge and varnish build-up that can impede performance.
• Hydraulic Pressure: It provides the hydraulic pressure necessary for the transmission to shift gears smoothly and efficiently.

Over time, transmission fluid can degrade due to heat, oxidation, and contamination from metallic wear particles. Degraded fluid loses its ability to lubricate, cool, and transfer power effectively, leading to the symptoms mentioned earlier and, if left unaddressed, potentially costly transmission failure. Therefore, proactive fluid maintenance is paramount.

Recognising the Signs of Low or Bad Transmission Fluid

Being attentive to your truck's behaviour can save you from major transmission headaches. Here are common indicators that your transmission fluid might be low, old, or contaminated:

• Erratic Shifting: Gears may engage roughly, unexpectedly, or with a noticeable delay.
• Transmission Slippage: The engine revs higher than normal without a corresponding increase in speed, indicating the gears aren't fully engaging.
• Hard Shifting: You might feel a noticeable jolt or clunk when the transmission shifts gears.
• Burning Smell: Overheated or severely degraded fluid can emit a distinct burning odour.
• Fluid Leaks: Puddles under your truck, especially reddish-brown fluid, indicate a leak that needs immediate attention.
• Warning Lights: Your dashboard might illuminate a 'Check Engine' or specific transmission warning light.
• Unusual Noises: Whining, grinding, or humming noises coming from the transmission area.

If you experience any of these symptoms, checking your transmission fluid should be one of your first steps.

Locating and Checking the Transmission Fluid Level on Your F-Series

The method for checking your transmission fluid level depends heavily on the specific transmission model fitted to your Ford F-150 or F-250. Ford has changed its approach over the years, eliminating the traditional under-bonnet dipstick on newer models.

For Ford F-150 with 4R70 or 4R75 Transmission (Up to 2008)

Ford F-150 pickup trucks manufactured up until around 2008 typically feature the 4R70 or 4R75 transmission. Both of these transmissions are quite similar and, crucially, were designed with regular fluid changes in mind, often recommended every 30,000 miles (approximately 48,000 kilometres).

To check the fluid level on these models:

1. Warm Up the Truck: It is absolutely vital to warm up your truck before checking the fluid. Drive it for at least 15-30 minutes to allow the transmission fluid to reach its optimal operating temperature, typically between 206-215°F (96-102°C). Fluid expands when hot, and an accurate reading can only be obtained at operating temperature.
2. Park Safely: Park your truck on a level surface, engage the parking brake, and place the gear selector in 'Park'. Keep the engine running.
3. Locate the Dipstick: Open the bonnet. On these older models, you can typically locate the transmission dipstick to the left of the engine, often with a yellow or red handle.
4. Check the Fluid: Pull the dipstick out, wipe it clean with a lint-free cloth, and reinsert it fully. Pull it out again and observe the fluid level against the 'HOT' markings. The fluid should be within the marked range.

For Ford F-150 with 6R80 (2009-2017) or 10R80 (2018-Present) Transmission

From 2009 onwards, Ford introduced the 6R80 transmission, and from 2018, the 10R80, which is still in use today. These transmissions were marketed by Ford as "sealed-for-life" units, implying they do not require frequent maintenance or fluid changes under normal operating conditions. This design philosophy led to the removal of the traditional under-bonnet dipstick.

To check the fluid level on these newer models, the process is more involved:

1. Warm Up the Truck: As with older models, warm up your truck thoroughly. The transmission fluid must reach 206-215°F (96-102°C) for an accurate reading.
2. Safely Lift the Truck: You will need to lift the truck safely to access the transmission from underneath. Use a jack to raise the vehicle and then securely place it on jack stands directly under the designated lifting points. Never rely solely on a jack. Ensure the truck is stable and level.
3. Locate the Dipstick: Crawl underneath the truck (ensuring it's safe to do so) and look for a small screw-in dipstick on the passenger side of the transmission housing. This is often a small, hex-head plug.
4. Check the Fluid: Carefully unscrew and remove this plug/dipstick. Wipe it clean with a lint-free cloth, insert it back into the transmission, and then remove it again to read the fluid level. The fluid should be at the correct level indicated by markings on the dipstick when hot.

This process is more challenging and requires appropriate safety measures. If you are uncomfortable getting underneath your vehicle, it's always best to consult an authorised mechanic.

Adding Transmission Fluid to Your F-Series Truck

Once you've checked the fluid level and determined that it's low, the next step is to add fluid. Again, the procedure differs based on your transmission type.

How to Add Fluid to a 4R70 or 4R75 Transmission

Adding transmission fluid to F-150 trucks equipped with the 4R70 or 4R75 transmission models is relatively straightforward due to the accessible dipstick tube.

1. Warm Up the Truck: Start the engine and let it run for 15-30 minutes to ensure the transmission fluid is at its operating temperature of 206-215°F (96-102°C).
2. Prepare for Filling: With the engine running and the gear selector in 'Park', insert a clean funnel into the transmission dipstick tube.
3. Add Fluid Slowly: Begin adding the correct type of transmission fluid (always consult your owner's manual for the specific fluid type, e.g., Mercon V or Mercon LV). Add small amounts, approximately 0.5 litres (around 1 pint) at a time.
4. Recheck Frequently: After adding a small amount, wait a minute for the fluid to settle, then remove the funnel and recheck the fluid level with the dipstick. Repeat this process until the fluid level is within the 'HOT' range on the dipstick. Be careful not to overfill, as this can also cause transmission problems.
5. Cycle Gears (Optional but Recommended): Once the level is correct, you can briefly cycle the gear selector through all positions (P, R, N, D, 2, 1) pausing briefly in each, with your foot on the brake. This helps circulate the new fluid throughout the transmission.
6. Final Check: Perform a final fluid level check after cycling the gears and letting the truck run for a few more minutes.

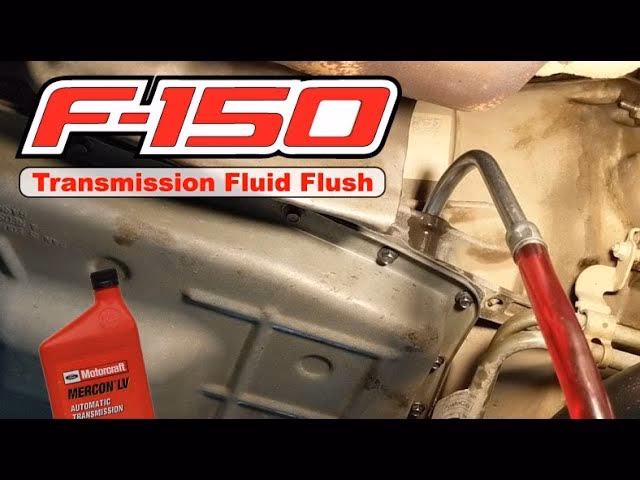

How to Add Fluid to a 6R80 or 10R80 Transmission

Given that the 6R80 and 10R80 transmissions feature a small fluid dipstick located underneath the vehicle, adding transmission fluid requires more specialised tools and a greater degree of skill and caution. You will typically need a fluid pump for this task.

1. Warm Up the Truck: As always, ensure your F-150 is thoroughly warmed up so the transmission fluid reaches its operating temperature of 206-215°F (96-102°C).
2. Lift and Secure the Truck: Safely lift your truck using a jack and secure it firmly on jack stands under the appropriate lifting points. Ensure the vehicle is level.
3. Access the Dipstick: Crawl underneath the vehicle and locate the screw-in dipstick on the passenger side of the transmission. Remove it.
4. Initial Level Measurement: Before adding fluid, perform an initial fluid level measurement with the screw-in dipstick to confirm it's low.
5. Prepare the Fluid Pump: Attach one end of the fluid pump's hose to the pump itself and insert the other end into the dipstick hole of the transmission. Place the other end of the pump into your container of the correct new transmission fluid (again, consult your owner's manual for the specific type, such as Mercon LV or Mercon ULV).
6. Pump Fluid Slowly: Begin to pump fluid slowly into the transmission. Add small increments.
7. Recheck and Repeat: Periodically remove the pump hose and recheck the fluid level with the screw-in dipstick. This process requires patience. Continue adding small amounts and rechecking until the fluid reaches the correct level on the dipstick while the engine is running and the fluid is hot.
8. Secure and Cycle: Once the level is correct, screw the dipstick back firmly into place. Lower the truck safely from the jack stands. Let the truck run for approximately 15 minutes, cycling through all gear positions (P, R, N, D, etc.) to ensure the fluid circulates throughout the transmission and lubricates the gears properly.
9. Final Verification: After cycling, it's advisable to perform one final fluid level check by safely lifting the truck again (if necessary) and checking the screw-in dipstick with the engine running and fluid hot. Add more fluid if needed.

It's important to note that this process is significantly more complicated than for older models. If you are uncertain about performing this task yourself, it is highly recommended to take your F-150 or F-250 to an authorised Ford mechanic or a reputable transmission specialist. Incorrect fluid levels or types can lead to severe transmission damage.

When to Consider a Full Transmission Fluid Change

While checking and topping up your transmission fluid addresses low levels, a complete fluid exchange or flush is a more comprehensive maintenance procedure. For older 4R70/4R75 transmissions, a fluid and filter change every 30,000 to 60,000 miles is generally recommended. For newer 6R80 and 10R80 transmissions, despite being labelled 'sealed-for-life', many experts and experienced owners still advocate for fluid changes, especially under severe duty conditions (e.g., heavy towing, frequent off-roading, extreme temperatures) or at higher mileages (e.g., 100,000 to 150,000 miles). Always refer to your Ford F-150 or F-250 owner's manual for the manufacturer's specific maintenance schedule.

Frequently Asked Questions About F-Series Transmission Fluid

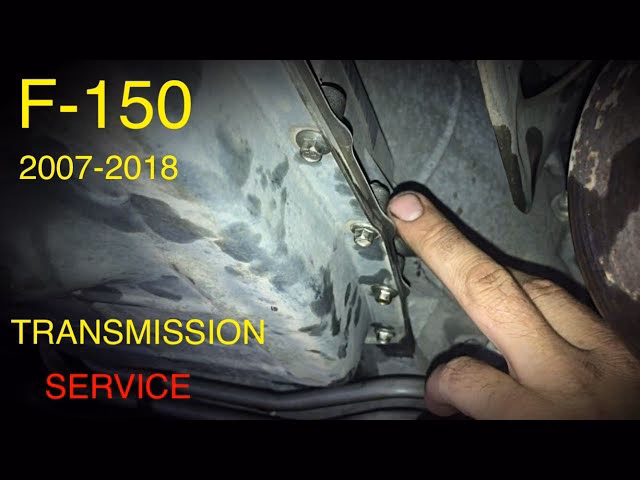

Q: Does a Ford F-150 have transmission fluid?

A: Yes, absolutely. Every Ford F-150 (and F-250) has transmission fluid. It's essential for the proper operation and longevity of the automatic transmission, providing lubrication, cooling, and hydraulic pressure.

Q: What does 'sealed-for-life' mean for my transmission?

A: For Ford's 6R80 and 10R80 transmissions, 'sealed-for-life' generally means that under normal driving conditions, the fluid is expected to last the life of the vehicle without requiring scheduled changes. However, this often translates to the expected warranty period or a certain mileage. Many mechanics and enthusiasts still recommend fluid changes, especially for vehicles used for towing, heavy hauling, or in extreme climates, as these conditions accelerate fluid degradation. It typically means there isn't an easily accessible dipstick or drain plug for routine checks/changes.

Q: Can I use any transmission fluid in my F-150 or F-250?

A: Absolutely not. Using the incorrect type of transmission fluid can cause severe damage to your transmission. Ford transmissions are designed to work with very specific fluid formulations (e.g., Mercon V, Mercon LV, Mercon ULV). Always consult your truck's owner's manual to determine the precise fluid specification required for your specific year and transmission model.

Q: How often should I change my F-150's transmission fluid?

A: For older F-150s with 4R70/4R75 transmissions, a fluid and filter change is typically recommended every 30,000 to 60,000 miles (48,000 to 96,000 km). For newer 6R80/10R80 'sealed-for-life' transmissions, Ford may not specify a service interval. However, many experts suggest considering a fluid change between 100,000 to 150,000 miles (160,000 to 240,000 km), especially if the truck is used for heavy-duty work. Always refer to your owner's manual for the official Ford recommendation specific to your vehicle's use.

Q: What if I overfill my transmission fluid?

A: Overfilling transmission fluid can be just as detrimental as having too little. Excess fluid can lead to foaming or aeration, which reduces its lubricating and cooling properties. This can cause erratic shifting, overheating, and potentially damage internal transmission components. If you've overfilled, it's best to have a mechanic drain the excess fluid.

Conclusion

Maintaining the correct level and quality of transmission fluid is fundamental to the longevity and smooth operation of your Ford F-150 or F-250. Whether you have an older model with an easily accessible dipstick or a newer 'sealed-for-life' transmission, understanding the checking and filling procedures is crucial. While checking and topping up fluid can often be a DIY task for many, especially with older models, the complexity of newer transmissions might warrant professional assistance. Prioritising your transmission fluid will ensure your beloved F-Series truck continues to provide reliable service for many years and miles to come, keeping you on the road with confidence.
