Suzuki RM-Z450: The Fuel Injection Pioneer

When it comes to the evolution of motocross, certain innovations stand out as true game-changers. One such pivotal moment arrived with the Suzuki RM-Z450, a machine that boldly stepped into uncharted territory, forever altering the landscape of dirt bike engineering. So, does the Suzuki RM-Z450 have fuel injection? The unequivocal answer is yes, and it was a pioneering move that set the standard for the industry. Suzuki's commitment to innovation saw the RM-Z450 become the very first mass-production motocross bike to feature electronic fuel injection (EFI), a full year ahead of its major competitors.

This wasn't merely an incremental upgrade; it was a fundamental shift from traditional carburettors, promising unparalleled performance, versatility, and ease of riding across a myriad of conditions. From its initial, albeit challenging, introduction in 2008, the RM-Z450 has continually refined its EFI system, cementing its legacy as a front-runner in motocross technology.

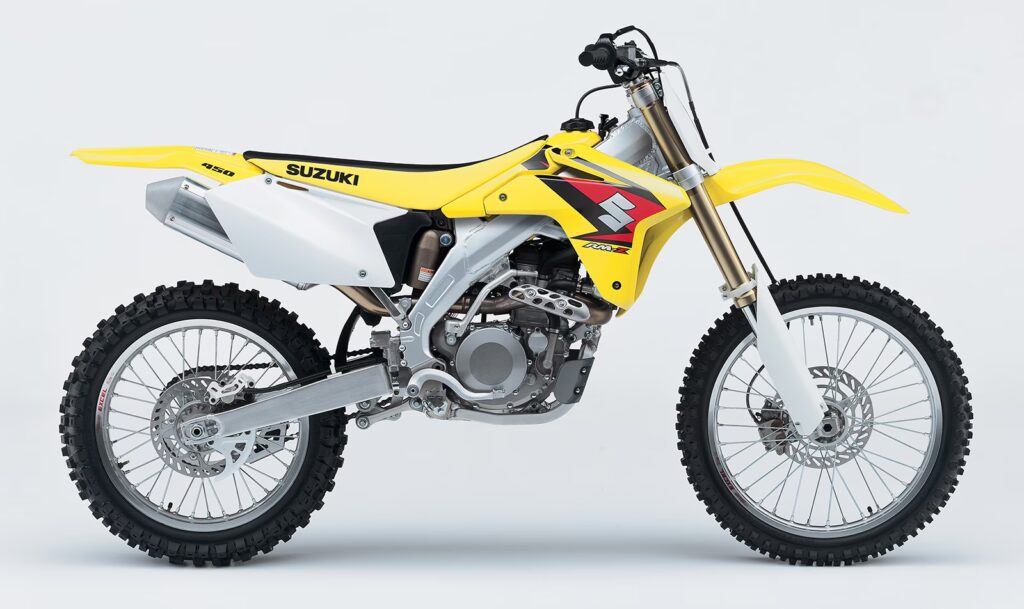

The Dawn of EFI: The 2008 RM-Z450

For the 2008 model year, Suzuki made a daring decision to introduce electronic fuel injection to its flagship 450cc motocrosser. This bold move was aimed at securing Suzuki's position as the most adventurous of the 'Big Five' manufacturers, with the allure of EFI promising a significant boost in sales and performance. However, the path of innovation is rarely smooth. The 2008 RM-Z450 faced several initial hurdles, including significant production delays and reports of minor issues such as an idler gear that 'howled like a jet engine' and a problematic engine case that could fail under kickback.

Despite these early teething problems, the technical advancements were undeniable. The 2008 model received a comprehensive overhaul beyond just the fuel system. Key engine changes included relocating the crankshaft approximately 2mm farther back and 3mm farther down in the cases, increasing flywheel inertia by 1.7 percent with heavier magnets, and revising the port angle from 10 degrees to 25 degrees for improved downdraft. New cams were introduced, alongside narrower valve angles (intake from 13 to 11.5 degrees, exhaust from 13 to 10 degrees) to enhance flame propagation within the combustion chamber. The exhaust system was also updated with a titanium head pipe, stainless mid-pipe, and aluminium muffler. Crucially, the transmission was upgraded from a four-speed to a five-speed, offering greater versatility across various terrains.

Unpacking the RM-Z450's EFI System

The heart of the 2008 RM-Z450's revolution was its Keihin EFI System, managed by a sophisticated 16-bit processor. Unlike a carburettor, this system required a suite of specialised components to function optimally:

• Fuel Lines: Designed to handle approximately 42 psi of pressure, these reinforced nylon hoses ensure precise fuel delivery. This higher pressure also means the fuel is less prone to boiling, a common issue in unpressurised systems.
• Fuel Pump: Integrated within the aluminium fuel tank, the pump is essential for delivering gasoline to the injection nozzle with sufficient velocity.
• Throttle Body: While not a carburettor, a Keihin throttle body houses the 12-port injection nozzle and a butterfly valve (replacing the traditional slide). It also features a progressive throttle linkage for smoother response.
• Sensors: The CPU relies on input from five critical sensors: throttle position, water temperature, air temperature, intake air pressure, and a unique tip-over angle sensor.
• Tip-Over Sensor: This innovative feature prevents the engine from cutting out in mid-air during extreme manoeuvres or falls. It ensures fuel delivery for 20 seconds when RPM is below 3000 rpm and for five seconds when above 3000 rpm, allowing the rider to recover without the engine dying.
• Power Source: Importantly, the RM-Z450's EFI system is battery-less, drawing all necessary power from a magneto. When you kick-start the bike, you are essentially operating a personal power station, generating the high-voltage pulse required to operate the fuel pump and electronics.

A significant advantage of this EFI system is its adaptability. It automatically adjusts fuel-air mixture based on environmental factors like elevation and temperature, providing consistent performance that carburettors simply cannot match without constant re-jetting. This makes the EFI-equipped RM-Z450 exceptionally versatile for riders venturing across varying circuits and weather patterns.

Riding Dynamics with Fuel Injection

The transition to fuel injection profoundly impacted the RM-Z450's riding characteristics. Testers praised the 2008 model for its incredibly crisp throttle response, particularly off-idle and through the midrange. The bike's power delivery was described as a 'blast to ride' in the low-to-mid RPM range, offering a solid, tractable pull that wasn't overly aggressive or threatening, unlike some of its competitors.

Beyond the engine, the RM-Z450 earned accolades for its exceptional handling. It was often described as feeling like a much lighter 250cc machine, despite a slight weight increase due to the EFI components and five-speed transmission. Its slim ergonomics, comfortable saddle, wide footpegs, and Renthal FatBars contributed to an overall confidence-inspiring and agile feel. Many considered it the best-cornering machine on the market, capable of razor-sharp turns.

Early Challenges and Suzuki's Response

While revolutionary, the early EFI RM-Z450 models weren't without their quirks and issues. Aside from the reported case breakages on some 2008 models, which Suzuki later addressed by revising ignition timing to mitigate kick-back, other concerns included:

• Shifting Issues: Riders reported missed shifts, partly attributed to an obtrusive shift lever design that hampered leverage. Suzuki later made changes to the gear shift selector mechanism.
• Suspension: The Showa forks on the 2008 model were often criticised for being too soft, leading to harshness in mid-stroke and bottoming out. Riders frequently opted for stiffer 0.49 kg/mm fork springs to improve performance.
• Flame-Out: A characteristic unique to early EFI systems, the RM-Z450 could occasionally 'flame-out' (engine cutting out) at very low idle settings or when abruptly chopping the throttle after fast straights. This required riders to adapt by pulling in the clutch during such situations.
• Top-End Power: While low-to-mid power was excellent, the 2008 model's power softened significantly at the top-end, hitting an 'obnoxious rev limiter' that could cause popping and banging. This encouraged a riding style that emphasised early shifting and leveraging the strong bottom-to-mid range.

Despite these initial challenges, Suzuki's commitment to the EFI platform was unwavering, and subsequent model years saw continuous refinements and improvements addressing these points.

Evolution Beyond the Initial Leap (2009-Present)

Following its groundbreaking 2008 debut, the Suzuki RM-Z450 continued to evolve, consistently refining its EFI system and overall package.

• 2009: While largely unchanged from a technical standpoint (mostly 'Bold New Graphics'), the 2009 model built upon the solid foundation of the EFI system, reinforcing its reputation for stellar performance and versatility. It continued to be lauded for its exceptional cornering ability and manageable powerband.
• 2010: This year brought significant refinements to the engine and EFI system. Updates included a new cylinder head, piston, crankshaft, throttle body, cam shafts, and valve springs. The EFI system itself was enhanced with a reversed throttle valve movement for improved throttle response and power. The frame rigidity and suspension rates were also tweaked.
• 2011: Suzuki focused on compliance with stricter AMA noise regulations (94 dB) by revising intake and exhaust timing and modifying the exhaust pipe. ECU settings were updated, allowing riders to easily select between two mapping options using couplers. The compression ratio was also increased from 12.2:1 to 12.5:1 for higher output.
• 2012-2013: These years primarily saw new graphics, maintaining the established performance characteristics.
• 2014: Updates included revised ECM ignition programs for improved starting and redesigned muffler internals to boost bottom-to-mid range power and torque. The muffler also adopted conventional bolts for easier maintenance.
• 2015: A major revision year for the RM-Z450. Suzuki introduced the Suzuki Holeshot Assist Control (S-HAC) technology, a selectable launch mode system directly from factory race bikes, offering enhanced traction for starts. The Showa SFF Air Fork became standard, providing progressive suspension feel and significant weight savings. Starting efforts were reduced through a longer kickstart lever, revised kick-gear ratios, and an updated de-compression system. The cooling system was made 16% more efficient, and the frame members were redesigned for a 4% weight reduction and balanced rigidity.
• 2016-2025: From 2016 onwards, the RM-Z450 largely maintained its core design, focusing on minor graphic updates and refinement, underscoring the maturity and effectiveness of its EFI platform and chassis. The model has remained a strong contender in the motocross arena, known for its superb handling and user-friendly power delivery.

Key Specifications Evolution (2008-2024)

To illustrate the RM-Z450's journey, here’s a comparison of key specifications over representative years:

Note: Weight measurements may vary between 'dry weight' and 'curb weight' (ready-to-ride), as specified in the source material for each year. Power figures are as reported.

Maintaining Your EFI RM-Z450

While EFI systems significantly reduce the need for constant tuning associated with carburettors, a few maintenance considerations are unique to them:

• Fuel Quality: It’s crucial to use high-quality pump petrol. The Suzuki RM-Z450's EFI system is designed for standard pump fuel, and using race petrol can actually be detrimental, potentially increasing maintenance requirements and the risk of clogging the injectors.
• Fuel System Cleanliness: Although less prone to issues than carburettors, keeping your fuel tank and lines free of contaminants is vital to prevent injector clogging.
• Air Filter: A clean air filter is paramount for optimal EFI performance, as the system relies on accurate air intake readings.
• Sensors: While generally robust, ensuring sensors are clean and free from damage will help maintain consistent performance.

Frequently Asked Questions (FAQs)

When did the Suzuki RM-Z450 first get fuel injection?

The Suzuki RM-Z450 was the first mass-production motocross bike to feature electronic fuel injection (EFI), introduced with the 2008 model year.

What are the main benefits of fuel injection on a dirt bike?

Fuel injection offers numerous benefits, including more consistent power delivery across varying elevations and temperatures, crisper throttle response, improved fuel efficiency, and the elimination of the need for jetting changes.

Can I use race fuel in an EFI Suzuki RM-Z450?

No, it is generally not recommended. The EFI system is designed for standard pump petrol, and race fuel's chemical makeup can lead to increased maintenance and potential clogging of the injectors.

Is the EFI system on the RM-Z450 battery-powered?

No, the Suzuki RM-Z450's EFI system is battery-less. It draws all its necessary electrical power from a magneto, which generates electricity when the bike is kick-started.

How has the RM-Z450's EFI system evolved since its introduction?

Since 2008, Suzuki has continually refined the RM-Z450's EFI system. Key updates include improved throttle valve movement, revised ECU settings with selectable mapping, and integration with advanced features like the Suzuki Holeshot Assist Control (S-HAC) for better launch performance.

Are there any common issues with the early EFI RM-Z450 models?

Early 2008 models experienced some issues, including occasional engine case failures related to kick-back, and some riders reported problems with the shift lever design and overly soft stock forks. Suzuki addressed these concerns in subsequent production runs and model years through design revisions and component upgrades.

Conclusion

The Suzuki RM-Z450's adoption of electronic fuel injection marked a significant turning point in motocross history. While its initial foray into EFI in 2008 came with some early challenges, Suzuki's dedication to this technology has yielded a machine renowned for its consistent performance, exceptional handling, and remarkable versatility. The RM-Z450 continues to stand as a testament to innovation, offering a refined and capable package for riders who demand precision and adaptability from their off-road machines. It truly painted on both sides of the fence, proving that a motocrosser could be both competitive and incredibly user-friendly, setting a benchmark that other manufacturers would soon follow.
