The Dawn of Electronic Fuel Injection

The Dawn of Electronic Fuel Injection

In the mid-1950s, a time when computers occupied entire rooms and the concept of digital control was in its nascent stages, a revolutionary technology emerged that would eventually transform the automotive world. This groundbreaking innovation was the world’s first automotive electronic fuel-injection (EFI) system, aptly named the Electrojector. Developed by the Bendix Aviation Corporation and introduced in 1956, the Electrojector was a bold leap forward, aiming to replace the increasingly complex and less efficient carburettor with a more precise and sophisticated method of delivering fuel to an engine. While its initial reception was met with a mixture of awe and skepticism, and its early implementation proved to be a challenging endeavour, the Electrojector laid the crucial groundwork for the sophisticated engine management systems we rely on today.

The Carburettor's Reign and the Need for Change

For decades, the carburettor had been the undisputed king of fuel delivery in internal combustion engines. This mechanical device, through a clever arrangement of jets, venturis, and floats, mixed air and fuel in a ratio deemed appropriate for various engine operating conditions. However, as automotive technology advanced and demands for better fuel economy, reduced emissions, and improved performance grew, the limitations of the carburettor became increasingly apparent. Its inherent mechanical nature made it susceptible to variations in temperature, altitude, and engine load, often resulting in suboptimal air-fuel ratios. This led to inefficiencies, increased pollution, and a less responsive driving experience. The stage was set for a more intelligent and adaptable solution.

Enter the Electrojector: A Glimpse into the Future

The Bendix Electrojector was a testament to the pioneering spirit of its era. Imagine a time when the concept of electronics influencing engine operation was almost science fiction. The Electrojector, however, embraced this future with open arms. At its core, the system utilized an electronic control unit (ECU) – albeit a rudimentary one by today's standards – to manage fuel delivery. This ECU received input from various sensors, such as throttle position and engine speed, and processed this information to precisely control the duration and timing of fuel injection. Instead of relying on vacuum and mechanical linkages, the Electrojector employed an electrically operated injector that sprayed a fine mist of fuel directly into the intake manifold or, in some advanced configurations, the cylinder head itself.

The advantages of such a system were significant:

• Precise Fuel Metering: Electronic control allowed for a much more accurate and consistent air-fuel ratio across a wider range of operating conditions.
• Improved Fuel Economy: By optimising the fuel mixture, the Electrojector promised better mileage.
• Reduced Emissions: A leaner, more controlled burn meant less unburnt fuel and, consequently, lower emissions.
• Enhanced Performance: Better fuel delivery translated to improved throttle response and overall engine power.

The Challenges of Early Adoption

Despite its innovative design and potential benefits, the Electrojector's journey was far from smooth. The technology of the 1950s, particularly in the realm of electronics, was still in its infancy. The ECUs were bulky, expensive, and prone to failure. Reliability was a major concern, and the system required a level of technical expertise that was not readily available to the average mechanic or car owner. Furthermore, the automotive industry was accustomed to the established methods of carburettor manufacturing and servicing, making the transition to a completely new and complex electronic system a significant hurdle.

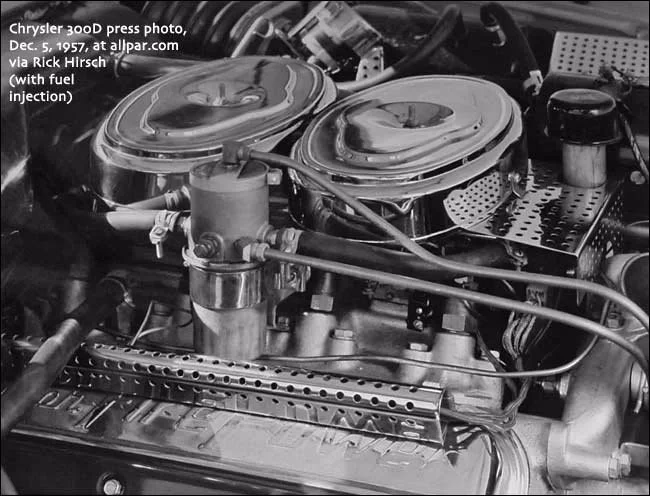

The Electrojector was initially offered as an option on a few select vehicles, most notably the 1957-1958 Chrysler models, including the flagship Imperial. However, the system suffered from numerous teething problems. Early ECUs were not as robust as desired, and the integration of complex electronics into the harsh automotive environment proved challenging. Issues with component reliability, calibration difficulties, and the sheer cost of the system contributed to its limited success. Many of these early vehicles were retrofitted with carburettors, signalling the Electrojector's status as an ambitious but ultimately premature innovation.

Lessons Learned and the Road Ahead

The story of the Electrojector is a classic example of a technology that was ahead of its time. While it may have been an "almost complete failure" in its initial implementation, its significance cannot be overstated. Bendix and Chrysler's efforts in developing and testing the Electrojector provided invaluable data and experience that would fuel future advancements in fuel injection. The fundamental principles behind the Electrojector – electronic control of fuel delivery based on sensor inputs – became the bedrock upon which modern EFI systems are built.

Over the following decades, as electronic components became smaller, more reliable, and significantly cheaper, fuel injection technology gradually evolved. Systems like Bosch's L-Jetronic, introduced in the late 1960s, built upon the lessons learned from earlier attempts and began to gain wider acceptance. By the 1980s, EFI had largely replaced the carburettor in mainstream automotive production, offering the performance, efficiency, and emissions benefits that the Electrojector had initially promised.

Key Components of Early EFI Systems (Conceptual)

To better understand the Electrojector's place in history, it's helpful to consider the conceptual components of an early EFI system:

Frequently Asked Questions about the Electrojector

What does "Electrojector" mean?

The name is a portmanteau of "electronic" and "injector," reflecting its primary function as an electronically controlled fuel delivery system.

Was the Electrojector truly the first electronic fuel injection system?

Yes, the Bendix Electrojector, introduced in 1956, is widely recognized as the world's first automotive electronic fuel-injection system.

Why was the Electrojector considered a failure?

It faced significant challenges with reliability, cost, and the maturity of electronic technology at the time. These issues led to frequent malfunctions and a lack of widespread adoption.

Did any cars actually use the Electrojector?

Yes, it was offered as an option on select Chrysler Corporation vehicles, including the 1957-1958 Imperial, Chrysler New Yorker, and Dodge Custom Royal.

What is the legacy of the Electrojector?

Despite its initial shortcomings, the Electrojector was a pioneering effort that demonstrated the potential of electronic fuel injection and provided crucial lessons that paved the way for modern, highly efficient EFI systems.

The Enduring Impact on Automotive Engineering

The journey from the Electrojector to today's sophisticated engine control units (ECUs) is a testament to human ingenuity and the relentless pursuit of improvement. While the Electrojector itself might be a footnote in automotive history for many, its conceptual significance is profound. It represented a paradigm shift, moving away from purely mechanical control towards a more intelligent, data-driven approach to managing an engine's core functions. The challenges faced by the Electrojector highlighted the importance of robust electronic components, reliable sensors, and comprehensive system integration – lessons that were heeded by engineers in the subsequent decades.

The shift to electronic fuel injection, spurred by pioneers like Bendix, was instrumental in meeting increasingly stringent emissions regulations and the growing consumer demand for better fuel economy and performance. Modern vehicles owe a great deal to these early, albeit imperfect, attempts. The ability of today's ECUs to precisely control fuel and ignition timing, adapt to varying atmospheric conditions, and diagnose their own faults is a direct lineage from the bold vision of the Electrojector. It’s a reminder that even groundbreaking technologies often require time, refinement, and a willingness to learn from initial setbacks to achieve their full potential.

In conclusion, the Bendix Electrojector, born in an era of burgeoning electronic innovation, stands as a pivotal moment in automotive history. It was a daring venture that, despite its immediate commercial struggles, laid the essential foundation for the fuel-efficient, powerful, and environmentally conscious vehicles that grace our roads today. Its story is a compelling narrative of innovation, challenge, and the enduring legacy of technological foresight.
