Your Fiat Ducato's Essential Oil Changes

Keeping your Fiat Ducato running smoothly and reliably on the UK's roads is paramount, whether it's your workhorse van or your beloved motorhome. At the heart of its performance and longevity lies diligent maintenance, particularly the regular changing of both engine and transmission oils. These fluids are the lifeblood of your vehicle's mechanical components, lubricating moving parts, dissipating heat, and preventing premature wear. Neglecting these crucial services can lead to costly repairs and significantly reduce your Ducato's lifespan. Fortunately, with the right knowledge and tools, performing these oil changes yourself is a straightforward and rewarding task.

Understanding Your Fiat Ducato's Lubrication Needs

The Fiat Ducato, particularly models from the Mk3 (244) to the more recent X290 (2014-2024) and Ducato III Platform/Chassis (250, 290), relies on specific types and volumes of oil for optimal operation. Understanding the distinct roles of engine oil and gearbox oil is the first step towards effective maintenance.

Engine Oil: The Heart's Essential Lubricant

Engine oil is vital for your Ducato's power unit. It lubricates countless moving parts, reduces friction, cools the engine by carrying heat away from hot areas, and cleans by suspending contaminants. Over time, engine oil degrades, loses its viscosity, and accumulates impurities, making regular replacement critical.

• Applicable Models: This guide primarily focuses on the Fiat Ducato Mk3 (244) and the X290 series (2014-2024), which includes the Ducato III Platform/Chassis (250, 290). The principles remain largely similar across these generations.
• Oil Volume: Most Fiat Ducato Mk3 diesel engines (ranging from 2.0 to 2.8 litres) typically require between six and seven litres of engine oil. Always consult your vehicle's workshop or user manual for the precise volume and oil type specific to your engine variant.
• Change Interval: The recommended engine oil change interval for the Fiat Ducato is generally every 10,000 to 15,000 kilometres (approximately 6,000 to 9,000 miles), or at least once a year, whichever comes first. Regular use, especially under heavy loads or in stop-start traffic, might warrant more frequent changes.
• Cost & Time: An engine oil change for a Fiat Ducato typically takes roughly 45 to 60 minutes for a DIY enthusiast. The cost of engine oil can range from approximately £6 to £14 per litre, depending on the brand and specific type required.
• Recommended Brands: Some of the best engine oils for the Fiat Ducato come from reputable brands such as CASTROL, RIDEX PLUS, SHELL, MANNOL, and MOBIL. Always ensure that the oil you choose is approved for your vehicle's specific engine type and meets the required specifications (e.g., API, ACEA ratings).

Gearbox Oil: Ensuring Smooth Gear Changes

Often overlooked, gearbox (or transmission) oil plays an equally critical role in the smooth and efficient operation of your Ducato's gearbox. It lubricates the gears, bearings, and synchronisers, helping to reduce friction, dissipate heat, and facilitate seamless gear shifts. Over time, this oil can also degrade and become contaminated with metallic particles from normal wear, affecting shifting performance and potentially leading to premature gearbox failure.

• Applicable Models: This applies to models such as the Ducato III Platform/Chassis (250, 290) and likely other generations with manual transmissions.
• Oil Volume: While official capacities should always be verified in your Fiat Ducato's manual, a local gearbox repairer has suggested that putting in 3 litres can be beneficial. They claim this slight overfill can help prevent gears from experiencing oil starvation, particularly during spirited driving or on inclines, without negatively affecting overall operation.
• Recommended Type: Tutela Matryx fully synthetic oil has been specifically mentioned by some Ducato owners as providing noticeable improvements in gearbox feel, leading to much smoother shifts. This suggests that the quality and type of gearbox oil can significantly impact the driving experience.
• Change Interval: The provided information indicates that gearbox oil changes are part of the recommended service and replacement schedules for the Ducato III Platform/Chassis (250, 290). Always refer to your Fiat Ducato's official service manual for the exact recommended interval for gearbox oil changes, as this can vary.
• Benefits of Change: Fresh gearbox oil, especially a high-quality synthetic blend, can lead to noticeably smoother gear changes and a reduction in any 'dragging' sensation from the synchronisers. It also allows you to check for excessive metallic swarf on the drain plug, which can indicate internal wear.

Step-by-Step Guide: Changing Your Fiat Ducato's Engine Oil

Performing an engine oil change on your Fiat Ducato is a relatively straightforward procedure. Here's a detailed guide:

1. Preparation is Key

• Safety First: Park your motorhome or van on level ground to ensure all the old oil drains out completely and to facilitate accurate refilling. Engage the handbrake and chock the wheels to prevent any movement while you're working underneath.
• Tools Required: Gather a large drainage tray (capable of holding at least seven litres), an oil filter strap or chain wrench, a 12mm Allen key socket, a breaker bar or ratchet, a funnel, a measuring jug, protective gloves, and plenty of clean cloths or rags. A bag of sand or sawdust can be useful for absorbing larger spills, along with a driveway cleaning product.
• Warm Up the Oil: Run the engine for a couple of minutes to warm the oil. Warm oil is thinner and flows more easily, ensuring a more complete drain. Switch off the engine and select first gear to prevent the vehicle from rolling.
• Release Filler Cap: From under the bonnet, release the oil filler cap. This helps to create an airflow, assisting the oil in draining more efficiently from the sump.

2. The Draining Process

• Locate Drain Plug: Position your large drainage tray directly beneath the engine's sump. The sump plug is usually located at the lowest point of the oil pan.
• Undo the Drain Plug: Use your breaker bar and 12mm Allen key socket to loosen the sump drain plug. If it's stiff or at risk of rounding, a gentle tap with a hammer on the socket can sometimes help. Once slackened, carefully undo the plug by hand, being prepared for the immediate gush of hot oil. Wear gloves to protect your hands.
• Allow Complete Drainage: Allow the oil to drain completely into the tray. This can take several minutes. The previously released filler cap aids in this process by allowing air to flow through the engine.

3. Replacing the Oil Filter

• Remove Old Filter: While the oil is draining from the sump, locate and remove the old oil filter. Use your oil filter strap or chain wrench for this. Have a smaller container ready to catch any oil that will drain from the filter itself.
• Clean Mating Surface: Once the old filter is off, wipe away any excess oil from where the filter mounts onto the engine block. Ensure this mating surface is clean and free of debris.
• Prepare New Filter: Check that your new oil filter is identical in size and thread to the old one, paying particular attention to the rubber seal. Apply a thin smear of fresh engine oil to the rubber seal of the new filter. This lubrication prevents the seal from catching or tearing during installation and helps create a better seal.
• Install New Filter: Carefully screw the new filter into position by hand, turning it clockwise. It should spin on relatively freely. Crucially, only hand-tighten the new oil filter. Do not use any tools to tighten it, as this can lead to over-tightening and damage the filter or its seal, potentially causing leaks.

4. Refilling with Fresh Oil

• Reinstall Sump Plug: Once the oil has finished draining, refit the sump plug. Hand-tighten it initially, then use your ratchet or breaker bar to nip it up securely. If your old copper washer shows any signs of wear or leaking, it's always best practice to fit a new one to ensure a leak-free seal. Clean any oil from around the sump plug and sump area.
• Pour New Oil: Position a funnel into the oil filler cap hole on top of the engine. Pour in the specified quantity of fresh engine oil using your measuring jug. For most Ducato diesel engines, this will be 6-7 litres. Double-check your owner's manual for the exact volume and oil specification.
• Check Dipstick: After pouring in the required oil, wait a couple of minutes for the oil to settle in the sump. Remove the dipstick, wipe it clean, reinsert it fully, and then remove it again to check the oil level. Top up if necessary until the level is between the minimum and maximum marks.

5. Post-Change Checks

• Run Engine: Start the engine and let it run for about one minute. Observe the oil pressure warning light; it should extinguish shortly after starting. Also, carefully check under the vehicle for any signs of leaks around the sump plug and the new oil filter.
• Final Dipstick Check: Switch off the engine and wait another few minutes for the oil to drain back into the sump. Remove the dipstick, wipe it clean, reinsert, and then remove it again for a final, accurate check of the oil level. Adjust as needed.

Step-by-Step Guide: Changing Your Fiat Ducato's Gearbox Oil

Changing your Ducato's gearbox oil is also a manageable task, though the location of the drain and filler plugs can sometimes be a bit more awkward than with engine oil.

1. Preparation and Safety

• Vehicle Positioning: As with engine oil, ensure your Ducato is on level ground and securely supported. Engage the handbrake and chock the wheels.
• Tools: You'll need a suitable wrench or socket for the drain and filler plugs (sizes can vary, so check beforehand), a drain pan, and a pump or large syringe with a flexible hose to refill the gearbox, as the filler hole is often difficult to access directly with a funnel.

2. Draining the Old Gearbox Oil

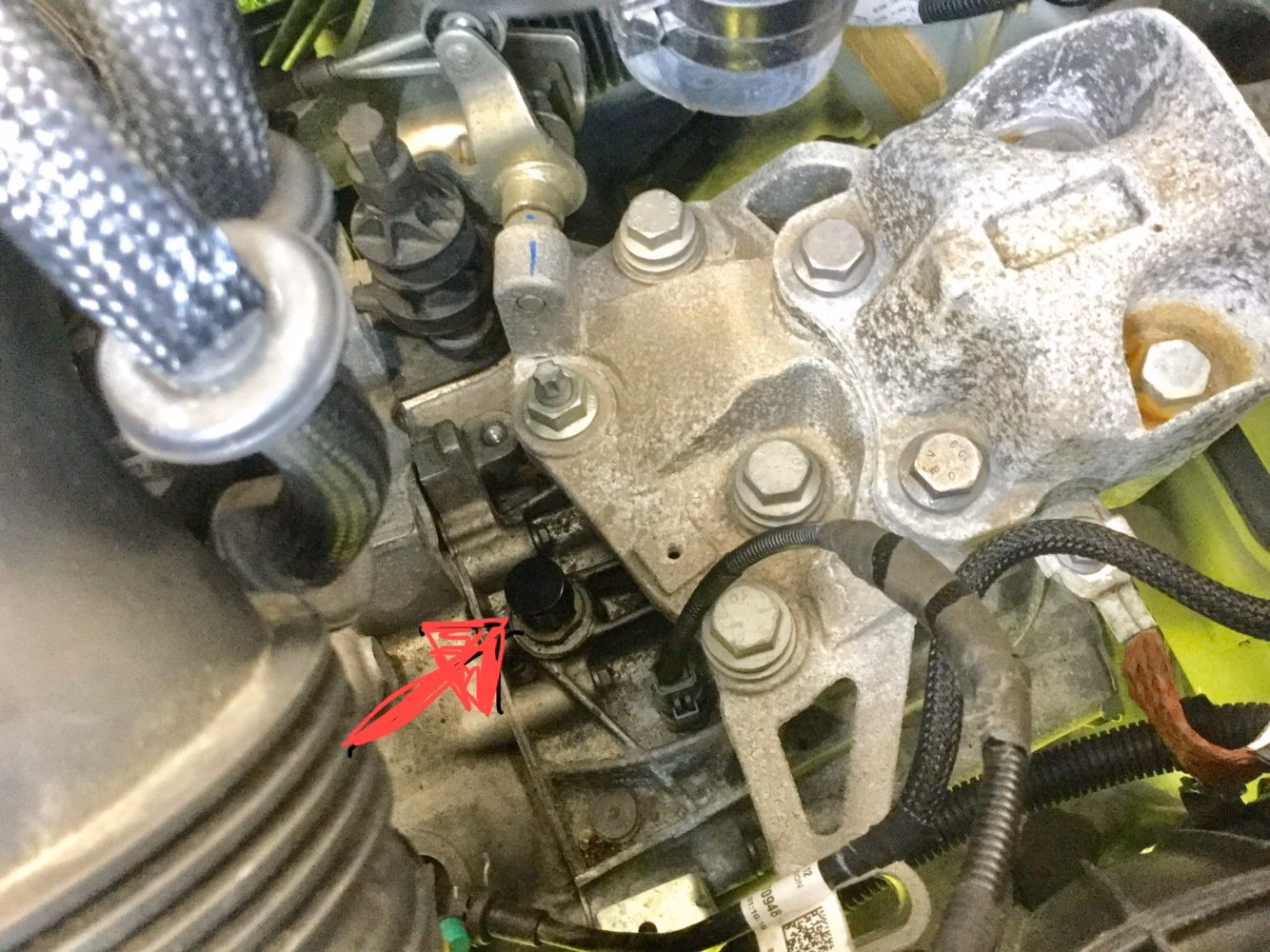

• Locate Plugs: Identify both the drain plug (usually at the bottom of the gearbox casing) and the filler plug (often on the side of the gearbox, higher up). It's always a good idea to attempt to loosen the filler plug first. If you can't loosen the filler plug, you won't be able to refill the gearbox, leaving you stranded.
• Drain Oil: Place your drain pan beneath the gearbox drain plug. Loosen and remove the drain plug. Be prepared for the oil to flow out. While draining, you can inspect the drain plug for any metallic swarf, which can indicate normal wear or potential issues within the gearbox.
• Allow Drainage: Allow ample time for the old gearbox oil to drain completely.

3. Refilling with Fresh Gearbox Oil

• Reinstall Drain Plug: Once drained, clean and reinstall the gearbox drain plug securely.
• Refill: Using your pump or syringe, begin filling the gearbox with the fresh, specified gearbox oil. As mentioned, 3 litres of Tutela Matryx fully synthetic oil has been suggested by some for improved performance. The common practice for manual gearboxes is to fill until the oil just begins to seep out of the filler hole, but given the specific 3-litre suggestion, measure accurately.
• Reinstall Filler Plug: Once the correct volume of oil is in, securely reinstall the gearbox filler plug.

Important Considerations

Disposing of Used Oil

Used engine and gearbox oil is a hazardous waste and must be disposed of responsibly. Never pour it down drains or dispose of it in household waste. Your local council recycling centre or tip will typically have dedicated containers for pouring old engine oil. Collect the used oil in sealed containers (e.g., the empty new oil bottles) and take it to the appropriate facility.

Cleaning Up Oil Spills

Oil spills can be messy and stain driveways. Always have plenty of cloths and rags on hand to mop up any immediate spills. For larger spills, a bag of sand or sawdust can be very effective in absorbing the oil. Specialised driveway cleaning products can also help remove stubborn stains.

Resetting the Oil Change Indicator

After an engine oil change, it's important to reset the oil change indicator on your Fiat Ducato's dashboard, if it has one. The procedure for this varies by model year and specific dashboard configuration, so consult your owner's manual for precise instructions.

Comparative Table: Engine vs. Gearbox Oil

Here's a quick comparison of the two vital fluids:

Frequently Asked Questions (FAQs)

How often should I change the engine oil in my Fiat Ducato?

The recommended engine oil change interval for the Fiat Ducato is typically every 10,000 to 15,000 kilometres (approx. 6,000-9,000 miles) or at least once a year, whichever comes first. Always refer to your specific vehicle's owner's manual for the most accurate recommendation based on your engine type and usage.

How often should I change the gearbox oil in my Fiat Ducato?

The frequency for changing gearbox oil is less standardised than engine oil and often depends on the manufacturer's recommendations for your specific model year and transmission type. It's listed as part of the recommended service and replacement schedules for Ducato III Platform/Chassis (250, 290). Always consult your Fiat Ducato's official service manual for the precise interval.

What type of engine oil should I use for my Fiat Ducato?

The correct engine oil type (e.g., viscosity grade like 5W-30, 5W-40, and specific ACEA/API ratings) is crucial. Always check your Fiat Ducato's user manual for the exact specifications. Popular and reliable brands for Ducato include CASTROL, RIDEX PLUS, SHELL, MANNOL, and MOBIL.

What type of gearbox oil should I use for my Fiat Ducato?

For the Fiat Ducato gearbox, a fully synthetic oil like Tutela Matryx has been noted by users to significantly improve shift quality. However, always verify the specific oil type recommended in your Ducato's manual to ensure compatibility and optimal performance.

How much engine oil does my Fiat Ducato need?

Most Fiat Ducato diesel engines (Mk3) require between 6 and 7 litres of engine oil. It is essential to refer to your vehicle's specific handbook for the precise volume required for your engine variant.

How much gearbox oil do I put in a Fiat Ducato?

While official fill levels should be confirmed in your manual, a local gearbox repairer has suggested that 3 litres is a beneficial volume for the Ducato gearbox, potentially aiding in preventing oil starvation and improving lubrication.

Can I change the oil on my Fiat Ducato myself?

Yes, changing both the engine oil and the oil filter on a Fiat Ducato is considered a relatively straightforward DIY operation. Changing the gearbox oil is also manageable. With the right tools and adherence to safety procedures, it's a worthwhile job to perform independently.

What are the signs that I need an oil change?

Beyond the recommended mileage/time intervals, signs that you might need an oil change include a dark, sludgy appearance of the oil on the dipstick, a knocking or grinding sound from the engine (or clunky gear shifts for transmission), a burning oil smell, or the illumination of your oil pressure/service indicator light on the dashboard.

Why is the oil filter important during an engine oil change?

The oil filter is crucial because it traps contaminants, dirt, and metallic particles from the engine oil, preventing them from circulating and causing damage to engine components. Replacing it with every oil change ensures that the new, clean oil remains pure and effective for longer.
