BMW F10 Brake Pads: Your Ultimate UK Guide

Ensuring your BMW 5 Saloon (F10) has effective and reliable braking is paramount for both safety and driving pleasure. Brake pads are a critical component of your vehicle's braking system, designed to provide the necessary friction to slow down and stop your car. As consumable parts, they require regular inspection and replacement. This comprehensive guide will delve into everything you need to know about purchasing, selecting, costing, and even replacing brake pads for your cherished BMW F10.

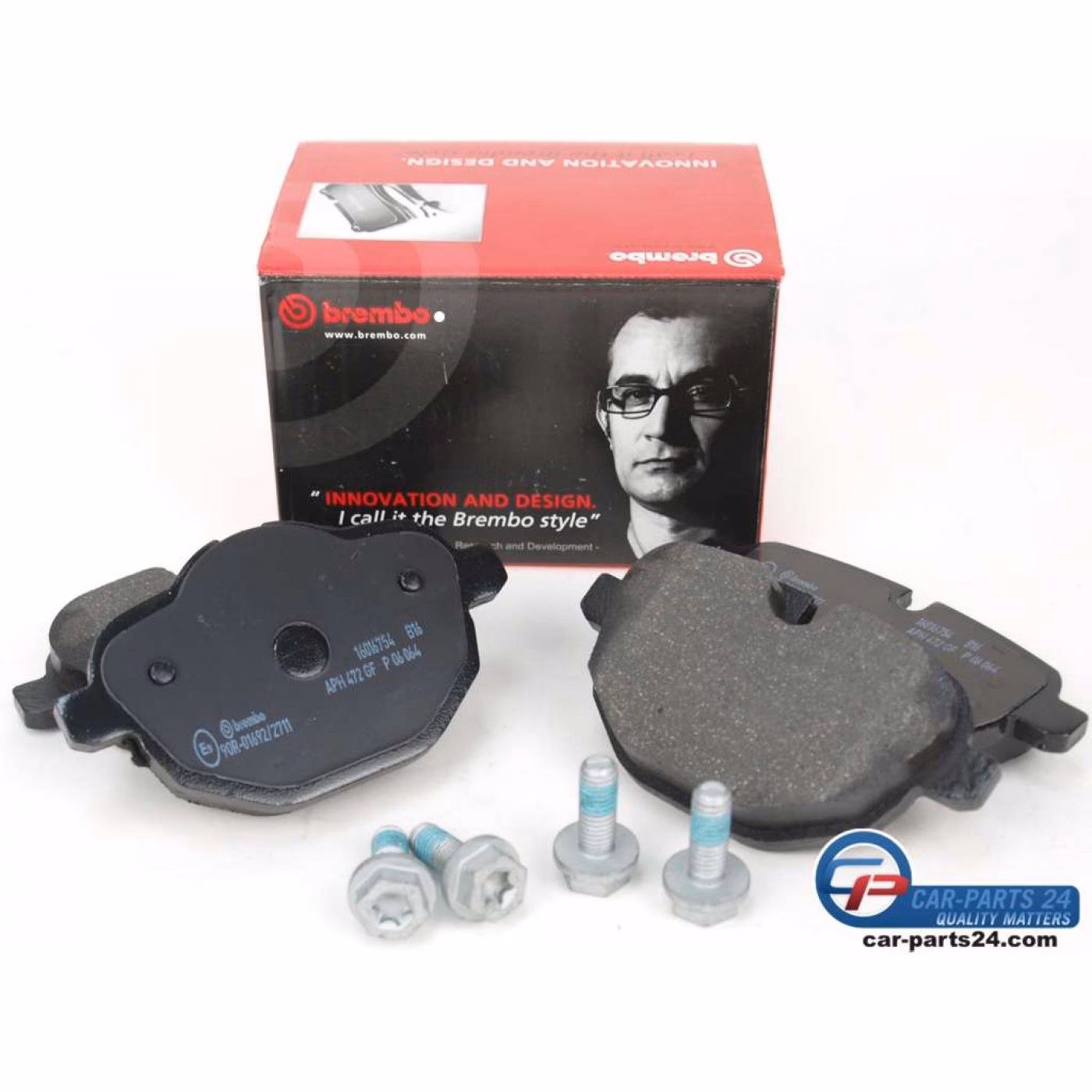

Where to Purchase Brake Pads for Your BMW F10?

When it comes to sourcing brake pads for your BMW 5 Saloon (F10), you have several avenues available, each with its own advantages. The choice often depends on your budget, urgency, and preference for genuine parts versus aftermarket alternatives.

• Authorised BMW Dealerships: For guaranteed genuine BMW parts, an authorised dealership is your primary port of call. While often the most expensive option, you receive parts specifically designed and tested for your F10, ensuring perfect fitment and performance. They also come with a manufacturer's warranty.
• Reputable Online Retailers: The internet offers a vast marketplace for car parts, often at competitive prices. Websites specialising in BMW parts or general automotive spares (like Euro Car Parts, GSF Car Parts, or specific BMW parts sites in the UK) can provide a wide selection of aftermarket and OEM equivalent brands. Always ensure the retailer is reputable and that the parts are specified for your exact F10 model and year.
• Independent Automotive Parts Stores: Local or national auto parts chains often stock a range of brake pads from various manufacturers. These stores can offer a good balance of price and accessibility, and staff can sometimes provide immediate advice.
• Specialist BMW Breakers/Scrapyards: While not recommended for critical safety components like brake pads, some enthusiasts might consider this for non-essential parts. However, for brake pads, always opt for new components to ensure maximum safety and performance.

Regardless of where you purchase, always double-check the part numbers against your vehicle's specifications to ensure compatibility.

Which Brake Pad Brand is Best for Your BMW F10?

Choosing the right brand of brake pads is crucial for your BMW F10's performance, feel, and durability. According to feedback from numerous BMW owners, several brands consistently stand out for their quality and reliability. Here's a look at some of the best options available in the UK market:

Top Recommended Brands:

• RIDEX: Often praised for offering excellent value for money, RIDEX brake pads are a popular choice for those seeking a balance between performance and affordability. They are a reliable aftermarket option that performs well in everyday driving conditions.
• STARK: Similar to RIDEX, STARK provides a cost-effective solution without compromising significantly on quality. They are known for solid, dependable performance for general road use.
• RIDEX PLUS: An enhanced version of the standard RIDEX, these pads are designed to offer improved performance and durability, making them a step up for drivers looking for a bit more without breaking the bank.
• BREMBO: A globally recognised name in braking technology, Brembo pads are synonymous with high performance and quality. While typically at the higher end of the price spectrum, they offer superior stopping power, reduced fade, and excellent durability, making them a favourite for enthusiasts and those who demand the best.
• ABAKUS: Another aftermarket brand that provides a reliable and economical choice for routine brake pad replacement. ABAKUS pads offer consistent performance suitable for standard driving.

Comparative Overview of Popular Brake Pad Brands:

To help you decide, here's a simplified comparison of some key attributes:

Your choice should align with your driving style and budget. For everyday commuting, a reliable aftermarket brand like RIDEX or STARK is often perfectly adequate. If you're a spirited driver or frequently carry heavy loads, investing in premium pads like Brembo can provide an added layer of confidence and performance.

How Much Do BMW 5 Saloon (F10) Brake Pads Cost?

The price of a brake pad kit for your BMW 5 Saloon (F10) can vary significantly, typically ranging from £20 to £104. This wide range is influenced by several key factors:

• Brand: As seen above, premium brands like Brembo will naturally command a higher price than budget-friendly aftermarket options.
• Axle (Front vs. Rear): Front brake pads are often more expensive than rear pads. This is because front brakes perform the majority of the stopping power and thus require larger, more robust pads.
• Material Composition: Brake pads come in various materials, including organic, semi-metallic, and ceramic. Ceramic pads, known for their quiet operation, low dust, and excellent performance, are generally the most expensive. Semi-metallic pads offer good all-around performance and are a common choice.
• Vehicle Specifications: Performance models or those with larger brake systems (e.g., M Sport versions) may require specific, more expensive pads.
• Inclusion of Wear Sensors: Many modern BMWs, including the F10, utilise electronic brake wear sensors. Some brake pad kits include these sensors, while others require them to be purchased separately, which affects the overall cost.

It's always advisable to get quotes for both front and rear axles if you're considering a full brake service, and to factor in the cost of wear sensors if they're not included.

Do F10s Need Service Pads? Understanding OEM Strategy

The concept of "service pads" for the BMW F10 isn't about a specific type of pad but rather the manufacturer's strategic approach to consumable parts. BMW, like other OEMs (Original Equipment Manufacturers), designs its vehicles with components that will require regular replacement. Brake pads are a prime example of such a high-demand consumable.

Consider the sheer volume of F10s sold worldwide over its production run. Even as the model reaches the end of its typical lifespan, there's a massive global "car park" of these vehicles still on the road, all of which will eventually need brake pad replacements. Unlike a sun visor, which has virtually zero service demand, brake pads are a guaranteed future sale. If a 'service pad' were designed with marginally less durability than a hypothetical 'lifetime' pad, it would simply increase the frequency of sales for the OEM or their approved suppliers.

This business model ensures a consistent revenue stream for manufacturers and parts suppliers. It's a fundamental aspect of the automotive aftermarket economy, where components designed for wear and tear, like brake pads, tyres, and filters, represent a significant and ongoing earning potential for the industry. So, while there isn't a specific 'service pad' product, the entire brake pad market thrives on the inherent wear characteristics of these essential components.

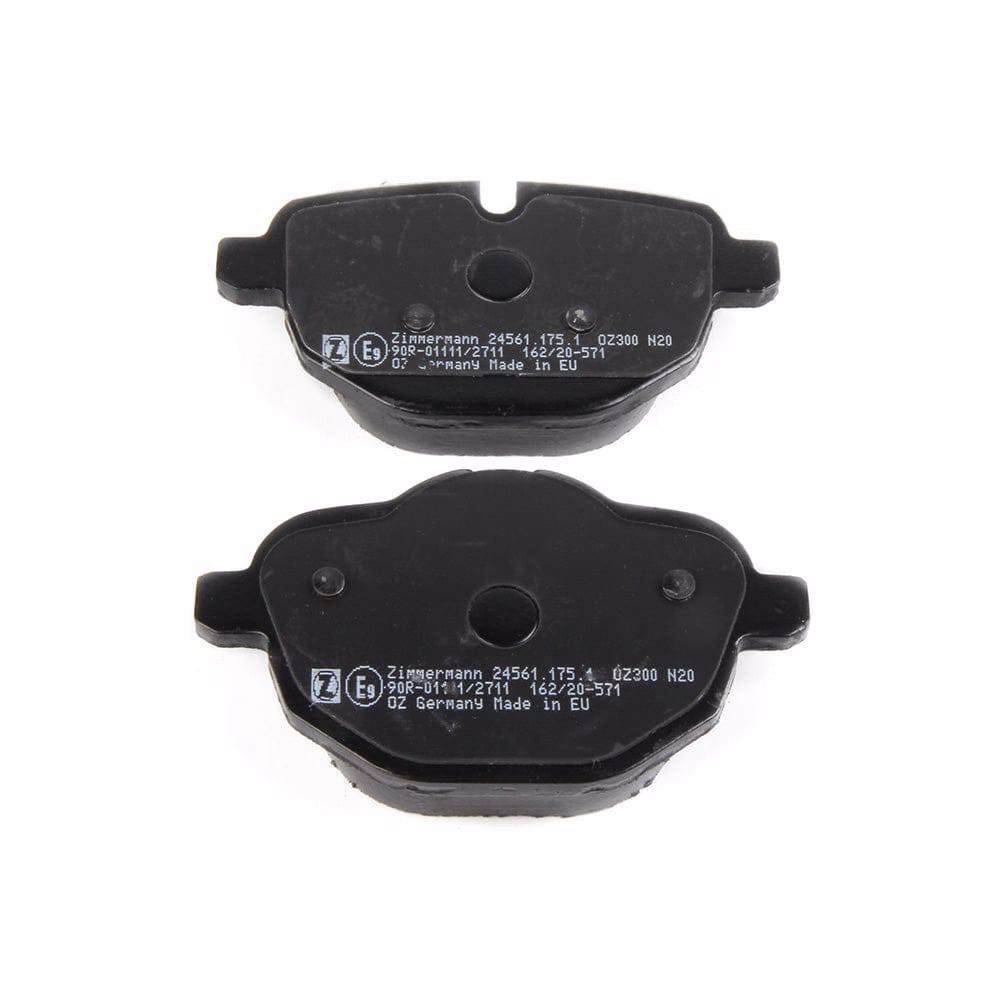

How to Replace Rear Brake Pads and Reset EMF Brakes on a BMW F10

Replacing the rear brake pads on your BMW F10, particularly with its Electronic Parking Brake (EMF), requires careful attention to detail. While it's a DIY task for the mechanically inclined, always prioritise safety and ensure you have the correct tools. This guide focuses on the rear axle, which includes the EMF system.

Important Safety Precautions:

• Work on a level surface.
• Use sturdy jack stands to support the vehicle after lifting. Never rely solely on a jack.
• Wear appropriate personal protective equipment (gloves, eye protection).
• Ensure the vehicle is in Park (P) and the parking brake is disengaged. Disconnecting the battery's negative terminal can prevent accidental activation of electronic systems, though not always strictly necessary for this procedure.
• If you are unsure at any point, consult a professional mechanic.

Tools You'll Likely Need:

• Wheel nut wrench (17mm or specific to your wheel nuts)
• Torx bits (T20, T30 or similar star key bolts for actuator)
• Socket wrench with 13mm socket
• Small flat-head screwdriver
• Brake piston compression tool or large C-clamp
• Wire brush or sandpaper
• Brake cleaner spray
• Copper grease or high-temperature brake lubricant
• New brake pads (including wear sensor if applicable)
• Jack and jack stands

Off-Side Rear Brake Pads Replacement (Driver's Side UK):

This side typically has the brake wear sensor.

1. Prepare the Vehicle: Loosen the wheel nuts while the car is on the ground. Jack up the rear of the car and secure it safely on jack stands. Remove the wheel completely.
2. Disconnect EMF Brake Actuator Cable: Locate the electrical cable connected to the EMF brake actuator on the rear of the caliper. Carefully unplug it. Release the cable from any brackets and unclip it further back to move it away from your working area. While not strictly necessary for pad removal, it provides more space and prevents accidental damage.
3. Remove Pad Wear Sensor (if present): If your existing pad wear sensor is still intact and you plan to reuse it (though replacement is highly recommended with new pads), carefully unclip it from the inner friction pad using a small flat-head screwdriver. Move it clear of the work area. If replacing, simply unclip and remove the old sensor.
4. Detach EMF Handbrake Actuator: The EMF handbrake actuator is secured to the caliper with two small Torx bolts (star key bolts, not Allen key bolts). One of these bolts will often hold a cable bracket. Unscrew both bolts. Carefully remove the actuator from the caliper. If the cable is still attached (e.g., you didn't fully disconnect it in step 2), you can rest the actuator safely on a suspension wishbone, ensuring no strain on the cable.
5. Remove Floating Caliper Section: The central section of the caliper, which houses the piston, is a floating design. It's held in place by two 13mm bolts that pass through two small rubber gaiters. Unscrew these two 13mm bolts. Once loosened, carefully remove this section of the caliper. Do not let it hang by the brake hose, as this can damage the hose. Rest it safely on a suspension component or support it with a wire.
6. Remove Old Brake Pads: With the caliper section out of the way, the old brake pads can now simply be slid sideways and removed from the disc. Note their orientation.
7. Remove Metal Shims/Retaining Clips: There are usually metal shims or retaining clips on the caliper carrier where the pads sit. Carefully remove these, making a note of their exact location and orientation, as they must be replaced correctly.
8. Clean Caliper Sliding Areas: Using a wire brush and brake cleaner, thoroughly clean all sliding surfaces of the caliper carrier and the face of the piston. Remove any rust, dirt, or old grease. This is crucial for the new pads to move freely and wear evenly.
9. Reset Piston for EMF Brake: This is a critical step for the EMF system. On the central caliper at the rear of the piston, where the actuator spline fits, you will see a spline mechanism. Using a small flat-blade screwdriver, gently turn this spline clockwise until it comes to a complete stop. Do not turn it anticlockwise, as this will push the piston out further. This action retracts the internal mechanism of the EMF piston.
10. Compress Piston: Once the spline is reset, use a pressure clamp or a dedicated brake piston compression tool to gently and slowly squeeze the piston back into the caliper body. Ensure there is sufficient capacity in the brake fluid reservoir under the bonnet to accommodate the returning fluid. Do not force it; it should retract smoothly.
11. Install New Metal Shims/Retaining Clips: Locate the new metal shims or retaining clips (often supplied with new pads or reused if in good condition) onto the caliper upper and lower faces exactly as the old ones were.
12. Lubricate and Install New Pads: Lightly lubricate the piston face and the contact points of the new pads (where they touch the retaining clips) with copper grease or a similar high-temperature brake lubricant. Be careful not to get grease on the friction material. Slide the new pads into their correct locations. If you have a new pad wear sensor, attach it to the inner pad now. Remember to route the pad wear cable through the sliding caliper section at this time.
13. Reinstall Central Caliper Section: Carefully slide the central caliper section back into position over the new pads.
14. Replace Caliper Bolts: Replace the two 13mm bolts that secure the caliper section and tighten them to the manufacturer's specified torque (consult a repair manual if unsure).
15. Reattach EMF Handbrake Actuator: Offer up the EMF handbrake actuator to the rear of the caliper. Carefully align its spline with the corresponding mechanism on the piston. When correctly located, the actuator will sit flush against the rear of the caliper. Replace the cable bracket (if applicable) and re-install and tighten the two Torx bolts (star key bolts).
16. Reconnect Cables: If you removed it, re-plug the actuator cable to the EMF actuator. Replace both the actuator cable and the pad wear sensor cable into their respective brackets and re-clip them further back as they were originally.
17. Reinstall Wheel: Replace the wheel and hand-tighten the wheel nuts.
18. Lower Vehicle: Carefully lower the car to the ground and fully tighten the wheel nuts to the manufacturer's torque specification.

Near-Side Rear Brake Pads Replacement (Passenger's Side UK):

The procedure for the near-side rear brake pads is largely the same as the off-side, with one key difference:

19. Repeat Procedure: Follow steps 1 through 18 for the near-side brake pads replacement.
20. No Pad Wear Sensor: Note that there is typically no pad wear sensor on this side. You can skip any steps related to sensor removal or installation.

Handbrake and Footbrake Operation After Replacement:

Once both rear pad replacements are complete and the car is safely on the ground, follow these crucial steps to set the EMF brake:

21. Pump Footbrake: With the car stationary and off, press the footbrake pedal firmly a few times. You will feel the pedal firm up as the pistons seat the new pads against the discs. This is vital to ensure the main hydraulic braking system is functional.
22. Activate EMF Brake: With your foot still firmly on the footbrake pedal, start the car. Now, activate the handbrake button (pull up to engage, push down to release) a few times. You should hear the EMF actuators working. This action will cycle the EMF brake and set it into proper working order, calibrating it to the new pad thickness.
23. Verify Auto Hold: With the handbrake released, test the brake auto-hold function if your car is equipped with it. It should now work correctly.

Your brake pad replacement job is now complete. Remember that BMW recommends a soft or gentle braking period for approximately 100 miles or so. This 'bedding-in' process allows the new pads to conform perfectly to the brake discs, optimising performance and preventing premature wear or noise. Avoid harsh braking during this period.

Frequently Asked Questions (FAQs)

Here are some common questions about BMW F10 brake pads:

How often should I replace my BMW F10 brake pads?

The lifespan of brake pads varies significantly based on driving style, road conditions, and the type of pads. Generally, front pads might last 20,000-40,000 miles, while rear pads can last longer, often 40,000-60,000 miles, as they do less work. Your F10's iDrive system will notify you when replacement is due via the brake wear sensor.

What are the signs of worn brake pads?

Common signs include a squealing or grinding noise when braking (indicating worn pads or metal-on-metal contact), a vibrating brake pedal, a spongy brake pedal, or a longer stopping distance. The most definitive sign for an F10 is the warning message on your iDrive screen.

Can I replace only the front or rear brake pads?

Yes, you can replace pads on one axle (front or rear) independently. It's common for front pads to wear out faster. However, always replace pads as a set (both left and right) on the same axle to ensure even braking performance.

What is the 'bedding-in' process for new brake pads?

Bedding-in is the process of gently heating and cooling new brake pads and discs through controlled braking. This transfers a thin, even layer of pad material onto the disc, optimising friction and preventing noise or judder. It typically involves a period of gentle braking for the first 100-200 miles, avoiding sudden stops or prolonged heavy braking.

Why is my brake fluid reservoir full after replacing pads?

When you compress the brake pistons to fit new, thicker pads, the brake fluid is pushed back into the reservoir. It's important to monitor the fluid level and potentially remove some if it's overfilled to prevent spills. Never overfill the reservoir, as brake fluid expands when hot.

Can I use ceramic brake pads on my F10?

Yes, many F10 owners opt for ceramic brake pads. They are known for producing less brake dust, quieter operation, and good performance. However, they can be more expensive and may require more heat to reach their optimal operating temperature compared to semi-metallic pads.

Conclusion

Maintaining your BMW F10's braking system is not just about keeping it roadworthy; it's about preserving the safety and performance you expect from a premium vehicle. By understanding where to buy quality parts, choosing the right brand, being aware of costs, and knowing how to perform routine maintenance like pad replacement, you can ensure your F10 continues to provide a safe and enjoyable driving experience. Always remember that when it comes to brakes, safety should be your absolute top priority.
