Hyundai i10 Engine Light: Understanding Cam Timing Faults

Few dashboard warnings strike as much dread into a driver's heart as the illumination of the engine warning light. For owners of a 2015 Hyundai i10, particularly when accompanied by specific fault descriptions like 'cam timing fault' and noticeable reduced acceleration, this light signals more than just a minor hiccup. It points to a potentially serious issue within the very heart of your engine's operation.

Understanding what this warning means, why it appears, and the appropriate steps to take is paramount. Ignoring such a critical indicator can lead to significant, and often expensive, engine damage. This article will thoroughly explore the implications of a cam timing fault in your Hyundai i10, guiding you through the diagnostic process and explaining why even professional interventions sometimes require further investigation.

Understanding Your Hyundai i10's Engine Warning Light

The engine warning light, often depicted as an engine outline or 'CHECK ENGINE', is your car's primary way of telling you that its onboard diagnostic (OBD-II) system has detected a fault. Modern vehicles like the 2015 Hyundai i10 are equipped with numerous sensors that constantly monitor various engine parameters, from oxygen levels in the exhaust to the speed of the crankshaft. When any of these parameters fall outside their predefined normal operating range, the Electronic Control Unit (ECU) logs a Diagnostic Trouble Code (DTC) and illuminates the warning light.

While the light itself doesn't specify the exact problem, it's a general alert that something isn't right. The fault could be as simple as a loose fuel cap or as complex and critical as a major engine component malfunction. In your case, with the specific mention of a 'cam timing fault', the ECU has pinpointed an issue directly related to the synchronisation of your engine's internal components.

Decoding the 'Cam Timing Fault'

At the core of an internal combustion engine's efficiency and power delivery is precise timing. The 'cam timing' refers to the synchronisation between the crankshaft and the camshafts. The crankshaft controls the movement of the pistons, while the camshafts control the opening and closing of the engine's intake and exhaust valves. For your engine to run efficiently, the valves must open and close at precisely the right moment in relation to the piston's position. This ensures optimal air-fuel mixture intake and exhaust gas expulsion.

A 'cam timing fault' indicates that this critical synchronisation has been disrupted. Common reasons for such a fault include:

• Stretched Timing Chain: Many modern engines, including the Hyundai i10, utilise a timing chain instead of a belt. While chains are generally more durable, they can stretch over time, especially if oil changes are neglected or low-quality oil is used. A stretched chain leads to a slight misalignment between the crankshaft and camshafts.

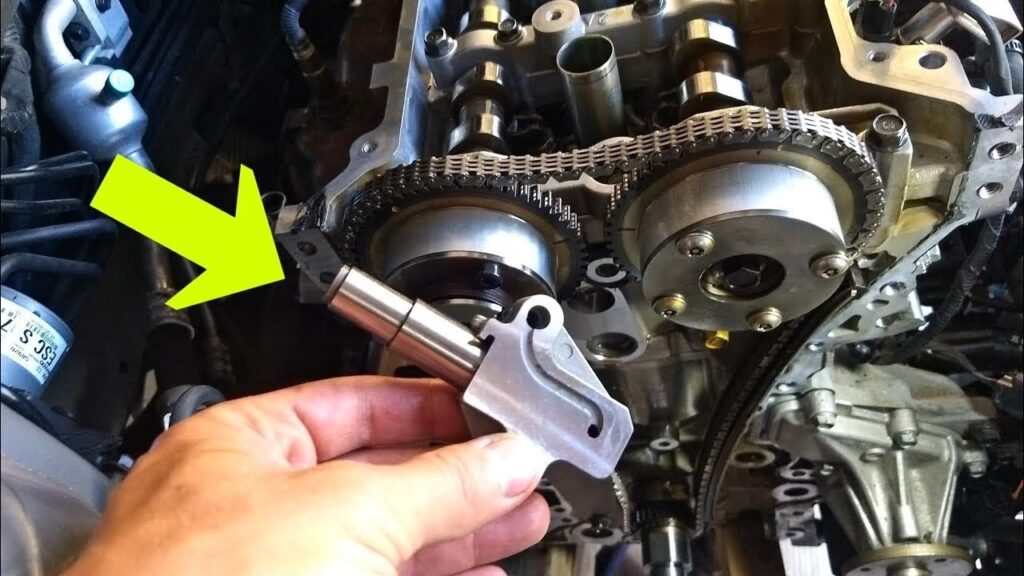

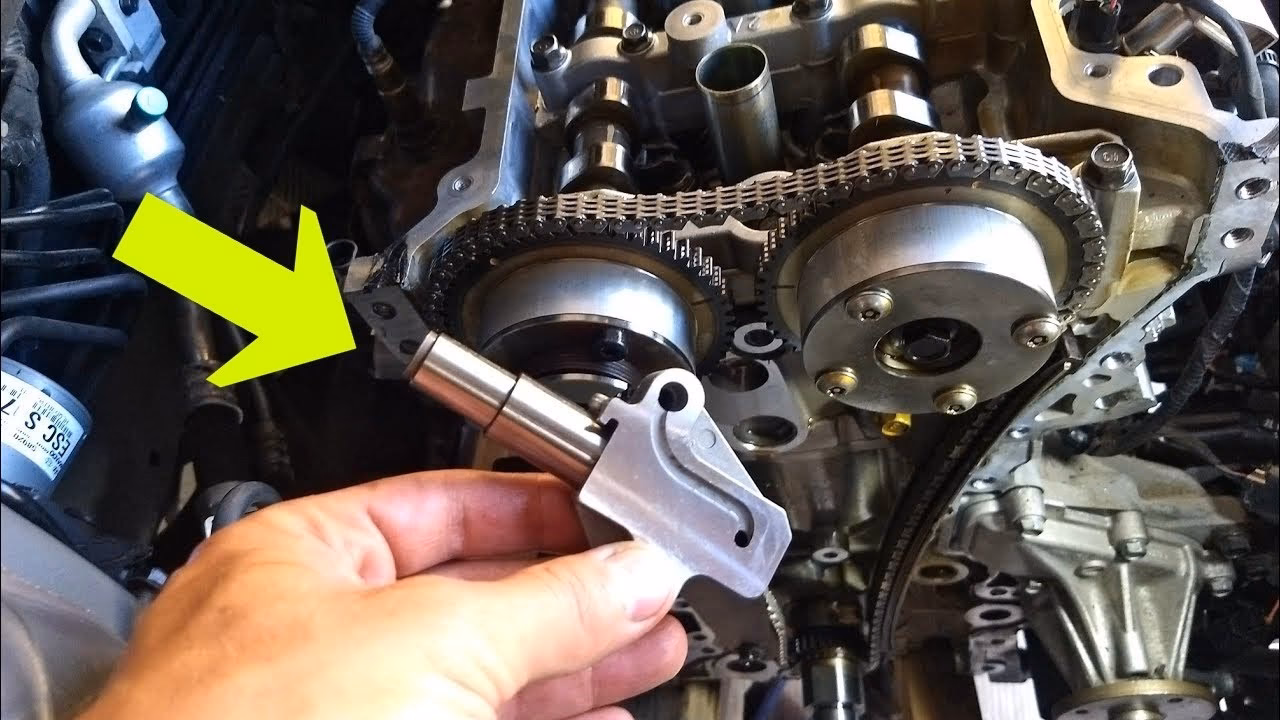

• Worn Timing Chain Tensioners: These components maintain the correct tension on the timing chain. If a tensioner fails or becomes worn, the chain can become slack, leading to timing inaccuracies.

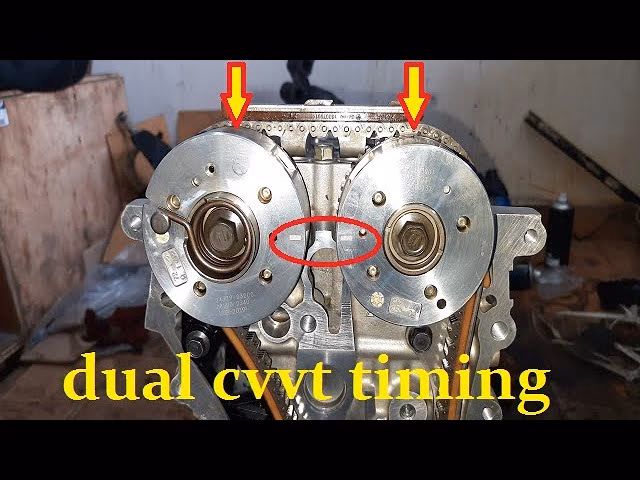

• Faulty VVT (Variable Valve Timing) Actuators: Many engines have variable valve timing systems that adjust cam timing based on engine speed and load for improved performance and fuel economy. Faulty VVT solenoids or actuators can cause timing issues.
• Camshaft Position Sensor Malfunction: These sensors monitor the position and speed of the camshafts, sending this data to the ECU. If a sensor provides inaccurate readings, the ECU might wrongly perceive a timing fault or fail to accurately control the timing.
• Crankshaft Position Sensor Malfunction: Similarly, issues with the crankshaft position sensor can lead to incorrect timing calculations.
• Oil Pressure Issues: VVT systems often rely on oil pressure to operate. Low oil pressure or clogged oil passages can affect VVT functionality, leading to timing faults.

When the timing is off, even slightly, the engine cannot 'breathe' properly. Valves may open too early or too late, leading to incomplete combustion, misfires, reduced power, and, significantly, reduced acceleration.

Common Engine Codes Associated with Timing Issues

When your garage performs a diagnostic scan, specific DTCs will be logged that point to timing-related issues. For a cam timing fault, you're likely to see codes such as:

These codes indicate that the ECU detects a discrepancy between the expected and actual positions of the crankshaft and camshafts, or a problem with the sensors monitoring them.

Why Reduced Acceleration Matters

The reduced acceleration you're experiencing is a direct symptom of the cam timing fault. When the timing is off, the engine's ability to efficiently take in air and expel exhaust gases is compromised. This leads to:

• Loss of Power: The engine isn't making its full power output because combustion isn't occurring optimally.
• Poor Fuel Economy: Incomplete combustion means more fuel is used for less power.
• Limp Mode: To protect itself from further damage, the ECU may put the vehicle into a 'limp home' mode. This significantly reduces engine power and limits RPMs, allowing you to drive safely to a repair facility but preventing high-speed driving or heavy acceleration.
• Increased Emissions: Inefficient combustion also leads to higher levels of harmful emissions.

From a safety perspective, reduced acceleration can be dangerous, making it difficult to merge onto motorways or overtake other vehicles. It's a clear signal that the engine is under stress and requires immediate professional attention.

Troubleshooting Steps Taken and Why the Light Persists

Your garage's initial steps – checking timing chain tensioners, performing a full service with high-grade oil, and replacing the cam sensor with a genuine Hyundai part – were all logical and appropriate actions. Let's break down why these were good starting points:

• Timing Chain Tensioners: As mentioned, these are critical for maintaining correct chain tension. If they are worn or failing, the chain can slacken, causing timing issues. Checking or replacing them addresses a common mechanical cause.
• Full Service and High-Grade Oil: Regular servicing and using the correct specification, high-grade engine oil are vital for the longevity of the timing chain and the proper functioning of the VVT system. Oil lubricates the chain, reduces wear, and is often used to actuate the VVT components. Dirty or low-quality oil can accelerate wear and clog VVT passages.
• Cam Sensor Replacement: The camshaft position sensor is a key component in monitoring cam timing. If it's faulty, it can send incorrect signals to the ECU, leading to a false timing fault or genuinely failing to detect an issue. Using a genuine Hyundai part is always recommended for critical sensors to ensure compatibility and reliability.

However, the fact that the warning light has come on, gone off, and then come on again indicates that the root cause may not have been fully resolved, or there's an intermittent issue at play. Here are some reasons why the problem might persist:

• Stretched Timing Chain Itself: While the tensioners were checked, the chain itself might be stretched beyond the tensioner's ability to compensate. This is a common issue that requires full timing chain replacement.
• Faulty VVT Actuator/Solenoid: Even with a new cam sensor, if the variable valve timing actuator is sticking or malfunctioning, it will cause timing discrepancies. These components are oil-pressure dependent and can fail.
• Wiring or Connector Issues: Intermittent faults often point to a poor electrical connection or damaged wiring. A slight movement or vibration could temporarily break the circuit, causing the light to come on, then off, then on again. This requires thorough electrical diagnostics.
• Crankshaft Position Sensor: While the cam sensor was replaced, the crankshaft sensor also plays a crucial role in timing. A fault with this sensor could also cause correlation errors.
• ECU Software or Hardware Issue: Though less common, a glitch in the ECU's software or a hardware fault within the unit itself could be misinterpreting signals or failing to clear codes properly.
• Another Underlying Mechanical Issue: There might be a deeper mechanical issue, such as worn camshaft lobes, bent valves (if the timing jumped significantly), or issues within the cylinder head.
• Incorrect Initial Diagnosis: While the garage's steps were logical, sometimes the initial diagnosis misses a subtle underlying cause.

What to Do When the Light Persists

When the engine warning light, especially for a cam timing fault, continues to reappear after initial repairs, it's crucial not to ignore it. Here's your next course of action:

• Return to Your Garage: Go back to the garage that performed the initial work. Explain the intermittent nature of the fault. They should have records of the previous work and diagnostic codes.
• Request Deeper Diagnostics: Ask for a more in-depth diagnostic process. This should include:
  • Live Data Analysis: Instead of just reading codes, the mechanic should monitor live data streams from the camshaft and crankshaft position sensors while the engine is running. This can reveal intermittent signal dropouts or discrepancies in real-time.
  • Scope Testing: Using an oscilloscope to check the waveforms from the cam and crank sensors can definitively show if there's a correlation issue or a sensor signal problem.
  • Oil Pressure Check: Verify that the engine oil pressure is within specifications, especially if VVT issues are suspected.
  • Visual Inspection of Timing Chain: If possible, a visual inspection of the timing chain and gears might be necessary, sometimes requiring partial engine disassembly.
  • Check for Technical Service Bulletins (TSBs): Hyundai may have issued TSBs for known issues related to timing chains or VVT systems on 2015 i10 models. Your garage should check for these.
• Consider a Timing Chain Kit Replacement: If all other avenues are exhausted and there's strong suspicion of a stretched chain, a full timing chain kit replacement (including chain, guides, tensioners, and possibly sprockets) might be the ultimate solution. This is a more significant repair but often resolves persistent timing issues.
• Avoid Prolonged Driving: While the light is on and acceleration is reduced, limit your driving to essential journeys. Continued operation with incorrect timing can lead to catastrophic engine damage, such as bent valves impacting pistons, which would necessitate a complete engine rebuild or replacement.

The Importance of Professional Diagnosis

Attempting to fix a cam timing fault yourself, or relying on guesswork, is highly ill-advised. Engine timing is a complex system that requires specialised tools, diagnostic equipment, and a deep understanding of engine mechanics. A professional mechanic with experience in Hyundai vehicles will have:

• Advanced Diagnostic Tools: Beyond basic code readers, they use sophisticated scanners that can read live data, perform actuator tests, and access manufacturer-specific diagnostic routines.
• Technical Knowledge: They understand the intricacies of engine timing, VVT systems, and how various sensors interact.
• Experience: They've likely encountered similar issues before and know the common failure points for a Hyundai i10.
• Access to Technical Information: They can access Hyundai's service manuals, TSBs, and wiring diagrams, which are crucial for accurate diagnosis.

Investing in a thorough professional diagnosis now can save you significantly more money down the line by preventing irreversible engine damage.

Preventative Maintenance for Your i10's Timing System

While some failures are unpredictable, regular maintenance can significantly extend the life of your Hyundai i10's timing system:

• Adhere to Oil Change Intervals: This is perhaps the most crucial preventative measure. Fresh, clean oil lubricates the timing chain and allows the VVT system to operate correctly. Dirty or degraded oil can lead to premature wear and sludge buildup.
• Use the Correct Oil Specification: Always use the engine oil specified in your owner's manual. The wrong viscosity or type can impact lubrication and VVT performance.
• Listen for Unusual Noises: A rattling or clattering noise from the front of the engine, especially on cold start-up, can be an early indicator of a worn or stretched timing chain or failing tensioners.
• Regular Servicing: Stick to your i10's recommended service schedule. A good service includes checks on fluid levels and overall engine health.

The timing chain on a Hyundai i10 is generally designed to last the lifetime of the vehicle. However, 'lifetime' doesn't mean infinite. Factors like driving style, maintenance history, and even manufacturing tolerances can affect its longevity. Early detection of issues, such as a persistent engine warning light with reduced acceleration, is key to preventing more severe problems.

Frequently Asked Questions (FAQs)

Can I drive with the engine warning light on if it's a cam timing fault?

It is strongly advised against prolonged driving. While your car might still run, incorrect cam timing can cause further damage to internal engine components, such as valves, pistons, and cylinder head. The reduced acceleration also poses a safety risk. Drive only as far as necessary to get to a garage.

How much does a cam timing repair cost on a Hyundai i10?

The cost varies significantly depending on the exact cause. A simple cam sensor replacement might be a few hundred pounds. However, if it requires a full timing chain kit replacement, including labour, it can run into four figures, typically from £800 to £1,500 or more, as it's a labour-intensive job.

Is a cam timing fault always serious?

Yes, a cam timing fault is generally considered serious. It indicates that the fundamental synchronization of your engine's moving parts is compromised. Left unaddressed, it can lead to severe engine damage, engine failure, or at the very least, significantly reduced performance and fuel economy.

How long does a timing chain typically last on a Hyundai i10?

Timing chains are designed to last the life of the vehicle, often exceeding 100,000 to 150,000 miles. However, factors such as infrequent oil changes, using incorrect oil, or manufacturing defects can lead to premature stretching or tensioner failure.

What's the difference between a timing belt and a timing chain?

A timing belt is made of reinforced rubber and requires replacement at specific mileage intervals (e.g., every 60,000-100,000 miles). A timing chain is made of metal, lubricated by engine oil, and generally designed to last much longer, often the life of the engine. However, chains can stretch, and their tensioners can fail, leading to similar timing issues as a broken belt.
