ECU Remapping: Unleash Your Car's True Potential

Have you ever wondered why your car, fresh from the factory, doesn't quite deliver the exhilarating performance or impressive fuel economy you might expect? The answer lies deep within its electronic brain: the Engine Control Unit, or ECU. When vehicle manufacturers design a new model, they face a colossal challenge: creating a car that performs reliably and legally across a myriad of global conditions. This means building in significant compromises to the ECU’s core programming, often referred to as its ‘map’. These compromises account for everything from varying fuel qualities and extreme climates to differing emission laws and even the likelihood of inconsistent vehicle maintenance. The result is a car that functions adequately everywhere but is truly optimised nowhere. This is where ECU remapping steps in, a sophisticated process designed to unlock your vehicle's true, uncompromised potential.

ECU remapping involves taking a read from the vehicle's standard, compromised map – the data stored on the ECU's processing chip – and meticulously adjusting various parameters within it. These adjustments can include optimising fuel pressure, tweaking boost pressure on turbocharged applications, advancing ignition timing, and refining throttle pedal control, amongst others. The primary goal is to release the genuine performance that the engine is inherently capable of, performance that was initially suppressed due to the broad, one-size-fits-all programming. It's a completely safe and reversible process when performed by professionals, as it merely restores the engine to the level of performance it should have had before the necessary, but limiting, compromises were applied to its original software.

Why Manufacturers Compromise Your Car's Engine Map

To truly understand the value of ECU remapping, it's essential to grasp why car manufacturers implement these compromises in the first place. Imagine a global car manufacturer selling the same model in vastly different regions, from the scorching deserts of the Middle East to the freezing tundras of Scandinavia, and from the high altitudes of the Andes to the sea-level cities of the UK. Each region presents a unique set of challenges and requirements that the vehicle must meet.

Global Market Considerations

Firstly, there are the diverse operating conditions. An engine's ideal tuning changes significantly with temperature and altitude. What works perfectly at sea level in a temperate climate might struggle at high altitudes or in extreme heat. Manufacturers must ensure their vehicles run reliably under all these conditions, which necessitates a conservative map that functions adequately across the board, rather than optimally in any single environment.

Varying Fuel Quality

Another major factor is fuel quality. Not all petrol or diesel is created equal. Octane ratings, additive packages, and overall purity can vary wildly from country to country, or even within different regions of the same country. To prevent engine knocking or damage from sub-standard fuels, manufacturers build in safety margins, reducing the engine's potential power and efficiency to accommodate lower quality fuel.

Emission Regulations

Emission laws are a complex patchwork across the globe. Some countries have extremely stringent regulations, while others are more relaxed. Manufacturers must design their engines to meet the strictest standards in the markets they serve, which often means sacrificing some power or responsiveness for cleaner exhaust gases. This is achieved through specific tuning parameters within the ECU that prioritise emissions over outright performance.

Maintenance Variations

Finally, there's the variable of vehicle maintenance. Manufacturers cannot assume that every car will be serviced meticulously according to their recommendations. They factor in the possibility that owners might use incorrect oil, neglect service intervals, or use inferior replacement parts. To mitigate potential engine damage from such neglect, a more conservative ECU map is employed, ensuring the engine remains robust even under less-than-ideal servicing conditions.

The Science Behind ECU Remapping

At its core, ECU remapping is about optimising the software that dictates how your engine operates. The Engine Control Unit (ECU) is essentially the 'brain' of your car's engine. It receives data from numerous sensors monitoring everything from air intake temperature and mass, throttle position, engine speed, and exhaust gas composition. Based on this data, the ECU makes thousands of calculations per second to precisely control aspects like fuel injection, ignition timing, turbo boost, and valve timing.

The 'map' is the set of instructions, or data tables, within the ECU's memory that tells it how to interpret sensor inputs and what outputs to generate. When a car is remapped, a specialist tuner reads this original map from the ECU, typically via the On-Board Diagnostics (OBD) port, though sometimes direct access to the ECU's internal chip is required. Using highly specialised software, the tuner then modifies these data tables.

Key Parameters Adjusted During Remapping:

• Fuel Pressure/Delivery: Optimising the amount of fuel injected into the cylinders for a perfect air-fuel ratio, leading to better combustion.
• Boost Pressure: For turbocharged engines, increasing the pressure of air forced into the engine, directly translating to more power.
• Ignition Advance: Adjusting the precise moment the spark plug fires relative to the piston's position, improving combustion efficiency and power.
• Throttle Pedal Control: Refining how the engine responds to accelerator pedal input, often making it feel more immediate and responsive.
• Torque Limiters: Removing or raising manufacturer-imposed limits on the engine's torque output.
• Rev Limiters: In some performance applications, the engine's maximum RPM may be slightly increased, though this is less common for general road use.

By carefully recalibrating these parameters, the tuner can unlock the engine's true potential, ensuring it operates at its peak for your specific driving conditions and fuel quality, without the broad safety margins imposed by the factory.

The Benefits of ECU Remapping

The advantages of a professionally executed ECU remap extend far beyond just raw power figures. While increased horsepower and torque are often the primary drivers for remapping, the benefits encompass a more enjoyable and efficient driving experience.

Enhanced Power and Torque Output

This is perhaps the most sought-after benefit. By optimising the engine's air-fuel mixture, ignition timing, and boost pressure (where applicable), a remap can significantly boost both horsepower (BHP) and torque (Nm). This translates directly into better acceleration, improved overtaking ability, and a more responsive feel, especially noticeable in the mid-range RPMs where most daily driving occurs.

Improved Fuel Economy

While often associated with performance, a well-executed remap can also lead to better fuel economy, particularly for diesel vehicles. By optimising the combustion process and making the engine more efficient at delivering power, you often find you need less throttle input to maintain speed. This means the engine is working less hard, leading to reduced fuel consumption. This is especially true for 'economy' specific maps that prioritise efficiency over outright power.

Smoother Power Delivery and Enhanced Driveability

Beyond peak figures, remapping can dramatically improve the smoothness of power delivery. Factory maps can sometimes feel hesitant or have 'flat spots'. A remap can iron out these inconsistencies, providing a more linear and predictable power curve. This often results in a more pleasant driving experience, with reduced turbo lag and a more direct connection between your foot and the engine's response.

Tailored Solutions for Your Needs

Unlike a generic factory map, a professional tuner can offer different 'stages' or types of maps. For instance, you might choose:

• Economy Map: Prioritises fuel efficiency, ideal for high-mileage drivers.
• Performance Map: Focuses on maximising power and torque, suitable for enthusiasts.
• Blended/Balanced Map: Offers a good compromise between power gains and fuel economy, suitable for everyday driving.

This ability to provide a tailored solution ensures the remap aligns perfectly with your driving style and requirements.

The Remapping Process: What to Expect

A professional ECU remapping service follows a structured process to ensure safety, reliability, and optimal results. It's not simply a case of plugging in and pressing a button.

1. Initial Diagnostic Check: Before any remapping takes place, a reputable tuner will perform a comprehensive diagnostic scan of your vehicle. This is crucial to identify any existing fault codes, engine health issues, or underlying problems that could be exacerbated by remapping. A healthy engine is paramount for a successful and safe remap.

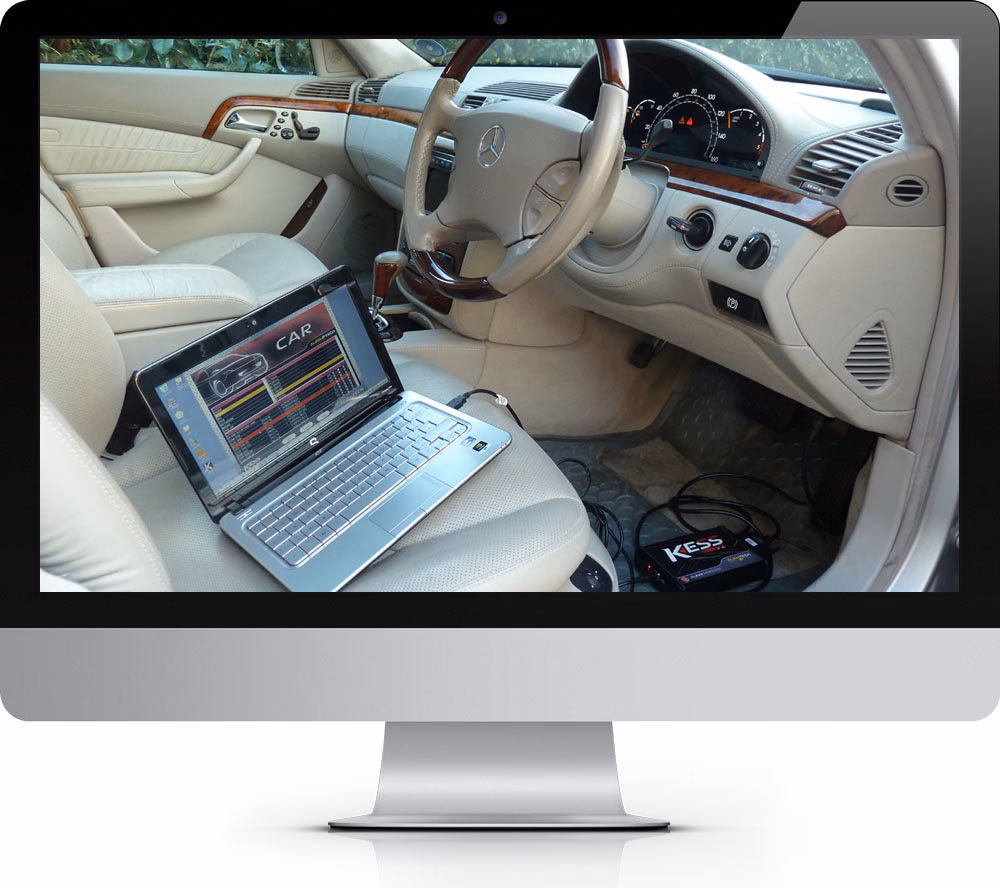

2. Reading the Original Map: Once the vehicle is deemed healthy, the tuner will connect to the ECU, typically via the OBD-II port. Specialist software and hardware are used to read the existing, factory-installed map from the ECU's memory. This original file is always saved and backed up, allowing for the vehicle to be reverted to stock if ever required.
3. Customising the Map: The retrieved map data is then loaded into advanced tuning software. Here, the experienced tuner will meticulously adjust the various parameters (fuel, boost, ignition timing, etc.) based on the desired outcome (e.g., performance, economy, or a blend). This is where the tuner's expertise and understanding of engine dynamics come into play, ensuring safe and effective gains.
4. Writing the New Map: Once the new, optimised map has been created, it is then written back to your vehicle's ECU, overwriting the original factory settings. This process usually takes a relatively short amount of time, often just minutes.
5. Post-Remap Testing: After the new map is loaded, the tuner will often perform another diagnostic check and, if possible, a road test to ensure everything is functioning correctly and the desired improvements are evident. This confirms the remap has been successful and the vehicle is performing as expected.

Important Considerations Before Remapping

While the benefits of ECU remapping are compelling, there are several crucial factors you must consider before proceeding to ensure it's the right choice for you and your vehicle.

Warranty Implications

One of the most significant considerations is your vehicle's manufacturer warranty. In most cases, remapping an ECU will void the powertrain portion of your warranty. This is because the manufacturer cannot guarantee the reliability of an engine that has been modified outside of their specifications. If your car is still under warranty, you must weigh the benefits of remapping against the potential loss of warranty coverage.

Insurance Notification

It is a legal requirement in the UK to inform your insurance provider of any modifications made to your vehicle, and ECU remapping falls into this category. Failure to declare a remap could invalidate your insurance policy, leaving you uninsured in the event of an accident. While some insurers may increase your premium, many understand that a professional remap can improve vehicle safety and performance, so it's always best to be transparent.

Legality and Emissions

For vehicles in the UK, it is crucial that any remap does not cause your car to fail its annual MOT test, particularly regarding emission standards. Reputable tuners will ensure their maps remain compliant with current emission regulations. Be wary of tuners offering extreme power gains that might compromise your vehicle's ability to pass emissions tests, as this could lead to legal issues.

Vehicle Health and Maintenance

ECU remapping should only ever be performed on a mechanically sound and well-maintained vehicle. If your engine has pre-existing issues, a remap could exacerbate them. It's vital to have your car thoroughly checked for any underlying problems before considering a remap. Furthermore, maintaining your vehicle correctly with regular servicing, good quality fuel, and appropriate oil is even more critical after a remap to ensure the longevity of the enhanced engine.

Choosing a Reputable Tuner

This cannot be stressed enough. The quality and safety of an ECU remap depend entirely on the skill and knowledge of the tuner. Opt for a company with a proven track record, positive customer reviews, professional equipment, and comprehensive insurance. Avoid cheap, generic 'off-the-shelf' maps, as these can be detrimental to your engine's health. A good tuner will offer custom solutions, discuss your specific needs, and provide support after the remap.

Comparative Table: Stock vs. Remapped Performance (Illustrative)

To give you a clearer idea of the potential differences, here's an illustrative comparison between a typical stock vehicle and one that has undergone a professional ECU remap. Please note that actual gains vary significantly by vehicle make, model, engine type, and the specific remap chosen.

Frequently Asked Questions (FAQs) About ECU Remapping

Is ECU remapping safe for my engine?

Yes, when performed by a reputable and experienced tuner, ECU remapping is a completely safe process. Professional tuners work within the safe limits of your engine's hardware, ensuring that components are not overstressed. They factor in the engine's design, tolerances, and typical operating conditions. Problems usually only arise from inexperienced tuners using generic, aggressive maps or working on already unhealthy engines.

Will it affect my car's reliability or lifespan?

A properly performed remap should not negatively impact your car's reliability or lifespan, provided your vehicle is well-maintained. In fact, by optimising combustion, it can sometimes even reduce engine strain in certain areas. However, if you consistently drive aggressively and push your remapped engine to its limits, wear and tear will naturally increase, just as it would with any engine under constant high stress.

Can the original map be restored?

Absolutely. A professional tuner will always save your vehicle's original factory map. This allows the car to be reverted to its stock settings at any time, for example, before selling the vehicle, returning it to a lease company, or if you simply prefer the original driving characteristics.

How long does the remapping process take?

The actual remapping process itself, including reading the original map, modifying it, and writing the new map back to the ECU, typically takes between 1 to 4 hours. However, a reputable tuner will also include a diagnostic check before and after, which can add to the overall time, ensuring thoroughness and safety.

What types of vehicles can be remapped?

Most modern vehicles with an Electronic Control Unit (ECU) can be remapped. This includes a wide range of petrol and diesel cars, vans, and even some commercial vehicles. The specific method and potential gains will vary depending on the make, model, and engine type.

Does it require any other modifications to my car?

For a 'Stage 1' remap (which is what most drivers opt for), no other mechanical modifications are typically required. The remap works with your existing hardware. For higher 'stages' of tuning (Stage 2, Stage 3 etc.), modifications like upgraded exhaust systems, intercoolers, or turbochargers might be necessary to safely handle the increased power output.

What kind of fuel should I use after remapping?

For performance-oriented remaps, it is often recommended, and sometimes essential, to use higher-octane fuel (e.g., 98 RON premium unleaded in the UK). This is because the remap may take advantage of the superior knock resistance of higher-octane fuel to achieve optimal ignition timing and power. Your tuner will advise you on the appropriate fuel for your specific remap.

Will remapping make my car illegal?

In the UK, remapping itself is not illegal. However, it is crucial that the remap does not cause your vehicle to exceed legal emission limits or noise regulations, especially for the MOT test. As mentioned, you must also declare the modification to your insurance provider. As long as these conditions are met, a remapped car remains legal for road use.

Conclusion

ECU remapping is a powerful and increasingly popular method to unlock the true potential of your vehicle. By intelligently optimising the engine's software, it can deliver significant improvements in power, torque, and even fuel economy, transforming your driving experience from merely adequate to truly exhilarating. However, the key to a safe, reliable, and beneficial remap lies in choosing a reputable and experienced tuner. They possess the knowledge, equipment, and ethical standards to perform the work correctly, ensuring your car performs at its peak without compromising its longevity or reliability. If you're looking to elevate your vehicle's performance and efficiency beyond its factory limitations, a professional ECU remap could be the perfect solution for you.
