BMW X5 Transfer Case Fluid: Is a TC Reset Needed?

Maintaining the sophisticated drivetrain of your BMW, especially models equipped with the renowned xDrive system, is paramount for ensuring its longevity and optimal performance. One often-overlooked aspect of this maintenance is the transfer case fluid change. While the mechanical process of replacing the fluid might seem straightforward, a common question arises: do you need to perform a transfer case control unit reset afterwards? This article delves into the intricacies of changing your BMW X5's transfer case fluid and clarifies the importance of a subsequent TC reset.

The transfer case is a vital component in your BMW's xDrive system. It's responsible for distributing power between the front and rear axles, adapting to various driving conditions to provide optimal traction and stability. Over time, the fluid within this unit, much like engine oil or transmission fluid, degrades. It collects metallic particles from normal wear and tear and loses its lubrication properties, which can lead to increased friction, noise, and ultimately, premature failure of the internal components, particularly the clutch pack.

Why Transfer Case Maintenance is Crucial for Your xDrive BMW

Your BMW's xDrive system relies heavily on the precise operation of the transfer case. This component uses a series of clutches to intelligently distribute torque, ensuring power goes where it's needed most. This constant engagement and disengagement generate heat and stress, leading to the breakdown of the lubricating fluid. Neglecting this fluid change can manifest as unpleasant shuddering during turns or acceleration, unusual noises, or even critical system malfunctions, often accompanied by dashboard warning lights. Regular fluid replacement ensures the internal components, especially the sensitive clutch pack, operate smoothly and efficiently, preventing expensive repairs down the line.

DIY Transfer Case Fluid Change on a BMW X5 (F15 3.5l xDrive)

Performing a transfer case fluid change on your BMW X5 can be a rewarding DIY task, saving you labour costs. While the space can be a bit tight, it is certainly achievable with the right approach and tools. Always prioritise safety when working underneath your vehicle.

Safety First

Before you begin, ensure your vehicle is securely lifted and supported. Use sturdy car ramps or jack stands on level ground. Never rely solely on a jack. Wear appropriate personal protective equipment, including safety glasses and gloves, as automotive fluids can be harmful.

Tools and Materials You'll Need:

• Car ramps (front and rear, or a lift for ideal levelling)
• 14mm Hex bit socket (preferably a short one)
• Ratchet wrench (14mm compatible)
• Clear tape (optional, but helpful for securing the hex bit)
• Small 'J' tube or similar for fluid extraction
• Homemade vacuum pump or fluid extractor (e.g., Mityvac)
• Small hand pump with clear tubing for refilling
• Empty container for old fluid (at least 1 litre capacity)
• Brake cleaner or general degreaser
• Clean rags or shop towels
• New BMW specified fluid DFT 1 (SAE 75W Transfer Case Fluid) - typically around 1 litre is sufficient. Do NOT substitute with other fluids.

Step-by-Step Guide:

1. Vehicle Preparation and Levelling: Drive your X5 onto car ramps, ensuring both the front and rear are elevated. The goal is to get the vehicle as level as possible. If you don't have rear ramps, using stepped boards can help achieve a near-level position. A level vehicle is crucial for accurately checking and filling the fluid to the correct level.
2. Accessing the Fill Plug: Slide underneath the vehicle, locating the transfer case (it's situated between the transmission and the front differential). The fill plug is typically on the side of the casing. The space between the transmission cross member and the transfer case is tight. Insert your 14mm Hex bit into your ratchet wrench. A useful trick is to put a layer of clear tape around the hex bit where it meets the wrench; this creates a light press fit, preventing the bit from falling out in the tight space. Carefully manoeuvre the wrench with the hex bit into the fill plug's hex socket.
3. Loosening and Removing the Fill Plug: With the hex bit firmly seated, apply steady pressure and loosen the fill plug. Once loosened, fully remove the plug. Always remove the fill plug first to ensure you can refill the unit before draining it. You don't want to drain it and then realise you can't get the fill plug out!
4. Draining/Sucking Out the Old Fluid: Unlike many differentials, the BMW xDrive transfer case on the F15 X5 often lacks a dedicated drain plug. This means you'll need to extract the fluid through the fill hole. Insert your small 'J' tube or equivalent into the fill hole and connect it to your vacuum pump or fluid extractor. Begin sucking out the old fluid. You should extract approximately 500ml (17 oz) of fluid. Observe the colour of the old fluid; it will likely be brown or dark, which is normal for used fluid, but excessively dark or metallic-looking fluid could indicate more severe wear.

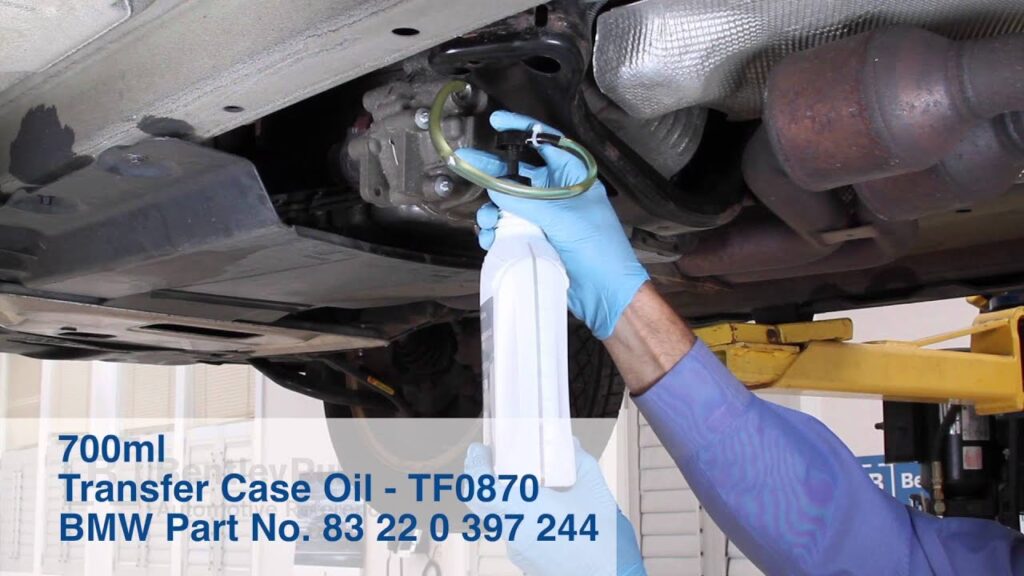

5. Refilling with New Fluid: Once all the old fluid has been extracted, use your small hand pump with clear tubing to begin refilling the transfer case with the new, specified BMW DFT 1 SAE 75W transfer case fluid. Pump the fluid slowly until it begins to trickle out of the fill hole. This indicates the transfer case is filled to the correct level. It's imperative to use only the genuine BMW DFT 1 fluid as specified for your vehicle. Using an incorrect fluid can lead to serious damage and costly repairs due to different friction characteristics.
6. Re-installing the Fill Plug and Cleaning: Once the fluid starts to overflow, remove the pump tubing and quickly re-install the fill plug. Tighten it securely to the manufacturer's specified torque (if known, otherwise firmly). After securing the plug, thoroughly clean the entire area around the transfer case with brake cleaner or degreaser. This step is vital because it allows you to easily identify any future leaks. If the area remains clean, any new fluid stains will clearly indicate a leak after you've driven the car for a while.

The Crucial Question: Do I Need a TC Reset After a Fluid Change?

This is arguably the most important aspect of transfer case maintenance for xDrive BMWs. While the fluid change itself is a mechanical process, the transfer case control unit (often integrated with other chassis control modules) needs to be informed of the change. Why? Because the fluid's properties, particularly its friction characteristics, directly influence how the internal clutch pack engages and disengages.

The transfer case control unit constantly monitors the slip rates of the clutches and adjusts the clamping pressure to ensure smooth power delivery and optimal traction. When you introduce new fluid, its friction coefficient is different from the old, worn fluid. Without a reset, the control unit might still be adapting based on the properties of the old fluid. This can lead to various issues, such as:

• Shuddering or Jerking: The most common symptom, especially during low-speed turns or acceleration, as the clutches might not engage smoothly with the new fluid's properties.
• Erratic Power Delivery: The xDrive system might not distribute power as efficiently or predictably.
• Increased Wear: Miscalibrated clutch engagement can lead to accelerated wear on the clutch pack and other internal components.
• Fault Codes: In some cases, the system might register fault codes related to transfer case performance.

A transfer case reset (often referred to as 'adaptation reset' or 'clutch calibration reset') uses diagnostic software to clear the old adaptation values and force the control unit to re-learn the optimal clutch engagement parameters with the new fluid. It essentially tells the system, 'Hey, I have new fluid in here, let's start fresh and re-calibrate the clutch pack for optimal performance.'

When to Perform the Reset and How:

Ideally, the transfer case reset should be performed shortly after the fluid change. While your car might drive seemingly fine immediately after the change without a reset, it's not recommended for long-term optimal performance and longevity. The system might eventually adapt on its own, but a forced reset ensures a quicker and more accurate adaptation process.

Performing the reset typically requires specialised diagnostic software, such as BMW's ISTA (Integrated Service Technical Application) or INPA, or advanced aftermarket diagnostic tools like Autel, Foxwell, or Launch. These tools connect to your vehicle's OBD-II port and allow you to access the transfer case control module to initiate the reset procedure. It's not a simple button press on the dashboard. If you don't have access to such tools, it's highly advisable to have a local BMW specialist or independent garage perform the reset for you. Many mechanics will include this as part of their transfer case fluid change service.

Signs Your Transfer Case Needs Attention

Even if you haven't changed the fluid, certain symptoms can indicate your transfer case might be experiencing issues:

• Shuddering or Jerking: A common sign, particularly noticeable when accelerating from a stop or during low-speed turns. It feels like the car is hesitating or juddering.
• Unusual Noises: Whining, grinding, or clunking sounds coming from underneath the vehicle, especially when accelerating or turning.
• Dashboard Warning Lights: The illumination of the 4x4, DSC (Dynamic Stability Control), or ABS (Anti-lock Braking System) warning lights can indicate a transfer case malfunction.
• Binding or Dragging Sensation: A feeling that the wheels are dragging or binding, particularly during tight turns.

DIY vs. Professional Transfer Case Service

Deciding whether to tackle the transfer case fluid change yourself or take it to a professional depends on your comfort level, tools, and expertise. Here's a comparative overview:

Frequently Asked Questions (FAQs)

How often should I change my transfer case fluid?

While BMW often states 'lifetime fluid', this term typically refers to the lifetime of the warranty or a certain mileage (e.g., 100,000 miles). For optimal longevity and performance, it's widely recommended by independent specialists to change the transfer case fluid every 60,000 to 80,000 miles, or sooner if you frequently drive in harsh conditions or tow.

What happens if I don't change the transfer case fluid?

Neglecting the transfer case fluid change can lead to increased friction, accelerated wear on the internal clutch pack, and eventually, costly failure of the unit. Symptoms like shuddering, noise, and warning lights are common precursors to failure.

Can I use any 75W gear oil for my transfer case?

Absolutely not. It is critical to use only the BMW specified fluid DFT 1 (SAE 75W Transfer Case Fluid). This fluid has specific friction modifiers and properties tailored for the unique clutch pack design in BMW xDrive transfer cases. Using an incorrect fluid, even if it's the right viscosity, can lead to immediate or long-term damage.

What are the benefits of a TC reset?

A TC reset clears old adaptation values, allowing the transfer case control unit to re-learn the optimal clutch pack engagement parameters with the new fluid. This ensures smooth power delivery, prevents shuddering, optimises xDrive performance, and contributes to the longevity of the transfer case.

Is it hard to change the transfer case fluid myself?

It's a moderately challenging DIY task. The physical space can be tight, and the lack of a drain plug requires a fluid extractor. However, with the right tools, patience, and adherence to safety protocols, it is certainly achievable for a competent DIY enthusiast.

Conclusion

The transfer case fluid change is a vital, yet often overlooked, part of maintaining your BMW's xDrive system. While the DIY fluid replacement on your X5 3.5l xDrive is achievable, the subsequent transfer case control unit reset is equally, if not more, important. This reset ensures the clutch pack adapts correctly to the new fluid, preventing potential issues and preserving the smooth, reliable performance your BMW is known for. Proactive maintenance, including both the fluid change and the essential reset, will significantly extend the life of your transfer case and keep your xDrive system operating at its peak.
