BMW E36 Wiring Harness Swaps: Your Guide

Embarking on an engine swap or electrical upgrade in your BMW can be one of the most rewarding automotive projects, transforming your vehicle's performance and character. However, at the heart of every successful swap lies the intricate world of the wiring harness. This often-overlooked component is the central nervous system of your car, dictating how every sensor, actuator, and control unit communicates. Misunderstandings or errors here can lead to frustrating, often elusive, electrical gremlins that can plague your build for years. For enthusiasts of the BMW E36, understanding its wiring intricacies and compatibility with other chassis, particularly the E30 or even the later E39, is paramount.

This article delves deep into the nuances of BMW E36 wiring harnesses, exploring their architecture, common challenges in cross-chassis swaps, and providing practical guidance for successful integration. We'll demystify the process of adapting an E36 harness to an E30 and shed light on the feasibility of using an E39 M52 harness with an E36. Prepare to equip yourself with the knowledge needed to tackle your next BMW wiring adventure with confidence.

Why Consider a BMW E36 Engine or Harness Swap?

The E36 chassis is a beloved platform among BMW enthusiasts, renowned for its balanced handling, robust build, and vast aftermarket support. Over the years, many owners have sought to enhance their E36s by swapping in more powerful or modern engines. Common engine choices include the M50, M52, S50, and S52, often sourced from other E36 variants or even other BMW models. The reasons for these swaps are varied: perhaps an upgrade from a smaller engine, replacing a failed unit, or building a dedicated track car requiring specific powerplants. With an engine swap, the existing engine's wiring harness often needs to be integrated, or a new, compatible harness must be adapted to the receiving chassis's electrical system.

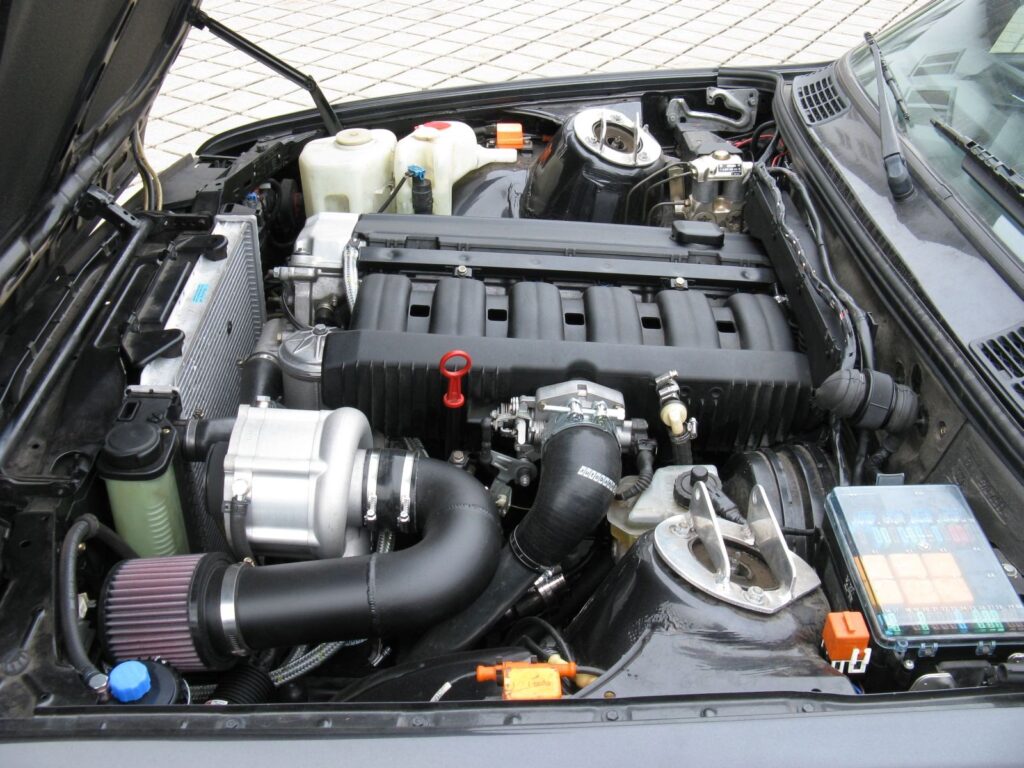

For owners of the older E30 chassis, transplanting an E36 engine (like the M50 or M52) has become a popular and highly effective upgrade. These engines offer significant power bumps, modern technology, and improved reliability over the E30's original power units. However, the electrical systems of the E30 and E36 are quite different, making the wiring harness the most critical, and often most challenging, aspect of the conversion.

Understanding BMW Wiring Harnesses: A Brief Overview

A wiring harness is a bundled assembly of electrical wires, connectors, and sometimes relays or fuses, designed to transmit power and signals throughout a vehicle. In BMWs, these harnesses are highly specific to the engine type, chassis, and even the year of manufacture due to evolving electrical standards (e.g., OBD1 vs. OBD2). The engine harness connects the engine's sensors, injectors, ignition coils, and other components to the engine control unit (ECU). The body harness, on the other hand, manages power and signals for lights, accessories, dashboard functions, and other non-engine-specific systems.

When performing an engine swap, the primary challenge is to ensure seamless communication between the new engine's ECU and the existing body's electrical system. This often requires creating an adapter harness, which bridges the gap between the two different connector types and their respective pin assignments.

Connecting an E36 Harness to an E30: The Adapter Method

One of the most common and effective ways to integrate an E36 engine and its harness into an E30 chassis is by creating a custom adapter. This method avoids cutting and splicing the original harnesses directly, preserving their integrity and making troubleshooting easier. The core principle is to acquire the body-side connector from an E36 and the engine-side connector from an E30, then wire them together according to a specific pinout diagram.

Materials Needed:

• E36 Engine Harness (from the donor engine)
• E30 Engine-Side Body Connector (from an E30 donor or specific part number)
• E36 Body-Side Engine Connector (from an E36 donor or specific part number)
• High-quality automotive wire (various gauges as needed)
• Heat shrink tubing
• Soldering iron and solder
• Wire strippers and crimpers
• Multimeter for testing continuity
• Pinout diagrams for both E30 and E36 (crucial!)

The Adapter Construction Process:

1. Identify Connectors: Locate the main engine harness connector on your E36 engine (the one that plugs into the body harness). Similarly, identify the corresponding main engine harness connector on your E30 chassis that receives the engine harness.
2. Source Donor Connectors: Obtain the 'mate' for each of these. You'll need the E36 body-side connector (which your E36 engine harness plugs into) and the E30 engine-side connector (which plugs into your E30 body harness).
3. Prepare Wires: Cut appropriate lengths of wire, ensuring they are long enough to comfortably bridge the distance between where the adapter will sit.
4. Match Pinouts: This is the most critical step. Using accurate pinout diagrams for both the E30 and E36, you will connect the corresponding functions. For example, the E36's 'Ignition Power' pin will connect to the E30's 'Ignition Power' pin.
5. Solder and Insulate: Carefully solder each wire connection, ensuring strong, reliable joints. After soldering, immediately cover the joint with heat shrink tubing and apply heat to insulate and protect it. Do not rely on crimps alone for critical connections in an engine bay; soldering provides superior reliability.
6. Test Continuity: Before installing the adapter, use a multimeter to test continuity for every single pin you've wired. This will help catch any errors before they cause damage.

Example Pin Assignment Table (E36 Engine Harness to E30 Body Harness Adapter)

Please note: This table provides a general guide. Specific pin assignments can vary significantly based on the exact year, model, engine variant (e.g., M50, M52, OBD1, OBD2), and regional specifications of both your E36 donor and E30 chassis. Always consult specific wiring diagrams for your exact vehicles before making any connections.

Common Challenges with E36 to E30 Swaps:

• EWS (Immobiliser) System: E36 engines, especially M52 and later M50s, often come with an EWS (Electronic Immobiliser System). This system must be addressed. Options include swapping the EWS module, key chip, and DME (ECU) as a matched set from the donor car, or having the EWS function coded out of the DME. Not addressing EWS will prevent the engine from starting.
• OBD1 vs. OBD2: E30s are OBD1. Early E36 M50s are OBD1, making them simpler to swap. Later E36 M52s are OBD2, which adds complexity due to more sensors and different diagnostic protocols. An OBD2 engine can be 'converted' to run on an OBD1 ECU (often an M50 unit) with some sensor changes, or the OBD2 ECU can be used with its full wiring requirements.
• Power Steering & Cooling: While not directly wiring, these systems need adaptation. Ensure your E30 power steering lines and cooling hoses are compatible or adapted to the E36 engine's connections.
• Sensor Compatibility: While many sensors are similar, some might have different connectors or signal outputs requiring careful verification.

Can an M52 E39 Harness be used with an E36?

This is a common question, and the straightforward answer is: generally, no, not without significant and complex modifications. While both the E36 and E39 chassis might share the M52 engine, their underlying electrical architectures and body integration systems are quite different.

• Body Harness Integration: The E39's wiring harness is designed to integrate with the E39's specific body control modules (like the Light Control Module, General Module, etc.) and its more advanced bus systems (e.g., CAN bus, K-bus). The E36 uses an older, less integrated electrical system. An E39 M52 engine harness is part of a larger E39 electrical ecosystem, and its connectors and pinouts for body integration will not directly match an E36 body harness.
• Engine Control Unit (ECU): While the M52 engine itself might be similar, the ECU (DME) from an E39 M52 is programmed for the E39's specific modules and sensors. Attempting to run it in an E36 would require extensive rewiring, coding, and potentially replacing numerous body control modules to achieve functionality.
• Practicality: If you are putting an E39 M52 engine into an E36, the recommended and vastly simpler approach is to use an E36 M52 engine harness (if available and compatible with your specific E39 M52 engine sensors) or, more commonly, to 'OBD1 convert' the E39 M52 engine to run on an E36 M50 (OBD1) harness and ECU. This involves changing some sensors (like the crank position sensor and cam position sensor) to match the M50 harness, and often using an M50 manifold.

In essence, using an E39 M52 harness *as a complete unit* in an E36 is highly impractical and would involve far more work and custom fabrication than it's worth. It's almost always easier to adapt the E39 M52 engine to an E36-compatible wiring setup.

General Wiring Swap Challenges and Considerations

Regardless of the specific swap, several universal challenges and considerations apply to all wiring harness projects:

• Accuracy is Key: Double-check every pinout, every wire colour, and every connection. One mistake can lead to hours of troubleshooting or even damage to components.
• Grounding: Ensure all components have proper, clean grounds. Poor grounding is a common source of electrical gremlins.
• Power Supply: Verify that your ECU and other critical components receive stable, correct voltage.
• Sensor Compatibility: Even if an engine fits, its sensors might not be compatible with your chosen ECU or dashboard. Be prepared to swap sensors or adapt wiring.
• Diagnostic Port: Ensure the diagnostic port (OBD-II or OBD-I) is properly wired to allow for future troubleshooting and coding.
• Professional Help: If you're unsure, consult a professional automotive electrician or a specialist known for BMW swaps. Their expertise can save you time, money, and headaches.
• Documentation: Keep meticulous records of your wiring changes, including diagrams, wire colours, and pin numbers. This will be invaluable for future troubleshooting.
• Battery Disconnection: Always disconnect the battery before working on any electrical components to prevent short circuits and damage.

Tools and Tips for Success

• Quality Multimeter: Essential for checking voltage, continuity, and resistance.
• Wiring Diagrams: Obtain the most accurate and specific diagrams for both your donor and recipient vehicles. Online resources, Bentley manuals, and BMW TIS are invaluable.
• Soldering Kit: A good quality soldering iron, flux, and automotive-grade solder are crucial for reliable connections.
• Heat Shrink Tubing: Provides excellent insulation and strain relief for soldered joints.
• Wire Strippers & Crimpers: Invest in good quality tools to avoid damaging wires.
• Wire Loom/Conduit: Protect your new wiring from abrasion, heat, and moisture.
• Patience and Persistence: Wiring can be tedious. Take breaks, stay organised, and don't rush.

Frequently Asked Questions (FAQs)

Q: Do I need to address the EWS (immobiliser) system when swapping an E36 engine into an E30?

A: Yes, absolutely. If your E36 donor engine's ECU (DME) requires EWS, you must either swap the matched EWS module, key chip, and DME from the donor vehicle, or have the EWS function coded out of the DME. Failure to do so will prevent the engine from starting.

Q: Can I use an OBD2 harness with an OBD1 engine, or vice-versa?

A: It's generally not a direct plug-and-play. An OBD2 engine harness is designed for an OBD2 ECU and its associated sensors. You can 'OBD1 convert' an OBD2 engine by changing specific sensors (crank position sensor, cam position sensor, oxygen sensors) and using an OBD1 ECU and harness. This is a common method for E36 M52 swaps into E30s as it simplifies the wiring.

Q: How long does a typical E36 to E30 harness swap take?

A: This varies wildly depending on your experience level, the complexity of the swap (e.g., OBD1 vs. OBD2, EWS delete), and the condition of the donor parts. For an experienced DIYer, it could take a dedicated weekend to a week. For a beginner, it could easily be several weeks of careful work and research.

Q: Is it always necessary to create an adapter harness, or can I just cut and splice?

A: While cutting and splicing is technically possible, creating an adapter harness is highly recommended. It preserves the integrity of the original harnesses, makes troubleshooting much easier, and allows for easier future modifications or even reverting to stock if needed. It also results in a cleaner, more reliable installation.

Q: What if my specific E36 or E30 pinout differs from the generic tables?

A: This is a very common scenario. BMW made numerous revisions, and regional differences exist. Always obtain vehicle-specific wiring diagrams for your exact chassis and donor engine. Use a multimeter to verify continuity and identify functions of unknown wires. If you're unsure, seek professional help or consult online forums with highly experienced members.

Conclusion

The wiring harness is undeniably the most intimidating aspect of an engine swap or major electrical upgrade in any car, and BMWs are no exception. For E36 enthusiasts looking to push the boundaries of their vehicle's performance by swapping in an E36 engine into an E30, or even just understanding the complex relationship between different BMW electrical systems, meticulous planning and execution are paramount. While integrating an E36 harness into an E30 requires a carefully constructed adapter and attention to detail regarding EWS and OBD standards, it is a well-trodden path with documented solutions. Conversely, attempting to use an E39 M52 harness directly in an E36 is largely impractical due to fundamental differences in body electronics. By understanding the principles, utilising accurate diagrams, and exercising patience, you can successfully navigate the electrical labyrinth and bring your BMW project to life, enjoying the fruits of your labour for years to come.
