How Drum Brakes Work

Drum brakes, a stalwart of automotive braking systems for decades, are a marvel of mechanical engineering that rely on a clever application of hydraulic pressure and friction to bring a vehicle to a halt. While disc brakes have become more prevalent in modern cars, drum brakes remain a common sight, particularly on rear axles and in smaller vehicles. Understanding how they function is key to appreciating their role in vehicle safety and to knowing when they might require attention.

The Core Components of a Drum Brake System

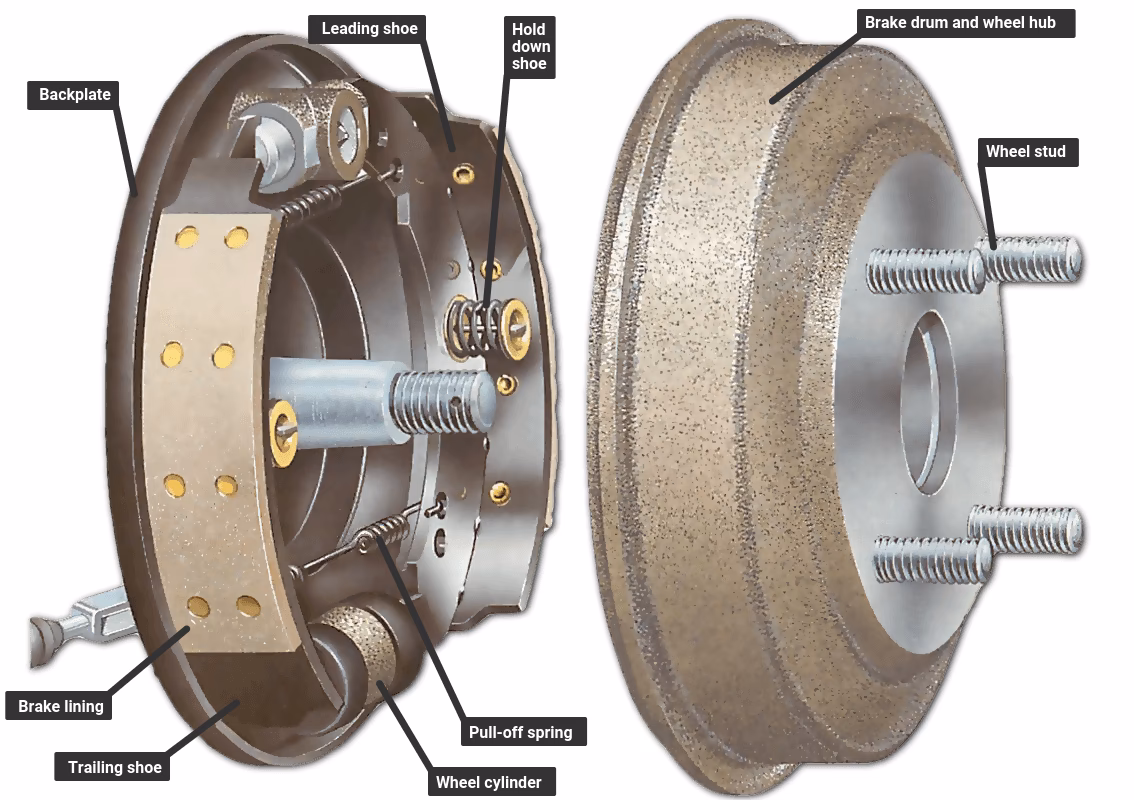

At the heart of any drum brake system lies a collection of specialised parts, each playing a crucial role in the braking process. Let's delve into these key elements:

• Brake Drum: This is the rotating component that the brake shoes press against. It's typically made of cast iron, which provides excellent thermal conductivity and wear resistance. The inner surface of the drum is precisely machined to ensure consistent contact with the brake shoes.
• Wheel Cylinder: This is a hydraulic component that actuates the brake shoes. It contains two pistons, one on each side, which are pushed outwards by hydraulic fluid when the brake pedal is pressed.
• Brake Shoes: These are curved metal components lined with a high-friction material, commonly known as brake lining or friction material. When the wheel cylinder's pistons extend, they force the brake shoes outwards against the inner surface of the brake drum.
• Return Springs: A set of springs that pull the brake shoes back to their original position, away from the drum, when the hydraulic pressure is released. This ensures the brakes disengage when the pedal is not pressed.
• Hold-Down Clips and Pins: These small but vital components keep the brake shoes securely in place against the wheel cylinder's pistons and the backing plate, preventing them from dislodging during operation.
• Parking Brake Mechanism: Most drum brake systems incorporate a mechanical linkage that allows the driver to engage the parking brake, typically by pulling a lever or pressing a pedal. This mechanism physically forces the brake shoes against the drum.
• Backing Plate: A sturdy metal plate that serves as the foundation for all the drum brake components. It houses the wheel cylinder and provides mounting points for the brake shoes and springs.

The Hydraulic Principle: Bringing it all Together

The operation of drum brakes is fundamentally a hydraulic process, leveraging the incompressible nature of brake fluid to transmit force. Here's a step-by-step breakdown:

1. Pedal Activation: When you press the brake pedal, you're engaging a master cylinder. This cylinder pressurises the brake fluid within the hydraulic lines.
2. Fluid Transmission: The pressurised brake fluid travels through the brake lines to the wheel cylinder located at each wheel equipped with drum brakes.
3. Piston Extension: Inside the wheel cylinder, the hydraulic pressure acts on the two pistons. These pistons are forced outwards, pushing the brake shoes.
4. Friction Generation: As the brake shoes are pushed outwards, their friction material makes contact with the rotating inner surface of the brake drum. This friction creates resistance, slowing down the rotation of the wheel.
5. Braking Action: The greater the pressure applied to the brake pedal, the more the pistons extend, forcing the brake shoes harder against the drum, resulting in stronger braking force.
6. Release: When you release the brake pedal, the hydraulic pressure in the wheel cylinder is relieved. The return springs then contract, pulling the brake shoes away from the drum, allowing the wheel to rotate freely again.

Self-Energising Effect: A Clever Design

A particularly ingenious aspect of drum brake design is the "self-energising" effect. This occurs primarily in forward motion. As the brake shoe presses against the rotating drum, the leading shoe (the one that contacts the drum first as it rotates) is "wedged" into a tighter contact due to the drum's rotation. This wedging action actually increases the force pushing the shoe against the drum, amplifying the braking effect without requiring additional pedal pressure. This makes drum brakes surprisingly efficient, especially when applied in a forward direction.

However, this self-energising effect is less pronounced or even reversed when braking in reverse. In reverse, the trailing shoe becomes the leading shoe in terms of contact with the drum's rotation, and the wedging action tends to pull the shoe away from the drum, resulting in weaker braking. This is why drum brakes can sometimes feel less effective when reversing.

Advantages and Disadvantages of Drum Brakes

Like any automotive component, drum brakes have their own set of pros and cons:

Advantages:

• Cost-Effective: Drum brakes are generally less expensive to manufacture than disc brakes, making them a popular choice for budget-conscious vehicles.
• Effective Parking Brake: The internal mechanism of drum brakes makes them well-suited for integrating a robust parking brake system.
• Self-Energising: As mentioned, the self-energising effect can provide strong braking force, particularly in forward motion.
• Protection from Elements: The enclosed nature of drum brakes offers better protection from dirt, water, and road debris compared to exposed disc brake components.

Disadvantages:

• Brake Fade: Under heavy or prolonged braking, the friction material and the drum can heat up significantly. This heat can cause the friction material to become less effective, leading to a reduction in braking performance known as brake fade.
• Uneven Wear: The self-energising effect can lead to uneven wear on the brake shoes, with the leading edge often wearing faster than the trailing edge.
• Difficulty in Cooling: The enclosed design, while offering protection, also hinders the dissipation of heat, contributing to brake fade.
• Maintenance Complexity: While not overly complex, accessing and servicing drum brakes can be more involved than with disc brakes, often requiring the removal of the drum itself.
• Reduced Performance in Wet Conditions: Water trapped within the drum can significantly reduce braking effectiveness until it is expelled through rotation.

When to Consider Drum Brake Replacement

Several signs can indicate that your drum brakes may need attention or replacement. It's crucial to be aware of these to ensure your vehicle's safety:

• Squealing or Grinding Noises: These sounds often suggest worn-out brake lining or the presence of foreign material between the shoe and the drum.
• Spongy Brake Pedal: A brake pedal that feels soft or spongy can indicate air in the hydraulic system or a fluid leak.
• Reduced Braking Performance: If you notice your vehicle taking longer to stop or requiring more force on the brake pedal, your drum brakes may be worn.
• Vibrations: Pulsations or vibrations felt in the brake pedal or steering wheel during braking can be a sign of warped brake drums.
• Parking Brake Issues: If the parking brake doesn't hold the vehicle securely or feels loose, the drum brake mechanism may require adjustment or repair.

When seeking replacement parts, using your vehicle's registration number can help ensure you find cheap replacement drum brakes that are compatible with your specific make and model.

Frequently Asked Questions about Drum Brakes

Q1: How often should drum brakes be inspected?

A1: It's generally recommended to have your drum brakes inspected as part of your regular vehicle service, typically every 6,000 to 12,000 miles, or annually. Your vehicle's owner's manual will provide specific recommendations.

Q2: Can I replace my own drum brakes?

A2: While some DIY enthusiasts can tackle drum brake replacement, it's a task that requires a good understanding of automotive mechanics and the right tools. If you're not confident, it's best left to a qualified mechanic to ensure the job is done correctly and safely.

Q3: What is the difference between drum brakes and disc brakes?

A3: The main difference lies in their design and operation. Disc brakes use a caliper to squeeze brake pads against a rotating disc (rotor), while drum brakes use brake shoes that press outwards against the inside of a rotating drum. Disc brakes generally offer better heat dissipation and more consistent performance, especially under heavy use.

Q4: How does brake fade occur in drum brakes?

A4: Brake fade in drum brakes happens when the components overheat due to repeated or hard braking. The high temperatures cause the friction material on the brake shoes to lose its grip, reducing the braking effectiveness. The enclosed nature of drum brakes makes them more susceptible to this than disc brakes.

Q5: What is the purpose of the self-energising effect in drum brakes?

A5: The self-energising effect is a design feature that enhances the braking force by using the rotation of the drum to help wedge the leading brake shoe more firmly against the drum. This means less pedal effort is needed for effective braking, particularly when moving forward.

Conclusion

Drum brakes, with their intricate hydraulic operation and self-energising capabilities, have served as a reliable method of stopping vehicles for many years. While they have certain limitations, particularly regarding heat dissipation and performance under extreme conditions, they remain an important component in many automotive braking systems. Understanding their working principles, recognizing the signs of wear, and ensuring timely maintenance are all crucial for maintaining the safety and efficiency of your vehicle. Whether you're a seasoned mechanic or a car owner looking to understand your vehicle better, a grasp of how drum brakes work is a valuable piece of automotive knowledge.
