DPF Doctor: Your Diesel Particulate Filter Solution

The Diesel Particulate Filter, or DPF, has become a crucial component in modern diesel engines, designed to significantly reduce harmful particulate matter emissions. However, like any complex automotive system, DPFs can encounter issues that may lead to reduced performance or warning lights illuminating on your dashboard. This is where specialised diagnostic tools come into play, and the 'DPF Doctor' has emerged as a notable solution for many vehicle owners and mechanics. This article will delve into what the DPF Doctor is, its capabilities, how it works, and its place within the broader context of diesel engine emissions management.

What is the DPF Doctor Diagnostic Tool?

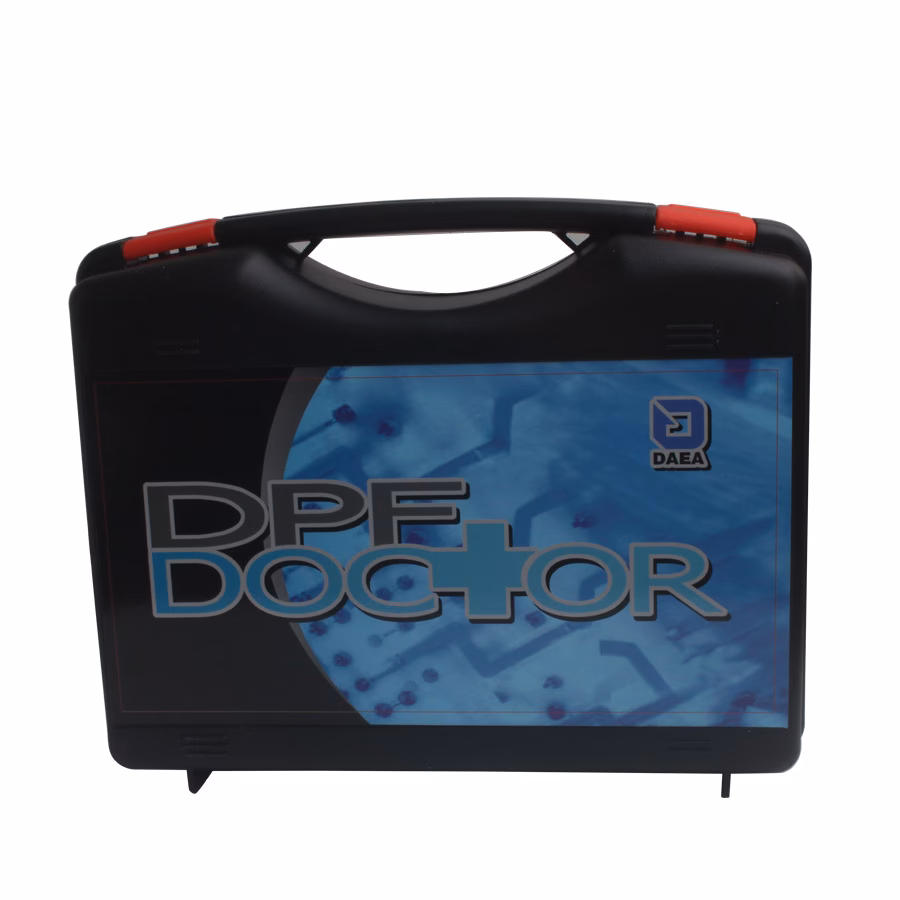

The DPF Doctor is a dedicated diagnostic tool engineered specifically to address issues related to Diesel Particulate Filters. It is designed to facilitate essential maintenance tasks such as resetting DPF-related fault codes and initiating DPF regeneration cycles. Regeneration is the process by which the accumulated soot within the DPF is burned off at high temperatures, effectively cleaning the filter and restoring its functionality. The tool aims to provide a cost-effective and efficient way for users to manage DPF problems without necessarily resorting to expensive dealership visits.

Key Features and Capabilities

The DPF Doctor boasts a range of features that make it a versatile tool for diesel vehicle maintenance:

• Wide Vehicle Coverage: The DPF Doctor supports a significant number of car manufacturers, including Opel, Ford, Peugeot, Citroen, Renault, Volvo, LandRover, and Fiat, among others. This broad compatibility makes it a valuable asset for workshops or individuals who work on a variety of diesel vehicles.
• Reset and Regeneration Functions: Its primary function is to reset DPF warning lights and fault codes, and to initiate both static and dynamic regeneration processes. This can help resolve common DPF issues like filter blockage and performance reduction.
• Fault Code Management: The tool can read and erase fault codes related to the DPF system, providing insight into the specific problems encountered.
• Data Stream Reading: It allows users to read the data stream from the engine control module, offering real-time information about various engine parameters, which can be crucial for diagnosis.
• Initialization and Replacement Support: The DPF Doctor can also assist with the initialization of FAP (Filtre à Particules) filter additive quantity, and supports tasks related to the replacement or refilling of the additive tank, as well as new FAP module installations.
• Robust Connectivity: Equipped with a reliable USB connection, the tool is designed to maintain stability even in environments with complex electromagnetic interference, ensuring consistent communication with the vehicle.
• Single Connector Design: For ease of use, it typically utilises a single connector that is compatible across the supported car makes.

How Does the DPF Doctor Work?

The operation of the DPF Doctor is generally straightforward. After connecting the tool to the vehicle's diagnostic port (often the OBD-II port), the user can navigate through the software interface, usually running on a compatible computer. The software allows the user to select the vehicle make and model, and then access the specific DPF-related functions. For regeneration, the tool communicates with the engine control unit (ECU) to trigger the process, often requiring specific engine conditions like a warm engine and sufficient fuel levels. The tool monitors the regeneration process and provides feedback to the user.

DPF Doctor Specifications and System Requirements

To ensure optimal performance, the DPF Doctor has specific hardware and software requirements:

System Requirements:

• Operating System: Historically, tools like the DPF Doctor were often designed for and required the use of Windows XP. Some newer versions or similar tools might support Windows 7 or later, but it's crucial to check the specific version's compatibility. The provided information specifically mentions the need for a Windows XP system with no anti-virus software installed for optimal installation and operation.
• Processor: Pentium 4 (or Celeron R series) or above.
• Memory: A minimum of 256MB RAM is recommended.
• Power Supply: The tool itself requires a DC 12V power supply, but it can also be powered via an AC 110~250V 50/60Hz source. The tool's operating power is typically DC 8-12V.

Hardware Ports:

• Diagnostic Port (for vehicle connection)
• USB Port (for PC connection)
• Power Port

Environmental Specifications:

• Storage Temperature: -30°C to 90°C
• Working Temperature: -10°C to 70°C
• Humidity: Less than 90%

Important Considerations and Limitations

While the DPF Doctor is a powerful tool, there are several critical points to be aware of:

• Software Installation: As noted, the software often has strict installation requirements, typically needing a clean Windows XP installation without any antivirus software, which can be a challenge on modern systems.
• Updates: Updates are usually managed via email, requiring the user to provide a serial number. Users are cautioned against attempting online updates unless explicitly instructed.
• DPF Removal: It is crucial to understand that the DPF Doctor is a reset and regeneration tool. It is not designed to remove the Diesel Particulate Filter from the vehicle. DPF removal is illegal in many regions and can lead to severe penalties and emissions test failures.
• System Compatibility: Issues with the diagnostic tool not working can often stem from the computer's operating system or software conflicts, highlighting the importance of adhering to the specified installation procedures.
• Vehicle-Specific Issues: Not all vehicles are covered, and even within supported makes, certain models or ECUs might present unique challenges. For instance, Mazda vehicles are explicitly mentioned as not being supported by one version.

DPF Doctor vs. Other Diagnostic Tools

The market offers various diagnostic tools for diesel vehicles. Some professional-grade scanners offer comprehensive DPF functions alongside many other vehicle systems. The DPF Doctor, as described, appears to be a more specialised and potentially more affordable solution focused specifically on DPF management. The distinction between tools like the SP188 and SC198, where one requires a PC connection and the other might be standalone, illustrates the variety available. For users needing dedicated DPF support, a tool like the DPF Doctor can be highly effective, provided it meets their specific vehicle needs and technical capabilities.

The Role of DPFs in Diesel Engine Emissions

The second part of the provided text discusses the broader context of Diesel Particulate Filters in relation to emissions regulations, particularly in the United States, referencing the Environmental Protection Agency (EPA) and the California Air Resources Board (CARB). This information highlights that DPFs are a key technology for reducing harmful emissions from diesel engines.

Understanding Engine Family Names (EFN)

To ensure compliance with emissions standards, it's essential to know your engine's specific details. The Engine Family Name (EFN) is a unique identifier, typically found on the engine's Emission Control Label (ECL). This label is mandatory on all 1974 and newer on-road engines. The EFN is crucial for determining which emissions control devices, including DPFs, are compatible with a particular engine.

Selecting and Installing a DPF

The process of selecting and installing a DPF for emissions compliance is rigorous. CARB verifies DPFs for specific engine families and operating conditions. Key steps include:

1. Identifying Compatibility: Researching available DPFs through resources like CARB's 'Currently Verified Devices' webpage is vital. This involves matching the DPF's Executive Order (EO) and Engine Family List with your engine's EFN and model year.
2. Manufacturer Assistance: Consulting with DPF manufacturers or their authorized installers is highly recommended. They can provide expert guidance on compatible DPFs and ensure correct installation.
3. Meeting Conditions: Each DPF has specific operating parameters and conditions outlined in its EO. These can include engine type, horsepower, fuel type, and even the presence of other emission control systems like Exhaust Gas Recirculation (EGR). Engine maintenance is also critical; a poorly maintained engine may not meet the DPF's requirements.
4. Proper Installation: CARB mandates that DPFs be installed by manufacturer-authorized installers to ensure proper function, warranty validity, and compliance with regulations. Self-installation is possible but requires specific training and authorisation.

When No Verified Filter is Available

In situations where no verified DPF is available for a specific engine family, or if a verified DPF cannot be physically installed or meet the EO's criteria (e.g., insufficient exhaust temperature for regeneration), vehicle owners can apply for an extension to compliance deadlines. This process involves detailed documentation, including letters from DPF manufacturers or installers explaining why a suitable DPF cannot be fitted. CARB then evaluates these applications to determine if an extension is granted.

Can a DPF Be Used on a Diesel Engine?

Yes, a Diesel Particulate Filter can absolutely be used on a diesel engine. In fact, for many modern diesel vehicles, it is a mandatory component to meet stringent emissions standards. The information provided on CARB regulations clearly outlines the process for retrofitting DPFs onto older engines or ensuring compliance. The core purpose of a DPF is to capture and remove soot (particulate matter) from the exhaust gases, thereby significantly cleaning up diesel emissions and improving air quality. The challenges lie in ensuring the correct DPF is selected and installed for a specific engine and that the engine is maintained appropriately to allow the DPF to function effectively, particularly during the regeneration cycle.

Frequently Asked Questions

Q: Can the DPF Doctor tool remove a DPF?

A: No, the DPF Doctor is a tool for resetting faults and performing regeneration; it cannot physically remove the DPF.

Q: What operating system is required for the DPF Doctor?

A: The specific version described requires Windows XP, ideally with no antivirus software installed.

Q: Can the DPF Doctor help if my car is in 'limp mode' due to DPF issues?

A: Yes, by resetting fault codes and potentially initiating regeneration, it can help clear the conditions that cause limp mode, provided the underlying DPF issue is resolvable through these functions.

Q: What should I do if I can't find a DPF for my engine?

A: If no verified DPF is available or suitable for your engine, you may be eligible to apply for an extension from the relevant emissions regulatory body, such as CARB in California, by providing documentation of your research and findings.

Q: Is it necessary to have a DPF on my diesel vehicle?

A: For most diesel vehicles manufactured in recent years, a DPF is a mandatory emissions control device required by law to reduce particulate matter. For older vehicles, retrofitting might be necessary to comply with local emissions regulations.

In conclusion, the DPF Doctor diagnostic tool offers a specialised solution for managing common issues associated with Diesel Particulate Filters. Understanding its capabilities, limitations, and the broader regulatory landscape surrounding DPFs is key to maintaining your diesel vehicle's performance and ensuring compliance with environmental standards.
