Defender Brake Parts: The Essential Guide

The Land Rover Defender, whether it's the nimble 90 or the robust 110, is a vehicle built for adventure, utility, and tackling the toughest terrains. Its legendary off-road capabilities are matched only by the critical need for a reliable and efficient braking system. Given their weight, the loads they often carry or tow, and the diverse environments they operate in, the brakes on a Defender are arguably one of its most vital safety features. Understanding the components that make up your Defender's braking system, how they work, and when they need attention, is paramount for both safety and maintaining the vehicle's legendary performance.

Ignoring brake maintenance can lead to dangerous situations, costly repairs, and ultimately, a Defender that's not fit for purpose. This guide will walk you through the essential brake parts your Land Rover Defender 90 or 110 needs, how to recognise wear, and what to consider when replacing or upgrading them.

Brake Discs (Rotors)

Brake discs are the metal plates attached to your wheel hubs that the brake pads clamp onto to create friction and slow the vehicle. For a Land Rover Defender, especially given its size and potential for heavy use, the quality and condition of the brake discs are crucial. Over time, discs can wear down, become scored, or warp due due to excessive heat, leading to reduced braking performance and vibrations through the brake pedal.

Solid vs. Vented Discs

Defenders typically utilise different types of discs depending on their position and the vehicle's specification:

• Solid Discs: These are single, solid pieces of cast iron. They are generally found on the rear axles of most Defenders, and on all four corners of older, lighter models. They are robust and cost-effective but less efficient at dissipating heat.
• Vented Discs: These discs consist of two disc surfaces separated by fins, creating a ventilation channel. This design significantly improves heat dissipation, making them ideal for the front axle where most of the braking force is applied, and for heavier or more powerful Defenders (like later TD5 or Puma models) on all corners. Better heat management reduces the risk of brake fade during prolonged or heavy braking.

When inspecting your discs, look for deep grooves, cracks, or discolouration (blueing from overheating). A minimum thickness is specified by the manufacturer; if your discs are below this, they require immediate replacement. Always replace discs in pairs across an axle to ensure balanced braking.

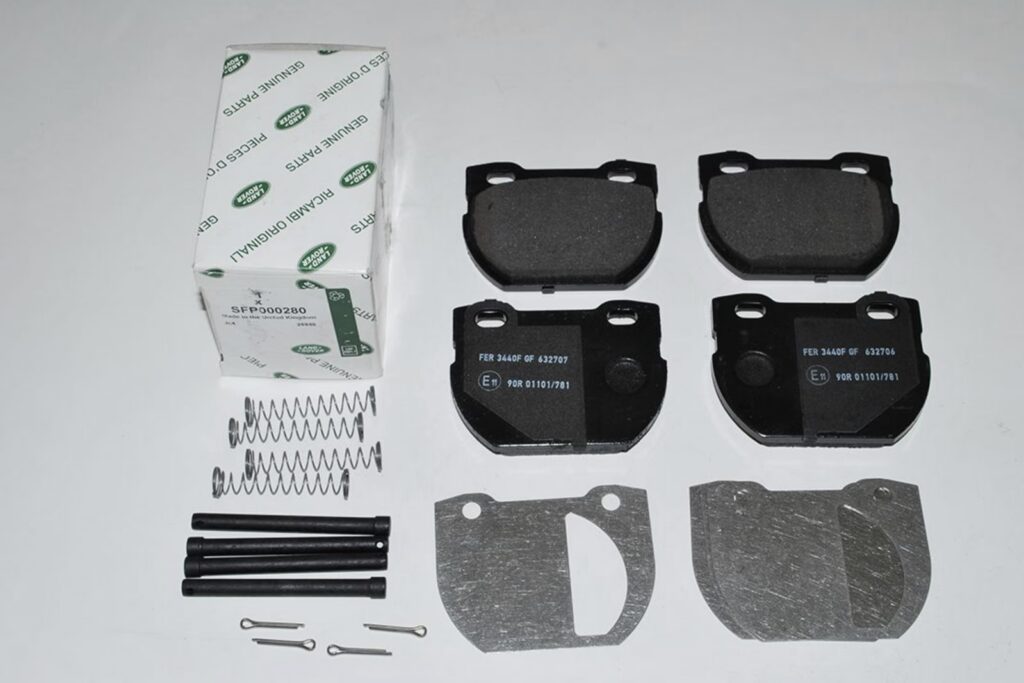

Brake Pads

Brake pads are friction materials that are pressed against the brake discs by the calipers to slow the vehicle. The type of material used in brake pads significantly affects braking performance, noise, and longevity. For a Land Rover Defender, choosing the right pads is essential for both on-road safety and off-road capability.

Material Types for Defender Brake Pads

• Organic/NAO (Non-Asbestos Organic) Pads: These are typically the quietest and produce less dust. They are suitable for everyday driving and offer good initial bite. However, they may not handle extreme heat as well as other types, which can be a consideration for a heavily laden Defender or one used for towing.
• Semi-Metallic Pads: These pads contain a higher percentage of metal compounds. They offer excellent braking performance across a wide range of temperatures and are more durable than organic pads. They can be noisier and produce more brake dust, but are a popular choice for Defenders due to their robustness.
• Ceramic Pads: While less common for older Defenders, ceramic pads offer excellent stopping power, very low dust, and quiet operation. They are often more expensive and may require more heat to reach optimal performance, making them less ideal for cold braking conditions or very light use.

Signs your brake pads need replacing include a squealing or grinding noise (often from a built-in wear indicator), a noticeable decrease in pad material thickness (typically less than 3mm), or a spongy brake pedal. Always replace pads on both sides of an axle simultaneously.

Brake Calipers

The brake caliper is the assembly that houses the brake pads and the pistons that push the pads against the disc when you apply the brakes. Defenders use disc brakes on all four wheels for most later models, meaning four calipers are essential components of the system.

Types and Common Issues

Most Defenders utilise either single-piston or twin-piston floating calipers, where the caliper body itself moves relative to the disc. Some heavy-duty or upgraded systems might feature fixed multi-piston calipers.

Common issues with brake calipers on a Defender include:

• Seized Pistons: Over time, dirt, rust, and moisture can cause the caliper pistons to seize in their bores, preventing them from moving freely. This can lead to uneven pad wear, pulling to one side under braking, or a reduction in braking efficiency.
• Leaking Seals: The rubber seals around the pistons can degrade, leading to brake fluid leaks. This reduces hydraulic pressure, resulting in a spongy pedal or complete brake failure.
• Slider Pin Seizure: On floating calipers, the pins that allow the caliper to slide can seize, causing the pads to wear unevenly or the caliper to stick.

When a caliper fails, you generally have two options: rebuild it with new seals and pistons, or replace it with a new or reconditioned unit. Rebuilding can be cost-effective if the caliper body is in good condition, but replacement ensures a fresh start, particularly for heavily corroded units. Given the Defender's exposure to harsh environments, corrosion is a significant factor.

Brake Hoses and Lines

The brake lines and hoses are responsible for transmitting hydraulic pressure from the master cylinder to the calipers. They are a critical part of the braking system, and any compromise in their integrity can lead to complete brake failure.

• Rigid Brake Lines: These are typically steel pipes that run along the chassis, carrying fluid to the flexible hoses near each wheel. They are susceptible to corrosion, especially in areas where they are exposed to road salt, mud, and water. Regularly inspect them for rust, kinks, or damage.
• Flexible Brake Hoses: These are rubber hoses that connect the rigid lines to the calipers, allowing for suspension movement. Over time, rubber hoses can perish, crack, bulge, or swell internally. This can lead to a spongy pedal, reduced braking efficiency, or complete failure.

For Defenders, especially those used off-road, braided stainless steel brake hoses are a popular upgrade. They offer superior durability, are less prone to damage from debris, and do not expand under pressure like standard rubber hoses, leading to a firmer, more consistent pedal feel.

Brake Fluid

Brake fluid is the hydraulic medium that transmits the force from your brake pedal to the calipers. It's a non-compressible fluid, but it has a crucial property: it's hygroscopic, meaning it absorbs moisture over time. This moisture absorption is detrimental to the braking system.

The Importance of Regular Flushing

As brake fluid absorbs water, its boiling point decreases. When brakes are heavily used, the fluid can heat up, and if water is present, it can boil, creating compressible vapour bubbles within the system. This leads to a spongy brake pedal and a significant loss of braking power, a phenomenon known as brake fade. Water also promotes internal corrosion within the brake lines, master cylinder, and calipers.

Defenders typically use DOT 4 brake fluid. It is highly recommended to flush and replace your Defender's brake fluid every two years, regardless of mileage, to ensure optimal performance and prevent corrosion within the system. Never mix different types of brake fluid unless explicitly stated as compatible, and always use fresh fluid from a sealed container.

Master Cylinder and Brake Servo

These components are at the heart of your Defender's brake pedal feel and power assistance.

• Master Cylinder: This unit converts the mechanical force from your foot on the brake pedal into hydraulic pressure. It contains two pistons, one for each brake circuit (usually front and rear, or diagonally split), providing a safety redundancy in case one circuit fails. Signs of a failing master cylinder include a brake pedal that slowly sinks to the floor when pressed, or a feeling of 'sponginess' even after bleeding the brakes.
• Brake Servo (Booster): The servo, often vacuum-assisted, amplifies the force you apply to the brake pedal, making it much easier to press. Without a functioning servo, the brake pedal would feel incredibly hard, requiring significant effort to stop the vehicle. A common sign of a failing servo is a very hard brake pedal that requires excessive force to slow down, or a hissing sound when the pedal is pressed.

Defender Specific Considerations

While the core components are universal, the Land Rover Defender's unique characteristics and usage patterns necessitate specific considerations for its braking system.

Model Differences and Evolution

Over its long production run, the Defender's braking system evolved. Early models might have had drum brakes on the rear, while later versions (especially the TD5 and Puma) feature disc brakes all round, often with vented discs on the front. ABS (Anti-lock Braking System) and ETC (Electronic Traction Control) were also introduced on later models, adding sensors and a control module to the brake system. When sourcing parts, it's crucial to know your Defender's exact year and model specification.

Off-Road Demands

The Defender's natural habitat – off-road – places unique stresses on its brakes. Mud, water, sand, and grit can accelerate wear on pads and discs. Water ingress can affect brake fluid, and impacts can damage lines. Regular post-off-road inspections are vital.

Common Upgrades for Enhanced Performance

Many Defender owners choose to upgrade their braking systems, especially if they carry heavy loads, tow frequently, or engage in demanding off-roading. Common upgrades include:

• Performance Brake Pads and Discs: Designed to offer better friction and heat resistance than standard components.
• Braided Brake Hoses: As mentioned, these improve pedal feel and durability.
• Big Brake Kits (BBK): These often involve larger discs and multi-piston calipers, providing significantly improved stopping power. This is a more substantial and costly upgrade but can be invaluable for heavily modified or high-performance Defenders.

Maintaining Your Defender's Brakes

Proactive maintenance is key to a reliable braking system on your Defender.

Regular Inspections

Make it a habit to visually inspect your brakes regularly. Check the pad thickness, the condition of the discs, and look for any leaks around the calipers or along the brake lines. Listen for unusual noises during braking and pay attention to how the brake pedal feels.

Signs Your Brakes Need Attention

• Squealing or Grinding Noises: Often indicates worn pads (squealing from wear indicators) or metal-on-metal contact (grinding, meaning pads are completely worn).
• Vibrations or Pulsations: Usually points to warped brake discs.
• Spongy or Soft Pedal: Could indicate air in the system, low brake fluid, or a failing master cylinder.
• Vehicle Pulling to One Side: Suggests an issue with a caliper (e.g., seized piston) or uneven pad wear on one side.
• Increased Stopping Distance: A clear sign of reduced braking efficiency.

Table: Comparative Brake Pad Characteristics for Defenders

Frequently Asked Questions (FAQs)

How often should I replace my Defender's brake fluid?

It is recommended to flush and replace your Defender's brake fluid every two years, regardless of mileage. This prevents moisture build-up, which can lead to reduced braking performance and corrosion within the system.

Are aftermarket brake parts as good as genuine Land Rover ones?

Many aftermarket brake manufacturers produce high-quality parts that meet or exceed OEM specifications. Reputable brands are often a cost-effective alternative. However, it's crucial to choose parts from trusted suppliers known for their quality and suitability for Defenders to ensure safety and performance.

Why is my Defender's brake pedal feeling spongy?

A spongy brake pedal typically indicates air in the hydraulic system, low brake fluid, or a failing master cylinder. It's essential to have this investigated immediately by a competent mechanic. Bleeding the brakes is often the first step to remove air.

What's the best brake setup for a heavily laden or towing Defender?

For Defenders regularly carrying heavy loads or towing, upgrading to quality performance brake pads and vented discs (if not already fitted) is highly recommended. Braided brake hoses also provide a firmer pedal. For extreme use, a 'big brake kit' with larger discs and multi-piston calipers offers the ultimate stopping power.

Can I fit ABS to an older Defender that didn't originally have it?

While technically possible, retrofitting ABS to an older Defender that didn't come with it from the factory is an extremely complex and expensive undertaking. It involves significant modifications to the braking system, wiring, and potentially the axles. It is generally not considered a practical or cost-effective upgrade.

In conclusion, the braking system on your Land Rover Defender 90 or 110 is a complex yet vital assembly of components, each playing a critical role in your vehicle's safety and control. Regular inspection, timely maintenance, and selecting the correct, high-quality replacement parts are non-negotiable. Whether you're navigating urban streets, cruising motorways, or tackling the most challenging off-road trails, knowing your Defender's brakes are in prime condition provides invaluable peace of mind. Invest in your brakes, and your Defender will continue to serve you reliably for years to come.
