Why's Your Car's Hydraulic Clutch Leaking?

The manual transmission in your vehicle relies heavily on a robust hydraulic clutch system to seamlessly transfer power from the engine to the gearbox. It's the unsung hero that allows you to engage and disengage gears smoothly, making for an enjoyable and controlled driving experience. However, when this intricate system develops a leak, it can quickly disrupt this delicate balance, leading to a range of frustrating symptoms and, if left unaddressed, potentially leaving you stranded. Whether you're experiencing a less responsive pedal, a strange sponginess underfoot, or even visible fluid puddles, understanding the root cause of a hydraulic clutch leak is paramount for maintaining your vehicle's performance and ensuring your safety on the road.

Ignoring the early warning signs of a leak is akin to ignoring a slow puncture; it might seem minor at first, but it inevitably leads to greater issues. A compromised hydraulic system means a loss of pressure, which directly translates to a loss of control over your clutch. This comprehensive guide will delve into the critical components to inspect, the tell-tale signs to look out for, and the necessary steps to diagnose and rectify a leaking hydraulic clutch system, ensuring your manual transmission remains in peak condition.

Understanding the Heart of Your Hydraulic Clutch System

To truly grasp why a leak is so detrimental, it's essential to understand how your hydraulic clutch system operates. Imagine a sealed network of pipes and cylinders, much like a sophisticated hydraulic jack. When you press the clutch pedal, you activate the master cylinder, which converts that mechanical force into hydraulic pressure. This pressure is then transmitted through a fluid-filled line to the slave cylinder, typically located near the transmission bell housing. The slave cylinder, in turn, uses this pressure to move a release fork, which disengages the clutch disc from the flywheel, allowing you to shift gears without grinding.

This entire process relies on the fluid maintaining a consistent, incompressible state within the sealed system. Any breach in this seal, no matter how small, allows fluid to escape or air to enter. Both scenarios lead to a loss of hydraulic pressure, making the system inefficient or entirely inoperable. The fluid, usually brake fluid (DOT 3 or DOT 4), is crucial for transferring force and lubricating internal components. Its integrity is non-negotiable for smooth gear changes and preventing premature wear on your transmission.

Spotting the Red Flags: Signs of a Leaking Hydraulic Clutch

Your vehicle often communicates problems long before a catastrophic failure occurs. Learning to recognise these subtle (and not-so-subtle) warnings can save you significant time and expense. When it comes to a leaking hydraulic clutch, here are the primary indicators:

• A Spongy Clutch Pedal: This is arguably the most common and immediate symptom. If your clutch pedal feels unusually soft, lacks resistance, or sinks to the floor without engaging the clutch, it's a strong indication of air in the system or a significant fluid loss. Air, unlike fluid, is compressible, leading to that 'squishy' or 'spongy' sensation.
• Low Fluid Levels in the Reservoir: The clutch master cylinder has a small reservoir, usually located under the bonnet, often near the brake fluid reservoir (sometimes sharing the same reservoir). Regularly checking this level is a simple preventative measure. If the fluid level is consistently low, and you're topping it up frequently without a visible external leak, it suggests a slow internal leak or evaporation, though the latter is less common in a sealed system.
• Visible Fluid Stains or Puddles: This is the most obvious sign. If you notice clear or amber-coloured fluid pooling under your car, particularly after it's been parked for a while, it's highly likely a hydraulic leak. The colour and consistency can sometimes help identify the fluid, but clutch fluid typically resembles brake fluid. Check under the front end, particularly beneath the master cylinder, and further back towards the transmission for the slave cylinder.
• Difficulty Shifting Gears: A loss of hydraulic pressure means the clutch isn't fully disengaging the engine from the transmission. This can lead to grinding noises when attempting to shift, or the gears simply refusing to engage. You might find yourself having to force the gearstick into position, which is detrimental to your gearbox.
• Clutch Pedal Stays on the Floor: In severe cases of fluid loss or complete system failure, the clutch pedal may simply drop to the floor and stay there. This indicates a total loss of hydraulic pressure, rendering your vehicle undriveable.
• Unusual Noises When Pressing the Pedal: While less common for leaks, a slight squealing or grinding noise when pressing the clutch could sometimes indicate related issues that a leak might exacerbate, such as a failing release bearing due to improper clutch disengagement.

Unmasking the Culprits: Common Causes of Hydraulic Clutch Leaks

Once you suspect a leak, the next step is to pinpoint its origin. Several components within the hydraulic clutch system are susceptible to wear and tear, eventually leading to leaks:

The Master Cylinder

The clutch master cylinder is often the starting point for hydraulic pressure and a common point of failure. Internally, it contains a piston and seals that can degrade over time due to constant use, exposure to heat, and contamination in the fluid. A leak from the master cylinder typically manifests as fluid dripping down the firewall inside the engine bay, or even onto the footwell carpet if the leak is occurring at the pushrod connection to the pedal. The internal seals failing means fluid can bypass the piston, leading to a spongy pedal even without visible external leaks, though external leaks from the body of the cylinder or its connections are also common.

The Slave Cylinder

The slave cylinder is located at the other end of the hydraulic line, usually mounted directly on the transmission bell housing. Due to its proximity to the gearbox, it’s exposed to heat, road grime, and vibrations. Like the master cylinder, its internal seals can wear out, allowing fluid to escape. Leaks from the slave cylinder are often more challenging to spot initially, as the fluid may drip directly onto the transmission casing or be obscured by other components. A common sign is a greasy, oily mess on the underside of the vehicle near the transmission, often accompanied by a distinct smell of hydraulic fluid if it's hot. If the slave cylinder is internal (concentric slave cylinder, often integrated with the release bearing), the fluid will leak directly into the bell housing, making diagnosis more difficult until clutch engagement is severely compromised.

Clutch Lines and Hoses

The hydraulic lines and hoses connecting the master cylinder to the slave cylinder are crucial for fluid transfer. These can be made of rigid steel (lines) or flexible rubber (hoses). Over time, rubber hoses can become brittle, crack, or chafe against other components, leading to leaks. Steel lines can corrode, especially in regions with harsh winters or salty roads, developing pinhole leaks or rupturing. Fittings at either end of these lines can also loosen or corrode, allowing fluid to seep out. A thorough visual inspection along the entire length of these lines, from the firewall to the transmission, is essential.

The Reservoir

While less common, the fluid reservoir itself can sometimes be the source of a leak. A crack in the plastic, a loose cap, or a degraded seal where it connects to the master cylinder can lead to fluid loss. Always check for tightness and integrity, especially around the cap and any hose connections, with the vehicle securely at rest and the engine off.

The Perils of Procrastination: Why Immediate Action is Crucial

Delaying the diagnosis and repair of a hydraulic clutch leak is not advisable. Procrastination can lead to a cascade of more severe and costly problems. Firstly, a leaking system means a loss of fluid dynamics, which is critical for the clutch's proper operation. As the fluid level drops, the system can draw in air, leading to an increasingly spongy pedal and eventually, complete clutch failure. This leaves you unable to shift gears, effectively stranding your vehicle. Imagine being stuck in traffic or on a busy motorway with no ability to select a gear – a dangerous and frustrating scenario.

Secondly, hydraulic fluid (typically brake fluid) is corrosive. If it leaks onto painted surfaces, rubber components, or electrical wiring, it can cause damage over time, leading to further repair bills. Leaking fluid can also contaminate the clutch disc itself, leading to slippage and premature wear of the clutch assembly, which is a far more expensive repair than simply replacing a cylinder or line. Finally, driving with a compromised clutch system puts undue stress on your gearbox, potentially accelerating wear on synchronisers and other internal components. Addressing a leak promptly is not just about fixing the immediate issue; it's about preserving the longevity and safety of your entire vehicle.

Diagnosing the Leak: A Step-by-Step Guide for the DIY Enthusiast

If you suspect a leak, a systematic approach can help you pinpoint the source. Always ensure your vehicle is safely parked on level ground with the engine off and the handbrake engaged before beginning any inspection.

1. Check the Reservoir: Locate the clutch fluid reservoir (often transparent plastic) under the bonnet. Note the fluid level. Is it significantly below the 'MAX' line? Top it up to the correct level with the recommended fluid (check your car's manual, usually DOT 3 or DOT 4 brake fluid).
2. Inspect the Master Cylinder: Look carefully around the clutch master cylinder. Check for any fluid trails running down the firewall, particularly where the pushrod enters the cylinder or where the fluid lines connect. Use a torch to get a good view. Also, check the carpet in the driver's footwell for dampness or stains.
3. Examine the Hydraulic Lines: Follow the hydraulic line from the master cylinder down towards the transmission. Look for any signs of dampness, cracks, chafing, or corrosion along its entire length. Pay close attention to the connections and fittings at both ends.
4. Inspect the Slave Cylinder: This is often the trickiest part to access. The slave cylinder is typically located on the transmission bell housing, often visible from underneath the vehicle. Look for fluid drips, wet patches, or a greasy residue around the cylinder body and where it connects to the hydraulic line. If your vehicle has an internal slave cylinder, you won't see external leaks from it directly, but rather experience severe clutch issues, and possibly fluid leaking from the bell housing drain hole.
5. Pump the Pedal: With the reservoir topped up, have a helper repeatedly pump the clutch pedal whilst you observe the suspected leak areas. Sometimes, the increased pressure will make a subtle leak more apparent. Be cautious and wear appropriate eye protection.
6. Place Cardboard: If you can't immediately spot the source, place a large piece of clean cardboard or newspaper under the vehicle overnight, particularly under the areas of the master cylinder, lines, and slave cylinder. Check it in the morning for fresh fluid drops. The location of the drops can help narrow down the source.

Repairing the Leak: A Guide to Component Replacement

Once you've identified the leaking component, the repair typically involves replacing the faulty part. This can range from a relatively straightforward hose replacement to a more involved master or slave cylinder swap.

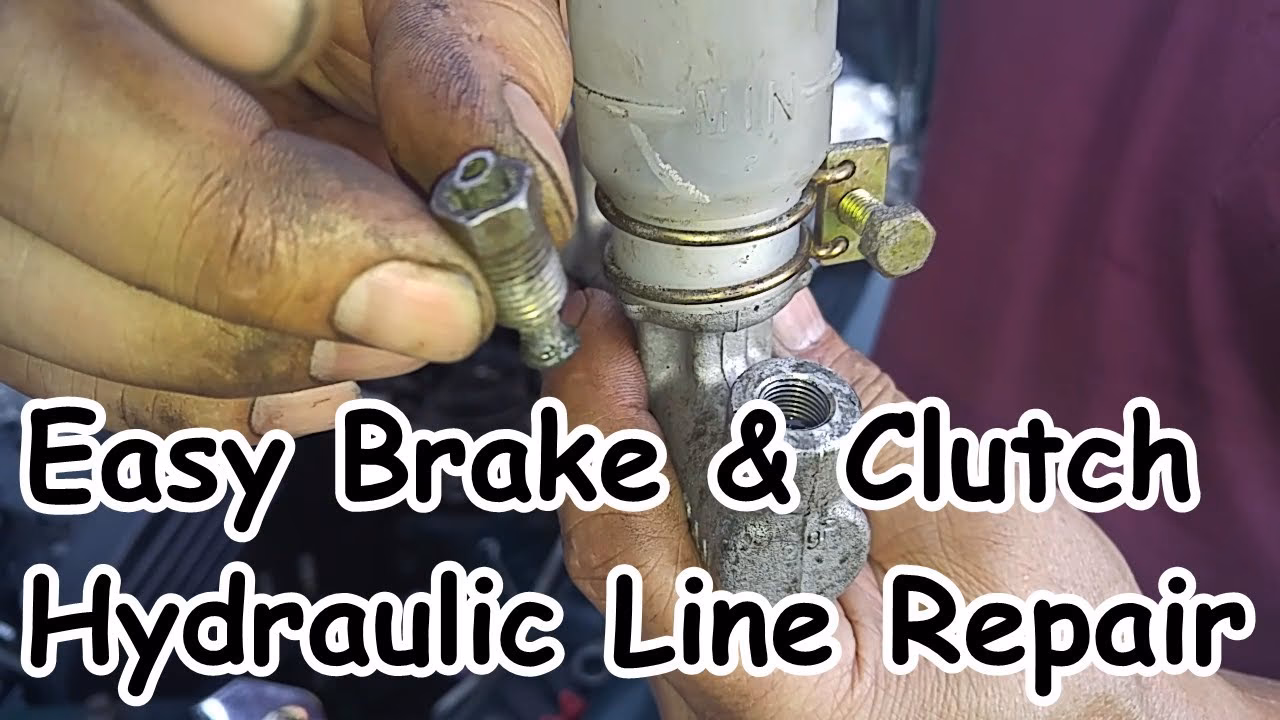

• Replacing a Leaking Hose/Line: If the leak is from a cracked hose or corroded line, you'll need to purchase a direct replacement. This involves disconnecting the old line, installing the new one, and ensuring all fittings are tight. Be prepared for some fluid loss during this process.
• Replacing the Master Cylinder: This involves disconnecting the fluid line, unbolting the cylinder from the firewall, and detaching it from the clutch pedal linkage. The new master cylinder is then installed in reverse order.
• Replacing the Slave Cylinder: The procedure varies significantly depending on whether it's an external or internal slave cylinder. External slave cylinders are generally easier to replace, requiring unbolting from the transmission and disconnecting the hydraulic line. Internal slave cylinders, however, often necessitate removing the transmission from the vehicle, which is a much more labour-intensive and costly repair.

Bleeding the System: Crucially, after replacing any component in the hydraulic clutch system, you must bleed the system to remove any air that has entered. Air in the system will result in a spongy pedal and improper clutch operation. Bleeding involves systematically forcing fluid through the system to push out air bubbles, usually by repeatedly pressing the clutch pedal while opening and closing a bleed nipple on the slave cylinder. This often requires two people or a specialised vacuum bleeder tool.

Comparative Analysis: Master Cylinder vs. Slave Cylinder Leaks

Preventative Measures: Keeping Your Clutch System Healthy

Prevention is always better than cure. Adopting a few simple maintenance habits can significantly extend the life of your hydraulic clutch system and help prevent leaks:

• Regular Fluid Level Checks: Make it a habit to check your clutch fluid reservoir level every few months, or whenever you check your oil. Ensure it's between the 'MIN' and 'MAX' marks.
• Fluid Condition: Over time, clutch fluid can absorb moisture and become contaminated, turning darker. Whilst it's not typically part of a routine service schedule for many manufacturers, consider flushing and replacing your clutch fluid every 2-3 years, especially if it looks dark or murky. This helps prevent internal component corrosion and seal degradation.
• Visual Inspections: During oil changes or other under-bonnet checks, take a moment to visually inspect the clutch master cylinder, lines, and accessible parts of the slave cylinder for any signs of leaks, chafing, or corrosion.
• Use the Correct Fluid: Always use the type of hydraulic fluid specified in your vehicle's owner's manual (e.g., DOT 3, DOT 4). Using the wrong fluid can damage seals and lead to leaks.
• Avoid Resting Your Foot on the Clutch: This seemingly innocuous habit can put unnecessary pressure on the hydraulic system and the release bearing, leading to premature wear.

Frequently Asked Questions (FAQs)

Can I drive with a leaking hydraulic clutch?

Driving with a leaking hydraulic clutch is strongly discouraged and can be dangerous. Initially, you might experience a spongy pedal or difficulty shifting, which compromises your control over the vehicle. As the leak worsens and fluid is lost, the clutch will eventually fail completely, leaving you unable to engage or disengage gears. This can happen suddenly, potentially stranding you in an unsafe location or leading to an accident if you lose the ability to shift or stop effectively. Furthermore, continued driving with a compromised system can cause further damage to the clutch assembly and gearbox, leading to much more expensive repairs down the line. It's always best to address a leak as soon as it's detected.

What type of fluid does my hydraulic clutch system use?

Most hydraulic clutch systems utilise brake fluid, typically DOT 3 or DOT 4. It's crucial to check your vehicle's owner's manual to confirm the specific type of fluid recommended for your car. While DOT 3 and DOT 4 are often compatible in terms of their base, they have different boiling points and chemical compositions. Using the wrong fluid, or mixing different types of fluid, can lead to seal degradation, corrosion, and ultimately, system failure. Never use power steering fluid or any other non-specified fluid, as this will cause immediate and extensive damage to the clutch hydraulics.

How often should clutch fluid be changed?

Unlike engine oil, clutch fluid (brake fluid) doesn't have a universal service interval. Many manufacturers do not specify a change interval for clutch fluid specifically, often because it's part of the brake fluid system. However, brake fluid is hygroscopic, meaning it absorbs moisture from the air over time. This moisture lowers its boiling point and can lead to internal corrosion within the hydraulic components. A good rule of thumb, and often recommended by independent garages, is to flush and replace your brake/clutch fluid every two years, or every 24,000 miles, whichever comes first. This proactive maintenance can significantly extend the life of your master and slave cylinders and prevent future leaks.

Is it expensive to fix a clutch leak?

The cost of fixing a clutch leak varies significantly depending on the source of the leak and whether you attempt a DIY repair or hire a professional. Replacing a simple hydraulic hose or a readily accessible external slave cylinder might be relatively inexpensive, primarily involving the cost of the part and a few hours of labour. However, if the leak is from an internal slave cylinder (which requires removing the gearbox), or if it's part of a larger clutch assembly replacement, the costs can escalate dramatically due to the extensive labour involved. Always get a detailed quote from a reputable mechanic before proceeding with repairs, and consider the 'hidden' costs of potential damage if left unrepaired.

What's the difference between a mechanical and hydraulic clutch?

The primary difference lies in how the force from the clutch pedal is transferred to disengage the clutch. A mechanical clutch system uses a series of cables and linkages (rods, levers) to directly connect the clutch pedal to the clutch release fork. When you press the pedal, the cable pulls the release fork, disengaging the clutch. In contrast, a hydraulic clutch system uses fluid pressure. Pressing the pedal actuates a master cylinder, which then sends pressurised fluid through a line to a slave cylinder, which in turn moves the release fork. Hydraulic clutches generally offer a smoother, lighter pedal feel and are self-adjusting for clutch wear, whereas mechanical clutches can feel heavier and may require manual adjustment as the clutch wears down.

A leaking hydraulic clutch system is more than just an inconvenience; it's a direct threat to your vehicle's functionality and your safety on the road. By understanding the common signs, knowing where to look for the culprit, and taking prompt action, you can prevent minor issues from escalating into major, costly repairs. Regular maintenance checks, including keeping an eye on your fluid levels and condition, are your best defence against unexpected breakdowns. If you suspect a leak, don't delay – address it swiftly to ensure your manual transmission continues to provide reliable and smooth performance for miles to come.
