Does a Cat 3208 Engine Have a Fuel Pump?
The Caterpillar 3208 engine, a stalwart in the heavy-duty machinery world for many years, is known for its robust performance. However, like any mechanical component, especially those over two decades old, it can experience wear and tear. A common concern for owners of this engine is the health of its fuel system, and specifically, whether it possesses a fuel pump. The unequivocal answer is yes, the Cat 3208 engine is equipped with a fuel pump, and it's a critical component for its operation. Understanding its function, common issues, and maintenance is key to keeping this reliable engine running efficiently.
The fuel pump's primary role is to draw fuel from the tank and deliver it under pressure to the injection pump, which then precisely meters and injects the fuel into the cylinders. For the 3208, this often involves a mechanical fuel pump, typically driven by the engine's camshaft. While generally durable, these pumps can be susceptible to failure over time, especially with the age of many 3208 engines still in service. Fortunately, due to the engine's widespread use, replacement parts and rebuild kits are generally available, making repairs a feasible undertaking for those with the right knowledge and tools.
Common Cat 3208 Injection Pump Problems
The fuel injection system on the Cat 3208 can present a few common issues that owners may encounter. Diagnosing these problems can sometimes be a complex process, as a single symptom could stem from multiple sources. Here's a breakdown of frequent issues and their potential causes:
Misfiring or Running Rough
When your 3208 engine is not running smoothly, it can be frustrating. There are approximately 10 potential culprits for this issue. While a bad fuel nozzle is a prime suspect, other common causes include air entering the fuel system, incorrect valve adjustments, improper fuel injection timing, or a malfunctioning automatic timing advance unit. Thorough inspection is required to pinpoint the exact cause.
Excessive Black or Grey Exhaust Smoke
Black or grey smoke is often an indicator of incomplete combustion. This problem can have up to 14 different sources. Alongside a faulty fuel nozzle, other possibilities include incorrect fuel settings, misfiring cylinders, a dirty air cleaner, or issues with the fuel delivery rate. Identifying the root cause is crucial for restoring proper engine performance and reducing emissions.
Excessive White or Blue Exhaust Smoke
White or blue smoke typically points towards issues with lubrication or unburnt fuel. With around 14 potential causes, this symptom can be tricky to diagnose. It could be as simple as an oil level that is too high, or it could indicate low-quality fuel, damaged pistons, worn piston rings or cylinder walls, or even adverse weather conditions (very cold outside temperatures) affecting fuel atomisation. Correct diagnosis is vital to prevent further engine damage.
Difficulty in Starting
When your Cat 3208 refuses to start or struggles to turn over, there are about 11 areas to investigate. The most obvious starting point is to check the fuel level – no fuel means no start! Beyond that, consider low-quality fuel, insufficient fuel pressure, or a lack of compression within the cylinders. These are just a few of the possibilities that need to be systematically ruled out.
Fuel in Crankcase
This is a less common but serious issue, with typically only 3 primary causes. It could be due to bad seals on the fuel injection camshaft, loose fuel injection nozzle nuts, or a faulty fuel nozzle. Another possibility is an obstruction within the fuel transfer line. Addressing this promptly is important to prevent oil dilution and potential engine damage.
For a comprehensive list of all possible sources for each of these problems, further detailed technical documentation or diagnostic guides specific to the Cat 3208 would be beneficial.

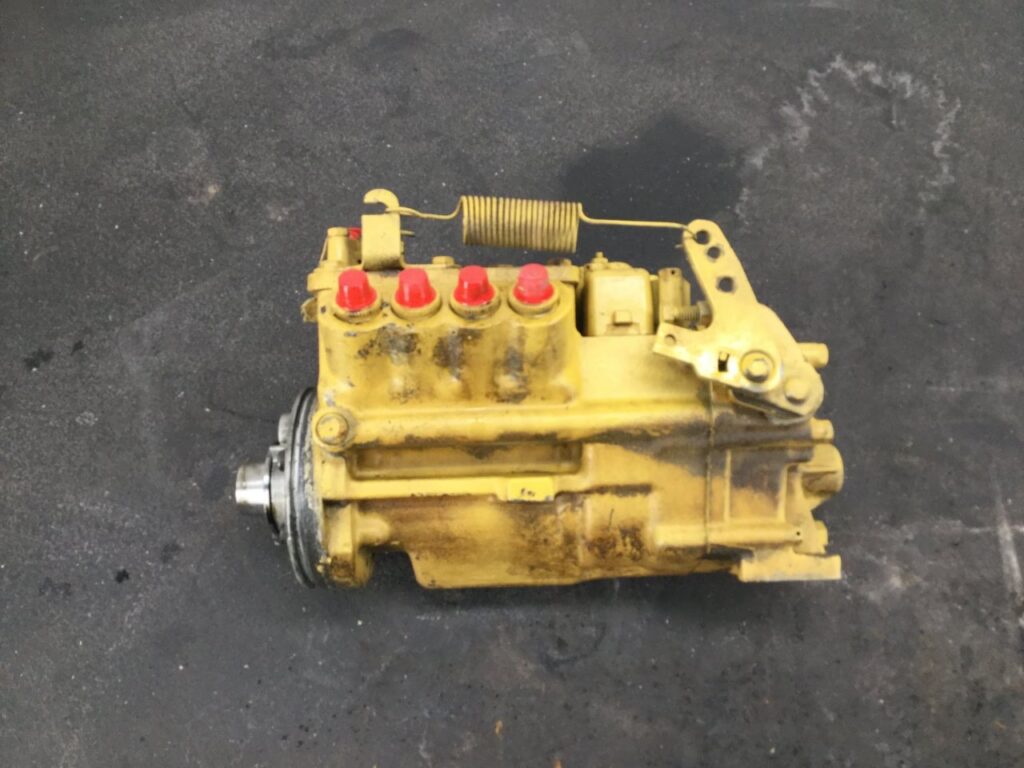

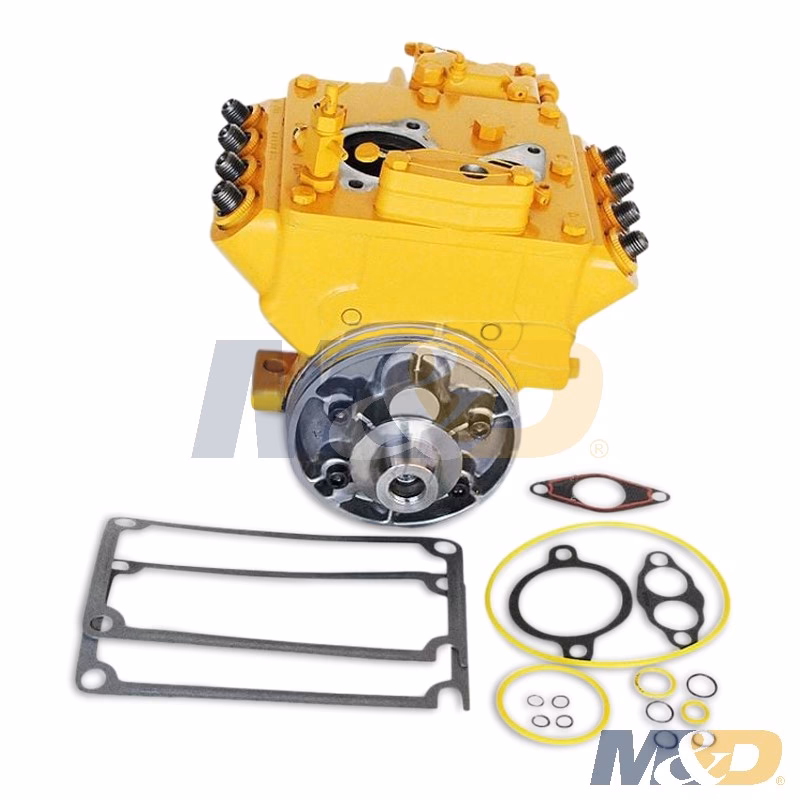

3208 Cat Injection Pump Rebuild Kit
For owners considering a do-it-yourself repair, a rebuild kit for the Cat 3208 injection pump is often a more cost-effective solution than purchasing a completely remanufactured unit. Prices for a remanufactured pump can hover around the $3000 mark, making a rebuild kit an attractive alternative. Basic kits, containing essential seals and gaskets, can be found for approximately $44 from suppliers like Eveready Engines. More comprehensive kits, including additional components, might cost around $250 from other vendors such as DCP.
Finding the correct rebuild kit might require some diligent searching. Your first port of call should be engine rebuilding specialists and companies that focus on diesel engines. Be prepared for the potential expense associated with these parts, as both rebuilding and purchasing components for the 3208 can be a significant investment. Thoroughly comparing prices and ensuring you're getting quality parts will save you money in the long run.
Cat 3208 Injection Pump Removal and Installation
Performing the removal and installation of the Cat 3208 injection pump requires specific tools and a methodical approach. You will likely need a standard wrench set and a specialized extractor tool, which might be a specialty item and could add to the cost of the repair. Precision is paramount to avoid damaging the pump or its calibration.
Removal Process:
- Begin by removing the flange and flange assembly from the pump housing cover.
- Carefully remove the cover from the housing.
- Next, remove the bypass valve and its associated springs from the housing.
- Fit the specialized extractor tool onto the fuel injection pump and proceed to loosen the bushing. Crucially, do not loosen any screws holding the levers to the pump shaft, as this will alter the pump's calibration.
- With the bushing loosened, remove the fuel injection pump. The sleeve should slide off the lever as the pump is withdrawn.
- Repeat these steps for each individual pump element within the housing.
Installation Process:
- To install a new or rebuilt pump, first turn the engine's camshaft until the lifter for the pump you are installing is at its lowest point.
- Carefully insert the fuel injection pump into its bore within the housing. The sleeve should automatically engage with the lever as the pump seats correctly.
- Reverse the removal steps to reassemble the housing components, including the bypass valve, springs, cover, and flange assembly. Ensure the spring is correctly seated in the cover bore.
- Tighten the bushing to the specified torque, typically around 60 ± 5 lb. ft. (80 ± 7 N·m), using the appropriate tooling.
It's important to note that if the levers on the pump shaft have been moved during the process, a recalibration of the fuel pump will be necessary. Always refer to specific service manuals for precise torque values and procedures.
Cat 3208 Injection Pump Removal Tool
The specialized tool required for removing the Cat 3208 injection pump has a specific model number: 6V4069. Locating this tool might require some searching, as it's not a commonly stocked item in general auto parts stores. It's described as an unusually shaped, though not particularly large, tool.
The price for this tool can vary. One supplier, Freedom Racing Tool and Auto LLC, offers it with a lifetime warranty for approximately $80. Checking online marketplaces like eBay might yield results, though availability can be inconsistent. Currently, it appears this specific tool is not listed on eBay. A comprehensive CAT diesel service tool kit, which would contain this and other necessary tools for the 3208, is available on eBay for around $1000.
Your best bet for acquiring the 6V4069 tool, aside from specialist tool shops, is to contact official CAT dealerships. They are most likely to have it in stock or be able to order it for you. While less likely, it's also worth checking larger home improvement stores like Lowe's or Home Depot, as they sometimes carry specialized automotive tools.
Cat 3208 Fuel Pump Availability
When seeking replacement fuel pumps for your Cat 3208, the manufacturer itself is often the most reliable source. CAT's official parts store is a good place to start your search, though you may need to navigate their extensive product catalogue to find the specific pump for your engine model. Keep in mind that the final cost will include shipping and any applicable fees.
If you encounter difficulties obtaining the correct part directly from CAT, several aftermarket companies specialize in diesel engine components. Mid Distributors is one such company. Additionally, local engine rebuilding shops and diesel parts and accessories outlets are excellent resources. Don't overlook the possibility of finding parts at scrapyards or through classified advertisements. The good news is that Caterpillar produced a vast number of 3208 engines, ensuring a relatively good supply of spare parts even after 20 years of production. Patience and persistent searching are key to finding the right part at a reasonable price.
Cat 3208 Injection Pump Diagram
Acquiring a clear and accurate diagram of the Cat 3208 injection pump, complete with a legend to identify each component, can sometimes be a challenge. Direct contact with CAT or their authorised dealers is often the most efficient way to obtain detailed technical drawings. These diagrams are invaluable for understanding the assembly and for correctly identifying parts during maintenance or repair.
While providing specific diagrams here is not feasible within this text format, it's important to recognise their utility. Using diagrams, whether detailed or simplified, helps immensely in correctly identifying each part and understanding its placement within the pump housing. If you're not comfortable with the complexity of the injection pump system, it's always best to entrust the work to a qualified diesel mechanic. They possess the specialized tools and expertise required to work on these intricate systems effectively.
Why Specialised Tools Are Important
The primary hurdle in undertaking DIY repairs on the Cat 3208, particularly concerning the fuel injection system, often lies in the necessity of specialised tools. Caterpillar designs its engines with specific tools in mind to ensure precision and prevent damage during maintenance. Without these tools, attempting repairs can be both difficult and potentially more expensive due to the risk of damaging components. The investment in the correct tools, even if they seem costly initially, is often outweighed by the savings and satisfaction of a successful DIY repair.
Additional Words on Engine Work
Engaging in engine maintenance and repair can be a deeply satisfying and therapeutic activity for many. It offers a chance to disconnect from daily stresses, get hands-on, and develop a deeper understanding of mechanical systems. The key to a successful and enjoyable DIY mechanical experience is twofold: having the right tools for the job and possessing the necessary knowledge. Taking the time to research, gather the correct equipment, and understand the procedures will significantly increase your chances of a positive outcome.
Frequently Asked Questions
How do you install a fuel injection pump on a Cat 3208?
The installation process involves several steps, including positioning the camshaft lifter correctly, inserting the pump into its bore, ensuring the sleeve engages the lever, and tightening the bushing to the specified torque. Reversing the removal steps is generally the method, with particular attention paid to camshaft timing and lever alignment to maintain calibration.
How do you install a fuel injection pump camshaft?
Installing the camshaft involves turning the crankshaft to the correct timing position, often using a timing pin or bolt. After installing the camshaft, the crankshaft is rotated two revolutions, and the timing pin is reinserted. If the pin cannot be installed, the camshaft timing needs to be re-adjusted. Removing and installing the timing gear and associated plugs are also part of this process.
