When you ponder the heart of a Corvette, the engine's power and performance immediately spring to mind. But how that power is precisely delivered has undergone a remarkable transformation over the decades. The question, "Does a Corvette have fuel injection?" is met with a resounding yes, though the journey to the sophisticated systems we see today is a captivating tale of engineering prowess, driven by an unyielding quest for more power, reduced emissions, and enhanced drivability.
This evolution wasn't a sudden leap but a series of carefully considered steps, each building upon the last. From the rudimentary mechanical systems that operated with a surprising similarity to carburetors, to the almost prescient computer-controlled units of modern Corvettes, fuel injection has been at the forefront of automotive innovation. Let's embark on a journey through the pivotal milestones that shaped the fuel delivery systems of this iconic sports car.
The Dawn of Precision: Mechanical Fuel Injection (Ram Jet)

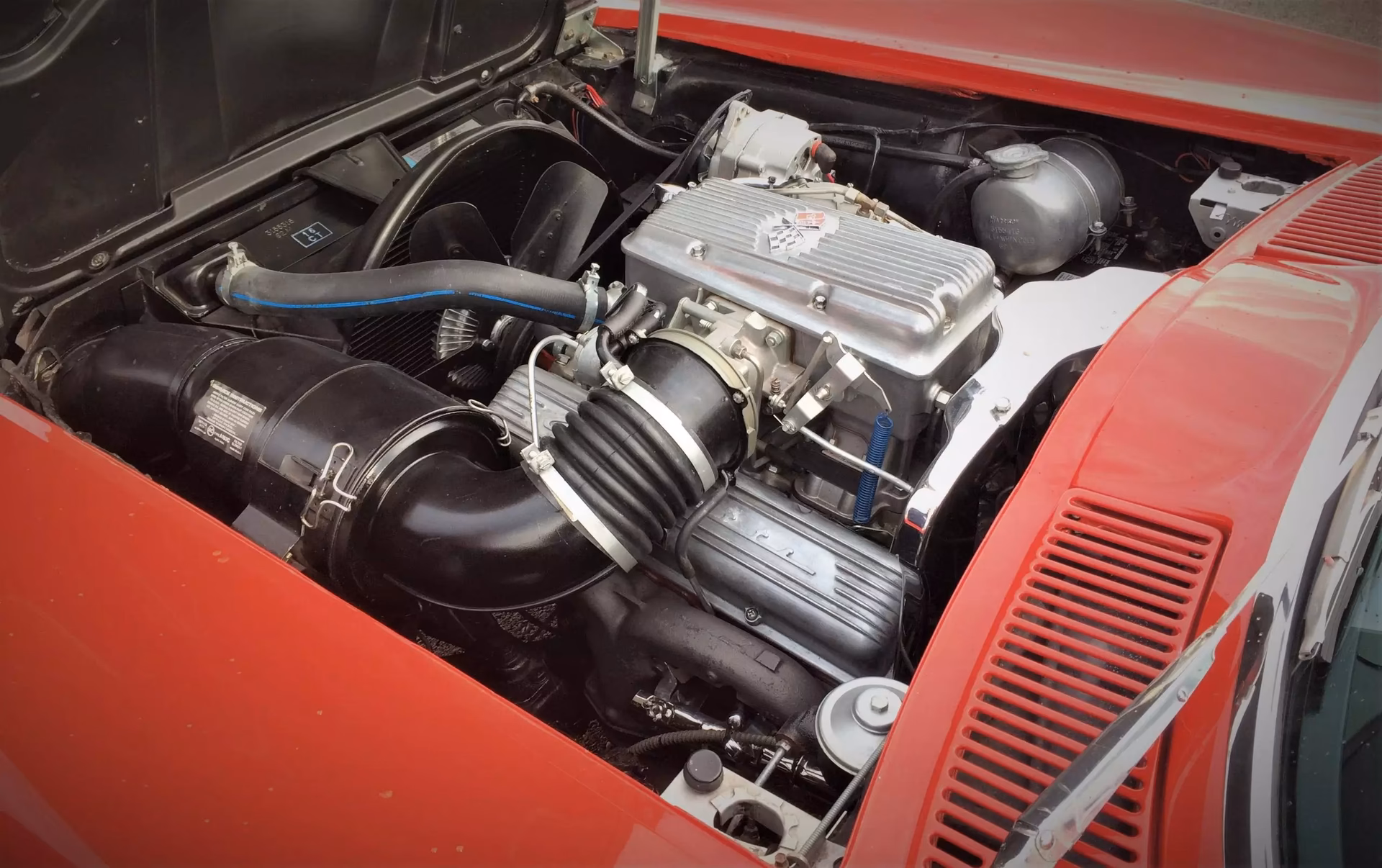

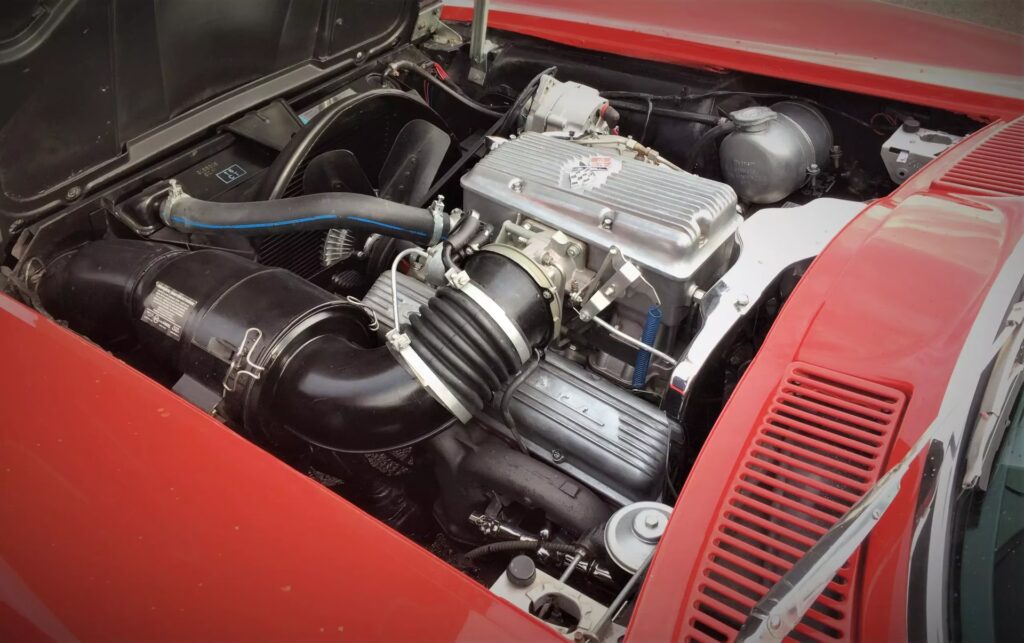

The very first foray into fuel injection for the Corvette came in the form of the mechanical Ram Jet systems, developed by Rochester. These pioneering units were a significant departure from the carburetors of the era, designed to meter fuel based on intake vacuum readings. However, unlike a carburetor that relies on the venturi principle to draw fuel, the Ram Jet introduced a regulated amount of fuel directly above the intake valve under considerable pressure. While still beholden to the engine's vacuum signal and primarily controlling only fuel, for their time, these systems represented a monumental improvement.
They offered superior fuel control and, crucially for racing enthusiasts, were not susceptible to the issue of fuel sloshing in float bowls, a common hindrance with carburetors during aggressive driving. GM engineers presented the new Ram Jet system to the Society of Automotive Engineers, lauding its potential to rectify carburetor deficiencies, improve fuel economy, and curtail hydrocarbon pollution. And indeed, it did aid fuel delivery, notably helping GM break the coveted 1 horsepower per cubic inch barrier – a remarkable feat achieved with the aid of a fuel injection unit.
However, the mechanical Ram Jet wasn't without its challenges. Its primary Achilles' heel was its inherent lack of self-adjustment. Being a purely mechanical system, it couldn't adapt to changing environmental conditions. Fluctuations in temperature or altitude could quickly transform a finely tuned, high-performing engine into an emissions-spewing anchor. The intricate process of tuning these units was a major hurdle for many owners.
Today, these mechanical fuel injection systems are largely relegated to the annals of history, occasionally gracing classic car shows. Yet, they command a strong following, and Corvettes originally equipped with them are highly sought after by collectors. Within the fervent world of Corvette enthusiasts, there are dedicated subcultures focused exclusively on these early Rochester mechanical units. For owners willing to invest the time and effort to understand and maintain them, driving a Ram Jet-equipped Corvette can be an exhilarating experience.
In fact, driving them regularly is arguably the best form of maintenance. Being vented systems, prolonged periods of inactivity can lead to the evaporation of fuel within the fuel meter, leaving behind a film of varnish. This build-up can eventually impair the system's operation, lending credence to historical anecdotes about why many were discarded. Regardless of whether you champion the performance of these early 'Fuelie' Corvettes or lament the complexities of their mechanical systems, their role in pushing the boundaries of automotive engineering is undeniable.
The Electronic Interlude: Computer-Controlled Carburetors
The subsequent stride in fuel control, while not strictly electronic fuel injection (EFI), undeniably paved the way for electronic governance of fuel delivery. Beginning with the 1980 production year, GM introduced computer-controlled carburetors on 305 cubic inch Corvettes destined for California. This system built upon the earlier Computer Controlled Catalytic Converter (C-4) system, which primarily managed the air/fuel mixture by manipulating the main metering rods within the carburetor to optimise the efficiency of the catalytic converters.
The 1980 and 1981 Computer Command Control (CCC) system was an expanded version of the C-4. It diligently monitored up to 15 engine and/or vehicle operations, allowing it to control as many as 9 engine and emissions-control systems. Beyond merely regulating the air/fuel ratio, the CCC system took charge of spark timing, AIR management for optimal catalytic converter performance, and torque-converter lockup. Clearly, the CCC system represented another crucial step towards modern automotive technology.
However, the programming and computer hardware underpinning the CCC system were a far cry from what is necessary for today's Corvette. The processing speeds of contemporary Corvette computers were unimaginable when the CCC system was first introduced. At this juncture, emissions regulations were the primary impetus for the reintroduction and evolution of fuel control in the Corvette. GM engineers initially focused on satisfying federal requirements; only then could they channel their efforts into extracting more power from the engine. Fortunately for performance enthusiasts, power output and emissions compliance eventually became two sides of the same fuel-injection coin.
The Return of Electronic Injection: Cross-Fire and Tuned Port
Electronic 'squirters' made a definitive comeback in 1982 with the introduction of Cross-Fire Injection (RPO L83). This time, the persistent tuning issues that plagued the earlier Ram Jets were being tackled by a computer. The Cross-Fire system utilised two throttle bodies positioned atop the intake manifold. The computer that governed this system was derived from a Cadillac DFI unit and seamlessly integrated with GM's Computer Command Control. By 1982, the CCC system had been refined to an impressive degree, capable of making 80 adjustments per second, a substantial leap from the previous year's 10 adjustments per second. These advancements, while yielding a modest 10 horsepower increase for the Corvette, marked the beginning of an upward trend and provided a swift means to reintroduce electronic fuel injection until the more advanced Tuned Port Injection was ready for production.
Cross-Fire Injection was carried over into the extended 1984 production year, contributing an additional 5 horsepower, bringing the Cross-Fire engine's rating to 205 horsepower. History has demonstrated that, with appropriate tuning and meticulous maintenance, the Cross-Fire is a remarkably reliable design. With some judicious tweaking to the engine and fuel-delivery system, it can even surprise a stock Tuned Port system. Due to its comparatively limited production, the Cross-Fire holds a particular allure for those who desire something more unique than "just another TPI Corvette." It also holds the distinction of having spanned two generations of Corvette production, being installed in the final C3 'sharks' (1982) and the inaugural C4 'late-models' (1984).
Advancements in fuel delivery continued at a rapid pace. Within just two production years, the Cross-Fire system was superseded by Tuned Port Injection (TPI). The benefits of TPI were almost instantaneous and dramatic. Horsepower surged to 230 at 4,000 rpm, and torque figures jumped to an impressive 330 lb-ft at 3,200 rpm. It was unequivocally clear that GM was now addressing both performance and emissions concerns with equal vigour.
Rather than relying on intake vacuum, as both the Ram Jet and Cross-Fire systems did, GM began incorporating Mass Air Flow (MAF) sensors on the 1985 production models. This provided a far more accurate measurement of the exact volume of air entering the engine, which in turn allowed for a more precise calculation of the ideal fuel mixture. While the 1985-1989 TPI Corvettes utilised a MAF sensor for fuel regulation, in 1990, GM reverted to using intake vacuum to determine the engine's fuel requirements. This new system, dubbed "Speed Density," calculated engine load by sensing Manifold Absolute Pressure (MAP). The computer then combined the MAP data with Intake Air Temperature and other engine parameters, such as volumetric efficiency and Exhaust Gas Recirculation (EGR) rate, to accurately compute the mass of the intake air.
Another notable change occurring with the 1989 production was the elimination of the Cold Start Circuit. This circuit previously introduced additional fuel into the intake to enrich the mixture during cold-starting conditions.
The style and type of fuel injectors also evolved throughout the TPI production run. For the 1985 and 1986 models, GM employed Bosch injectors. During the entirety of 1987 and a portion of 1988, Lucas injectors were fitted. In 1989, GM transitioned to Multec injectors, which remained in use until the conclusion of C4 production. The switch to Multec injectors was partly driven by their ball design, as opposed to the pintle design of Bosch-style injectors. This ball design allows for constant rotation, which helps prevent fuel build-up and provides a fresh seating surface each time the injector operates, thereby reducing wear on the seats. Additionally, the Multec injector is positioned higher in the intake, which effectively prevents fouling of the injector tip. The design of the Multec injector also permits fuel to flow over the coils, aiding in their cooling. However, this design can pose a problem if harsh chemicals are used for injector cleaning, as these chemicals can deteriorate the protective coating on the injector coils and potentially destroy the injector.
GM offers an approved injector cleaner, but in most cases, if an injector is malfunctioning, replacement is often the most effective solution. One of the best ways to ensure a long lifespan for your fuel injectors is to consistently use high-quality fuel. This practice minimises the need for aggressive cleaners and helps prevent water contamination in the fuel system. When replacing injectors, it is crucial to install units that possess the same resistance (ohms) as the originals. Multec injectors typically have around 12.8 ohms of resistance. While minor deviations of a couple of ohms might be acceptable, significant discrepancies from the original specifications can lead to operational problems. Even aftermarket performance injectors should ideally maintain a similar resistance value to the factory-fitted units.
The LT1, SFI, and the Unique ZR-1
In the relentless pursuit of enhanced performance, GM shifted away from the lengthy, tuned runners characteristic of the TPI system and returned to a shorter intake runner design. The TPI intake runners, measuring 21 inches long, were excellent for providing robust midrange power, but the engine's power output tended to plateau around 4,000 rpm. For the next generation of fuel injection, GM dramatically shortened the intake runner length to approximately 3 inches. This significant change coincided with the introduction of the LT1 engine in the 1992 production year. Once again, a base Corvette engine shattered the 300 horsepower barrier, thanks to its short runners and a refined speed density system. The LT1 boasted a much flatter torque curve compared to the TPI system, yielding some torque around 3,000 rpm to the TPI, but rapidly regaining it above 3,500-3,600 rpm. Initially, LT1 engines used a MAP sensor for load detection, but after 1993, they transitioned to a MAF sensor with a MAP sensor serving as a crucial backup system. The 1996 LT4 engines also adopted this sophisticated MAP/MAF system for precise fuel mixing.
A monumental advancement arrived with the 1994 production year: the implementation of Sequential Fuel Injection (SFI). Prior to SFI, all injectors on one side of the engine would fire simultaneously whenever any cylinder on that bank required fuel. With SFI, the fuel system precisely fired the injector for each individual cylinder independently, and only when that specific cylinder called for fuel. This highly targeted approach yielded a multitude of benefits, including reduced emissions, improved fuel economy, decreased variation between cylinders, a smoother engine idle, and the ability to limit engine rpm by selectively cutting fuel to one cylinder at a time. The introduction of SFI represented a significant leap forward towards a far more controllable and efficient fuel-delivery system.
Perhaps unsurprisingly, the high-performance ZR-1 Corvette, with its exclusive LT5 engine, operated by its own set of rules when it came to fuel injection. The LT5 consistently utilised a MAP sensor but notably never incorporated a MAF sensor, unlike other 1994 or 1995 Corvette engines. Furthermore, while GM was navigating the transition between long and short intake runners for its other models, the LT5 ingeniously employed both. Longer runners were used for everyday driving conditions, while shorter runners were engaged when the secondary air inlet control was activated. An additional set of injectors was also employed, activated by the Engine Control Module (ECM) when the 'Power Key' on the console was switched on, ensuring the correct amount of fuel was delivered for the increased airflow when the secondary air inlets were active. It's also worth noting that all ZR-1 models from 1990 to 1993 exclusively featured Sequential Fuel Injection, rather than Multiport Fuel Injection, which significantly enhanced the ZR-1's drivability and fuel mileage.
The LS Era and Modern Systems
Without directly porting over all the complex technology from the ZR-1, GM achieved the next best thing. They engineered an intake manifold with runners that struck a perfect compromise between the lengthy Tuned Port and the shorter LT1 and LT4 engines. The result was the LS1 engine, launched with the 1997 Corvette production. Much like the TPI runners, the LS1 intake runners crossed over to the cylinder on the opposing bank of the engine, but their length was much closer to the LT1 at approximately 10 inches. Moreover, the port configurations where the intake met the cylinder head were distinctly different from previous designs, being much taller than the ports on any other small-block engine. This design was meticulously crafted to ensure excellent airflow while still maintaining sufficient velocity at lower rpm, which significantly contributed to the engine's torque production. In 2001, GM further refined this intake design for the LS6 engine, specifically installed in the high-performance Z06 Corvettes.
Other critical improvements to the fuel injection system for this new engine included the extensive use of composite materials and new-style seals for the mating surfaces, enhancing durability and performance. Furthermore, a Throttle Actuator Control (TAC) system was implemented on the 1997 and later Corvettes. This revolutionary system employed motor control of the throttle body, allowing for precise management of idle speed and overall engine operation, effectively creating a complete drive-by-wire system devoid of any physical throttle cables. This groundbreaking new engine, coupled with its advanced fuel-injection system, propelled the base Corvette's engine to an impressive 345 horsepower – once again, nearing that iconic 1 horsepower per cubic inch milestone, but this time with vastly superior drivability and fuel economy. All these advancements were made possible by the increasing integration of sophisticated electronics in fuel injection to meticulously control fuel delivery.
MAF sensors continued to evolve as fuel-injection systems grew more intricate. The 1985-1989 Corvettes utilised a Bosch MAF, which operated on an analog signal of varying voltage. In contrast, 1994 and later Corvette engines adopted an AC/Delphi MAF, which transmitted a digital signal to the Powertrain Control Module (PCM). Both types of MAF sensors fundamentally operate on the principle of a heated wire used to measure the amount of air entering the engine. The Bosch unit typically emitted a voltage signal ranging from 0.04 to 5 volts, whereas the AC/Delphi unit produced a signal in the 32-150-mHz range, converted from voltage variations in its hot-wire circuit. A notable feature of the Bosch MAF was its 'Burn-Off' cycle, which occurred each time the engine was switched off, designed to self-clean the wires within the sensor. The newer AC/Delphi unit, however, does not employ a burn-off cycle, making it even more vital to consistently maintain a clean air filter in your Corvette.
In 2001, GM increased the size of the MAF sensor from 74mm to 85mm and integrated the Air Intake Temperature (AIT) sensor directly into the MAF unit, rather than further down the intake ducting. Additionally, the protective screen was removed from the 2002 Z06 Corvettes for further airflow optimisation.
GM returned to Bosch injectors for the LS1 engine, although their specifications underwent several changes over the years. The 1997 and 1998 Corvettes were fitted with 26-pound injectors. For the 1999 and 2000 production runs, GM transitioned to 24-pound injectors, only to increase them to 28-pound injectors in 2001.
The Future of Fuel Injection: Constant Evolution
From the very first attempts at mechanical fuel injection, the overarching objectives have remained steadfast: achieve superior fuel control, enhance fuel economy, and reduce harmful emissions. Successfully realising all three of these goals ultimately leads to the ultimate prize – higher performance. Where will this relentless pursuit of perfection cease? Will we ever reach a performance plateau where further significant improvements demand a dramatic, paradigm-shifting change? Possibly, but for now, the journey continues.
Fuel injection has continuously evolved across generations of Corvettes, sometimes revisiting and refining concepts that were previously set aside for a "better way." Currently, there's considerable discussion at GM surrounding the concept of "dropping cylinders" – selectively shutting off fuel to certain cylinders when the vehicle's power demands could be met by a six- or even a four-cylinder engine. Owners of older Cadillacs might recall the 4100 series of engines, which attempted to implement this 'Displacement on Demand' theory with their 4-6-8 cylinder engines. Not widely embraced at the time, this concept was perhaps too far ahead of its era. However, the processors in today's Corvette are exponentially more advanced than what was available then, and mechanical technology has progressed immeasurably since those early pioneering days. If the timing is right, and the design proves robust and reliable, this advanced technology may one day join the ranks of its predecessors: another significant milestone in the ever-advancing evolution of Electronic Fuel Injection (EFI).
Comparative Table: Corvette Fuel Injection Milestones
| System | Introduction Year | Key Features | Approx. Horsepower (Base) | Load Sensing Method | Key Development/Notes |
|---|---|---|---|---|---|
| Ram Jet (Mechanical) | 1957 | Mechanical, high-pressure injection above intake valve. | Up to 283 hp (1hp/ci) | Intake Vacuum | First FI, tuning challenges, broke 1hp/ci barrier. |
| Computer Controlled Carb. (CCC) | 1980 | Electronic control of carburetor, emissions focus. | 190 hp | Multiple Sensors | Interim step, primitive computer, emissions driven. |
| Cross-Fire Injection | 1982 | Electronic, two throttle bodies, refined CCC. | 200 hp ('82), 205 hp ('84) | Multiple Sensors | Electronic 'squirters' return, spanned C3/C4 generations. |
| Tuned Port Injection (TPI) | 1985 | Long intake runners, high torque, electronic. | 230 hp | MAF then Speed Density (MAP) | Significant performance boost, varied injector types. |
| LT1 (Short Runners) | 1992 | Shorter intake runners, flatter torque curve. | 300 hp | MAP then MAF/MAP | Broke 300 hp barrier, improved drivability. |
| Sequential Fuel Injection (SFI) | 1994 | Individual cylinder injector firing. | N/A (system type) | MAF/MAP | Reduced emissions, increased economy, smoother idle. |
| ZR-1 LT5 (Unique) | 1990 | MAP only, switchable long/short runners, SFI. | 375-405 hp | MAP | High-performance, distinct system with dual injectors. |
| LS1 | 1997 | Composite intake, TAC (drive-by-wire). | 345 hp | MAF | Modern intake design, advanced electronics, 1hp/ci goal. |
Frequently Asked Questions About Corvette Fuel Injection
Q: What is the main advantage of fuel injection over carburetors?
A: Fuel injection offers much more precise control over the air/fuel mixture. This leads to better fuel economy, lower emissions, improved cold starting, and more consistent power delivery across various engine speeds and environmental conditions, something carburetors struggled with due to their mechanical nature.
Q: Why did mechanical fuel injection systems, like the Ram Jet, eventually get replaced by electronic systems?
A: Mechanical systems were limited in their ability to adapt to changing conditions. They couldn't self-adjust for variations in temperature, altitude, or engine load, leading to tuning difficulties and inconsistent performance. Electronic systems, with their computer control and sensors, can make thousands of adjustments per second, providing optimal fuel delivery in real-time for improved efficiency, emissions, and drivability.
Q: What is the difference between MAF and MAP sensors in fuel injection systems?
A: A Mass Air Flow (MAF) sensor directly measures the mass of air entering the engine. A Manifold Absolute Pressure (MAP) sensor measures the pressure inside the intake manifold, which the computer then uses, along with other data like intake air temperature, to calculate the estimated mass of air. MAF sensors generally offer more direct and precise air measurement, while MAP sensors are part of a "Speed Density" system that infers air mass.
Q: What is Sequential Fuel Injection (SFI) and why is it important?
A: Sequential Fuel Injection (SFI) means that each fuel injector fires individually, only when its corresponding cylinder is ready to receive fuel. This is in contrast to earlier "batch fire" systems where multiple injectors might fire simultaneously. SFI provides even greater precision in fuel delivery, leading to further reductions in emissions, improved fuel economy, smoother engine idle, and more consistent power output across all cylinders.
Q: How can I ensure my Corvette's fuel injectors last longer?
A: The best way to prolong the life of your fuel injectors is to consistently use high-quality fuel. This minimises the build-up of deposits that can clog or damage injectors. While approved fuel injector cleaners can be used periodically, avoid harsh chemicals, especially with Multec-style injectors. If an injector is malfunctioning, replacement is often necessary, and ensure any replacement injectors have resistance values (ohms) that closely match the originals.
