Understanding Brake Pressure Sensor Faults
The braking system in your vehicle is a complex network of components designed to bring your car to a safe and controlled stop. At its heart lies the brake pressure sensor, a crucial element that monitors the hydraulic pressure within the brake lines. This information is vital for various electronic systems, including the Anti-lock Braking System (ABS), Electronic Stability Control (ESC), and even the brake light activation. When this sensor malfunctions, it can lead to a range of issues, from warning lights on your dashboard to compromised braking performance. This article will delve into common fault codes associated with brake pressure sensors, explain what they mean, and discuss how these issues are typically diagnosed and resolved.
What is a Brake Pressure Sensor?

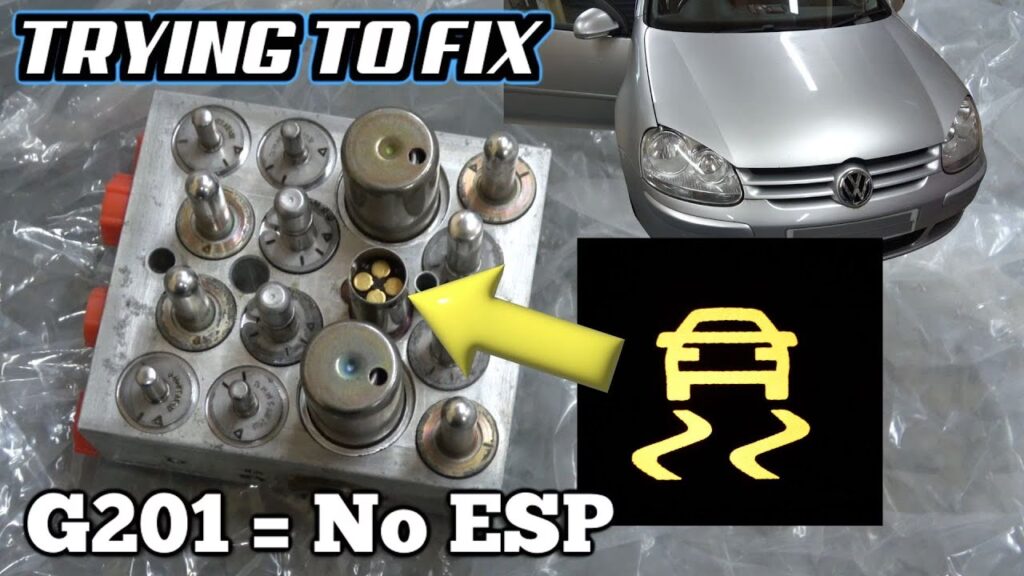

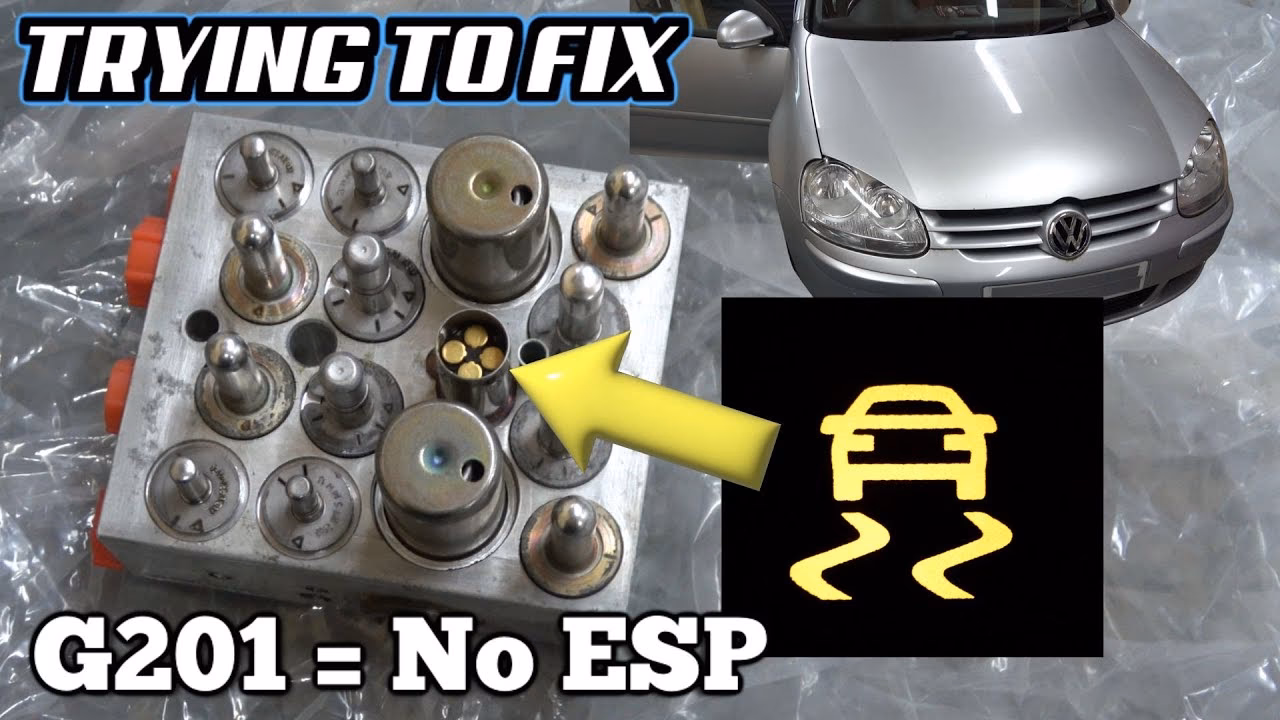

A brake pressure sensor, often referred to by its specific designation (like G201 in some Volkswagen Group vehicles), is a transducer that converts the hydraulic pressure generated when you press the brake pedal into an electrical signal. This signal is then sent to the vehicle's Engine Control Unit (ECU) or a dedicated braking control module. The ECU uses this data to modulate brake pressure, prevent wheel lock-up during hard braking (ABS), maintain stability during cornering (ESC), and illuminate your brake lights at the appropriate time. Its accurate functioning is paramount for your safety.
Common Brake Pressure Sensor Fault Codes
When a brake pressure sensor develops a fault, the vehicle's diagnostic system will typically store a specific fault code. These codes act as a 'fingerprint' of the problem, allowing technicians to pinpoint the issue. While fault codes can vary slightly between manufacturers and specific vehicle models, some are more common than others. One frequently encountered code, particularly in European vehicles, is:
01435 - Brake pressure sensor 1 (G201) electrical fault in circuit.
This code is a strong indicator that there is an issue with the electrical pathway connecting the brake pressure sensor to the vehicle's control module. This could stem from a variety of problems, including:
- Wiring Issues: Damaged, corroded, or loose wiring harnesses can interrupt the signal.
- Connector Problems: Corroded or damaged connectors at either the sensor or the control module can prevent proper communication.
- Sensor Failure: The sensor itself might have failed internally, rendering it unable to send an accurate signal.
- ECU/Control Module Issues: In rarer cases, the problem might lie with the control module that receives the sensor's signal.
Other potential fault codes, though less specific to a single sensor type, might relate to:
- Implausible Signal: The sensor is sending data that doesn't make sense to the ECU (e.g., pressure reading is too high or too low for the current driving conditions).
- No Signal: The ECU is not receiving any data from the sensor at all.
- Circuit Open/Short: Similar to the 'electrical fault in circuit' code, indicating a break or a short in the electrical path.
Symptoms of a Faulty Brake Pressure Sensor
A malfunctioning brake pressure sensor won't always immediately throw a code. You might experience several symptoms that alert you to a problem:
- Dashboard Warning Lights: The most common sign is the illumination of ABS, ESC, or brake system warning lights on your dashboard. These lights are designed to alert you to a potential issue with the braking system.
- Reduced Braking Performance: You might notice a spongy brake pedal, longer stopping distances, or a less responsive braking system.
- ABS/ESC Malfunction: The ABS and ESC systems may become inoperative, meaning they won't engage when needed during emergencies.
- Brake Lights Not Working Correctly: In some cases, a faulty pressure sensor can affect the operation of your brake lights.
Testing and Rebuilding a Brake Pressure Sensor
Diagnosing and repairing a brake pressure sensor fault typically involves a systematic approach:
- Diagnostic Scan: The first step is always to connect a diagnostic scanner to the vehicle's OBD-II port to retrieve any stored fault codes. This provides a starting point for the diagnosis.
- Visual Inspection: A thorough visual inspection of the wiring harness and connectors associated with the brake pressure sensor is crucial. Look for any signs of damage, corrosion, or loose connections.
- Electrical Testing: Using a multimeter, a technician will test the sensor's electrical circuit. This involves checking for continuity, voltage, and resistance to ensure the wiring and connectors are functioning correctly. They will also test the sensor itself by measuring its output signal under controlled pressure conditions.
- Component Testing: If the wiring and connectors appear to be in good condition, the focus shifts to the sensor itself. The sensor can be tested by applying known pressures and measuring the corresponding electrical output. This is often done using specialized equipment in a workshop.
Regarding 'rebuilding' a brake pressure sensor, it's important to note that these are often complex electronic components. Unlike simpler mechanical parts, they are rarely 'rebuilt' in the traditional sense. If a sensor is found to be faulty, the most common and reliable solution is replacement. Attempting to repair or 'rebuild' a modern brake pressure sensor is often not feasible or cost-effective, and can compromise its accuracy and reliability, potentially leading to further safety concerns.
When to Seek Professional Help
Given the critical nature of the braking system, any suspected fault with a brake pressure sensor should be addressed by a qualified mechanic as soon as possible. Attempting DIY repairs on complex braking systems can be dangerous if not performed correctly. A professional mechanic has the necessary tools, knowledge, and diagnostic equipment to accurately identify the problem and ensure the repair is carried out to the highest safety standards.
Preventative Maintenance
While brake pressure sensors are designed for longevity, certain practices can help prolong their life and prevent premature failure:
- Regular Brake Fluid Changes: Follow your vehicle manufacturer's recommended schedule for brake fluid flushes and replacements. Old or contaminated brake fluid can affect the hydraulic system's performance.
- Gentle Braking: Avoid unnecessarily harsh braking, as this can put extra strain on all components of the braking system.
- Address Minor Issues Promptly: Don't ignore minor brake system issues, as they can sometimes lead to more significant problems down the line.
Conclusion
The brake pressure sensor is a small but vital component that plays a significant role in the safe operation of your vehicle's braking systems. Understanding common fault codes like '01435 - Brake pressure sensor 1 (G201) electrical fault in circuit' can help you recognise potential problems. If you notice any warning lights or experience changes in your braking performance, it's essential to have your vehicle inspected by a professional. Prompt diagnosis and correct repair or replacement will ensure your braking system remains effective and your driving remains safe.
Frequently Asked Questions
Q1: Can I ignore a brake pressure sensor fault code?
No, you should never ignore a brake pressure sensor fault code. It indicates a problem with a critical safety system, and ignoring it could lead to compromised braking performance and increased risk of accidents.
Q2: How much does it cost to replace a brake pressure sensor?
The cost can vary significantly depending on the vehicle make and model, as well as the specific sensor. Parts can range from £30 to £150 or more, and labour costs will depend on the complexity of the replacement. It's best to get a quote from your local mechanic.
Q3: Is the brake pressure sensor part of the ABS system?
Yes, the brake pressure sensor is an integral part of the ABS system, providing crucial data for its operation. It also often contributes to the functioning of ESC and other electronic stability systems.
Q4: Will my car still brake if the pressure sensor fails?
In many cases, your car will still be able to brake using the conventional hydraulic system. However, the ABS and other electronic aids that rely on the sensor's data will likely be disabled, potentially affecting your stopping power and control in emergency situations.
Q5: Can a faulty brake pressure sensor affect my fuel economy?
While not a direct cause, a faulty brake pressure sensor can sometimes lead to the ABS or ESC systems being permanently engaged or operating incorrectly, which could indirectly impact fuel economy due to increased rolling resistance or inefficient engine management. However, this is not the primary symptom.
