Brakes: Discs, Pads, and Calipers Explained

When you press the brake pedal, a complex and highly effective system springs into action, bringing your vehicle to a safe and controlled stop. At the heart of this system are the brake discs, pads, and calipers – components that work in precise harmony to convert kinetic energy into thermal energy through friction. Understanding these vital parts is not just for mechanics; it's essential knowledge for any car owner looking to maintain their vehicle's safety and performance.

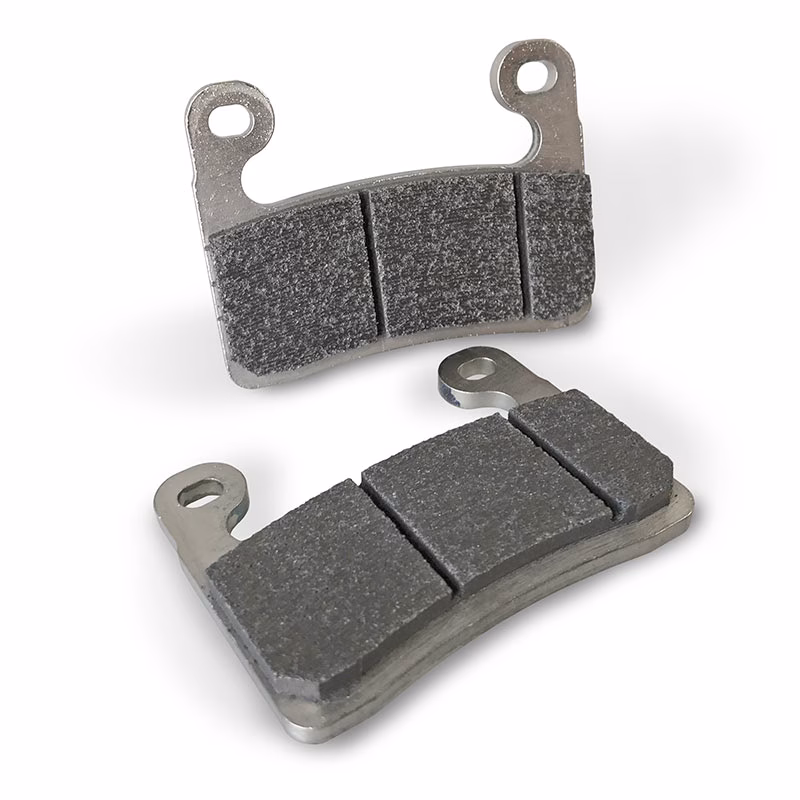

What is a Brake Disc & Pad Set?

A brake disc, often referred to as a rotor, is a large, flat, circular metal plate that rotates with your vehicle's wheel. When you apply the brakes, the brake pads, which are friction materials mounted in the brake caliper, clamp down on the disc. This clamping action creates the friction necessary to slow down and eventually stop the wheel. Brake discs are engineered to withstand immense heat and pressure, dissipating the heat generated by the friction to prevent brake fade.

Brake pads are consumable components, designed to wear down over time as they rub against the discs. They are typically made from a composite of materials, chosen for their friction characteristics, heat resistance, and noise suppression. When discussing 'brake disc & pad sets', it refers to the practice of replacing both components simultaneously on an axle (i.e., both front wheels or both rear wheels). This is highly recommended and often necessary for several reasons:

• Even Wear: New pads require a perfectly flat surface to bed into properly. An old disc, even if seemingly in good condition, will have a worn surface that can prematurely wear new pads unevenly, leading to reduced braking performance and noise.
• Optimised Performance: Discs and pads are designed to work together. A new set ensures optimal friction, heat dissipation, and overall braking efficiency from the moment they are installed.
• Cost-Effectiveness in the Long Run: While replacing both might seem like a higher upfront cost, it often saves money by preventing uneven wear, potential damage to new pads from old discs, and the need for another repair sooner.
• Safety: Ultimately, consistent and reliable braking performance is paramount for safety. A matched set ensures your braking system performs as intended.

There are various types of brake discs and pads available, each suited for different driving conditions and vehicle types:

Types of Brake Discs:

• Solid Discs: These are single, solid pieces of metal, typically found on the rear axles of smaller cars or on less powerful vehicles where heat dissipation requirements are lower.
• Vented Discs: Characterised by a series of fins or vents between two disc faces, these are designed to allow air to circulate through the disc, significantly improving heat dissipation. They are common on front axles and on more powerful vehicles.
• Drilled Discs: Featuring small holes drilled into the disc surface, these help to dissipate heat and gas build-up, and can improve wet weather performance by allowing water to escape.
• Grooved Discs: These have slots or grooves cut into the surface, which also aid in removing gases and debris from between the pad and disc, helping to maintain consistent friction.

Types of Brake Pads:

• Organic Non-Metallic (NAO) Pads: Made from materials like glass, rubber, and carbon, bound together with resins. They are quiet and produce less dust but may not offer the best performance under high temperatures. Ideal for everyday driving.
• Semi-Metallic Pads: Composed of 30-70% metals (iron, copper, steel wool) mixed with organic fillers. They offer good braking performance and heat transfer but can be noisier and produce more brake dust. Popular for their balance of performance and cost.
• Ceramic Pads: Made from ceramic fibres, fillers, and bonding agents. They are known for being very quiet, producing minimal dust, and offering excellent performance over a wide range of temperatures. They are often found on luxury or performance vehicles due to their higher cost.

Below is a comparative table for common brake pad types:

Are All Brake Calipers the Same?

The simple answer is a resounding no, all brake calipers are certainly not the same. While their fundamental purpose remains consistent – to house the brake pads and apply pressure to the brake disc – there's a significant variety in their design, construction, and application. As the provided information states, brake calipers work with the brake pads and discs to create the friction needed to stop your car. For better control of your vehicle, replacing worn brake calipers and saving money with high-quality units is crucial.

The primary role of the caliper is to convert hydraulic pressure from the brake master cylinder into clamping force on the brake disc. This is achieved through pistons within the caliper, which push the brake pads against the disc.

Here's why calipers differ:

• Vehicle Type and Weight: A small hatchback requires a much less powerful braking system than a heavy SUV or a high-performance sports car. Larger, heavier vehicles need calipers with more clamping force, often achieved through larger pistons or multiple pistons.
• Performance Requirements: High-performance vehicles demand exceptional stopping power and heat resistance. Their calipers are typically larger, made from stronger materials (like aluminium for weight saving and heat dissipation), and may feature multiple pistons for more even and forceful pad application.
• Caliper Design - Fixed vs. Floating:
• Floating Calipers (or Sliding Calipers): These are the most common type found on passenger vehicles. They have one or two pistons on one side of the disc. When hydraulic pressure is applied, the piston pushes one pad against the disc, and the entire caliper then slides on guide pins, pulling the outer pad against the other side of the disc. They are simpler, more compact, and generally less expensive to manufacture.
• Fixed Calipers: These calipers are rigidly mounted to the vehicle's suspension. They have pistons on both sides of the brake disc. When pressure is applied, both sets of pistons move simultaneously, pressing the pads against the disc from both sides. Fixed calipers offer more consistent and powerful braking performance, better pedal feel, and superior heat dissipation, making them common on performance cars and larger vehicles. They are typically larger, heavier, and more expensive.
• Number of Pistons: Calipers can have a varying number of pistons, from a single piston to four, six, or even eight pistons (or more on very high-performance applications). More pistons generally mean a larger contact area for the hydraulic pressure, leading to more even pressure distribution across the brake pad and increased clamping force. This translates to better braking performance and reduced pad taper wear.
• Material: Most calipers are made from cast iron due to its strength and heat resistance. However, performance calipers often use lighter materials like aluminium alloys to reduce unsprung weight, which improves handling, and to enhance heat dissipation.

Signs that your brake calipers might be failing include a spongy brake pedal, your car pulling to one side when braking, uneven brake pad wear, or a burning smell. Replacing worn brake calipers with high-quality units from reputable suppliers ensures your braking system functions optimally, providing the safety and control you need on the road.

Maintenance and Replacement Considerations

Regular inspection of your brake discs, pads, and calipers is crucial for vehicle safety. During routine servicing, mechanics will check the thickness of your brake pads and discs, look for signs of uneven wear, cracks, or scoring on the discs, and inspect the calipers for leaks, sticking pistons, or worn guide pins. The lifespan of these components varies significantly depending on your driving style, vehicle type, and the quality of the parts.

When it comes to replacement, always consider the quality of the components. Opting for high-quality brake disc & pad sets and calipers ensures longevity, consistent performance, and, most importantly, your safety. While aftermarket options can offer good value, ensure they meet or exceed OEM (Original Equipment Manufacturer) specifications.

Frequently Asked Questions (FAQs)

Q1: How often should I replace my brake pads and discs?

A1: This varies greatly depending on driving style, vehicle type, and material quality. Generally, brake pads might last anywhere from 25,000 to 70,000 miles. Discs typically last longer, often needing replacement every two sets of pads, or around 50,000 to 100,000 miles. It's best to have them inspected during every service.

Q2: Can I just replace the brake pads without replacing the discs?

A2: While technically possible if the discs are within their minimum thickness specification and show no significant wear or scoring, it is highly recommended to replace discs with pads as a set for optimal performance, even wear, and safety. New pads require a perfectly flat surface to bed into.

Q3: What are the signs of worn brake pads?

A3: Common signs include a squealing or grinding noise when braking (often due to wear indicators or metal-on-metal contact), a vibrating brake pedal, your car pulling to one side when braking, or an illuminated brake warning light on your dashboard.

Q4: How do I know if my brake calipers are faulty?

A4: Symptoms of a faulty caliper can include your car pulling to one side when braking, a spongy or soft brake pedal, uneven brake pad wear on one wheel, a burning smell (from overheating brakes), or fluid leaks around the caliper.

Q5: Is it safe to drive with worn brakes?

A5: Absolutely not. Worn brakes severely compromise your vehicle's stopping power, increasing stopping distances and the risk of an accident. It is crucial to address any brake issues immediately and have them inspected by a qualified mechanic.

Q6: What is 'bedding in' new brakes?

A6: Bedding in, or 'break-in', is a process that conditions new brake pads and discs for optimal performance. It typically involves a series of moderate stops from increasing speeds, allowing the pad material to transfer evenly onto the disc surface and for components to settle. Always follow the manufacturer's specific bedding-in instructions.

In conclusion, the braking system of your vehicle is a marvel of engineering, with brake discs, pads, and calipers working in concert to ensure your safety. Understanding their function, the differences between types, and the importance of timely maintenance and replacement with quality parts is fundamental to responsible vehicle ownership. Don't compromise on your brakes; they are your most important safety feature.
