Maintaining your vehicle's braking system is paramount for safety, ensuring you can stop effectively and confidently in all driving conditions. Worn brake pads and rotors not only diminish stopping power but can also lead to uncomfortable noises and vibrations, signaling that it's time for a crucial service. This in-depth guide is tailored for Mercedes-Benz C-Class owners (W204 non-AMG models, from 2007-2014) looking to undertake the essential task of replacing their front brake pads and rotors. While it may seem daunting, with the right tools and a clear understanding of the process, this is a manageable DIY project that can save you significant workshop costs and give you a deeper understanding of your vehicle.
Understanding Your Mercedes-Benz Braking System
Your vehicle's braking system relies on a fundamental principle: friction. When you press the brake pedal, hydraulic pressure forces the brake caliper to clamp the brake pads against the spinning brake rotor. This contact generates friction, converting the kinetic energy of the moving vehicle into heat, thereby slowing and eventually stopping your car. The larger the contact area between the brake pads and rotors, the greater the stopping power available to the driver. However, this friction also generates immense heat. If this heat isn't effectively dissipated, it can cause damage, leading to issues such as warped rotors (resulting in a pulsating brake pedal) or accelerated wear of the brake pads, necessitating premature replacement.
Diagnosing Worn Brake Components
Before you begin the replacement process, it's crucial to determine if your brake components are indeed worn and require attention. While visual inspection for scoring and audible cues like squealing or grinding are common indicators, a precise measurement of your rotor's thickness is the most definitive diagnostic step.
Checking Rotor Minimum Thickness
Every brake rotor has a stamped minimum thickness specification. This vital information is usually found on the front, back, or side of the rotor itself and is typically listed in millimeters. This figure represents the thinnest the rotor can safely be before it must be replaced. Using a digital caliper or a micrometer, you can accurately measure your rotor's current thickness. If your measurement falls below or is at this stamped minimum thickness, replacement is imperative. Furthermore, if your rotor shows deep scoring, grooves, or significant heat spots (often appearing as blueish discolouration), it's a clear sign it needs replacing, potentially indicating another underlying issue like a binding brake caliper.
Tools and Materials Required
Gathering all necessary tools and materials before you start will streamline the process and prevent interruptions. Ensure you have high-quality parts for your Mercedes-Benz C-Class to maintain its performance and safety standards.
- New Brake pad(s) (e.g., OEM equivalent P/N 005 420 12 20)
- New Brake rotor(s) (e.g., OEM equivalent P/N 2044210912)
- Rubber mallet
- 17mm thin profile spanner (wrench)
- 18mm, 13mm, and 8mm sockets
- Ratcheting spanner (preferably with a long handle for leverage)
- T27 Torx socket
- T45 Torx socket
- Brake caliper piston compression tool (a large C-clamp and an old brake pad can suffice)
- Floor jack and axle stands
- Caliper hanger (or strong zip ties/coat hangers)
- Flat head screwdriver
- Micrometer or digital caliper (optional, but highly recommended for diagnosis)
- Brake cleaner (optional, but useful for cleaning)
- Disk brake pad grease
- Needle nose pliers
Front Brake Pad and Rotor Replacement Procedure
This section details the step-by-step process for replacing the front brake pads and rotors on your Mercedes-Benz C-Class.
Step 1: Raise and Secure the Vehicle
Begin by safely lifting the front of your vehicle using a floor jack. Position axle stands securely under the designated jacking points. For the W204 C-Class, reliable jacking points include the front subframe and the side jack stand mount pads. Once the vehicle is firmly supported on axle stands, remove the front wheels to gain access to the braking components.
Step 2: Remove the Front Brake Caliper
With the wheel off, turn the steering wheel to the side to provide maximum clearance around the rotor. The front brake caliper is secured by two 13mm bolts, which also have 17mm nuts on the opposite side. To loosen these, you'll need to hold the 17mm nut in place with your thin profile spanner while turning the 13mm bolt counter-clockwise with your ratcheting spanner. On the passenger side, remember to disconnect the brake wear sensor by simply pulling its connector apart. Once the bolts are removed, pull the caliper up and away from the rotor. If it's stiff, gently try to push the caliper piston inwards slightly by pulling the inner side of the caliper towards the rotor. Crucially, suspend the caliper using a caliper hanger (or robust zip ties/coat hangers) from the strut or spring. This prevents strain or damage to the rubber brake line.
Step 3: Remove the Front Brake Pads

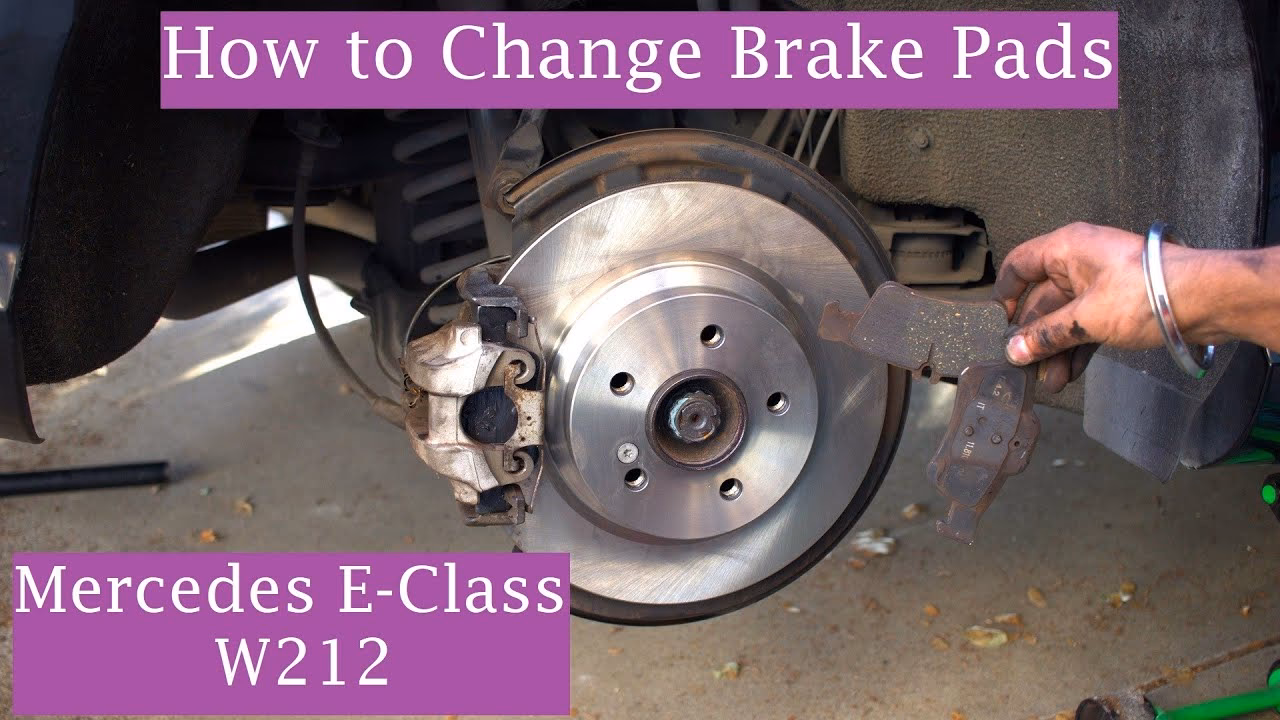

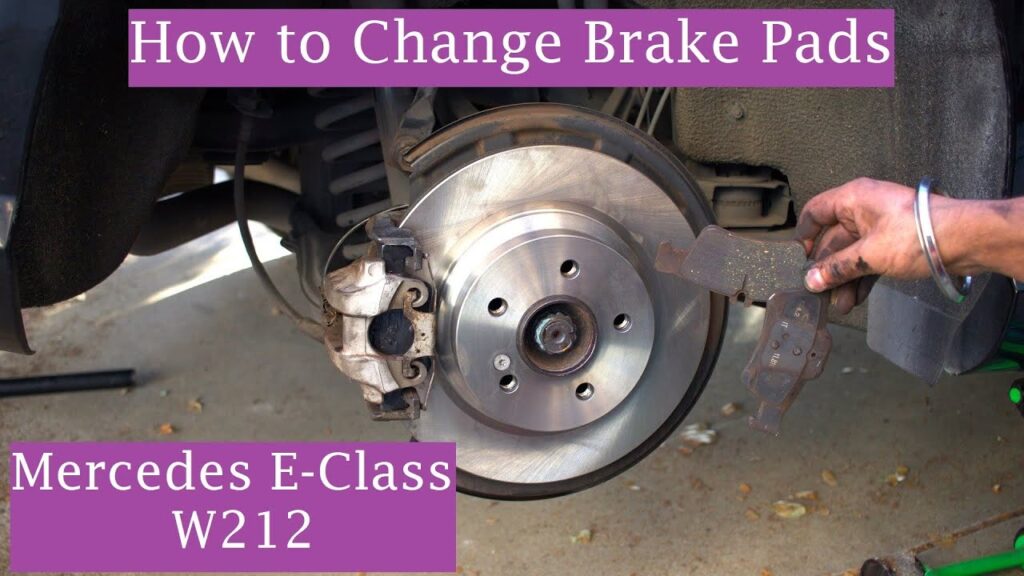

Removing the front brake pads is straightforward. They should simply slide out of the caliper bracket away from the rotor. If your new brake pads do not come with new metal clips for the caliper bracket, you can carefully reuse the old ones if they are undamaged. Use a flat head screwdriver to gently pry them off the bracket, being mindful not to bend them. Similarly, if your new pads lack the backing plates, reuse the old ones. These plates are important for limiting pad movement and reducing noise.
Step 4: Compress the Front Caliper Pistons
Using a suitable brake caliper compression tool (or a C-clamp with an old brake pad), gently squeeze the caliper piston back into the caliper. It's important not to compress the piston all the way in; leave approximately a quarter-inch (about 6mm) protruding from the caliper. Over-compressing can damage the rubber piston boot. Before compressing, always check the brake fluid level in the master cylinder reservoir. As the piston is pushed in, the fluid level will rise. If it's at or above the 'full' mark, you'll need to use a fluid transfer pump to remove some fluid to prevent spillage.
Step 5: Remove the Brake Caliper Bracket
The brake caliper bracket is held in place by two 18mm bolts. These bolts are often quite tight, so a long-handled ratcheting spanner will be beneficial for leverage. Once these two bolts are removed, the caliper bracket can be taken off the hub assembly.
Step 6: Remove the Rotor
The rotor is secured to the hub by a single T27 Torx bolt, which helps centre and locate it. Remove this bolt. At this point, the rotor should be free to be removed. It might be slightly seized onto the hub due to rust or dirt. If so, apply gentle taps to the middle section of the rotor with a rubber mallet while wiggling it towards you. Avoid hitting the rotor face directly to prevent damage if you intend to keep it as a spare.
Step 7: Install New Rotors and Brake Pads
Installation is essentially the reverse of the removal process. Begin by thoroughly cleaning the new rotor and caliper with brake cleaner. Be cautious not to spray brake cleaner on any rubber components, such as brake lines, caliper piston boots, or dust covers, as it can cause damage. Apply a thin, even layer of disk brake pad grease to the contact areas of the new brake pads. This includes where the caliper piston meets the back of the brake pad and where the brake pads slide onto the metal clips on the caliper bracket. Some brake pads are directional, marked with an arrow; ensure these are installed with the arrow pointing in the direction of wheel rotation unless specific instructions state otherwise. Reinstall the T27 Torx bolt to secure the rotor, then the caliper bracket (tighten the 18mm bolts), then the brake pads, and finally the caliper (tighten the 13mm bolts and secure the 17mm nuts). Reconnect the brake wear sensor on the passenger side.
Front vs. Rear Brake System Differences (Mercedes C-Class)
While this guide focuses on the front brakes, it's helpful to be aware of the key differences if you plan to tackle the rear brakes as well. The fundamental process is similar, but some specific components and fasteners differ:
| Feature | Front Brakes | Rear Brakes |
|---|---|---|
| Caliper Attachment | Two 13mm bolts with 17mm nuts | Two T45 caliper slider bolts (often covered by rubber boots) |
| Brake Wear Sensor | Pulls apart at connector | Secured by an 8mm bolt to caliper; may have plastic fitting to pad |
| Pad Retention | Slides out of bracket, may have metal clips | Metal clips keep tension on pad; inner pad has three-prong clip into piston |
| Caliper Bracket Bolts | Two 18mm bolts | Two 18mm bolts (may be Torx head on some models) |
Important Post-Installation Steps
Once both front wheels are back on and tightened to the correct torque specification (refer to your owner's manual for this), lower the vehicle. Before driving, it is absolutely essential to check the brake master cylinder fluid level again. It should be at the 'full' mark. Then, pump the brake pedal several times. You will initially feel the pedal go soft, but it will gradually become firm as the caliper pistons extend and the pads seat against the rotors. Do not drive the vehicle until the pedal feels firm. This ensures the brake system is properly pressurised and the pads are correctly seated.
Frequently Asked Questions (FAQs)
Q: Why is my brake pedal pulsating after rotor replacement?
A: A pulsating brake pedal often indicates warped brake rotors. This can happen if the rotors overheat unevenly or if they were not properly bedded-in after installation. Ensure you follow a proper bedding-in procedure for new pads and rotors to prevent this issue.
Q: How often should I replace my brake pads and rotors?
A: The lifespan of brake components varies greatly depending on driving style, vehicle usage (city vs. motorway driving), and the quality of the parts. Generally, brake pads might last anywhere from 20,000 to 70,000 miles, while rotors often last through two sets of pads. Regular inspection is key; check them at least once a year or during every service.
Q: Can I just replace the brake pads and not the rotors?
A: While technically possible, it's generally recommended to replace both pads and rotors simultaneously. This ensures optimal braking performance, even wear, and extends the life of both components. If your rotors are below the minimum thickness or show significant scoring, replacement is not optional.
Q: What does the brake wear sensor do?
A: The brake wear sensor is a small electrical component designed to alert you when your brake pads have worn down to a critical level. When the pad wears thin enough, the sensor makes contact with the rotor, completing a circuit and illuminating a warning light on your dashboard, indicating it's time for brake service.
Q: Is brake cleaner really necessary?
A: While not strictly mandatory, brake cleaner is highly recommended. New rotors often come with a protective oil coating that needs to be removed before installation. Cleaning the caliper and bracket also helps prevent noise and ensures smooth operation. Just remember to avoid spraying it on rubber components.
Conclusion
Replacing your front brake pads and rotors on your Mercedes-Benz C-Class is a significant maintenance task that directly impacts your vehicle's safety and performance. By following this detailed guide, you can confidently undertake this repair, ensuring your braking system is in top condition. Always prioritise safety, use the correct tools, and double-check your work before driving. A well-maintained braking system provides peace of mind and a responsive, secure driving experience on the road.
