Understanding Your Vehicle's Braking Systems: A Comprehensive Guide
Modern vehicles are equipped with sophisticated systems designed to enhance safety and provide the driver with vital information. Among these, the brake pad life monitor and the brake controller monitor play crucial roles in ensuring your vehicle, and any trailer it may be towing, stops effectively and safely. This article will delve into what these systems are, how they function, and why their maintenance is paramount for any motorist.

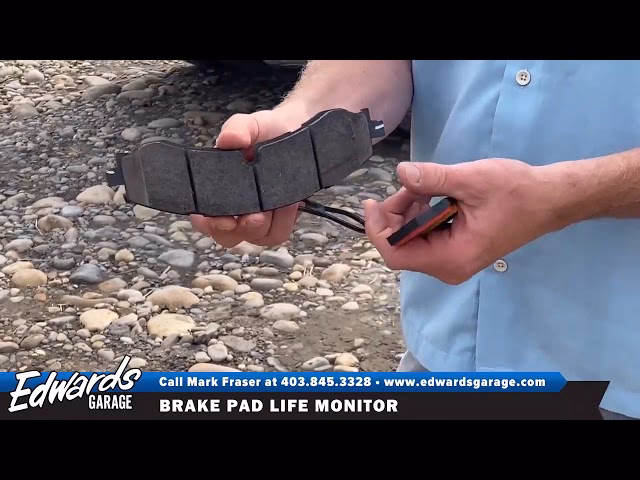

The Brake Pad Life Monitor: Predicting Your Stopping Power
At its core, a brake pad life monitor is a software-based system that estimates the remaining lifespan of your vehicle's brake pads. It's not a physical component that wears out with the pads themselves, but rather an intelligent system that leverages data to provide you with timely warnings. This system typically uses a combination of vehicle sensors and sophisticated algorithms to calculate how much wear your brake pads have experienced. How it Works:When your vehicle is manufactured, the brake pad life monitor is programmed with baseline data. However, its true genius lies in its ability to adapt to your individual driving style. By analysing various inputs, such as braking frequency, deceleration rates, and even the pressure applied to the brake pedal, the system gradually refines its estimations. The more you drive, and the more the system observes your braking patterns, the more accurate its predictions become. Displaying Information:The estimated brake pad life is usually displayed directly on your vehicle's instrument cluster. This could be in the form of a graphical representation, a percentage, or a projected mileage. When the system determines that your brake pads are nearing the end of their service life and require replacement, a clear and concise message will appear on the cluster. This message often indicates the estimated mileage remaining before replacement is essential, giving you ample time to schedule a service appointment. The Importance of Resetting:Crucially, after you have had your brake pads replaced, the brake pad life monitor must be reset. This action informs the system that new pads have been installed, allowing it to begin its wear estimation process anew. Failure to reset the monitor can lead to inaccurate readings, potentially leaving you unaware of the actual condition of your new brake pads. Resetting the Brake Pad Life Monitor:While the exact procedure can vary slightly between vehicle manufacturers and models, the general process for resetting the brake pad life monitor often involves a sequence of ignition key turns and button presses on the instrument cluster. Many owner's manuals provide step-by-step instructions, or you can consult a qualified mechanic to perform this reset for you. It’s a simple yet vital step in maintaining the integrity of your vehicle’s monitoring system.
The Brake Controller Monitor: Mastering Towing Safety
When you're towing a trailer, the dynamics of braking change significantly. The added weight of the trailer exerts considerable force, and bringing both your vehicle and the trailer to a safe stop requires a coordinated effort. This is where the brake controller monitor, or more accurately, the brake controller system itself, comes into play. The Analogy of the Roller Skating Train:Imagine a group of roller skaters in a train. For smooth movement, everyone must maintain a consistent speed and react in unison. If the skater at the front slows down without warning, the momentum of those behind them will cause a pile-up. Similarly, when a truck towing a trailer brakes, the trailer’s inertia can cause it to push against the towing vehicle. A brake controller acts as the 'signal' to the trailer's brakes, ensuring it slows down in sync with the towing vehicle. What is a Brake Controller?A brake controller is an electronic device installed in your towing vehicle that interfaces with both your vehicle's brake system and the trailer's electric brake system. When you press the brake pedal in your truck, the brake controller senses this action and sends an appropriate amount of electrical power to the trailer's brakes. This power activates the trailer's braking mechanism, helping to slow down the entire rig smoothly and safely. Types of Brake Controllers:There are primarily two types of brake controllers: * Time-Based (Inertia) Controllers: These controllers use an internal pendulum or accelerometer to detect the motion and deceleration of the towing vehicle. When you brake, the inertia causes the pendulum to move, triggering the controller to send power to the trailer brakes. The harder you brake, the more the pendulum moves, and the more power is sent. They are generally less expensive but can sometimes be less precise, especially on uneven terrain or when braking at very low speeds. * Proportional Controllers: These are more advanced and sophisticated. They also use an accelerometer to measure the rate of deceleration. However, they send a proportional amount of braking power to the trailer. This means that if you apply 50% braking force in your truck, the controller will apply approximately 50% of the trailer's braking capacity. This results in a much smoother and more controlled braking experience, mimicking the feel of your truck's brakes. Determining Power to Trailer Brakes:Both types of controllers allow you to adjust the overall braking output to the trailer, often via a manual override lever and a power setting dial. The goal is to achieve a balance where the trailer brakes assist your truck's brakes without overpowering them or causing the trailer to skid. This setting is crucial and often requires some trial and error to get right, depending on the weight of the trailer and the road conditions. Installation:Brake controllers are typically wired into your vehicle's electrical system, often connecting to the brake light switch, the vehicle's battery, and the trailer brake connector. Many modern trucks come with a factory-installed wiring harness specifically for brake controllers, making installation much simpler. For older vehicles, or if a factory harness isn't present, a qualified auto electrician or mechanic will be needed to ensure a correct and safe installation.
Why are these Monitors Important?
Both the brake pad life monitor and the brake controller system are critical for your safety and the longevity of your vehicle's braking components. * Safety: Properly functioning brake pads and an effective brake controller ensure you can stop your vehicle and any towed load quickly and safely, reducing the risk of accidents. * Cost Savings: The brake pad life monitor helps you avoid unnecessary replacements by accurately indicating when pads are actually worn. It also prevents damage to rotors that can occur if pads are completely worn down. * Peace of Mind: Knowing the condition of your brake pads and having confidence in your trailer's braking system provides significant peace of mind, especially on long journeys or in challenging driving conditions.
Frequently Asked Questions:
Q1: How often should I check my brake pads?A1: While the brake pad life monitor provides an estimate, it's always good practice to visually inspect your brake pads periodically, especially if you hear any unusual noises or notice changes in braking performance. A mechanic can check them during routine servicing. Q2: Can I install a brake controller myself?A2: If your vehicle has a factory-provided wiring harness for a brake controller, installation can be a DIY project for those with some automotive electrical experience. However, if this harness is not present, it's highly recommended to have it professionally installed to ensure safety and proper function. Q3: What happens if I don't reset the brake pad life monitor after replacing pads?A3: The system will continue to estimate wear based on the old pads, providing inaccurate information about the life remaining on your new pads. This could lead to premature replacement recommendations or a failure to warn you when the new pads actually need replacing. Q4: How do I know if my trailer has brakes?A4: Most trailers over a certain weight capacity are legally required to have brakes. You can usually tell by looking at the trailer's axle assembly; you'll see brake drums or discs on the wheels. You'll also need a 7-way or 4-way trailer connector at the rear of your towing vehicle to power these brakes. Q5: My brake controller seems to be over-braking the trailer. What should I do?A5: This usually means the power output setting is too high. Reduce the power output setting on your brake controller. If the problem persists or you're unsure, consult your vehicle's owner's manual or a professional mechanic specializing in towing systems.
