When you're behind the wheel, few things are as crucial as the ability to bring your vehicle to a safe and controlled stop. While often taken for granted, the braking system is arguably the most vital safety feature in any car. Modern vehicles predominantly rely on disc brake systems, a sophisticated yet highly effective technology designed to convert kinetic energy into thermal energy through friction, allowing for rapid deceleration. This article will delve into the intricacies of disc brakes, exploring their components, operational principles, advantages, and essential maintenance considerations.
Imagine hurtling down the motorway at speed; the moment you press the brake pedal, a complex dance of hydraulics and mechanics springs into action, harnessing immense forces to bring your vehicle to a halt. Disc brakes have become the industry standard due to their superior performance, particularly in terms of heat dissipation and resistance to brake fade, making them a cornerstone of automotive safety and performance.
What is a Disc Brake System?
At its core, a disc brake system consists of a rotating disc, also known as a rotor, which is attached to the wheel hub. When the brakes are applied, a caliper, which houses brake pads, clamps down on this spinning disc. The friction generated between the pads and the disc creates the necessary force to slow down or stop the wheel. This simple yet highly effective principle is what provides your car with its essential stopping power.
Key Components of a Disc Brake System
Understanding the individual parts helps in grasping the system's overall functionality:
- Brake Disc (Rotor): This is a flat, circular metal disc, typically made of cast iron, that is bolted to the wheel hub. As the wheel rotates, so does the disc. When the brakes are applied, the pads clamp onto the disc, and the friction generated slows the wheel.
- Brake Caliper: This component acts like a clamp. It fits over the brake disc and houses the brake pads and one or more pistons. When hydraulic pressure is applied, these pistons push the brake pads against the disc.
- Brake Pads: These are replaceable friction materials, usually made from a composite of various materials, designed to grip the brake disc. They are engineered to withstand extreme heat and wear.
- Brake Fluid: A hydraulic fluid that transmits the force from your brake pedal to the calipers. It operates under immense pressure and must be non-compressible.
- Master Cylinder: Connected to the brake pedal, this cylinder converts the mechanical force from your foot into hydraulic pressure, pushing brake fluid through the lines to the calipers.
- Brake Lines/Hoses: Durable tubes and hoses that carry the hydraulic brake fluid from the master cylinder to the calipers.
How Does a Disc Brake System Work?
The operation of a disc brake system is a marvel of engineering simplicity and efficiency. It begins the moment you press the brake pedal:
- When the brake pedal is depressed, it pushes a piston in the master cylinder.
- This action generates hydraulic pressure in the brake fluid.
- The pressurised brake fluid travels through the brake lines to the calipers at each wheel.
- Inside the caliper, the fluid pressure forces one or more pistons to extend.
- These pistons, in turn, push the brake pads against both sides of the rotating brake disc.
- The friction between the brake pads and the disc converts the kinetic energy of the moving vehicle into thermal energy (heat).
- This conversion of energy slows down the rotation of the wheels, ultimately bringing the vehicle to a halt.
- When the brake pedal is released, the hydraulic pressure drops, and the caliper pistons retract slightly, releasing the brake pads from the disc.
Types of Brake Discs and Calipers
Not all disc brake components are created equal. Manufacturers employ various designs to optimise performance for different vehicle types and driving conditions.
Brake Disc (Rotor) Variations
The design of the brake disc significantly impacts its ability to dissipate heat and perform consistently.
- Solid Discs: These are solid pieces of metal, common on rear axles or lighter vehicles where heat generation is less intense. They are simple and cost-effective.
- Vented Discs: Featuring a series of fins or vents between two disc faces, these are designed to increase surface area and promote airflow, significantly improving heat dissipation. They are standard on front axles and higher-performance vehicles.

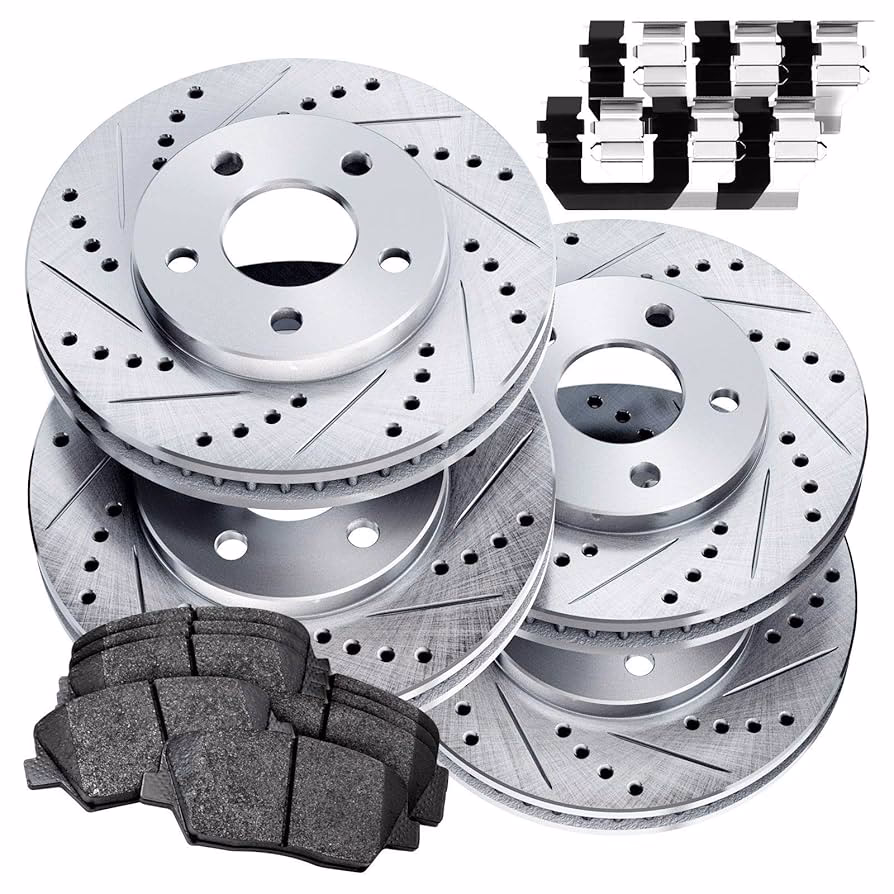

- Drilled Discs: These have holes drilled through the disc surface. The holes help dissipate heat, reduce weight, and provide a path for gases and debris to escape, improving wet weather performance. However, they can be more prone to cracking under extreme stress.
- Slotted Discs: Featuring grooves or slots cut into the disc surface. These slots help wipe away water, gas, and pad dust from the braking surface, maintaining consistent friction and reducing fade. They also provide an audible warning when pads are worn.
Brake Caliper Types
Calipers come in two primary configurations:
- Floating (or Sliding) Calipers: These are the most common type. They have one or two pistons on one side of the disc. When pressure is applied, the piston pushes one pad against the disc, and the entire caliper then slides, pulling the other pad into contact with the opposite side of the disc.
- Fixed Calipers: These calipers are rigidly mounted and do not move. They have pistons on both sides of the brake disc, typically two, four, or even six pistons. When pressure is applied, all pistons simultaneously push the pads against the disc. Fixed calipers offer superior braking power and feel but are more complex and expensive. They are often found on performance and luxury vehicles.
Advantages of Disc Brakes
Disc brakes have largely replaced drum brakes in modern automotive applications due to several key advantages:
- Superior Stopping Performance: Disc brakes offer better modulation and more consistent stopping power, especially during repeated heavy braking.
- Excellent Heat Dissipation: Their open design allows for better airflow, which helps dissipate heat more effectively than drum brakes. This reduces the risk of brake fade, a condition where braking efficiency decreases due to overheating.
- Better Performance in Wet Conditions: The centrifugal force of the rotating disc helps to shed water, maintaining more consistent friction in wet weather compared to drum brakes, where water can get trapped.
- Easier Maintenance and Inspection: Disc brake components are generally more exposed, making visual inspection and pad replacement simpler.
- Self-Adjusting: Disc brakes are inherently self-adjusting as the pads wear, maintaining consistent pedal feel.
While disc brakes offer numerous benefits, it's worth noting that they can sometimes be more prone to noise (squealing) if pads are worn or improperly installed, and their components, especially high-performance variants, can be more expensive than those of drum brakes.
Brake Pad Materials
The material of your brake pads significantly impacts braking performance, noise, and longevity. Here's a brief overview:
| Material Type | Pros | Cons | Typical Use |
|---|---|---|---|
| Organic (NAO) | Quiet, low dust, rotor-friendly | Lower friction, less durable, prone to fade | Standard passenger cars, light duty |
| Semi-Metallic | Good friction, high heat resistance, durable | Noisier, more dust, harder on rotors, can be aggressive when cold | Performance cars, trucks, SUVs |
| Ceramic | Very quiet, low dust, good performance, long life | More expensive, less effective in extreme cold, not for heavy duty | Luxury vehicles, daily drivers wanting clean wheels |
Maintenance and Common Issues
Regular maintenance is paramount for ensuring the safety and longevity of your disc braking system. Ignoring brake issues can lead to dangerous situations and more costly repairs down the line.
When to Replace Brake Pads and Discs
The lifespan of brake pads and discs varies greatly depending on driving style, vehicle type, and material quality. Generally:
- Brake Pads: Most manufacturers recommend checking pads every 10,000-15,000 miles, with replacement typically needed between 20,000 and 60,000 miles. Many modern pads have wear indicators that produce a squealing sound when they are thin.
- Brake Discs: Discs often last longer than pads, but they can warp, crack, or wear thin. They are usually replaced when they fall below a minimum thickness specification or show signs of significant wear or damage. Often, discs are replaced every second pad change, or around 50,000 to 70,000 miles.
Common Brake Issues and Symptoms
- Squealing or Grinding Noise: Squealing often indicates worn pads (wear indicator), while a grinding sound usually means the pads are completely worn down and metal is rubbing on metal, which can severely damage the discs.
- Vibration or Pulsation: A pulsating brake pedal or steering wheel vibration when braking often points to warped brake discs.
- Soft or Spongy Pedal: This could indicate air in the brake lines, low brake fluid, or a failing master cylinder.
- Car Pulling to One Side: Uneven braking force, possibly due to a seized caliper, contaminated pad, or air in one brake line.
- Burning Smell: Overheating brakes, often from heavy braking or a sticking caliper.
Always address any unusual brake symptoms immediately. If in doubt, consult a qualified mechanic.
Frequently Asked Questions About Disc Brakes
Q: How often should I check my brake fluid?
A: Brake fluid should be checked during every service interval, typically annually or every 10,000-12,000 miles. It's also recommended to have the fluid flushed and replaced every 2-3 years, as it can absorb moisture over time, which reduces its boiling point and can lead to corrosion within the system.
Q: What is brake fade and how do disc brakes prevent it?
A: Brake fade occurs when the braking system becomes so hot that it loses its effectiveness, leading to a significant reduction in stopping power. Disc brakes are inherently better at dissipating heat due to their open design and the larger surface area exposed to airflow, especially vented discs. This superior heat management helps to prevent brake fade compared to enclosed drum brake systems.
Q: Can I replace brake pads myself?
A: While it is possible for a competent DIY enthusiast to replace brake pads, it requires specific tools, knowledge of torque settings, and an understanding of the braking system. Incorrect installation can lead to dangerous brake failure. If you are not confident, it is always best to have the work performed by a qualified mechanic.
Q: What's the main difference between disc brakes and drum brakes?
A: The fundamental difference lies in their design and operation. Disc brakes use a caliper to squeeze pads against a rotating disc, while drum brakes use shoes that push outwards against the inside of a rotating drum. Disc brakes offer superior heat dissipation, better resistance to fade, and improved performance in wet conditions, making them the preferred choice for modern vehicles, especially for front wheels where most of the braking force is generated.
Q: Why are my new brakes squealing?
A: New brakes can sometimes squeal for a few reasons. It might be due to the bedding-in process, where the pads and discs are settling into each other. It could also be caused by improper installation, lack of anti-squeal shims or paste, or even specific pad compounds. If the squealing persists after a few hundred miles or is accompanied by grinding, it's best to have them inspected.
In conclusion, the disc brake system is a remarkable piece of automotive engineering that provides the essential safety and control we rely on every time we drive. Its continuous evolution, from basic solid discs to advanced vented and multi-piston caliper designs, underscores the industry's commitment to enhancing vehicle safety. Understanding how these vital components work and adhering to a strict maintenance schedule will ensure your vehicle's braking system remains in optimal condition, giving you peace of mind on every journey.
