Understanding MOT Sub Base Stone

When embarking on any significant construction project, whether it’s laying a new driveway, building a garden path, or even constructing a car park, the foundation is paramount. Just as a sturdy skeleton supports the body, a robust sub base supports the entire structure above it. In the United Kingdom, one of the most commonly specified and trusted materials for this critical layer is MOT sub base stone. But what exactly is it, and why is it so essential for achieving a long-lasting, stable surface?

Understanding MOT sub base stone is key to ensuring the longevity and performance of your outdoor projects. It’s not just any pile of rocks; it's a precisely graded aggregate designed to meet specific standards, providing unparalleled stability, excellent drainage, and superior load-bearing capacity. This article will delve into the specifics of MOT sub base, clarify its various types, explain its vital role, guide you through its application, and answer common questions to help you confidently tackle your next groundwork endeavour.

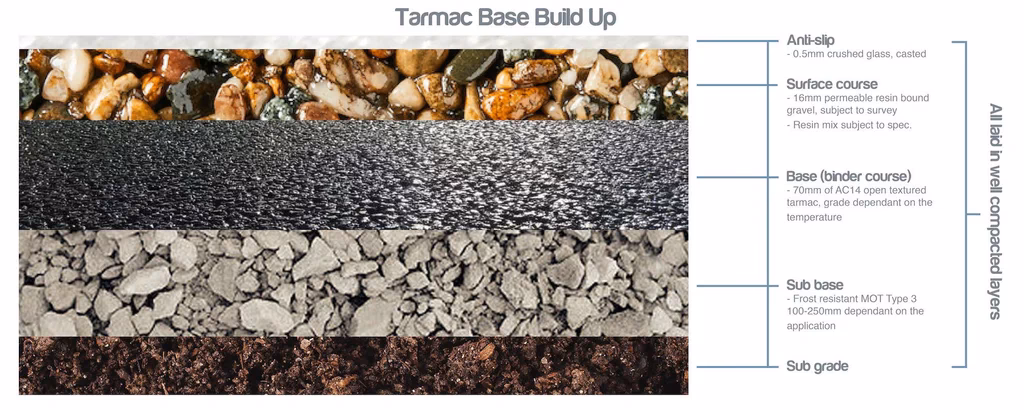

What Exactly is MOT Sub Base Stone?

MOT sub base stone, often simply referred to as 'MOT Type 1' or 'MOT Type 3', is a crushed aggregate material primarily used as the foundational layer for roads, driveways, paths, and other paved surfaces. The 'MOT' in its name stands for Ministry of Transport, indicating that the material meets specific standards set by the former Ministry of Transport (now Department for Transport) for use in highway construction. These standards ensure the material has the correct particle size distribution, strength, and compaction properties required for high-performance sub bases.

The material itself is typically made from crushed rock, concrete, or a blend of both, which is then screened to achieve a specific grading curve. This means the aggregate contains a range of particle sizes, from fine dust to larger stones (typically up to 40mm). This varied particle size is crucial because it allows the material to interlock tightly when compacted, creating a dense, stable, and strong layer that can effectively distribute weight and prevent subsidence.

There are generally two main types of MOT sub base stone commonly used:

• MOT Type 1: This is the most widely used and versatile sub base material. It consists of crushed aggregates, typically limestone, granite, or recycled concrete, graded from 40mm down to dust. The presence of fines (dust) allows it to bind together exceptionally well when compacted, forming a very strong and stable, albeit less permeable, layer. It’s ideal for heavy-duty applications where maximum strength and load-bearing capacity are required, such as driveways, car parks, and major roads.
• MOT Type 3 (Permeable Sub Base): Also known as 'permeable sub base' or 'reduced fines aggregate', Type 3 is similar to Type 1 but with a significantly reduced content of fine particles. This makes it more open-graded, allowing water to pass through it more freely. It's specifically designed for applications where drainage is a critical concern, such as Sustainable Urban Drainage Systems (SUDS), permeable paving systems, or areas prone to waterlogging. While still providing excellent stability, its reduced fines content means it might not achieve the same ultimate strength as Type 1 under extreme loads, but its permeability is a significant advantage in certain scenarios.

Why is Sub Base Crucial for Your Project?

The sub base layer is arguably the most critical component of any hard-standing surface. Its importance cannot be overstated, as it performs several vital functions that directly impact the longevity and performance of the finished project:

• Load Distribution: The primary role of the sub base is to spread the applied load distribution from the surface (e.g., vehicles, pedestrians) evenly over the weaker natural ground beneath. Without a proper sub base, concentrated loads can cause the ground to deform, leading to cracks, dips, and ultimately failure of the surface material (like block paving or asphalt).
• Stability and Support: It provides a stable, unyielding platform upon which the subsequent layers (e.g., bedding layer, surface course) can be laid. This prevents movement, settlement, and rutting of the top surface, ensuring a smooth and level finish that lasts.
• Drainage: While Type 1 offers some drainage, Type 3 excels in this area. A well-designed sub base system, especially with permeable options, can manage water effectively by allowing it to filter through and dissipate into the ground or a drainage system, preventing water accumulation, frost heave, and erosion.
• Frost Protection: In colder climates, water trapped beneath a surface can freeze, expand, and cause the ground to heave, lifting and cracking the surface above. A good sub base, particularly one with effective drainage, helps to minimise the amount of trapped water, thereby reducing the risk of frost heave damage.
• Protection of Utilities: If there are underground pipes or cables, the sub base can offer a protective layer, cushioning them from surface loads and potential damage.

Choosing the Right MOT Sub Base Type

Selecting between MOT Type 1 and MOT Type 3 depends entirely on the specific requirements of your project. Here’s a comparative breakdown to help you decide:

For most standard driveways and general hard standings where you want maximum strength and will manage surface water runoff separately, MOT Type 1 is the go-to choice. However, if your project involves permeable paving, is part of a SUDS scheme, or you have significant concerns about water management and wish to avoid traditional drainage systems, MOT Type 3 is the superior option due to its high permeability.

The Installation Process: Laying Your Sub Base

Proper installation of the MOT sub base is just as important as choosing the correct material. A poorly laid sub base will compromise the entire project, regardless of the quality of the top surface. Here’s a general guide to the installation process:

1. Excavation: Dig out the area to the required depth, accounting for the sub base, bedding layer, and surface course. Ensure the subgrade (the natural ground beneath) is firm and level. Remove any soft spots, organic matter, or debris.
2. Geotextile Membrane (Optional but Recommended): For some projects, especially with Type 3 or on weaker subgrades, laying a geotextile membrane directly on the excavated subgrade is beneficial. This fabric prevents the sub base from mixing with the underlying soil, maintains the sub base's integrity, and aids in drainage.
3. Laying the Sub Base: Tip the MOT sub base material into the excavated area. Spread it evenly using rakes or shovels to achieve the desired thickness. It's often recommended to lay the sub base in layers (known as 'lifts') of no more than 100-150mm at a time, especially for thicker applications.
4. Compaction: This is the most crucial step. Each layer of sub base must be thoroughly compacted using a plate compactor (also known as a 'whacker plate') or a vibrating roller for larger areas. Pass the compactor over the entire surface multiple times in different directions until the material is dense and no longer moving under the compactor. You should aim for a solid, unyielding surface. A well-compacted sub base will feel incredibly firm underfoot and won't show indentations.
5. Levelling and Grading: Continuously check the levels and falls (slopes for drainage) during compaction. Ensure the sub base is laid to the correct gradients to direct water away from structures or towards drainage points.
6. Edge Restraints: Before laying the final surface, ensure that appropriate edge restraints (e.g., concrete haunching, kerbs, or plastic edging) are installed to contain the sub base and surface layers, preventing lateral movement and ensuring stability.

Common Applications of MOT Sub Base

MOT sub base stone is a ubiquitous material in construction due to its versatility and performance. Its applications are broad and varied:

• Driveways: The most common domestic application, providing the essential strength to support vehicles without rutting or sinking.
• Car Parks: For commercial or public car parks, a robust MOT Type 1 sub base is critical to handle constant vehicle traffic and static loads.
• Roads and Highways: As its name suggests, it's a fundamental component in the construction of new roads and the repair of existing ones, forming the bulk of the road's structural layers.
• Patios and Paths: Even for pedestrian areas, a well-compacted sub base prevents paving slabs or block pavers from sinking or becoming uneven over time.
• Foundations for Outbuildings: Shed bases, conservatories, and small extensions often utilise MOT Type 1 as a stable, load-bearing foundation.
• Sports Pitches: Particularly for artificial turf pitches, MOT Type 3 is often used to ensure excellent drainage and a stable playing surface.
• SUDS Compliant Areas: Any project requiring permeable surfaces, such as permeable block paving or gravel grids, will almost certainly specify MOT Type 3 to manage stormwater runoff naturally.

Maintenance and Longevity

Once properly installed, an MOT sub base layer requires virtually no ongoing maintenance itself. Its durability is inherent in its composition and the compaction process. The key to its longevity lies in the initial preparation and installation. Ensuring adequate depth, thorough compaction, and proper drainage for the overall system will guarantee that the sub base continues to provide a stable, long-lasting foundation for decades. Any issues with the top surface, such as cracking or sinking, can often be traced back to inadequate sub base preparation or drainage problems.

Frequently Asked Questions About MOT Sub Base Stone

Q: What does 'MOT' stand for in MOT Sub Base?
A: In this context, 'MOT' stands for Ministry of Transport. It refers to the specifications and standards set by the former UK Ministry of Transport for aggregates used in the construction of roads and other paved areas. It ensures the material meets specific criteria for grading, strength, and performance, distinguishing it from general crushed stone.

Q: How deep should my MOT sub base be?
A: The required depth varies significantly depending on the intended use and anticipated load. For a pedestrian path, 75-100mm (3-4 inches) might suffice. For a domestic driveway, 150-200mm (6-8 inches) is generally recommended. For heavy-duty commercial car parks or roads, depths can exceed 300mm (12 inches) or more. Always consult with a professional or refer to specific design specifications for critical projects.

Q: Can I use any type of crushed stone as a sub base?
A: While some crushed stone might offer a degree of stability, it's highly recommended to use a material that meets MOT specifications (Type 1 or Type 3). These materials are specifically graded to ensure optimal interlocking and compaction, providing superior strength, stability, and drainage compared to ungraded or 'all-in' aggregates. Using non-specified materials can lead to premature failure of your paved surface.

Q: Do I need a geotextile membrane under the sub base?
A: A geotextile membrane (also known as a 'terram' or 'weed control fabric' for certain applications) is not always strictly necessary but is highly recommended in many situations. It serves two main purposes: it prevents the sub base material from migrating into the underlying soil (especially on softer ground), and it stops fines from the subgrade contaminating the sub base, which can compromise its drainage and strength. It's particularly beneficial with MOT Type 3 to maintain its permeability.

Q: How do I compact MOT sub base effectively?
A: Effective compaction is crucial. For smaller areas like paths, a hand tamper might work, but for driveways and larger areas, a plate compactor (whacker plate) is essential. For very large projects, a vibrating roller is used. Lay the sub base in layers (lifts) of no more than 100-150mm at a time, and compact each layer thoroughly, making multiple passes in different directions until the material is dense and stable. You should not be able to easily push a shovel into it, and it should feel very firm underfoot. Lightly wetting the material can sometimes aid compaction, especially with Type 1.

Q: Can MOT Type 1 be used for permeable paving?
A: While MOT Type 1 can be used as a sub base for permeable paving, it is not ideal for the permeable function itself. Its high fines content means it has low permeability and will not allow water to drain through it effectively. For true permeable paving systems, MOT Type 3 is the correct choice as it is specifically designed to allow water to pass through freely, fulfilling the SUDS (Sustainable Urban Drainage Systems) requirements.

Q: How is MOT sub base delivered and stored?
A: MOT sub base is typically delivered in bulk bags (often 800-1000kg) for smaller projects or by the tonne in loose loads via tipper lorries for larger jobs. It should be stored on a hard, clean, and level surface, ideally on a tarp or within a designated area to prevent contamination with soil or other debris. While it's resistant to weather, keeping it covered can prevent excessive dust or mud if it's going to be stored for an extended period.

In conclusion, MOT sub base stone is far more than just crushed rock; it is a meticulously engineered material that forms the bedrock of durable construction projects across the UK. Its role in providing structural integrity, stability, and drainage cannot be overstated. By understanding its types, applications, and the importance of proper installation, you can ensure that your next project, whether a simple garden path or a busy driveway, is built to last, providing years of reliable service and performance.
