The Kawasaki Ninja 300, a motorcycle that redefined the quarter-litre category and solidified Kawasaki's dominance in the beginner sportbike market, is celebrated for its accessible power, refined handling, and surprisingly potent performance. While its engine and chassis upgrades garnered significant attention, the importance of its braking system cannot be overstated. For any rider, whether commuting daily or pushing limits on a track, understanding the nuances of your Ninja 300's brakes – particularly the brake pads – is paramount to ensuring both safety and exhilarating performance. This guide will delve into the standard brake pad configurations, explore upgrade options for enhanced stopping power, and provide essential maintenance insights to keep your Ninja performing at its best.
Understanding Your Ninja 300's Standard Braking System
The Kawasaki Ninja 300, introduced in 2013, brought a host of improvements over its 250cc predecessor, including advancements in its braking capabilities. At its core, the Ninja 300 features a robust single 290mm wave-type disc at the front and a 220mm wave disc at the rear, both paired with twin-piston calipers. This setup provides ample stopping power for most road conditions and rider skill levels, especially for a bike designed with newer riders in mind.
However, what's particularly interesting is Kawasaki's strategic choice of brake pad materials based on the model variant. Standard Ninja 300 models are equipped with resin brake pads for both the front and rear. These organic pads are generally known for their softer initial bite, quieter operation, and less aggressive wear on the brake discs. They offer a lever feel that engineers deemed suitable and predictable for new riders, contributing to a confidence-inspiring experience.
In contrast, Ninja 300 models equipped with the optional Anti-lock Braking System (ABS) feature a different front pad material. These ABS-equipped bikes come with sintered pads at the front. Sintered pads are metallic-based, offering superior stopping power, higher heat resistance, and better performance under aggressive braking conditions, such as those encountered on a track or during emergency stops. Kawasaki's decision to fit sintered pads specifically to the front of ABS models suggests a calibration aimed at balancing maximum stopping power with the safety net provided by the ABS unit. While the standard model's resin pads offer a firmer lever feel and more direct feedback, some riders might find the rear brake prone to locking under lighter pressure, highlighting the benefits of ABS, especially for less experienced hands.
Resin vs. Sintered: What's the Difference and Why It Matters
The choice between resin (organic) and sintered (metallic) brake pads significantly impacts a motorcycle's braking performance, feel, and longevity. Understanding these differences is crucial when considering replacement or upgrade options for your Ninja 300.
| Feature | Resin (Organic) Brake Pads | Sintered (Metallic) Brake Pads |
|---|---|---|
| Composition | Organic compounds (e.g., rubber, glass, carbon, Kevlar) with binders. | Metallic particles (e.g., copper, iron, bronze) compressed and heated. |
| Braking Power | Good initial bite, suitable for street use. Can fade under high heat. | Stronger, more consistent stopping power, especially at higher temperatures. |
| Heat Resistance | Lower; more prone to fading during heavy, continuous braking. | Higher; maintains performance under extreme heat and repeated braking. |
| Rotor Wear | Kinder to brake discs, less abrasive. | More abrasive, can lead to faster disc wear over time. |
| Noise | Generally quieter operation. | Can be noisier, sometimes producing a squeal. |
| Lever Feel | Softer, more progressive feel. | Firmer, more direct, and aggressive feel. |
| Longevity | Generally shorter lifespan, especially under aggressive riding. | Longer lifespan, more durable. |
| Best Use | Daily commuting, light touring, general street riding. | Aggressive street riding, track days, performance-oriented riding. |
For Ninja 300 owners, especially those venturing onto the track or engaging in spirited road riding, the limitations of standard resin pads can become apparent. The experience of the brake lever coming 'all the way to the handle' with reduced braking power is a classic sign of pad fade due to heat, or simply pads that are not designed for high-performance demands. This is precisely why upgrading to sintered pads, or a high-performance semi-metallic equivalent, can be a game-changer for riders seeking more responsive and reliable stopping power.
When to Consider a Brake Pad Upgrade for Your Ninja 300
If you've noticed that your Ninja 300's brakes feel 'lacklustre', particularly during spirited rides or track sessions, it's a strong indicator that an upgrade is in order. Signs that your pads are past their prime or simply not up to your riding demands include:
- Reduced braking efficiency, requiring more lever pressure to achieve the same stopping force.
- A spongy or excessively long brake lever travel.
- Unusual noises like squealing or grinding (though some performance pads can be noisier).
- Visible wear indicators on the pads, or a pad thickness below the manufacturer's minimum specification.
- Grooves or discolouration on the brake discs, indicating excessive heat or wear.
For riders who frequently visit karting tracks or engage in aggressive street riding, the standard resin pads, while adequate for beginners, may quickly become a limiting factor. Moving to a more performance-oriented pad, such as sintered pads (especially for the front), will provide a significant boost in stopping power, consistency, and fade resistance. This is crucial for maintaining control and confidence when braking hard from higher speeds or during repeated heavy braking events.
When seeking to extract the best performance from your Ninja 300's factory brake system, even at the expense of some longevity, focusing on higher-performance brake pad materials is key. Given that your Ninja 300 already benefits from steel braided lines, you've already taken a crucial step towards improving brake feel and reducing line expansion under pressure. This upgrade ensures that the force you apply to the lever is more directly translated to the calipers, making any subsequent pad upgrade even more effective.

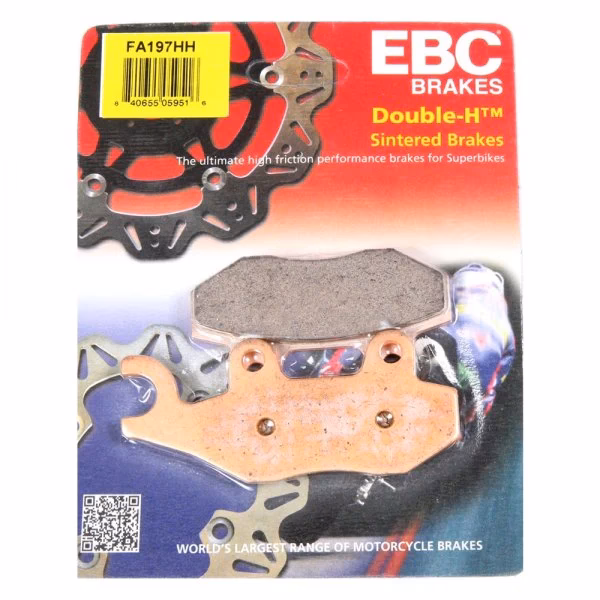

For track use and aggressive road riding, sintered pads are generally the preferred choice for the front. They offer a much higher friction coefficient and greater heat resistance, allowing for later and harder braking without significant fade. While your ABS model may already have sintered pads at the front, aftermarket sintered pads often offer even greater performance. For the rear, while less critical than the front, upgrading from resin to a sintered or high-performance organic/semi-metallic pad can also provide a more balanced feel and better control, particularly if you find yourself locking the rear wheel too easily with the stock setup.
It's important to remember that upgrading to more aggressive pads might slightly increase brake disc wear over time, but for riders prioritising performance and safety in demanding conditions, this is often a worthwhile trade-off. Your decision to keep the ABS system is sensible, as the Ninja 300's Nissin ABS unit is notably lightweight and effective, providing an invaluable safety net without overly compromising performance, even with more aggressive pads.
Replacing Your Brake Pads: A Practical Guide
Replacing brake pads on your Kawasaki Ninja 300 is a manageable task for the competent home mechanic, provided you have the right tools and follow the correct procedures. Here's a general outline of the process:
- Gather Your Tools: You'll need a 3/8-inch drive ratchet, a 3/8-inch torque wrench, appropriate hex sockets for the caliper bolts, channel lock pliers (or a piston spreader tool), new brake pads, and brake cleaner.
- Prepare the Bike: Ensure the bike is stable on a stand. For the front brake, you may need to loosen the caliper mounting bolts slightly before lifting the wheel off the ground if access is tight.
- Remove the Caliper: Locate the two hex bolts that secure the brake caliper to the fork. Using your 3/8-inch drive and appropriate socket, carefully unbolt the caliper. Do not let the caliper hang by the brake line; support it to prevent damage to the line.
- Remove Old Pads: Once the caliper is unbolted, you'll see the brake pads held in place by one or two pins. Carefully slide these pins out. The old pads should then be easily removed. Note their orientation for reference when installing the new ones.
- Retract Pistons: Before installing new, thicker pads, you'll need to gently push the caliper pistons back into their bores to create space. For the Ninja 300's relatively small pistons, you can often squeeze them in with your hand. Alternatively, use channel lock pliers with a cloth to protect the piston surface, or a dedicated piston spreader tool, slowly and gently pushing them in. Be mindful that pushing pistons back will cause brake fluid to rise in the reservoir; check the level and remove any excess if necessary to prevent overflow.
- Install New Pads: Slide the new brake pads into the caliper, ensuring they are correctly seated and oriented. Reinsert the retaining pins to hold them in place.
- Reinstall Caliper: Carefully position the caliper back onto the brake disc and align it with the mounting points on the fork. Reinsert and hand-tighten the hex bolts.
- Torque Bolts: This is a critical step. Using your 3/8-inch torque wrench, tighten the caliper mounting bolts to the manufacturer's specified torque settings. Do not overtighten, as this can make them difficult to remove in the future and potentially damage threads.
- Pump the Brake Lever: Before riding, repeatedly squeeze the brake lever (or press the foot pedal for the rear) a few times. This will push the caliper pistons out, seating the new pads against the disc. You should feel the lever firm up. Check for any leaks around the caliper.
The Crucial Step: Bedding In New Pads
Once your new brake pads are installed, they are not immediately at their optimal performance. They require a 'bedding in' process to transfer a layer of friction material from the pads onto the brake disc. This process ensures consistent braking, reduces noise, and maximises pad life. Neglecting this step can lead to reduced braking performance, premature wear, and even brake fade.
While specific procedures may vary slightly by pad manufacturer, a common bedding-in process involves a series of progressively harder stops. Typically, this means performing around 10-15 moderate stops from approximately 30-40 mph (around 50-65 km/h) down to about 5-10 mph (8-16 km/h), allowing the brakes to cool slightly between each stop. Avoid coming to a complete stop or holding the brakes on after a hard stop, as this can imprint pad material unevenly onto the rotor, leading to judder. After this initial series, allow the brakes to cool completely for at least 30 minutes before any aggressive riding. You'll notice the braking performance improve significantly as the pads bedding in.
Frequently Asked Questions About Ninja 300 Brake Pads
Q: Can I use sintered pads on both the front and rear of my Ninja 300?
A: Yes, you can. While the front brake is responsible for the majority of stopping power, using sintered pads on both ends can provide a more balanced and consistent braking feel, especially for track use. Be aware that sintered pads are more aggressive and may lead to slightly faster rotor wear compared to resin pads.
Q: Do I need to replace my brake discs when changing pads?
A: Not always. You should inspect your brake discs for wear, particularly checking their thickness against the manufacturer's minimum specification (often stamped on the disc itself). If the disc is below this minimum, or if it shows excessive grooving, warping, or discolouration, it should be replaced. If the discs are within specification and in good condition, only the pads need changing.
Q: Will changing to aftermarket performance pads affect my ABS system?
A: No, changing to compatible aftermarket performance pads should not negatively affect your ABS system. The ABS unit reacts to wheel speed differences and modulates pressure accordingly, regardless of the pad material, as long as the pads fit correctly and function as intended within the caliper.
Q: How often should I check my brake pads?
A: It's advisable to visually inspect your brake pads regularly, perhaps every 3,000-5,000 miles (5,000-8,000 km) or during routine maintenance. Your riding style significantly impacts pad wear; aggressive riding or frequent track use will necessitate more frequent checks and replacements.
Q: What's the benefit of having steel braided brake lines?
A: Steel braided brake lines replace the standard rubber lines, which can expand under hydraulic pressure, leading to a spongy lever feel. Steel braided lines resist this expansion, providing a firmer, more consistent, and direct lever feel, allowing for better modulation and control during braking. You've already made a smart upgrade here!
Conclusion
The Kawasaki Ninja 300 is an incredibly capable machine, and optimising its braking system is key to unlocking its full potential, whether on the road or the track. Understanding the different types of brake pads – resin for gentle street use and sintered for more aggressive performance – allows you to make an informed decision tailored to your riding style. If you're experiencing 'lacklustre' braking, an upgrade to higher-performance pads, complemented by existing steel braided lines, will dramatically enhance your stopping power and confidence. Remember to always use the correct tools, follow proper replacement procedures, and critically, ensure your new pads are correctly bedded in. With the right pads and diligent maintenance, your Ninja 300's brakes will be sharp, responsive, and ready for whatever the road throws at them, providing you with a safer and more enjoyable riding experience.
